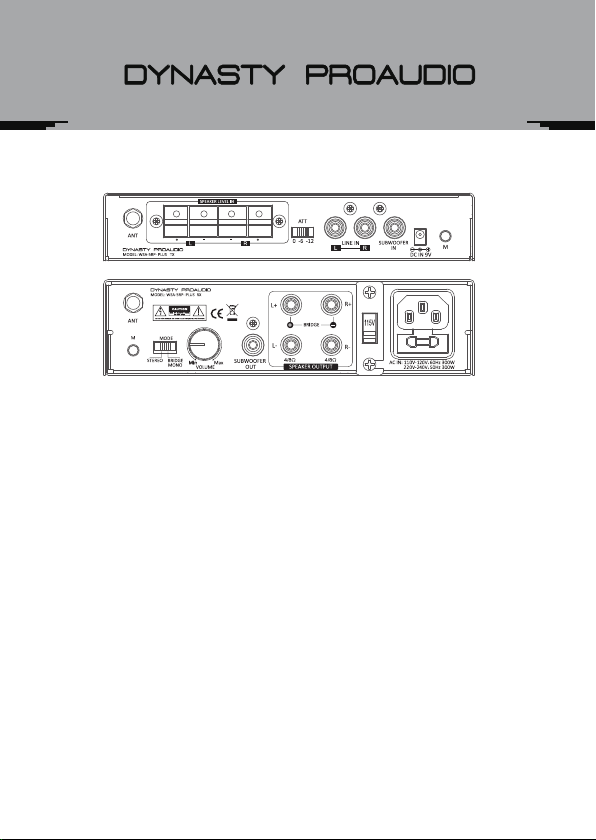

Dynasty ProAudio WSA-5RP-PLUS Manuale utente

1. Transmitter

2. Receiver (built-inamplifier)

3. 9V AC Adapter (for transmitter)

Features:

Package Contents:

5. 6-foot Speaker Wires (2)

6. Owner’s Manual

*Lossless Audio-5.2&5.8GHzselectabledigital wireless withan advanced channelselection for nearlossless

audio, provides excellenttransmission stability

*WideRange -Up to 100 ft (30M)operationaldistance betweentransmitter andreceiver (line of sight)

*HighPerformance -24-bit48KHzfull CD qualityhighresolution/uncompressedaudio

*Works withany AV receiver or power amplifier -Speaker Line Level Input &Stereo RCAInput

*Highefficiency2x100W RMS class Damplifier built-into connects directlyto any passive bookshelf or the

rearsurroundsoundloudspeakers

*An additionalsubwoofer monoinput andoutput for connecting betweenAV Receiver andPower/Active

Subwoofer Speaker or Subwoofer Amplifier

4. Power Cord (for receiver)

Tired of running cables around doors orhiding under carpetto connect your rear surround speakers and

subwoofer to the receiver? Or having limited optionson rear surround speakers and subwoofer placement

due to cable length and componentlocation? The WSA-5RP-PLUS providing premium-quality audio for stereo

audio applicationsoperating in the 5.2G/5.8GHz bandswith 2 x 100 W low-hear class D ampliﬁer built-in.

Simplyconnect the transmitter module to you're A/V processor and the receiver to your passive bookshelf /

rear surround sound speakersand powered/active subwoofer

5.2G/5.8GWIRELESS SURROUND SOUND REAR SPEAKERKIT /2x100WAMPLIFIER BUILT-IN

WSA-5RP-PLUS /WSA-5RP-PLUS-RX

-2-

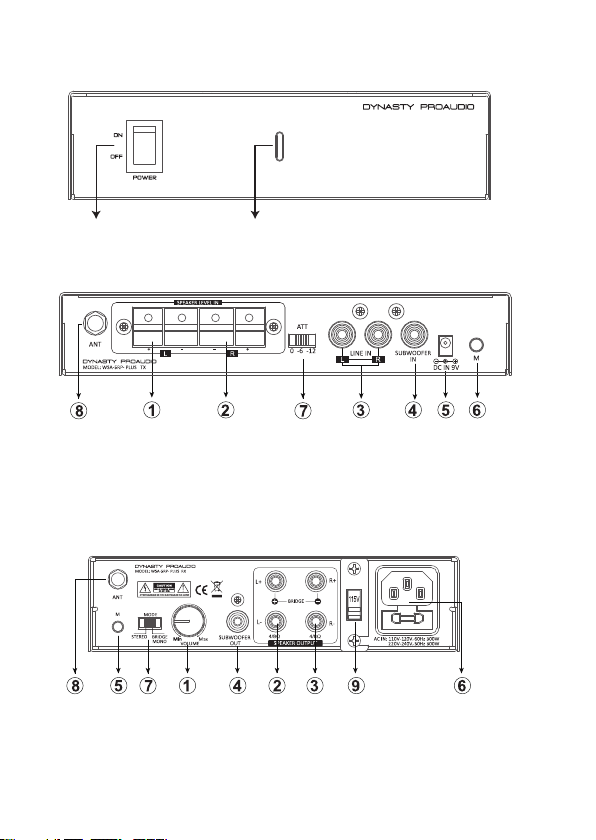

WSA-5RP-PLUS Wireless Transmitter (Front View)

WSA-5RP-PLUS Wireless Transmitter (Back View)

WSA-5RP-PLUS Wireless Receiver (Back View)

Power/Status Indicator LEDPower Switch

1. Left Speaker Level Audio Input Terminals

2. Right Speaker Level Audio Input Terminals

3. Line-In Level Audio Input

4. Subwoofer Signal Audio Input

1. Volume Control Knob

2. Left Speaker Output Terminal

3. Right Speaker Output Terminal

4. Subwoofer Signal Output

5. M Paring Button

6. IEC Power Receptacle & AC Fuse/Holder

7. Stereo / Bridge Mode Selection

8. Wireless Antenna

9. Multi Voltage Selector Switch 115V ( or 230V)

5. DC-IN Jack (9V)

6. M Paring Button

7. Output Gain Switches

8. Wireless Antenna

1. Using the included 6-foot speaker wire, connect the right rear speaker terminals of

your home theater receiver to the right speaker terminals of the wireless transmitter

by connecting the red wire to the red (+) terminals, and the black wire to the black (-)

terminals.

2. Connect the left rear speaker terminals of the home theater receiver the same way.

3. Connect the supplied AC adaptor (9V, 200MA) to DC IN 9V jack, then plug it into a

standard household outlet (Caution: To avoid risk of ﬁre, and to prevent damage, only

use the supplied power adapters)

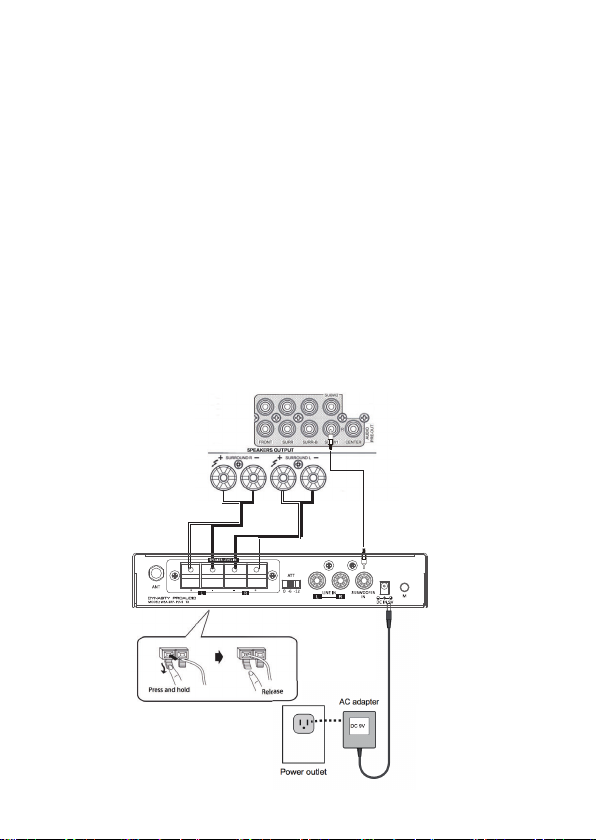

Application A. Connect the transmitter via SPEAKER LEVEL IN:

-3-

Install the WSA-5RP-PLUS Wireless Transmitter

4. (Optional Connection) connect the Subwoofer Output (or LFE) from your AV receiver

/ampliﬁer to the WSA-5RP-PLUS transmitter Subwoofer Input

(The WSA-5RP-PLUS wireless transmitter can be connected via SPEAKER-LEVEL-IN

or LINE-IN Audio with your AV Receiver /Amplifier, when the RCA cables are

connected, audio input from the speaker terminal will be mixed, make sure your

home theater AV receiver /ampli er is power on while connecting the speaker kit.

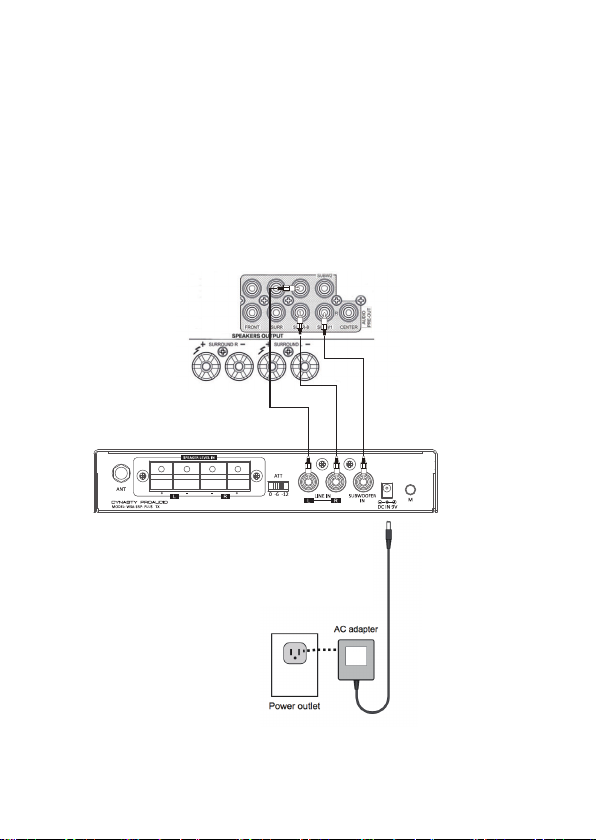

Application 2. Connect the transmitter via LINE IN:

-4-

3. (Optional Connection) connect the Subwoofer Output (or LFE) from your AV receiver

/ ampliﬁer to the WSA-5RP-PLUS wireless transmitter Subwoofer Input

DC9V

2. Connect the supplied power cord, then plug it into astandard household outlet

(Caution: To avoid risk of ﬁre, and to prevent damage, only use the supplied power

adapters)

Install the WSA-5RP-PLUS Wireless Transmitter (Option 2)

1. Connect your WSA-5RP-PLUS wireless transmitter to the ampliﬁer’s RCA output ports

with RCA cables

-5-

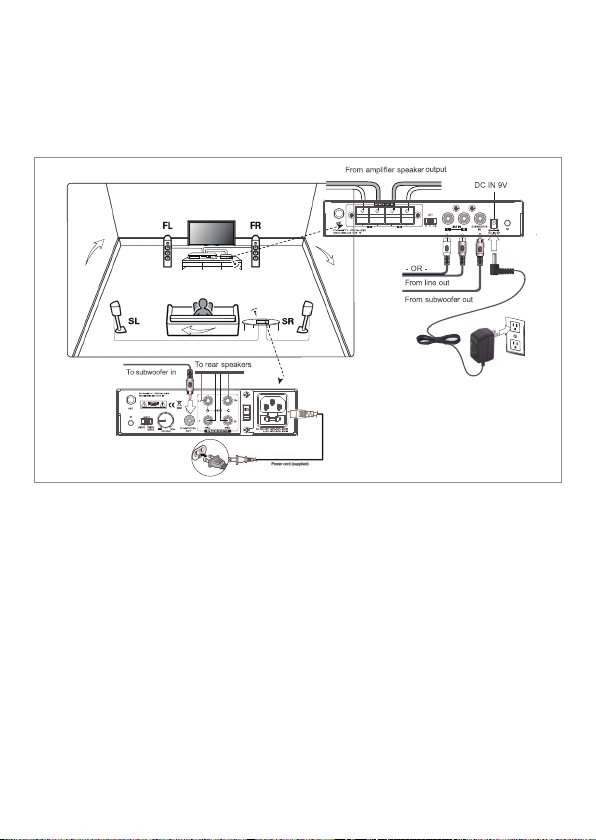

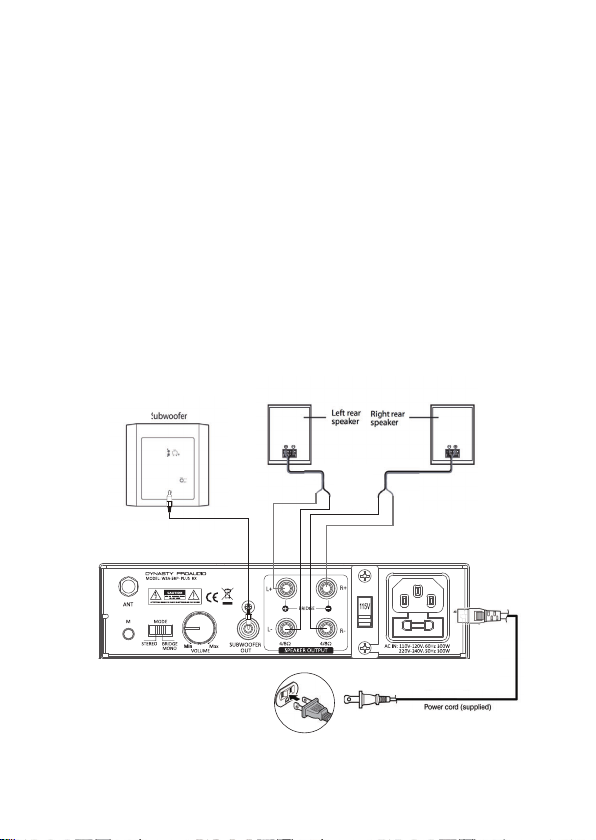

Install the WSA-5RP-PLUS Wireless Receiver

1. Connect the right speaker to the right speaker terminals of the WSA-5RP-PLUS wireless

receiver, and the left speaker to the left speaker terminals.

2. If the speaker wires are attached to the speakers already, connect the positive (+) wire

from the right speaker to the red (+) terminal for the right speaker on the

WSA-5RP-PLUS wireless receiver and the negative (-) wire from the right speaker to

the black (-) terminal for the right speaker on the WSA-5RP-PLUS wireless receiver

3. Connect the left speaker the same way *Make sure the exposed tips of the speaker

wires don’t touch each other, and make sure they are fully inserted into the terminals

4. (Option) Place the active/powered subwoofer speaker at its intended location (refer to

your subwoofer owner’s manual), and using the mono RCA cable to connect the

WSA-5RP-PLUS wireless receiver’s subwoofer output to your subwoofer audio input.

5. Connect the AC power input of the WSA-5RP-PLUS wireless receiver with the supplied

power cord then plug it into a standard household outlet

(ATTENTION:Connect the ampliﬁer receiver to the power cord BEFORE connecting the

power cord to the power outlet to avoid sparks due to rush-in current)

-6-

For best reception performance, we recommend that the WSA-5RP-PLUS wireless transmitter

and receiver must be placed within 100 feet line of sight for proper operation. If no line of

sight is possible, place the transmitter and receiver such that there is the minimum possible

number of walls and obstacles between the transmitter and receiver.

We suggest that you place the WSA-5RP-PLUS wireless transmitter on top (or beside) of

your audio source (AV receiver / ampliﬁer), If no line of sight is possible, place the

WSA-5RP-PLUS wireless transmitter and receiver such that there is the minimum possible

number of walls and obstacles between the transmitter and receiver.

You can mount the WSA-5RP-PLUS wireless receiver vertically by using the 2 screw

openings at the bottom. If the receiver is mounted vertically, the operating range is

reduced compared to mounting the receiver right side up.

We suggest that you experiment with placement in order to ﬁnd the best location for

the WSA-5RP-PLUS wireless transmitter and receiver

Note: This product will not work properly from within an enclosed metal cabinet.

-7-

Operating the WSA-5RP-PLUS wireless speaker kit system

* Set the WSA-5RP-PLUS wireless receiver s volume control to a low level to prevent clipping inside

the amplier

* Set your audio source to output the maximum audio level that you will encounter during normal

operation such that both the left and right channel are balanced.

* If you are using the 5.1/7.1 AV receiver with WSA-5RP-PLUS wireless speaker kit, please make

sure to set “MULTI ST ”mode on your AV receiver to turn on the rear surround speaker output

(there will be no sound if you select the 2CH STEREO or DIRECT mode)

1. Once the wire connection has been done on both WSA-5RP-PLUS wireless transmitter &

receiver as page 3~5 , and the AC adapters are connected. Turn on the power switch on the

front panel, the LEDs light BLUE (as 5.8GHz mode with factory default setting) on both

transmitter and receiver are paired and enters standby mode.

2. Turn on your AV receiver / ampliﬁer and then play the audio or video source through your

ampliﬁer

3. The volume control on the WSA-5RP-PLUS wireless receiver is only used to adjust the

balance of the volume between the front and rear surround speakers. After the system is set

up, we recommend that you adjust the best volume to match the balance with your center

and front left/right speakers in the ﬁrst time installation (after balance setup, simply use the

volume control on your AV receiver / ampliﬁer to adjust the master speaker volume during

the playback)

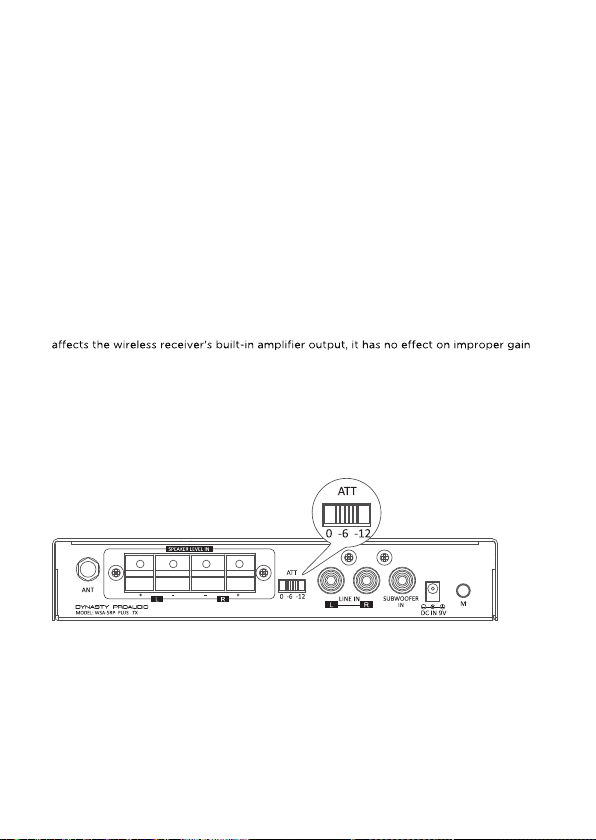

4. Adjusting Transmitter Gain The gain switched can be adjusted that depends on which audio

input connection you selected (Speaker Level In or RCA Line In), audio sources (movie,

music, gaming), or if you would like to do the easy adjust the sound output balance between

the front speakers and rear surround speakers.

Even the WSA-5RP-PLUS wireless receiver has the output level control, but this control only

adjustment in the transmitter. If distortion or poor signal-to-noise is occurring in the

transmitter from the original sound signal thru the AV receiver, then the audio output level

can be easy adjusted via the Gain Switches on the WSA-5RP-PLUS wireless transmitter from

0dB, -6dB and -12dB, without re-programe the sound level controls thru the AV receiver.

For example, when the volume controls and playback loudness for your surround sound

speakers has been set on the AV Receiver menu and the Gain switches is at “-6dB" position

on the WSA-5RP-PLUS wireless transmitter. Once you switch to 0dB position, the rear

surround sound speaker playback volume will be slightly louder. On the contrary, the rear

surround sound speaker’s volume will be decreased once it set to “-12dB” position.

In order for the transmitter to transmit to receiver, they need to be paired. If the front

panel LEDs are blinking on one or both units, do the following:

Flashing Slowly: No paired wireless device detected

Flashing Quickly: Pairing Mode

Solid Blue: 5.8G mode (as at factory default)

Solid Green: 5.2G mode (optional setup)

Description of the network status LED light

-8-

We use the latest 5.8G wireless technology connection with 62 channels auto selection

from RF channel 5727~5848, which are not easily disturbed by 2.4G (the frequency

band of bluetooth and WIFI) and have excellent transmission stability, also avoids and

decrease possibility of interference from the wireless networks routers, cell phone,

garage doors, R/Cs, and other 2.4G/5.8GHz frequency devices. However, if you

experience any interference in the 5.8G mode, you could try to use the 5.2G mode with

44 RF channel 5157~ 5243 (option)

2. Ensure both the Transmitter and Receiver show the same LED colour.

the 5.8GHz (blinking Blue LED) channels, and the 5.2GHz (blinking Green LED)

4. Successful pairing is indicated by asolid Blue (or Green) LED on both the Transmitter

and Receiver.

Pairing the WSA-5RP-PLUS transmitter and wireless amplifier receiver

The WSA-5RP-PLUS wireless Transmitter and Receiver are automatically paired and

synced at the factory, both LEDs should be solid Blue in 5.8G mode as default when

powered on.

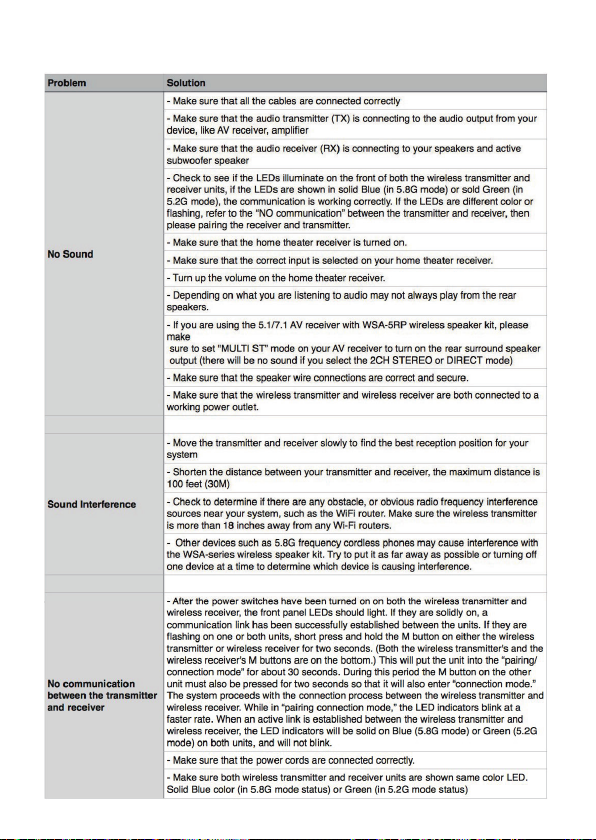

TroubleShoot

-9-

The wireless transimtter and receiver must be placed within 100 feet for proper

operation.

To avoid risk of electric shock and ﬁre, and to prevent damage, locate the wireless

transmitter and receiver units with no obstructions in front.

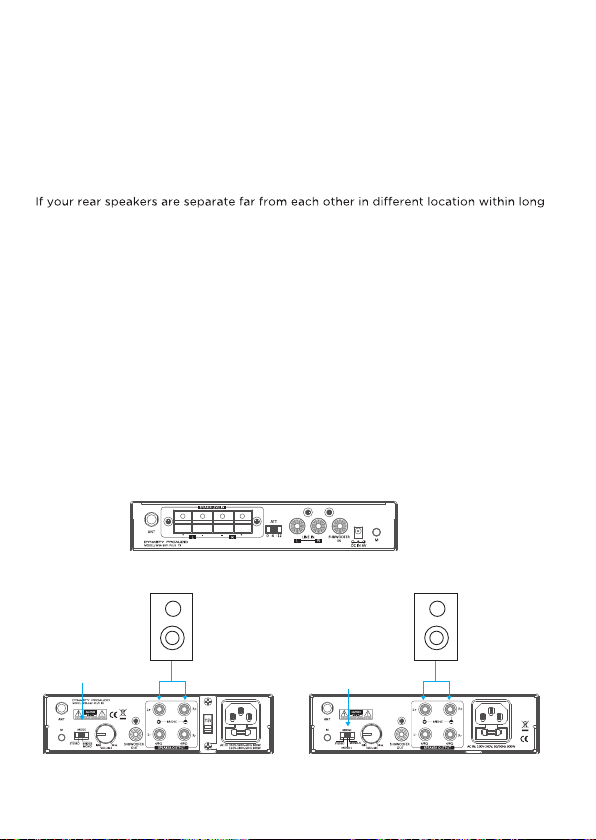

distance, and don't want to run wires from one receiver to two speakers.

You can PAIR the second wireless receiver to the existing transmitter for the “1 to 2”

wireless audio transmission.

For pair those 3 devices are very easy.

1. Set the original wireless receiver to “Bridge” position, and follow the bridge speaker

wiring connection.

2. Set the additional wireless receiver (model WSA-5RP-PLUS-RX) to the Bridge “Mono R”

position, and follow the bridge speaker wiring connection.

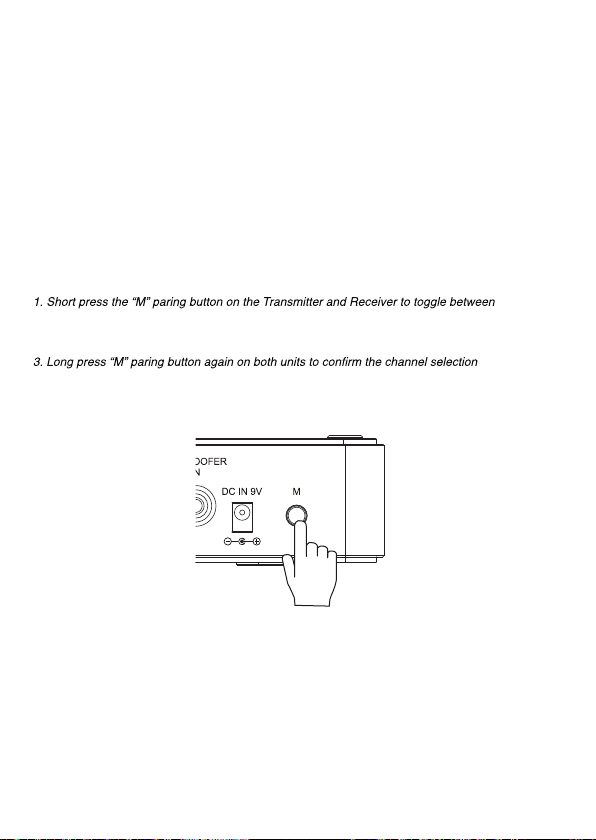

3. Short press the “M” paring button on the 1 x Transmitter and 2 x Receiver to restart the

new pairing process, and toggle between the 5.8GHz (blinking Blue LED) channels, or press

again to select the 5.2GHz (blinking Green LED)

4. Ensure those 1 x Transmitter and 2 x Receivers show the same LED colour.

5. Long press “M” paring button again on 3 units to conﬁrm the channel selection

6. Successful pairing is indicated by a solid Blue (or Green) LED on those 1 x Transmitter

and 2 x Receivers.

Please keep in mind that when you do the multi receivers pairing might takes few times to

get it done, but once you got the tip, you will ﬁnd the whole process is very easy.

WSA-5RP-PLUS (Original Set)

RXRX

Set “Bridge Mono”

Add the extra wireless receiver (model WSA-5RP-PLUS-RX)

-10-

Placing the wireless transimtter and wireless receiver

WSA-5RP-PLUS-RX (Additional Wireless Receiver)

Set “MONO-R”

Questo manuale è adatto per i seguenti modelli

Altri manuali Dynasty ProAudio Altoparlanti

Dynasty ProAudio

Dynasty ProAudio WSA-5TR-V2 Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
