Eaton eNMC2 Manuale utente
Installation instructions
PDU Network Module
eNMC2
English
Eaton is a registered trademark of Eaton Corporation or its subsidiaries and affiliates.
Phillips is a registered trademark of Phillips Screw Company.
National Electrical Code and NEC are registered trademarks of National Fire Protection
Association, Inc.
Microsoft®, Windows®, and Windows Server® are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
UNIX® is a registered trademark of The Open Group.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
VMware is a registered trademark or trademark of VMware, Inc. in the United States and/
or other jurisdictions.
Google™ is a trademark of Google Inc.
All other trademarks are properties of their respective companies.
©Copyright 2020 Eaton Corporation. All rights reserved.
No part of this document may be reproduced in any way without the express written
approval of Eaton Corporation.
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
1 Installing the Network Management Module
1.1 Accessing the Network Module
1.1.1 Accessing the web interface through Network

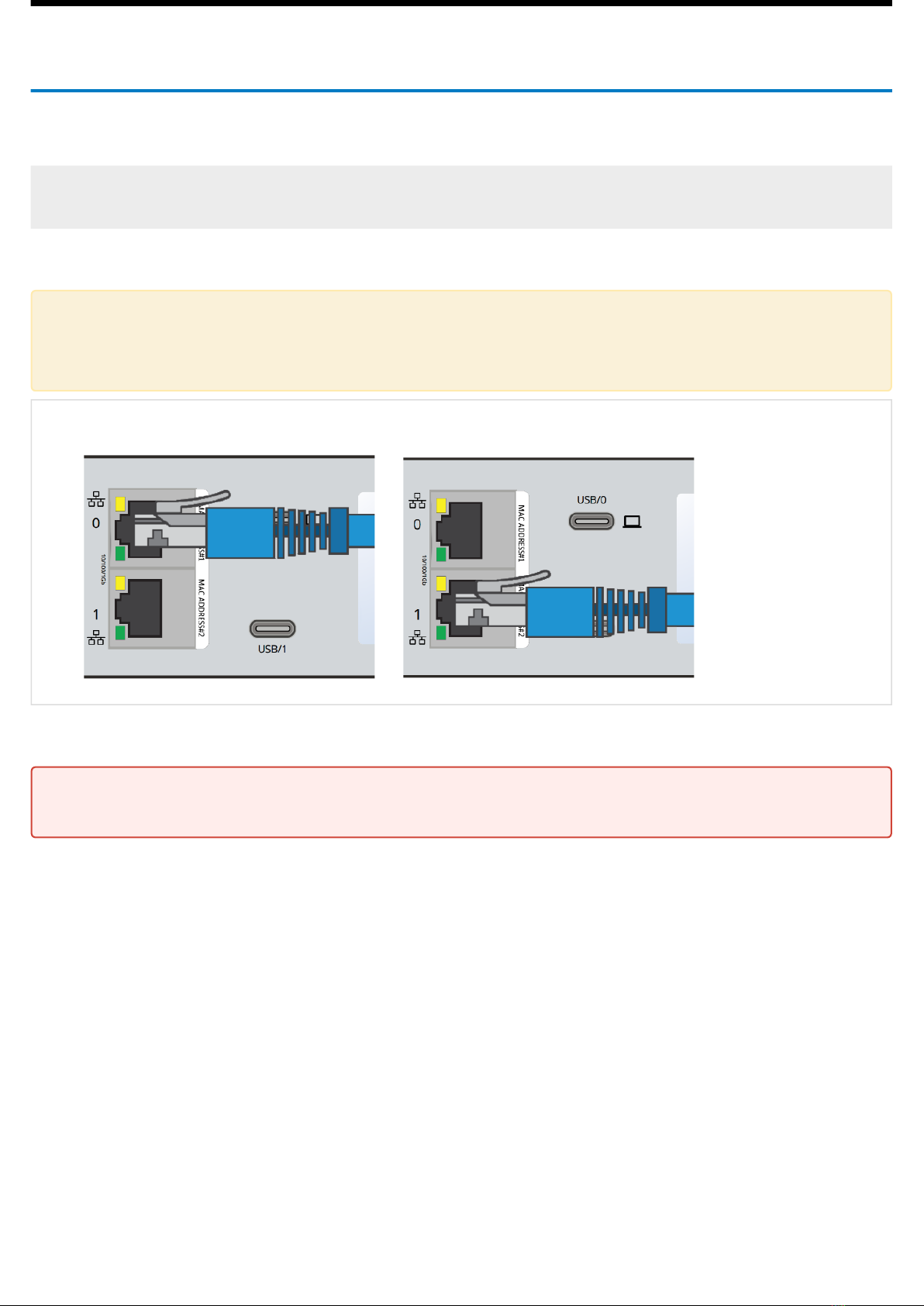

A- Connecting the network cable
Connect a standardgigabit compatible shielded ethernetcable (F/UTP or F/FTP)between the network connector on
theNetwork Module and a network jack.
B- Accessing the web interface
STEP 1 –On a network computer, launch a supported web browser. The
browser window appears.
STEP 2 –In the Address/Location field, enterhttps://[IPaddress] with the static
IP address of the Network Module.
STEP 3 –The login screen appears.
STEP 4 –Enter the user name in the User Name field. The default user name is
admin.
STEP 5 –Enter the password in the Password field. The default password is
admin.
STEP 6 –The password must be changed at first login.
STEP 7 –Click Login. The Network Module web interface appears.
Security settings in the Network Module may be in their default states.
For maximum security, configure through a USB connection before
connecting the network cable.
It is highly recommended that browser access to the Network Module is
isolated from outside access using a firewall or isolated network.
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
•
•
•
•
•
•
•
•
At first login:
STEP 8 - Accept License Agreement. The Network Module web interface
appears.
1.1.2 Finding and setting the IP address
A- Your network is equipped with a BOOTP/DHCP server
(default)
1 Read from the device LCD
If your device has an LCD, from the LCD’s menu, navigate to
Identification>>>"COM card IPv4".
Note the IP address of the card.
Go to the section: Accessing the web interface through Network.
2 With web browser throughthe configuration port
For example, if your device does not have an LCD, the IP address can be
discovered by accessing the web interface through RNDIS andbrowsing to
Settings>Network.
To access the web interface through RNDIS, see theAccessing the web interface
through RNDISsection.
Navigate toContextual help>>>Settings>>>Network & Protocol>>>IPV4.
Read the IPv4 settings.
B- Your network is not equipped with a BOOTP/DHCP server
1 Define from the configuration port
The IP address can be defined by accessing the web interface through RNDIS.
To access web interface through RNDIS, see theAccessing the web interface
through RNDISsection.
Define the IP settings:
Navigate toContextual help>>>Settings>>>Network & Protocol>>>IPV4.
Select Manual (Static IP).
Input the following information: Address, Subnet Mask, Default Gateway
Save the changes.
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
1.1.3 Accessing the web interface through RNDIS
This connection is used to access and configure the Network Module network
settings locally through a RNDIS(Ethernet over USB interface).
A- Connecting the configuration cable
1. Connect aUSB-C cable to the USB-C connectoron the host computer.
2. Connect the cable to the Settings connector on theNetwork Module.
B- Web interface access through RNDIS
1 Configuring the RNDIS
Automatic configuration
Manual configuration
STEP 1 –In case Windows® OS fails to find driver automatically, go to
theWindows control panel>Network and sharing center>Local area connection
STEP 2 –Right click on the RNDIS local area connection and select Properties.
STEP 3 –Select Internet Protocol Version 4 (TCP/IPv4)” and press the
Properties button
RNDIS driver is used to emulate a network connection from USB.
After the card is connected to the PC, Windows® OS will automatically search
for the RNDIS driver.
On some computers, the OS can find the RNDIS driver then configuration is
completed, and you can go to Accessing the web interface.
On some others it may fail then proceed to manual configuration.
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
STEP 4– Then enter the configuration as below and validate (IP = 169.254.0.150
and mask = 255.255.0.0), click OK, then click on Close.
2 Accessing the web interface
STEP 1 –Be sure that the Deviceis powered on.
STEP 2 – On the host computer, download the rndis.7z file from the website
www.eaton.com/downloads and extract it. For more information, navigate
toServicing the Network Management Module>>>Accessing to the latest
Network Module firmware/driversection.
STEP 3 – Launch setProxy.bat to add 169.254.* in proxy’s exceptions list, if
needed. For manual configuration, navigate to Installing the Network
Management Module>>>Accessing the Network Module>>>Modifying the Proxy
exception list section in the full documentation.
STEP 4 –Launch a supported browser, the browser window appears.
STEP 5 –In the Address/Location field, enter: https://169.254.0.1, the static IP
address of the Network Module for RNDIS. The log in screen appears.
STEP 6 –Enter the user name in the User Name field. The default user name
isadmin.
STEP 7 –Enter the password in the Password field. The default password
isadmin.
STEP 8 –ClickLogin. The Network Module local web interface appears.
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
1.1.4 Accessing the card through serial terminal
emulation
This connection is used to access and configure the Network Module network
settings locally through Serial (Serial over USB interface).
A- Connecting the configuration cable
B- Manual configuration of the serial connection
STEP 1 –On the host computer,download therndis.7z file from the website
www.eaton.com/downloads and extract it.
STEP 2 – Plug the USB cable and go to Windows® Device Manager.
STEP 3 – Check the CDC Serial in the list, if it is with a yellow exclamation mark
implying that driver has not been installed follow the steps 4-5-6-7 otherwise
configuration is OK.
STEP 4 – Right click on it and select Update Driver Software. When prompted to
choose how to search for device driver software, choose Browse my computer
Serial driver is used to emulate a serial connection from USB.
After the card is connected to the PC, manual configuration of the driver is
needed for Windows® OS to discover the serial connection.
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
•
•
for driver software. Select Let me pick from a list of device drivers on my
computer.
STEP 5 – Select the folder where you have previously downloaded the driver
file Click on Next.
STEP 6 – A warning window will come up because the driver is not signed.
Select Install this driver software anyway
STEP 7 – The installation is successful when the COM port number is displayed
for the Gadget Serial device in theWindows® Device Manager.
C- Accessing the card through Serial
It is intended mainly for automated configuration of the network and time
settings of the network card. It can also be used for troubleshooting and
remote reboot/reset of the network interface in case the web user interface is
not accessible.
CLI can be accessed through:
SSH
Serial terminal emulation.
For more details, refer toInformation>>>CLIsectionin the Network Module
User Guide on theEatonwebsite www.eaton.com/downloads.
Changing network parameters may cause the card to become unavailable
remotely. If this happens it can only be reconfigured locally through USB.
You can see this list of available commands by typing in the CLI:?
You can see the help by typing in the CLI:help
You are using an UNLICENSED copy of Scroll PDF Exporter for Confluence. Do you find Scroll PDF Exporter useful? Consider purchasing it today:
https://marketplace.atlassian.com/apps/7019/scroll-pdf-exporter-for-confluence?tab=overview&hosting=datacenter
2 Information

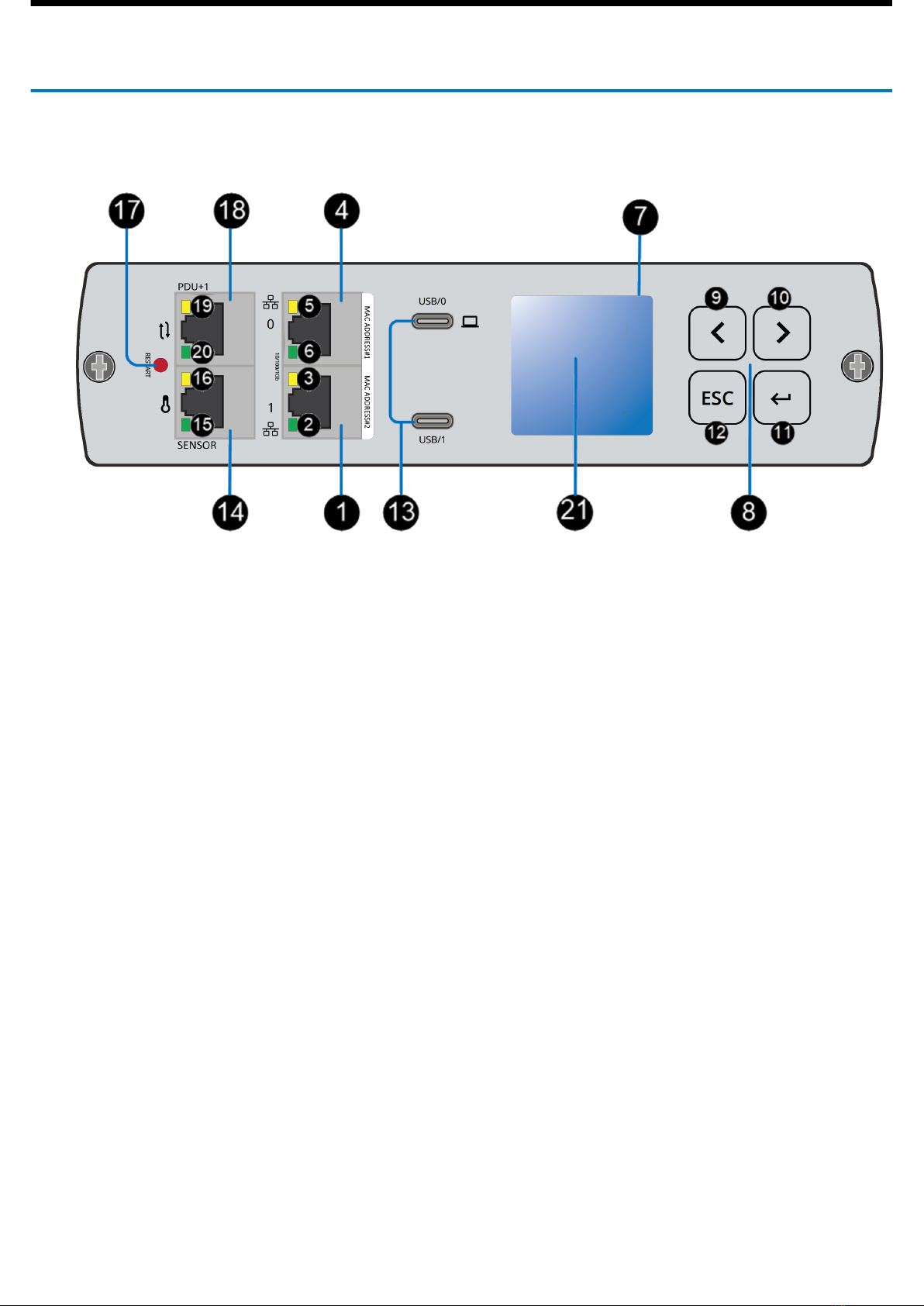

2.1 Front panel connectors and LED indicators
