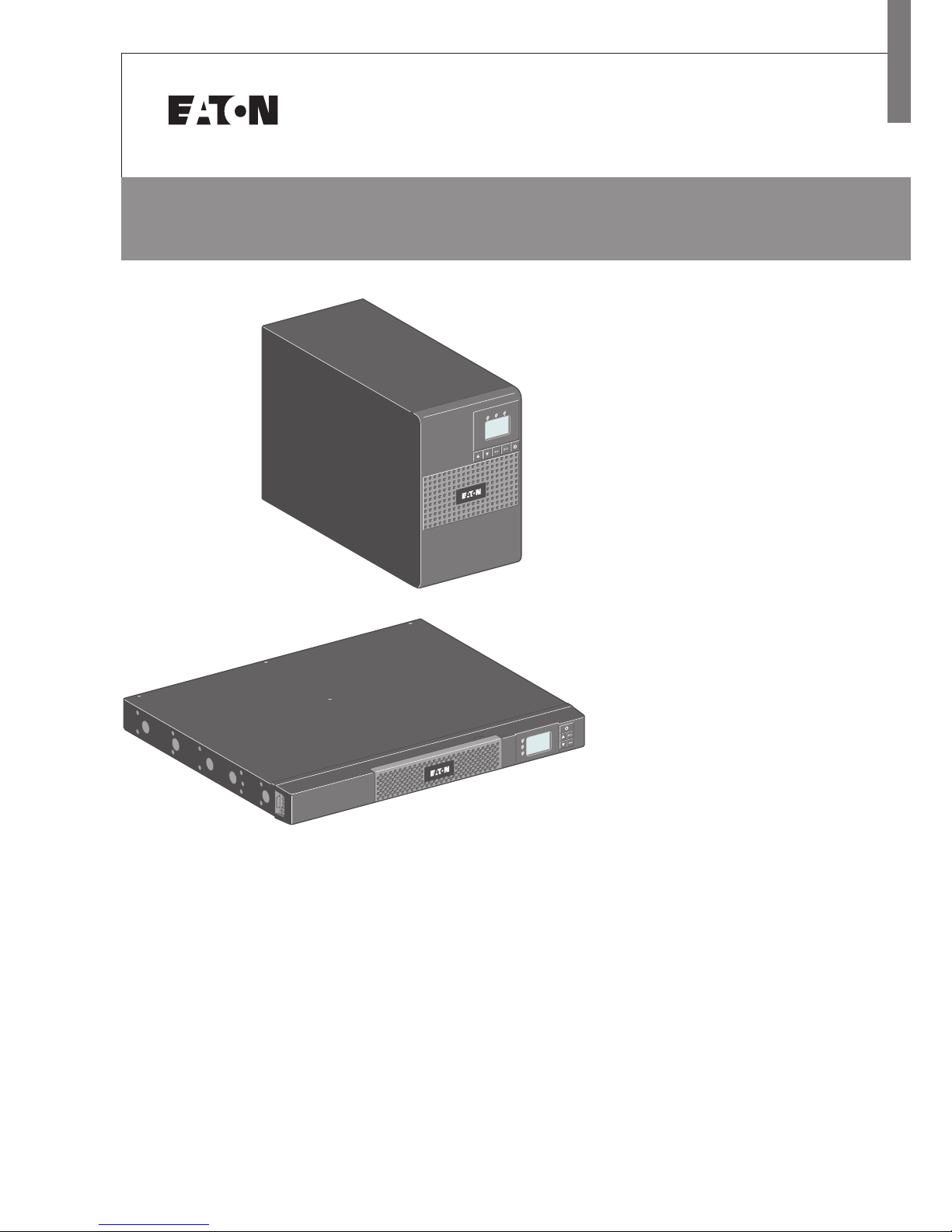

Eaton 5P 650i Manuale utente

ENGLISH

Service and support:

Call your local service representative

620-00082-02-i (en)

Tower models

5P 650i

5P 850i

5P 1150i

5P 1550i

1U Rack models

5P 650i R

5P 850i R

5P 1150i R

5P 1550i R

Installation

and user manual

Page 2 620-00082-02-i (en)

Certication Standards

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric shock symbol.

Important instructions that must always be followed.

Do not discard the UPS or the UPS batteries in the trash.

This product contains sealed lead acid batteries and must be disposed as it's explain in this manual.

For more information, contact your local recycling/reuse or hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE)

in the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.

Information, advice, help.

UPS directives:

• Safety: IEC 62040-1: 2008 (C2)

• EMC: IEC 62040-2: 2005, VCCI

• Performance: IEC 62040-3: 2010

CE mark (EN 62040-1: 2008 and EN 62040-2: 2006 (C1))

Class B emission level CISPR 22: 2005 + A2 2006 (EN 55022)

Harmonics emission: IEC 61000-3-2 edition 3.2: 2009

Flickers emission: IEC 61000-3-3 edition 2: 2008

VCCI Notice

The EC Declaration of Conformity is available upon request for products with a CE mark.

For copies of the EC Declaration of Conformity, contact Eaton Power Quality or check Eaton website:

www.powerquality.eaton.com

Page 3

620-00082-02-i (en)

ENGLISH

Contents

1. Introduction....................................................................................... 4

1.1 Environmental protection...................................................................................................4

2. Presentation ...................................................................................... 5

2.1 Standard installations.........................................................................................................5

2.2 Tower rear panels..............................................................................................................6

2.3 Rack rear panels ................................................................................................................7

2.4 Control panel .....................................................................................................................8

2.5 LCD description .................................................................................................................9

2.6 Display functions ............................................................................................................. 10

2.7 User settings ................................................................................................................... 10

3. Installation ...................................................................................... 12

3.1 Unpacking and contents check........................................................................................ 12

3.2 Installation of tower models ............................................................................................ 13

3.3 Wall installation of rack models (650i R / 850i R / 1150i R).............................................. 13

3.4 Installation of rack models (650i R only) .......................................................................... 14

3.5 Installation of rack models (850i R / 1150i R / 1550i R).................................................... 14

3.6 Communication ports ...................................................................................................... 15

4. Operation......................................................................................... 16

4.1 Start-up and Normal operation......................................................................................... 16

4.2 Starting the UPS on Battery ............................................................................................ 16

4.3 UPS Shutdown ................................................................................................................ 16

4.4 Operation on Battery Power ............................................................................................ 16

4.5 Return of AC Input Power................................................................................................ 17

4.6 UPS remote control functions ......................................................................................... 17

5. Maintenance ................................................................................... 18

5.1 Troubleshooting................................................................................................................18

5.2 Battery-module replacement ........................................................................................... 19

6. Appendices ...................................................................................... 21

6.1 Technical specications....................................................................................................21

Page 4 620-00082-02-i (en)

1. Introduction

Thank you for selecting an EATON product to protect your electrical equipment.

The 5P range has been designed with the utmost care.

We recommend that you take the time to read this manual to take full advantage of the many features

of your UPS (Uninterruptible Power System).

Before installing 5P, please read the booklet presenting the safety instructions.

Then follow the instructions in this manual.

To discover the entire range of EATON products and the options available for the 5P range,

we invite you to visit our web site at www.eaton.com/powerquality or contact your EATON representative.

1.1 Environmental protection

EATON has implemented an environmental-protection policy.

Products are developed according to an eco-design approach.

Substances

This product does not contain CFCs, HCFCs or asbestos.

Packing

To improve waste treatment and facilitate recycling, separate the various packing components.

• The cardboard we use comprises over 50 % of recycled cardboard.

• Sacks and bags are made of polyethylene.

• Packingmaterialsarerecyclableandbeartheappropriateidenticationsymbol 01

PET

Materials Abbreviations Number in

the symbols

Polyethylene terephthalat PET 01

High-density polyethylene HDPE 02

Polyvinyl chloride PVC 03

Low-density polyethylene LDPE 04

Polypropylene PP 05

Polystyrene PS 06

Follow all local regulations for the disposal of packing materials.

End of life

EATON will process products at the end of their service life in compliance with local regulations.

EATON works with companies in charge of collecting and eliminating our products at the end of

their service life.

Product

The product is made up of recyclable materials.

Dismantling and destruction must take place in compliance with all local regulations concerning waste.

At the end of its service life, the product must be transported to a processing centre for electrical and

electronic waste.

Battery

The product contains lead-acid batteries that must be processed according to applicable local regulations

concerning batteries.

The battery may be removed to comply with regulations and in view of correct disposal.

PET

Page 5

620-00082-02-i (en)

ENGLISH

2. Presentation

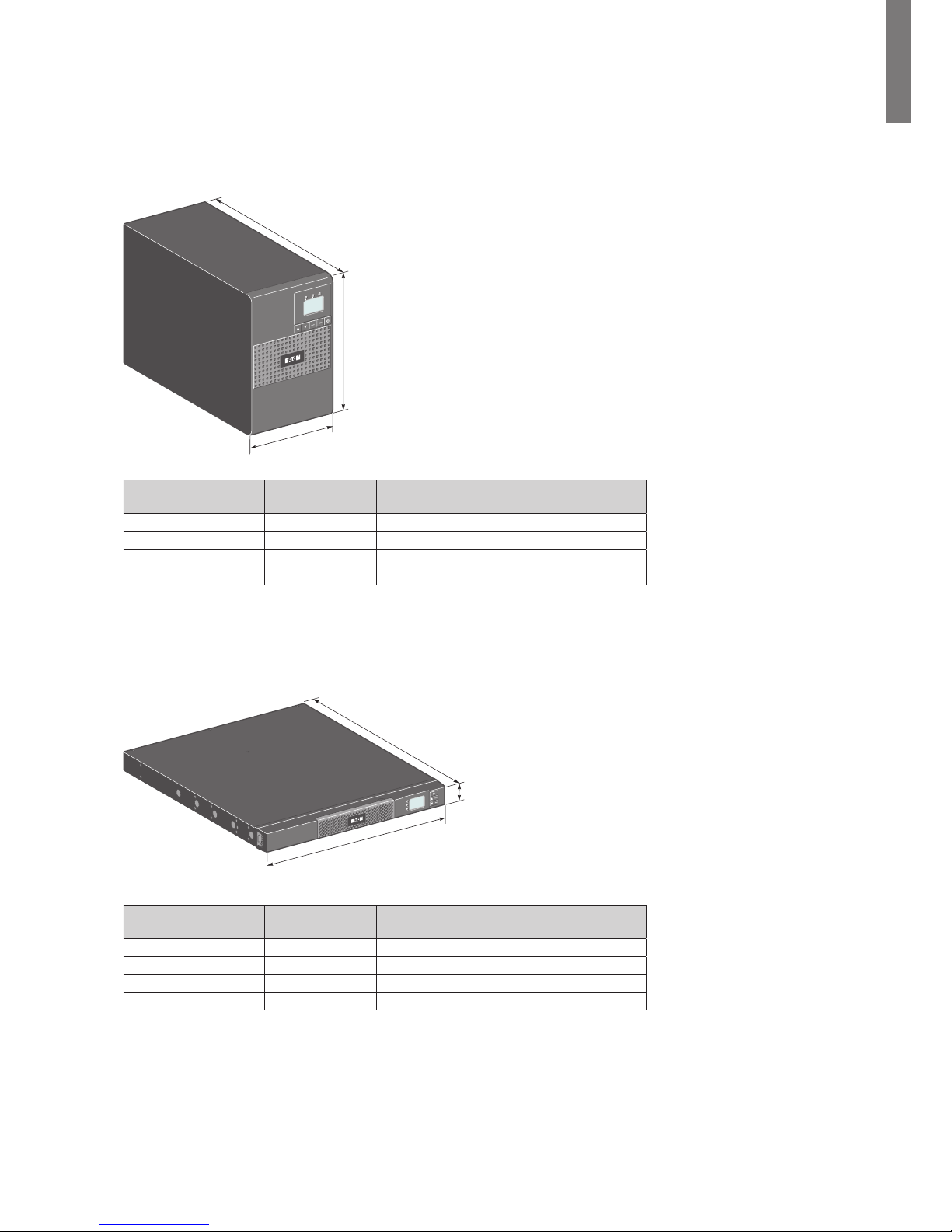

2.1 Standard installations

Tower models

Description Weights (kg/lb)Dimensions (mm/inch)

D x W x H

5P 650i 7.52 / 16.60 345 x 150 x 233 / 13.6 x 5.9 x 9.2

5P 850i 9.93 / 21.90 345 x 150 x 233 / 13.6 x 5.9 x 9.2

5P 1150i 10.91 / 24.10 345 x 150 x 233 / 13.6 x 5.9 x 9.2

5P 1550i 15.95 / 35.20 445 x 150 x 233 / 17.5 x 5.9 x 9.2

Rack models

Description Weights (kg/lb)Dimensions (mm/inch)

D x W x H

5P 650i R 8.6 / 19.00 363.5 x 438 x 43.2 / 14.3 x 17.2 x 1.7

5P 850i R 13.8 / 30.40 509 x 438 x 43.2 / 20.0 x 17.2 x 1.7

5P 1150i R 14.64 / 32.70 509 x 438 x 43.2 / 20.0 x 17.2 x 1.7

5P 1550i R 19.36 / 42.70 554 x 438 x 43.2 / 21.8 x 17.2 x 1.7

Page 6 620-00082-02-i (en)

2. Presentation

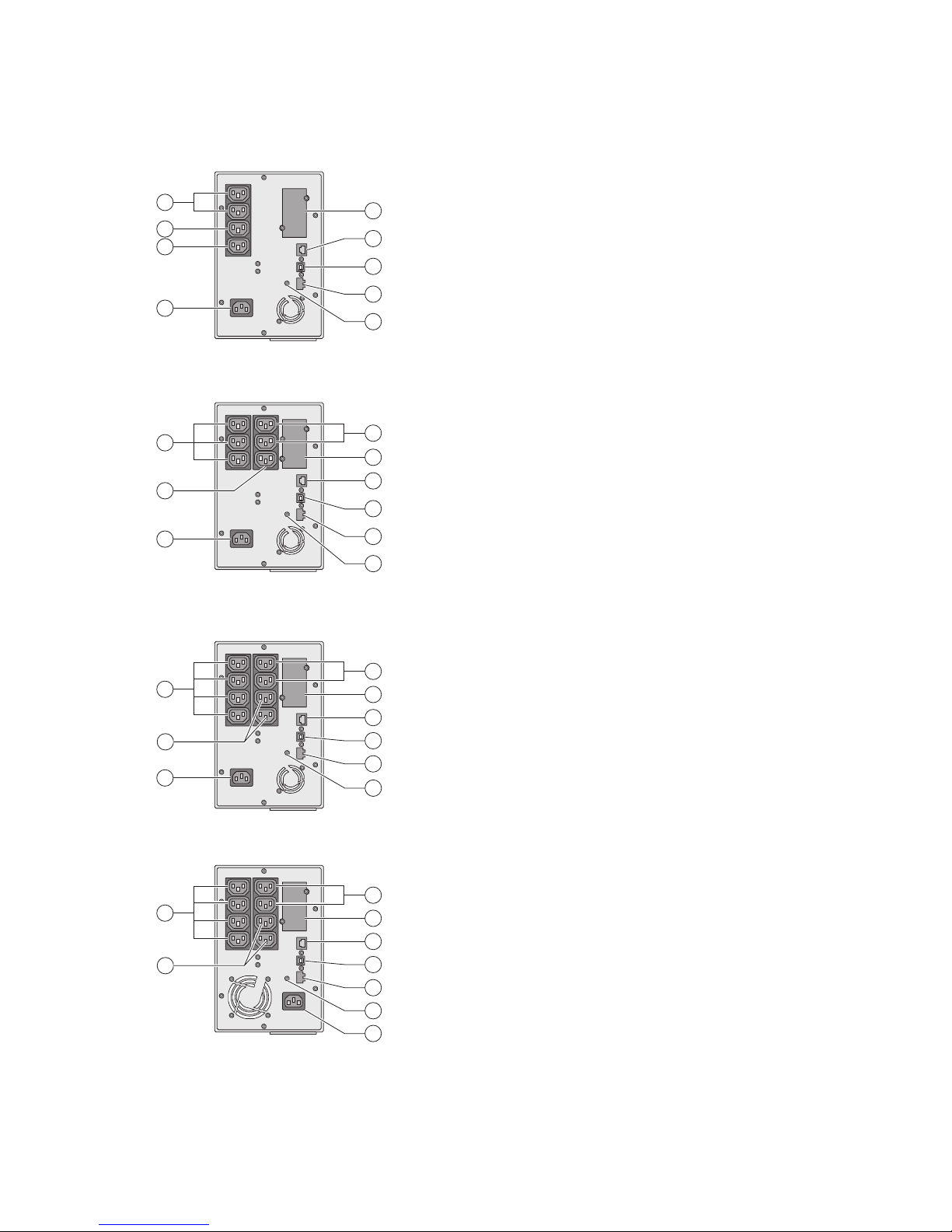

2.2 Tower rear panels

5P 650i

5P 850i

5P 1150i

5P 1550i

(1) USB communication port

(2) RS232 communication port

(3) Slot for optional communication card

(4) Connector for ROO (remote ON/OFF)

or RPO (Remote Power Off) control

(5) Outlets for connection of critical

equipment (Primary group)

(6a) Group 1: programmable outlets for

connection of equipment

(6b) Group 2: programmable outlets for

connection of equipment

(7) Socket for connection to AC-power

source

(8) Ground screw

Page 7

620-00082-02-i (en)

ENGLISH

2. Presentation

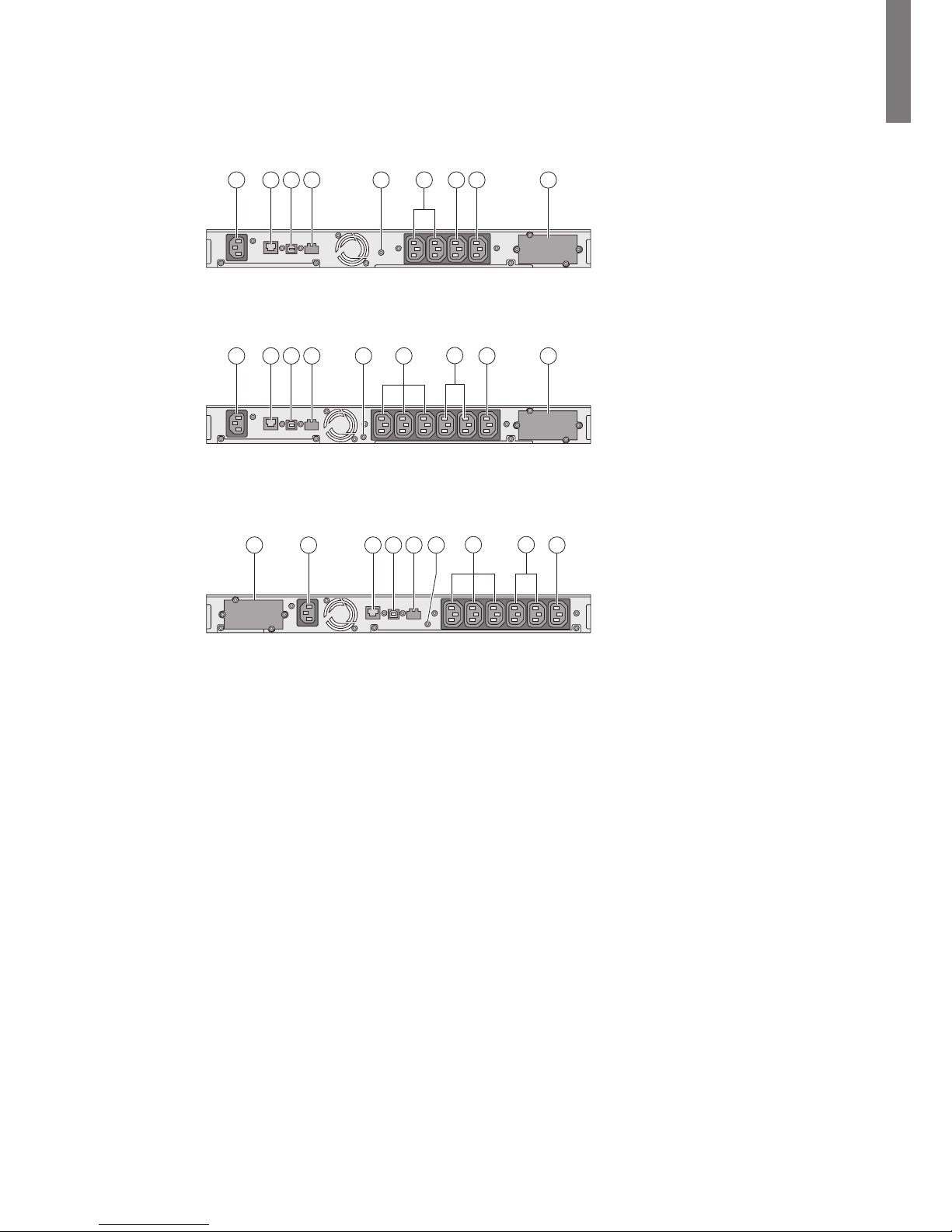

2.3 Rack rear panels

5P 650i R / 5P 850i R

2 1 4 87 36a 6b5

5P 1150i R

2 1 47 36b58

5P 1550i R

2 1 473 6b

(1) USB communication port

(2) RS232 communication port

(3) Slot for optional communication card

(4) Connector for ROO (remote ON/OFF)

or RPO (Remote Power Off) control

(5) Outlets for connection equipment

(Primary group)

(6a) Group 1: programmable outlets for

connection of equipment

(6b) Group 2: programmable outlets for

connection of equipment

(7) Socket for connection to AC-power

source

(8) Ground screw

Page 8 620-00082-02-i (en)

2. Presentation

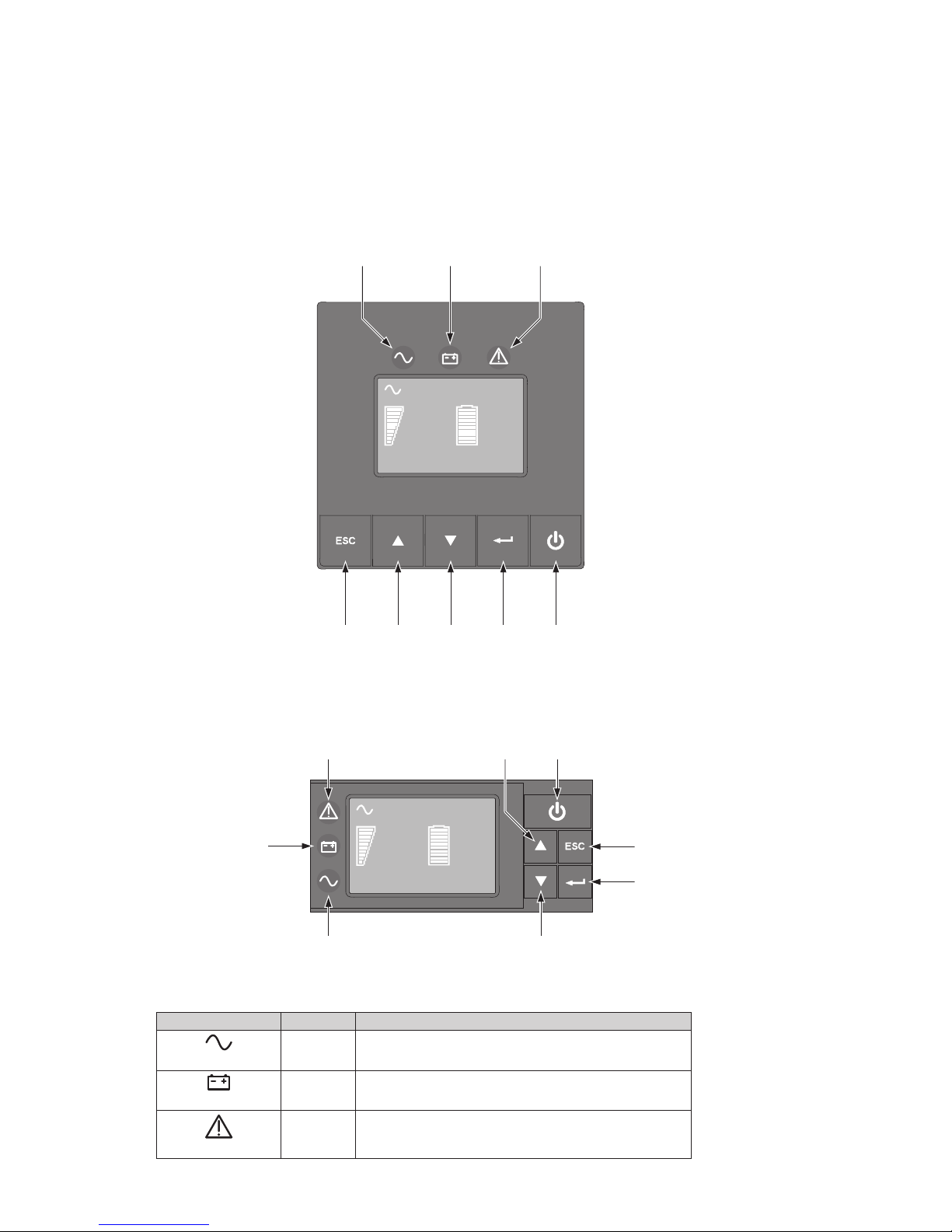

2.4 Control panel

TheUPShasave-buttongraphicalLCD.ItprovidesusefulinformationabouttheUPSitself,loadstatus,

events, measurements and settings.

Tower models

Power On

Indicator

(green)

On battery

Indicator

(yellow)

Alarm

Indicator (red)

Normal mode

100%

10min

100%

720W

800VA

Efﬁciency: ~98%

Escape Up Down Enter On/Off

button

Rack models

Normal mode

100%

10min

100%

720 W

800VA

Efﬁciency: ~98%

Alarm

Indicator (red)

On battery Indicator

(yellow)

Power On

Indicator (green)

On/Off

button

Down

Enter

Escape

The following table shows the indicator status and description :

Indicator Status Description

Green On The UPS is operating normally

Yellow On The UPS is on battery mode

Red

On The UPS has an active alarm or fault. See trouble-

shooting on page 18 for additional information.

Page 9

620-00082-02-i (en)

ENGLISH

2. Presentation

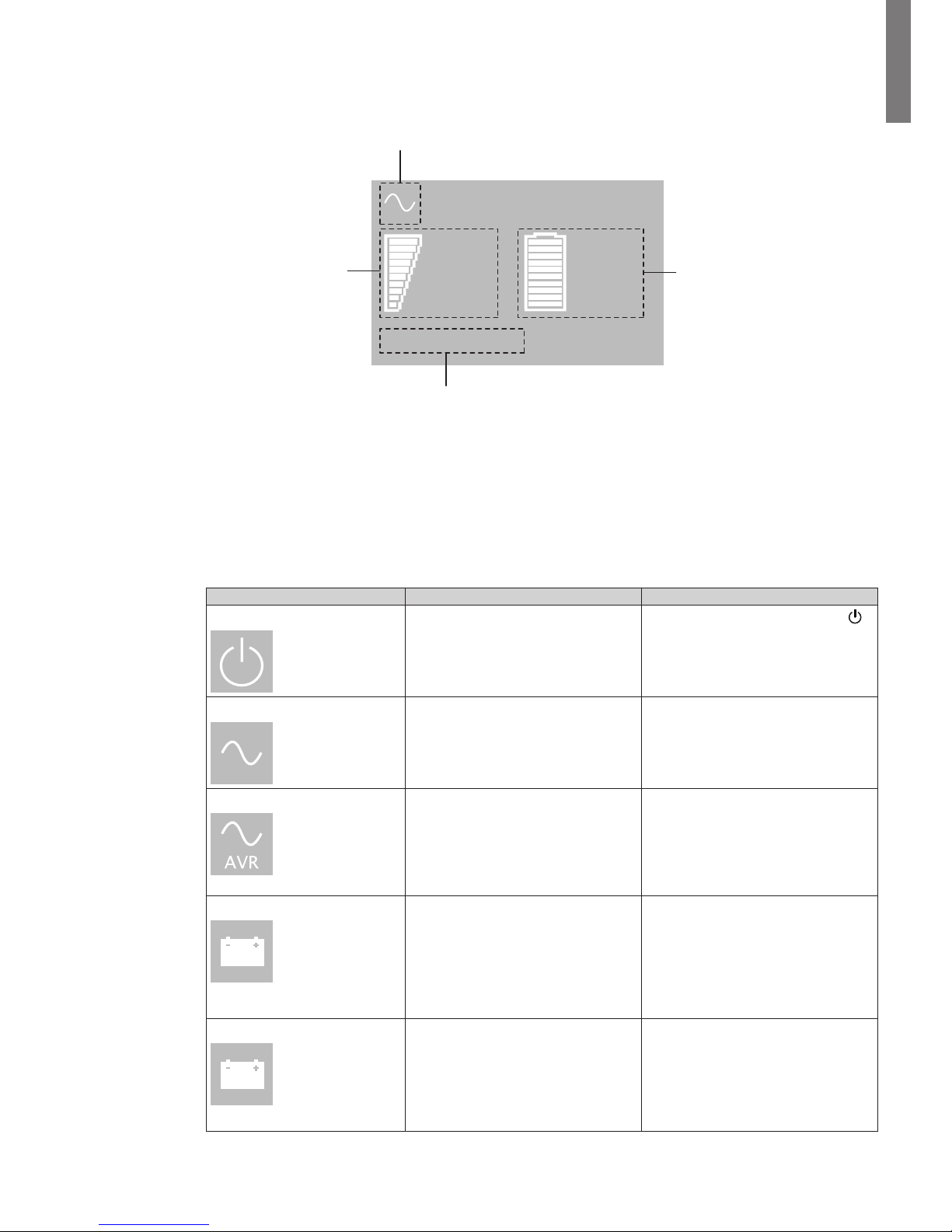

2.5 LCD description

Operation status

Load/equipment status

Normal mode

100%

10min

100%

720W

800VA

Efﬁciency: ~98%

Battery status

Efficiency and load group information

As default, or after 5 minutes of inactivity, the LCD displays the screen saver.

The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen.

The following table describes the status information provided by the UPS

Note. If other indicator appears, see troubleshooting on page 18 for additional information.

Operation status Possible cause Action

Standby mode The UPS is OFF, waiting for start-up

command from user

Equipment is not powered until

button is not pressed.

Normal mode The UPS is operating normally. The UPS is powering and protecting

the equipment.

In AVR mode

No beep

The UPS is operating normally but

the utility voltage is outside normal

mode thresholds.

The UPS is powering the

equipment through a Automatic

Voltage Regulation device.

The equipment is still normally

protected.

On Battery

Battery LED is on

1 beep every 10 seconds

A utility failure has occurred and

the UPS is in Battery mode.

The UPS is powering the equipment

with the battery power. Prepare

your equipment for shutdown.

End of backup time

1 beep every 3 seconds

The UPS is in battery mode and

the battery is running low.

This warning is approximate, and

the actual time to shutdown may

vary significantly.

Depending on the UPS Load, the

"Battery Low" warning may occur

before the battery reaches 20 %

capacity.

Page 10 620-00082-02-i (en)

2.6 Display functions

Press the Enter ( ) button to activate the menu options. Use the two middle buttons ( and ) to scroll

through the menu structure. Press the Enter ( ) button to select an option. Press the button to cancel

or return to the previous menu.

Menu map for Display Functions.

Main menu Submenu Display information or Menu function

Measurements Load W VA / Load A pf / Output V Hz / Input V Hz /

Battery V min / Efficiency / Power usage

Control Load Segments Group 1: ON / OFF

Group 2: ON / OFF

These commands overrule user settings for load segments.

Start battery test Starts a manual battery test

Reset fault state Clears active faults

Restore factory settings Returns all settings to original values (UPS restart required)

Reset power usage Clears power usage measurements

Settings Local settings Sets product general parameters

Input / output settings Sets Input and output parameters

ON / OFF settings Sets ON / OFF conditions

Battery settings Sets battery configuration

Fault log Displays event log or alarms

Identification UPS Type / Part Number / Serial Number / Firmware release /

Com card address

2.7 User settings

The following table displays the options that can be changed by the user.

Description Available settings Default settings

Local settings

Language [English] [Français] [Deutsch]

[Italiano] [Português] [Español]

[Русский]

Menus, status, notices and alarms,

UPS fault, Event Log data and

settings are in all supported

languages.

English

User selectable when UPS is

powered for the first time.

LCD settings Modify LCD screen brightness and

contrast to adapt to room light

conditions.

Audible alarm [Enabled] [Disabled on battery]

[Always disabled]

Enable or disable the buzzer if an

alarm occurs.

Enabled

In/Out settings

Output voltage [200 V] [208 V] [220 V] [230 V]

[240 V]

User selectable when UPS

is powered for the first time.

Input thresholds [Normal mode] [Extended mode]

Extended mode reduces lower

input voltage to 150 V before UPS

transfers to battery.

This can be used if the load can

withstand low voltage supply.

Normal mode

Sensitivity [High] [Low]

High: for sensitive equipment,

UPS will easily transfer to battery

when utility conditions are

becoming bad.

Low: for equipment that can

withstand bad utility conditions,

in that case, the UPS will not

transfer to battery.

High

Load segments -

Auto start delay

[No Delay] [1 s] [2 s]…[65354 s]

The connected load is powered

after the specified delay.

Group 1: 3 s

Group 2: 6 s

2. Presentation

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Eaton UPS

Eaton

Eaton 9PX5KiRTN Manuale utente

Eaton

Eaton 93PM-L IAC-B Manuale utente

Eaton

Eaton Powerware Series Manuale utente

Eaton

Eaton 93PM-L Series Manuale utente

Eaton

Eaton Powerware 9x55 series Manuale

Eaton

Eaton Powerware 5125 Manuale utente

Eaton

Eaton Powerware 9395 Manuale utente

Eaton

Eaton 93PR Series Manuale

Eaton

Eaton 5S 700 Manuale utente

Eaton

Eaton Power Xpert PXGX Manuale di programmazione

Eaton

Eaton EX RT 7 Manuale utente

Eaton

Eaton 9EEBM240 Manuale utente

Eaton

Eaton Ellipse PRO 850 Manuale utente

Eaton

Eaton Powerware 5115A USB Manuale utente

Eaton

Eaton Eaton 5PX Istruzioni per il montaggio

Eaton

Eaton Powerware 9395 Manuale utente

Eaton

Eaton Powerware 9135 Manuale utente

Eaton

Eaton Powerware 9170+ Manuale utente

Eaton

Eaton 9315 Manuale utente

Eaton

Eaton EX Pulsar Series Manuale utente

Eaton

Eaton Eaton 5PX Istruzioni per il montaggio

Eaton

Eaton 91PS Manuale

Eaton

Eaton 93PM UPS Manuale utente

Eaton

Eaton Powerware 5130 Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente

ZincFive

ZincFive BC Series Manuale utente
