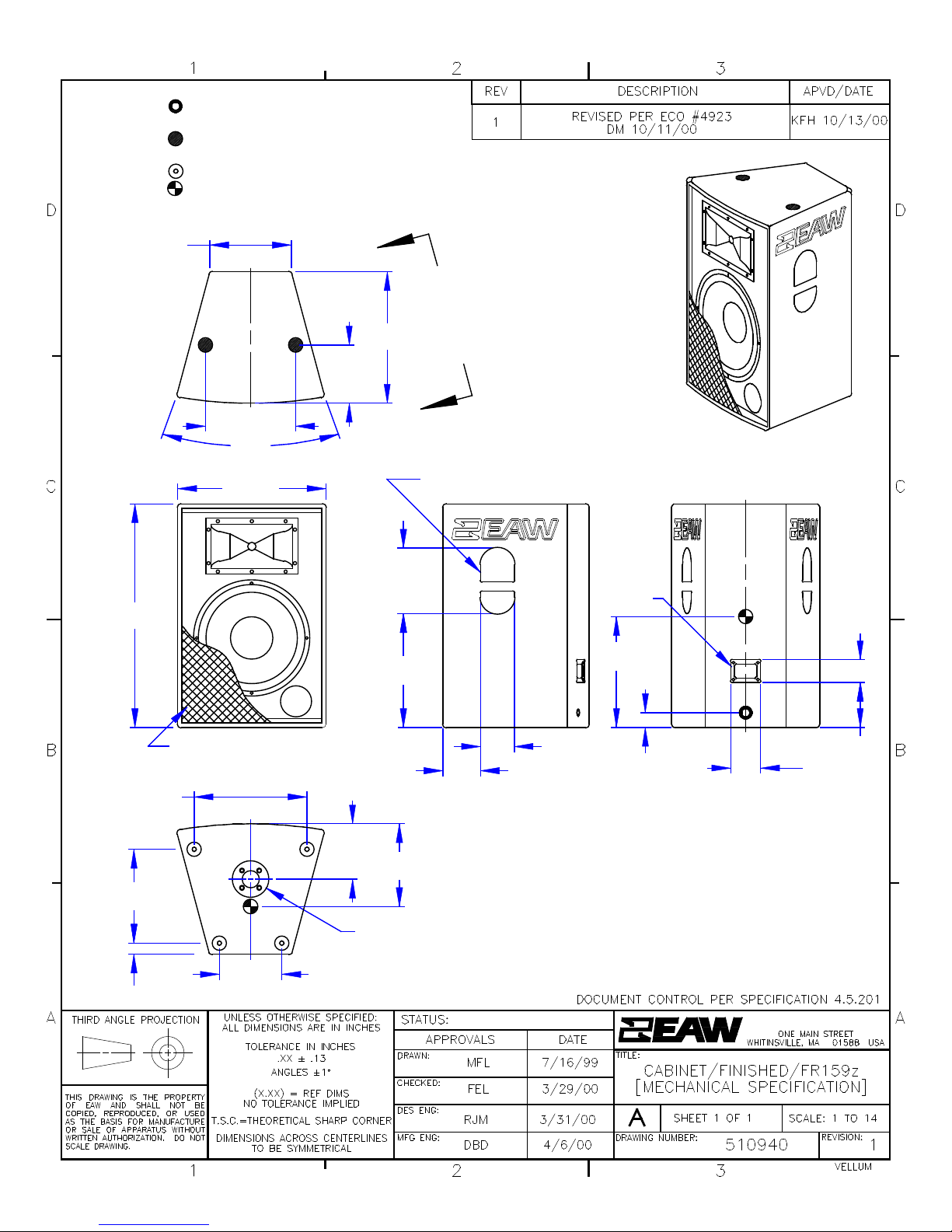

EAW FR159z 2D Guida
EASTERN ACOUSTIC WORKS
2X HANDLE
29.75
8.75
4.50
15.13
5.00
VIEW A-A
DIMENSIONS APPLY
TO BOTH SIDES
POLE MOUNT SOCKET
PRODUCTION
7.36
12.50
7.75
BOTTOM
8.30
1.62
FRONT
GRILLE PARTIALLY SHOWN
L
C
15.00
14.75
4.00
1.96
INPUT
BACK
3.00
6.00
NOTES:
1. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (RIVNUT).
2. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (NUT PLATE).
3. SYMBOL INDICATES RUBBER FOOT.
4. SYMBOL INDICATES CENTER OF BALANCE
5. WEIGHT APPROX. 62 LBS.
6. SHIPPING WEIGHT APPROX. 75 LBS.
30°
A
(10.83) L
C
17.50
12.00
TOP
A
7.75
19.75
FR159z
C
L
