ECS Electronics P6ISA-II Manuale utente

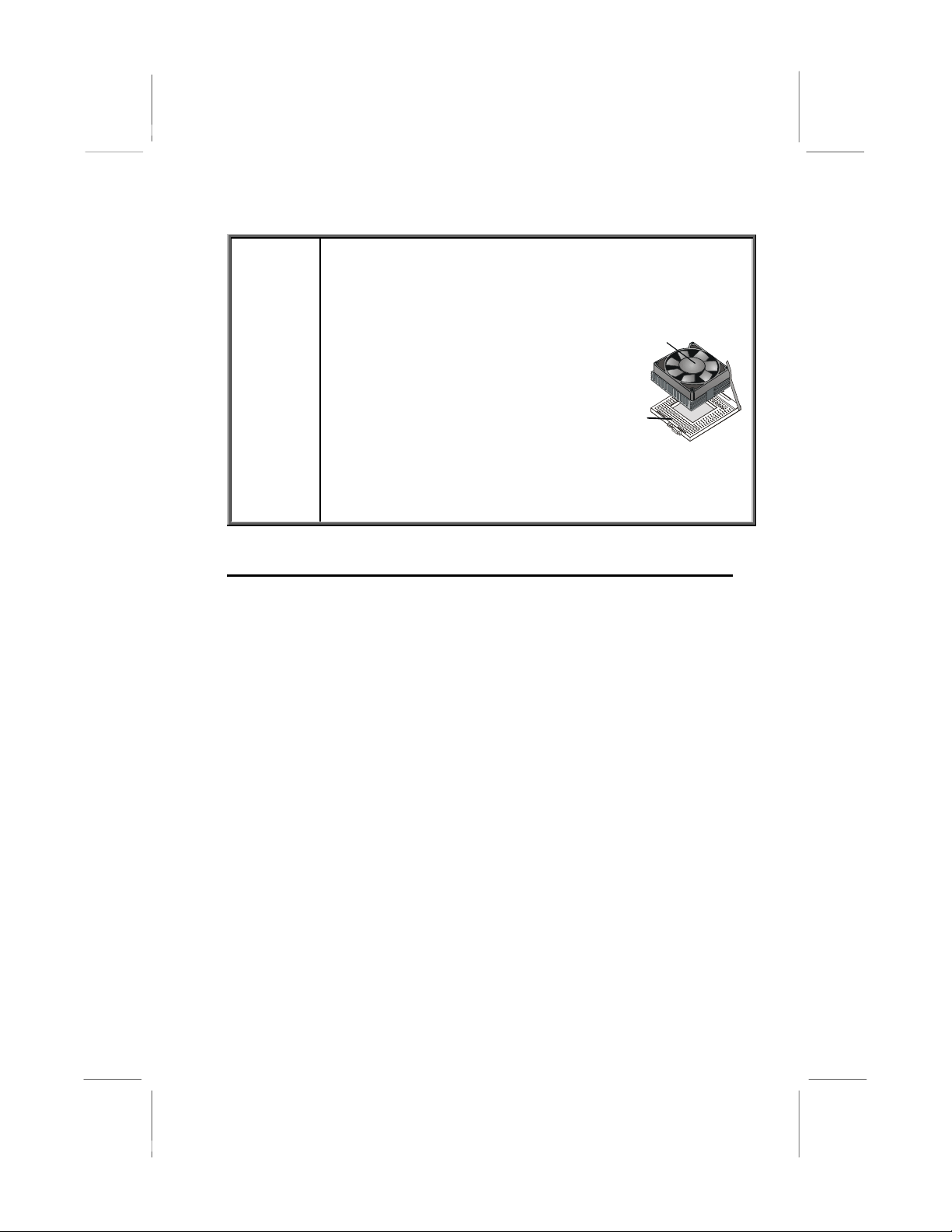

Caution! When installing a CPU heatsink and

cooling fan make sure that you DO NOT

scratch the motherboard or any of the

surface-mount resistors with the clip of

the cooling fan. If the clip of the cooling

fan scrapes across the mainboard, you

may cause serious damage to both the

mainboard and the processor.

On most mainboards, there are small

surface-mount resistors near the

processor socket, which may be damaged

if the cooling fan is carelessly installed.

Avoid using cooling fans with sharp

edges on the fan casing and the clips.

Also, install the cooling fan in a well-lit

work area so that you can clearly see the

mainboard and processor socket.

Cooling fan and

heat sink

CPU socket

Important Information

This publication, including all photographs, illustrations and

software, is protected under international copyright laws, with all

rights reserved. Neither this manual, nor any of the material

contained herein, may be reproduced without the express

written consent of the manufacturer.

Version 1.0

Disclaimer

The information in this document is subject to change without

notice. The manufacturer makes no representations or

warranties with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for

any particular purpose. Furthermore, the manufacturer reserves

the right to revise this publication and to make changes from

time to time in the content hereof without obligation of the

manufacturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of

Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, and Celeron are

registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of

their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment causes

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the

receiver.

 Connect the equipment onto an outlet on a circuit

different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician

for help.

Shielded interconnect cables and a shielded AC power cable

must be employed with this equipment to ensure compliance

with the pertinent RF emission limits governing this device.

Changes or modifications not expressly approved by the

system’s manufacturer could void the user’s authority to operate

the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is

subject to the following conditions:

 This device may not cause harmful interference, and

 This device must accept any interference received,

including interference that may cause undesired

operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the

Canadian Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les

exigences du Réglement sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following chapters:

Introduction

Use the Introduction Chapter to learn about the features of the

mainboard and view a checklist of items that are shipped with

the package.

Installation

Use the Installation Chapter to learn how to install the

mainboard and get your system up and running.

Setup

Use the Setup Chapter to configure the mainboard for optimum

performance.

Software

Use the Software Chapter to learn how to use the software

drivers and support programs that are provided with this

mainboard.

iii

Contents

Important Information ............................................................................. i

Disclaimer..................................................................................................... i

Trademark Recognition ............................................................................... ii

Federal Communications Commission (FCC)............................................. ii

Declaration of Conformity.......................................................................... iii

Canadian Department of Communications................................................. iii

About the Manual ..................................................................................iii

CHAPTER 1: INTRODUCTION 1

Welcome ............................................................................................... 1

Checklist................................................................................................ 2

Recommendations ................................................................................ 3

Features ................................................................................................ 4

CHAPTER 2: INSTALLATION 7

Quick Installation Table......................................................................... 7

Quick Jumper Setting Reference .......................................................... 8

Before You Begin ................................................................................ 11

Static Electricity......................................................................................... 11

Choosing a Case ........................................................................................ 12

How to Set Jumpers ................................................................................... 13

Preparing the Mainboard..................................................................... 14

Mainboard Guide....................................................................................... 14

I/O Ports Side View.................................................................................... 16

Check the Jumper Settings ......................................................................... 17

Installing the Mainboard in a Case ........................................................... 20

Connecting Internal Components .............................................................. 21

Installing Other Hardware ................................................................... 23

Installing the Processor..............................................................................23

Installing a Processor.................................................................................23

Install the Memory Modules.......................................................................25

Installing a Hard Disk Drive and CD-ROM...............................................26

Installing a Floppy Diskette Drive..............................................................29

Using the Expansion Slots ..........................................................................30

Other Options .............................................................................................32

Making External Connections ....................................................................34

External Connector Color Coding..............................................................35

CHAPTER 3: SETUP 37

About the Setup Utility......................................................................... 37

Entering the Setup Utility ...........................................................................39

BIOS Navigation Keys ................................................................................40

Using BIOS.................................................................................................41

How to Flash a New BIOS..........................................................................42

Standard CMOS Features Option ..............................................................43

Advanced BIOS Features Setup Option......................................................46

Advanced Chipset Features Option............................................................50

Integrated Peripherals Option....................................................................53

Power Management Setup Option..............................................................57

PnP/PCI Configuration Option ..................................................................62

PC Health Status Option ............................................................................63

Frequency Control Option..........................................................................65

Load Fail-Safe Defaults Option..................................................................66

Load Optimized Defaults Option ................................................................66

Set Supervisor and User Password Options ...............................................67

Save & Exit Setup Option ...........................................................................68

Exit Without Saving Option ........................................................................68

HAPTER 4: SOFTWARE 69

About the Software.............................................................................. 69

Folders for this Mainboard .................................................................. 69

Utility Folder Installation Notes............................................................ 71

Award Flash Memory Utility ..................................................................... 71

MediaRing Talk.......................................................................................... 71

PC-cillin Software...................................................................................... 72

Super Voice................................................................................................ 72

Realtek-codec Folder Installation Notes ............................................. 72

Audio Software........................................................................................... 72

Intel Folder Installation Notes.............................................................. 73

Mainboard (KOB 815e FSX) Installation Notes .................................. 73

APPENDIX: JUMPER SETTING REFERENCE 75

Jumper Setting Quick Reference ................................................................ 75

Welcome

Congratulations on purchasing the KOB 815e FSX mainboard.

The mainboard is an ATX mainboard that uses a 4-layer printed

circuit mainboard and measures 305 mm x 220 mm. The

mainboard has a Socket 370 for FC-PGA Intel Celeron or FC-

PGA Pentium III processors that support frontside bus (FSB)

speeds up to 133 MHz. The mainboard is installed with the Intel

815E chipset.

The mainboard delivers high-level performance with a 4xAGP

(Accelerated Graphics Port) slot and two Bus Master Ultra DMA

(UDMA) ports that support up to four ATAPI (AT Attachment Packet

Interface) devices. The PCI IDE also supports PIO Mode 3 and 4,

UDMA33/66/100 IDE, and an ATAPI CD-ROM. The mainboard

accommodates PC 100 and PC 133 SDRAM (Synchronous

DRAM) up to 512MB using three 3.3V unbuffered DIMM

modules.

The mainboard includes a Realtek ALC200 AC 97 Audio codec.

There is a full set of I/O ports, such as dual channel IDE interfaces,

a floppy interface, one FIFO serial port connector, one VGA port, an

EPP/ECP-capable bi-directional parallel port connector, a dual USB

(Universal Serial Bus) connector, and PS/2 keyboard and mouse

connectors.

Two extra USB ports can be added using an extended USB

module that connects to the mainboard. An extra COM port can

be connected using an extension bracket.

One AGP slot, six PCI local bus slots, and a CNR

(Communications Networking Riser) provide expandability for add-

in expansion cards.

This chapter contains the following information:

 Checklist comprises a list of the standard and optional

components that are shipped with this mainboard

 Recommendations lists some Do’s and Don’ts from the

manufacturer to help ensure reliability and performance

from this product

 Features highlights the functions and components that

make this one of the best value mainboards on the

market

Checklist

Compare the contents of your mainboard package with the

standard checklist below. If any item is missing or appears

damaged, please contact the vendor of your mainboard package.

Standard Items

 One mainboard

 One diskette drive ribbon cable and bracket

 One IDE drive ribbon cable and bracket

 This user’s manual

 Software support CD-ROM disc

Recommendations

This mainboard automatically determines the CPU clock

frequency and frontside bus frequency for the kind of processor

that you install. You may be able to change these automatic

settings by changing the settings in the system Setup Utility. We

strongly recommend that you do not overclock the mainboard to

run processors or other components faster than their rated

speed.

Warning: Overclocking components can adversely affect the

reliability of the system and introduce errors into your system.

Overclocking can permanently damage the mainboard by generating

excess heat in components that are run beyond the rated limits.

Components on this mainboard can be damaged by discharges of

static electricity. Handle the mainboard carefully holding it by the

edges. Do not flex or stress the circuit mainboard. Keep the

mainboard in its static-proof packing until you are ready to install it.

Follow the static guidelines given at the beginning of Chapter 2.

Features

The key features of this mainboard are the wide range of

processors that can be installed, and the high level of integration,

which includes built-in audio, video, and communications.

Processors

Functioning as a platform for a value PC, the P6ISM features a

Socket 370 accommodating FC-PGA Celeron 533MHz (533A)

and higher CPUs that support a 66 MHz FSB as well as FC-

PGA Pentium III CPUs that support a 100 or 133 MHz FSB.

Intel’s 815E Chipset

This mainboard features the 815E chipset from Intel. The 815E

chipset is designed for desktops and workstations that provide

internal or external graphics, and provides ATA-100, 4xAGP and

SDRAM support.

The 82801BA I/O controller hub makes a direct connection

between the graphics system, the IDE controller, and the PCI

bus. It uses accelerated hub architecture to effectively double

the bandwidth between these components enabling more lifelike

audio and video. The 82801BA I/O controller hub includes an

integrated audio-codec controller that lets the processor more

effectively decode sound generated by the integrated audio

system.

The 82802 firmware hub allows the system and video BIOS to

be stored (eliminating the need for non-volatile CMOS memory)

for faster execution, and provides a random number generator to

enable strong encryption routines.

Expansion Options

The mainboard is pre-installed with features such as an onboard

AC 97 audio codec and an SIR connector. Six 32-bit PCI slots and

one CNR slot provide expansion options.

Indice

Altri manuali ECS Electronics Scheda madre

ECS Electronics

ECS Electronics L7VMM3 1.0 Manuale utente

ECS Electronics

ECS Electronics L4IBAE Manuale utente

ECS Electronics

ECS Electronics P6IEAT Manuale utente

ECS Electronics

ECS Electronics 648FX-A Manuale utente

ECS Electronics

ECS Electronics 661FX-M REV:1.0(B) Manuale utente

ECS Electronics

ECS Electronics L7VTM Manuale utente

ECS Electronics

ECS Electronics SI54P AIO Manuale utente

ECS Electronics

ECS Electronics L4VXA Manuale utente

ECS Electronics

ECS Electronics L7VMM Manuale utente

ECS Electronics

ECS Electronics M847 Series Manuale utente

ECS Electronics

ECS Electronics P4VXAD Rev.3.1 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
