ECS 915G-M5 Manuale utente

Preface

This publication, including all photographs, illustrations and software, is protected under

material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer

makes no representations or warranties with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for any particular purpose.

The manufacturer reserves the right to revise this publication and to make changes from

time to time in the content hereof without obligation of the manufacturer to notify any

person of such revision or changes.

TrademarkRecognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor-

poration.

Other product names used in this manual are the properties of their respective owners and

are acknowledged.

FederalCommunicationsCommission(FCC)

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this

equipment to ensure compliance with the pertinent RF emission limits governing this

device. Changes or modifications not expressly approved by the system’s manufacturer

could void the user’s authority to operate the equipment.

Preface

DeclarationofConformity

This device complies with part 15 of the FCC rules. Operation is subject to the following

conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation

CanadianDepartmentofCommunications

This class B digital apparatus meets all requirements of the Canadian Interference-causing

Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le

matériel brouilieur du Canada.

AbouttheManual

The manual consists of the following:

Chapter 1

Introducing the Motherboard

Chapter 2

Installing the Motherboard

Chapter 3

UsingBIOS

Chapter 4

Using the Motherboard Software

Describes features of the motherboard.

Go to Hpage 1

Describes installation of motherboard

components.

Goto Hpage 7

Provides information on using the BIOS

Setup Utility.

Go to Hpage 27

Describes the motherboard software

Go to Hpage 49

iii

TABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTS

Preface i

Chapter 1

IntroducingtheMotherboard 1

Introduction.................................................................................................1

Feature..........................................................................................................2

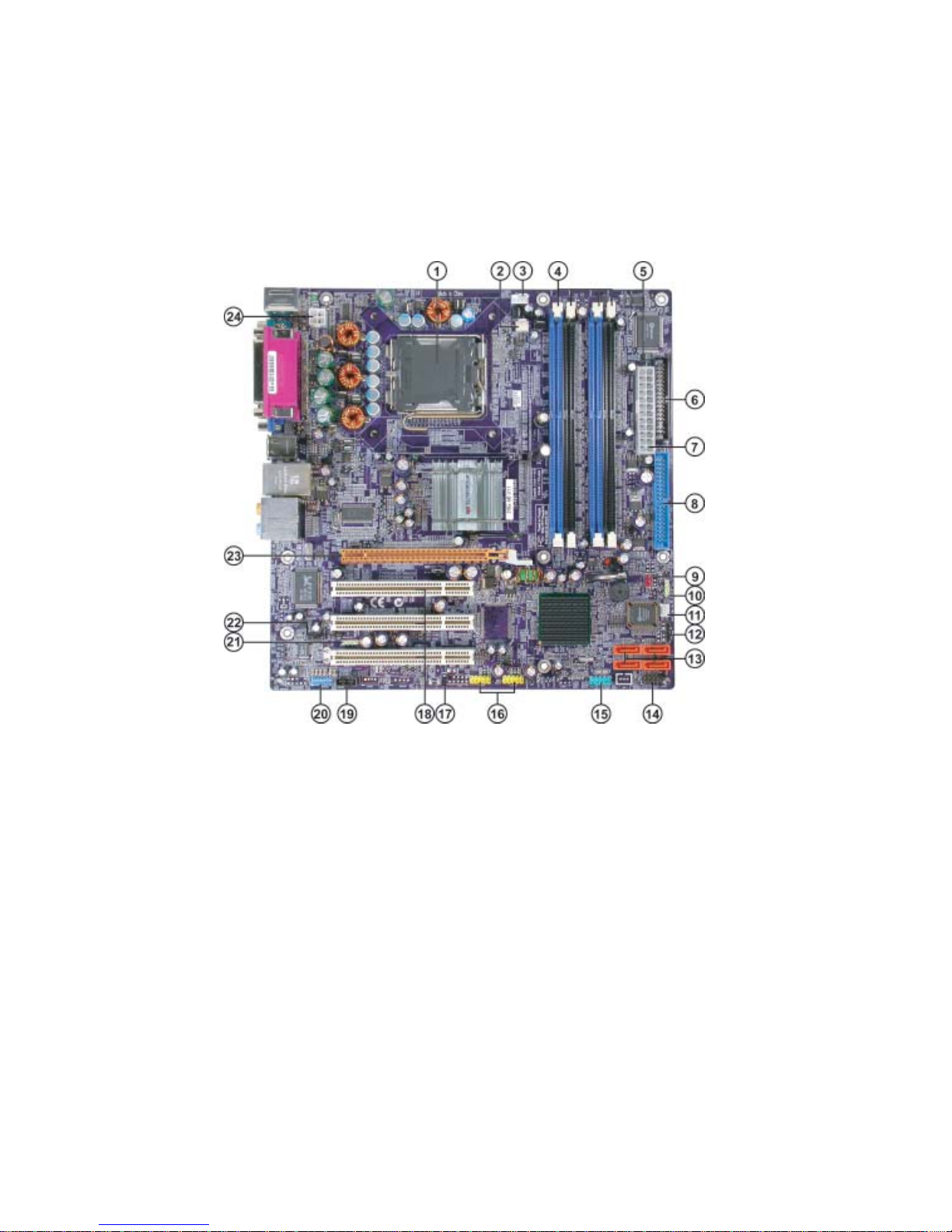

MotherboardComponents........................................................................4

Chapter 2 77

Installing the Motherboard 7

SafetyPrecautions......................................................................................7

Choosinga ComputerCase.......................................................................7

Installingthe Motherboard ina Case......................................................7

CheckingJumperSettings.........................................................................8

Setting Jumpers..............................................................................8

Checking Jumper Settings..............................................................9

Jumper Settings..............................................................................9

ConnectingCase Components...............................................................10

Front Panel Header.....................................................................12

InstallingHardware...................................................................................13

Installing the Processor...............................................................13

Installing Memory Modules.........................................................15

Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........17

Installing a Floppy Diskette Drive...............................................19

Installing Add-on Cards..............................................................20

Connecting Optional Devices......................................................22

ConnectingI/ODevices..........................................................................26

Chapter 3 2727

2727

UsingBIOS 27

Aboutthe SetupUtility............................................................................27

The Standard Configuration........................................................27

Entering the Setup Utility..............................................................27

Updating the BIOS.......................................................................29

UsingBIOS................................................................................................29

Standard CMOS Features...........................................................30

Advanced BIOS Features.............................................................32

Advanced Chipset Features.........................................................35

Integrated Peripherals.................................................................37

Power Management Setup...........................................................41

PNP/PCI Configurations............................................................43

PC Health Status..........................................................................44

Frequency Control.......................................................................45

Load Fail-Safe Defaults...............................................................46

Load Optimal Defaults................................................................46

Set Supervisor/User Password...................................................46

Save Changes and Exit................................................................47

Exit Without Saving......................................................................47

Chapter 4 4949

4949

UsingtheMotherboardSoftware 49

AbouttheSoftwareCD-ROM................................................................49

Auto-installingunderWindows 98/ME/2000/XP................................49

Running Setup..............................................................................50

ManualInstallation..................................................................................52

UtilitySoftwareReference.......................................................................52

Multi-Language Translation

IntroducingtheMotherboard

Chapter1

IntroducingtheMotherboard

Introduction

Thank you for choosing the 915G-M5 motherboard. This motherboard is a high perfor-

mance, enhanced function motherboard that supports LGA775 Socket for latest Intel

Pentium 4/Celeron processors for high-end business or personal desktop markets.

The motherboard may support 915G Northbridge (NB) and ICH6 Southbridge (SB) chipsets.

The 915G Northbridge on this motherboard supports a Front Side Bus (FSB) frequency of

800/533 MHz using a scalable FSB Vcc_CPU. The memory controller supports DDR

memory DIMM frequencies of 333MHz and 400 MHz. It supports four DDR Sockets with

up to maximum memory of 4 GB. DDR Maximum memory bandwidth of 3.2 GB/s in single-

channel mode and 6.4 GB/s in dual-channel mode is supported. One 16-lane PCI Express

port, intended for Graphics Interface, is fully compliant to the PCI Express Base Specifica-

tion revision 1.0a.

The ICH6 Southbridge on this motherboard supports three PCI slots which are PCI 2.3

compliant. It implements an EHCI compliant interface that provides 480Mb/s bandwidth

for eight USB 2.0 ports, AC’97 CODEC that features a 6-channel audio speaker out, One

onboard IDE connector supports 2 IDE devices in ATA-100/66 mode. The Southbridge

integrates a Serial ATA host controller that is SATA v1.0 compliant, supporting four SATA

ports with maximum transfer rate up to 150 MB/s each.

The 915G-M5 motherboard is equipped with advanced full set of I/O ports in the rear panel,

including PS/2 mouse and keyboard connectors, COM1, LPT, four USB ports, one VGA

port, one optional LAN port, and audio jacks for microphone, line-in, and 8-channel line-

out.

IntroducingtheMotherboard

Feature

• Accommodates Intel P4/Celeron processors

• Supports a system bus (FSB) of 800/533MHz

• Supports “Hyper-Threading” technology CPU

“Hyper-Threading” technology enables the operating system into thinking it’s hooked

up to two processors, allowing two threads to be run in parallel, both on separate

“logical” processors within the same physical processor.

The 915G-M5 uses a LGA775 type of Pentium 4 that carries the following features:

Processor

Chipset

Memory

• Accommodates four unbuffered DIMMs

• Up to 1 GB per DIMM with maximum memory size up to 4 GB

Graphics

• Supports core frequency of 333 MHz

• Supports 3D Setup, Render Engine, and 3D Graphics Enhancements

• Supports High Quality Texture Engine

• VideoDVD/PC-VCR

This motherboard may support either of the following LAN chipset:

Onboard LAN (Optional)

The 915G Northbridge (NB) and ICH6 Southbridge (SB) chipset are based on an inno-

vative and scalable architecture with proven reliability and performance.

• Supports 32-bit host bus addressing, allowing the CPU to

access the entire 4 GB of the memory address space.

• Has a 12-deep In-Order Queue to support up to twelve

outstanding piplined address requests on the host bus.

• Supports 256-Mb, 512-Mb and 1-Gb DDR/DDR2 technolo-

gies for x8 and x16 devices

• Provides an integrated graphics device delivering cost com-

petitive 3D, 2D and video capabilities.

• EnhancedDMAController, interrupt controller, and timer func-

tions

• Compliant with PCI 2.3 specificaiton

• Compliant with Serial ATA 1.0a specification

• Integrated USB 2.0 Host Controller supporting up to eight

USB 2.0 ports

• Integrated LAN controller

• Integrated IDE controller supports Ultra ATA100/66/33

915G chipset can only support 256-Mb, 512-Mb and 1-Gb DDR tech-

nologies for x8 and x16 device, NOT support 128-Mb DDR technology.

That is, 256 MB Double Side Memory Module & 128 MB Single Side

Memory Module are NOT support.

915G (NB)

ICH6 (SB)

• Supports 100/10 Mb/s N-Way Auto negotiation operation

• Half/Full duplex capability

• Supports Wake-On-LAN(WOL) function and remote wake-up

• Integrate 10/100/1000 transceiver

• Supports PCI v2.3, 32-bit, 33/66MHz

• Supportsfully with IEEE802.3, IEEE802.3uand IEEE802.3ab

IntroducingtheMotherboard

Audio

Expansion Options

This motherboard may support either of the following Audio chipset.

The motherboard comes with the following expansion options:

• One PIC Express x16 slot (optional)

• Three 32-bit PCI v2.3 compliant slots

• One 40-pin IDE low profile header that support two IDE devices

• One floppy disk drive interface

• Four 7-pin SATA connectors that support four SATA devices

The 915G-M5 motherboard supports UltraDMA bus mastering with transfer rates of

100/66 MB/s.

BIOS Firmware

Integrated I/O

The motherboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard

• One serial port and one parallel port

• Four USB ports

• One VGA port, one 1394 port (optional) and one LAN port (optional)

• Audio jacks for microphone in, line-in and line-out (Audio jack for microphone

in, line-in and 8-ch High DefinitionAudio out if supportsAzaliaAudio CODEC.)

• Compliant with theAC’97 v2.3 CODEC

• Supports 6-channel audio CODEC designed for PC multimedia systems

• Provides three analog line-level stereo inputs with 5-bit volume control:

Line-in,CD,AUX

• Supports S/PDIF output and input function

• Compliant with Azalia specification, supporting 8 channel DACs with

SNR>95dB

• Capabilities: 192/96/48/44.1 KHz with 24/20/16 bits

• 8 Smart Jack I/O port support

• Extensive jack detection via RNM (resistors network method) that can

be used to monitor the plugging status of each jack

• DigitalS/PDIFOUT& IN support

Some hardware specifications and software items are subject to change

with out prior notice.

This motherboard uses AWARD BIOS that enables users to configure many system

features including the following:

• Power management

• Wake-up alarms

• CPUparameters

• CPUandmemorytiming

The firmware can also be used to set parameters for different processor clock speeds.

IntroducingtheMotherboard

MotherboardComponents

Indice

Lingue:

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
