All disclosures, notices and warranty conditions are being written on the back of the box. Released on 10th of October, 2011.

Installation and mounting manual for EK-FC580 DCII backplate

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwaterblocks.com for updates. Before

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of ASUS GeForce 580 GTX DirectCU II graphics card.

STEP 2: PREPARING YOUR ASUS GEFORCE 580 GTX DirectCU II GRAPHICS CARD

EK-FC580 DCII backplate is very easy to install. First install EK-FC580 DCII water block according to its manual. If you have it already installed,

please check below which mounting screws for water block are to be left in their position. Please remove the two (2) screws marked with arrow.

STEP 3: APPLYING THE THERMAL PADS

EK-FC580 DCII backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed

thermal pad. Please install the two 1mm thick thermal pads (90x15x1mm) directly on the extruded stub on the backplate itself as shown on the

picture below. You may need to trim the excess thermal pads.

EK-FC 580 DCII backplate

Thermal pad 90x15x1mm

All disclosures, notices and warranty conditions are being written on the back of the box. Released on 10th of October, 2011.

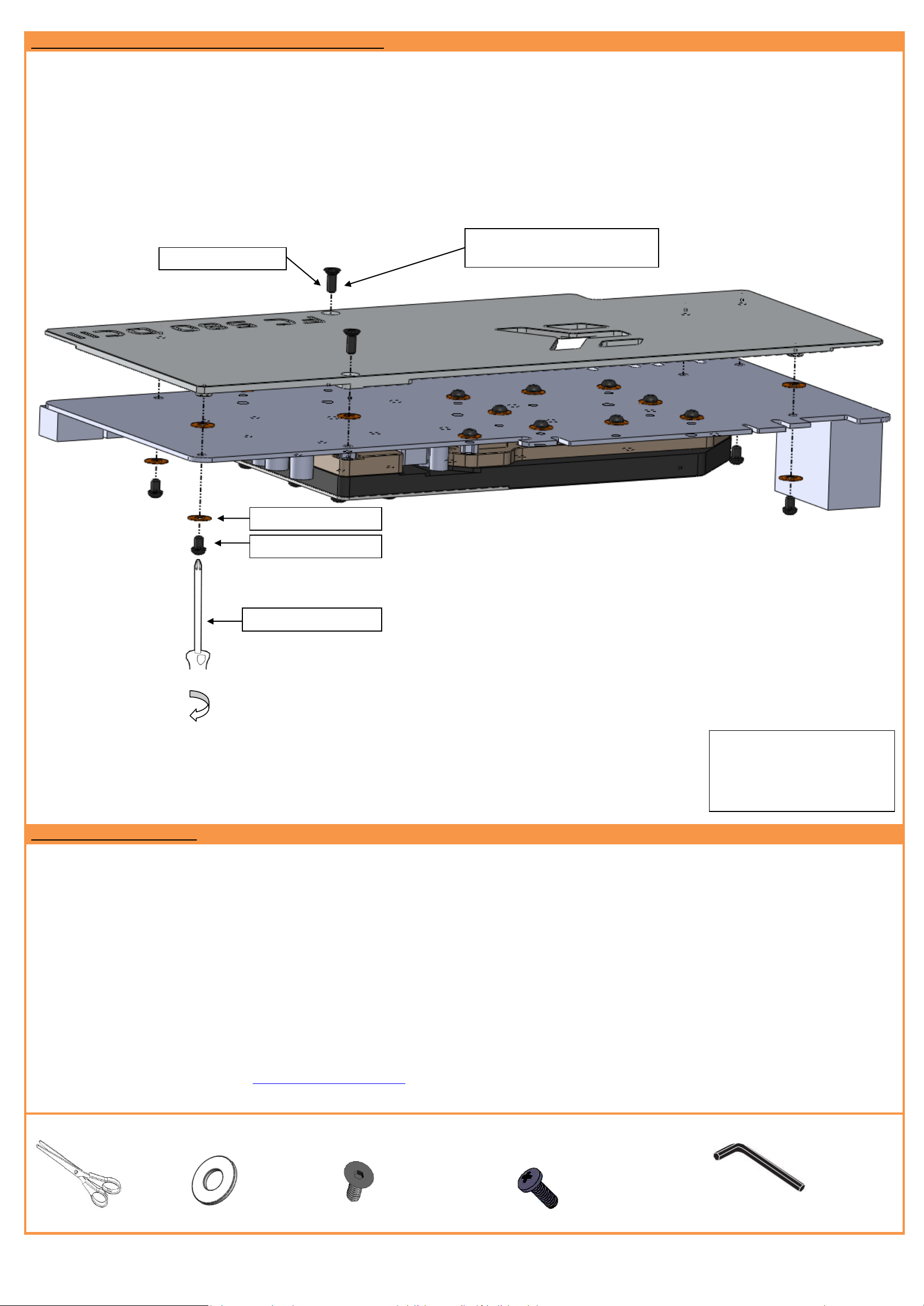

STEP 3: ATTACHING EK-FC580 DCII GTX BACKPLATE

Take enclosed mounting screws and install them as shown on picture below. EKWB recommends users to start with two M3x8 DIN7991 screws in

the middle (HINT: do not tighten screws until they are all positioned in their mounting holes) and then continue with mounting of five (5) M3x4

DIN7985 screws. Backplate has milled in standoffs, so there is no fear of over tightening the screws. Nevertheless do not exaggerate with screwing

force as there is no need for it. The use of enclosed plastic washers is mandatory!

(Please note that EKWB holds no responsibility of any kind if assembly is not made by instructions. This applies also for all products that are not out

of EKWB production line. Users must by all means also consider instructions that are being made for proper use of FC blocks.)

IMPORTANT DISCLOSURES

VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the

computer. We recommend a 24 hour leak test prior to powering up the computer. Do not test the water block using city water pressure. This will rupture the top

of the housing and render the block unusable (and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible,

EK Water Blocks assumes no liability expressed or implied for any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks

cooling products, either due to errors or omissions on our part in the above instructions, or due to failure or defect in the EK Water Blocks cooling products.

WARRANTY:

Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During

this period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was

purchased; (II) the product has been purchased by an end user and has not used for commercial purposes; (III) the product has not been misused, handled

carelessly, or used in a manner other than in accordance with the instructions provided describing its installation and proper use. This warranty does not confer

rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and

does not affect your statutory rights as a consumer. This warranty is voided if the product comes in contact with aggressive UV additives or other improper

liquids.

EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void only leaking issues.

Any other RMA issues can be reported to support@ekwaterblocks.com for further analysis.

REQUIRED TOOLS AND MOUNTING SCREWS:

scissors 10 ×PVC washers 2 x screws M3x8 7991DIN 5 × screws M3x4 DIN7985 2mm allen key

Use enclosed allen key on DIN7991

screws to attach backplate.

M3x8 DIN7991 screw

Please use enclosed PVC

washers under milled

standoffs!

M3x4 DIN7985 screw

philips head screwdriver

Plastic washer 0.5mm
