Elba ELIO 75-300 Manuale utente
Made in Italy
100%
ELBA QUALITY
MADE IN ITALY
BUILT-IN COOKING HOBS
Model: ELIO 75-300
Instructions for the use - Installation advices
2
Dear Customer,
Thank you for having purchased and given your preference to
our product.
The safety precautions and recommendations reported below are
for your own safety and that of others. They will also provide a
means by which to make full use of the features offered by your
appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for the task it has explicitly
been designed for, that is for cooking foodstuffs. Any other form
of usage is to be considered as inappropriate and therefore
dangerous.
The manufacturer declines all responsibility in the event of
damage caused by improper, incorrect or illogical use of the
appliance.
3
IMPORTANT SAFETY PRECAUTIONSAND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. Thislmmustberemovedbeforeusingthe
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
• CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
• Do not use a steam cleaner because the moisture can get into
the appliance thus make it unsafe.
4
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in barefoot.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• Thevariouscomponentsoftheappliancearerecyclable.Dispose
oftheminaccordancewiththeregulationsinforceinyourcountry.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
5
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch off the appliance and then cover ame e.g.
with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• Do not place or leave empty pans on the glass hob.
• Do not allow heavy or sharp objects to drop on the glass hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
6
FEATURES AND TECHNICAL DATA
1Fig. 1.1 Mod. ELIO 71-300
This appliance is Class 3 (appliance for building into a kitchen unit or worktop)
GAS BURNERS
1. Semirapid burner (SR) 1,75 kW
2. Triple ring burner (TR) 3,50 kW
CONTROL PANEL DESCRIPTION
3. Left burner control knob
4. Central burner control knob
5. Right burner control knob
NOTE:
• The electric ignition is incorporated in the knobs.
• The models has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
CAUTION:
If the burner is accidentally extinguished, turn the gas off at the control knob and wait at
least 1 minute before attempting to relight.
CAUTION:
Gas hobs produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or
by installing an extractor hood connected to an outlet duct.
CAUTION:
If the hob is used for a prolonged time it may be necessary to provide further ventilation by
opening a window or by increasing the suction power of the extractor hood (if tted).
1
2 2
3 4 5
7
Fig. 2.1
HOW TO USE THE COOKTOP
2
GAS BURNERS
Gas ow to the burners is adjusted by
turning the knobs (illustrated in g. 2.1)
which control the safety valves.
Turning the knob, so that the indicator line
points to the symbols printed on the panel,
achieves the following functions:
- symbol closed valve
- symbol maximum
aperture or ow
- symbol minimum
aperture or ow
√The maximum aperture position
permitsrapidboilingofliquids,whereas
the minimum aperture position allows
slower warming of food or maintaining
boiling conditions of liquids.
√ To reduce the gas ow to minimum
rotate the knob further anti-clockwise
to point the indicator towards the small
ame symbol.
√Other intermediate operating
adjustments can be achieved by
positioning the indicator between the
maximum and minimum aperture
positions, and never between the
maximum aperture and closed
positions.
N.B. When the cooktop is not being
used, set the gas knobs to their closed
positions and also close the cock
valve on the gas bottle or the main gas
supply line.
Caution!
The cooking hob becomes very hot
during operation.
Keep children well out of reach.
The ignition device shall not be
operated for more than 15 seconds.
If after 15 seconds the burner has
not lit, stop operating the device
and open the compartment door of
the cabinet underneath (if available)
and/or wait at least 1 minute before
attempting a further ignition of the
burner.
8
CHOICE OF THE BURNER
On the control panel, near every knob
there is a diagram that indicates which
burner is controlled by that knob.
The suitable burner must be chosen
according to the diameter and the capacity
used.
As an indication, the burners and the pots
must be used in the following way:
DIAMETERS OF PANS WHICH MAY BE
USED ON THE BURNERS
NOTE: Depending on the model, the cooktop
may only have some of the following burners
BURNERS MINIMUM MAXIMUM
Semi-rapid 16 cm 24 cm
Triple-ring 26 cm 28 cm
Wok Max 36 cm
do not use pans with concave or
convex bases
It is important that the diameter of the pot
be suitable to the potentiality of the burner
so as not to compromise the high output
of the burners and therefore energy waste.
Asmall pot on a large burner does not give
you a boiling point in a shorter amount of
time since the capacity of heat absorption
of a liquid mass depends on the volume
and the surface of the pot.
LIGHTING THE BURNERS
To ignite the burner, the following
instructions are to be followed:
1. Press in the corresponding knob and
turn counter-clockwise (g. 2.2) to the
full ame position marked by the
symbol (g. 2.1); hold the knob in unt il
the ame has been lit.
In the case of a mains failure light the
burner with a match or lighted taper.
2. Wait for a few seconds after the gas
burner has been lit before letting
go of
the knob (valve activation delay).
3. Adjust the gas valve to the desired
position.
If the burner ame should go out for some
reason, the safety valve will automatically
stop the gas ow.
To re-light the burner, return the knob
to the closed “ ” position, wait for at
least 1 minute and then repeat the lighting
procedure.
Note: If your local gas supply makes it
difcult to light the burner with the knob set
to maximum, set the knob to minimum and
repeat the operation.
Fig. 2.3Fig. 2.2
9
CORRECT
WRONG
CORRECT
WRONG
CORRECT WRONG
Fig. 2.4 Fig. 2.5
SPECIAL WOK GRILLE (gs. 2.4 - 2.5)
This special grille for woks should be placed over the pan-rest for the triple ring burner.
Warning:
• Using woks without this special grille may cause the burner to malfunction.
• Do not use the grille for ordinary, at-bottomed saucepans.
IMPORTANT:
The special grille for wok pans MUST BE PLACED ONLY over the pan-rest for the
triple-ring burner.
10

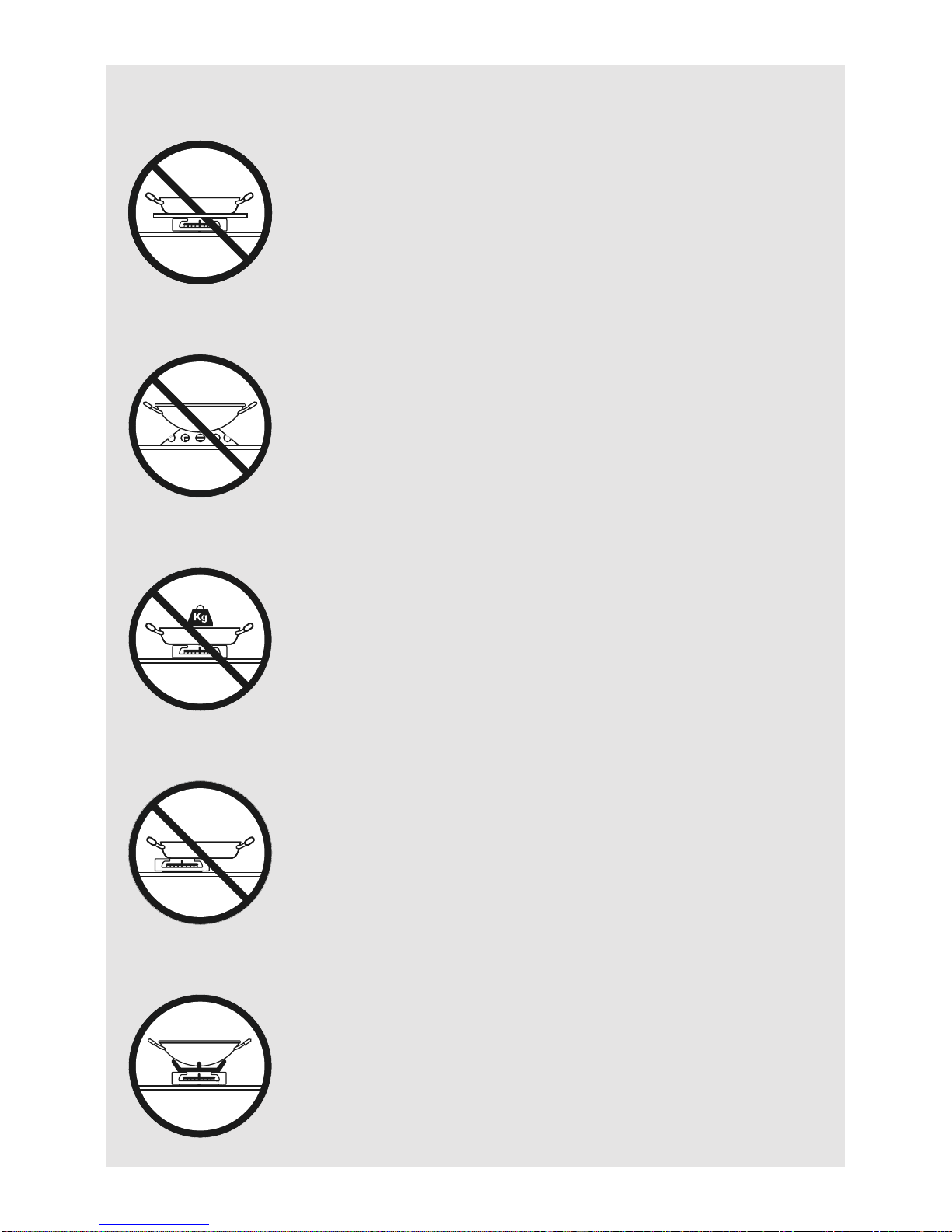

Do not place anything, e.g. flame tamer, asbestos
mat, between pan and pan support as serious
damage to the appliance may result.
Do not remove the pan support and enclose the
burner with a wok stand as this will concentrate and
deflect the heat onto the hotplate.
Do not use large pots or heavy weights which can
bend the pan support or deflect the flame onto the
hotplate.
Locate pan centrally over the burner so that it is
stable and does not overhang the appliance.
Use only a wok support supplied or recommended
by the manufacturer of the appliance.
Symbols on the glass
Indice
Altri manuali Elba Piano cottura
Elba
Elba EDCH-K3012ST Manuale utente
Elba
Elba E74-200 Istruzioni per l'installazione e il funzionamento
Elba
Elba EGH-B8242G(BK) Manuale utente
Elba
Elba EHS 635 SB Istruzioni per l'installazione e il funzionamento
Elba
Elba EGH-B9230G Manuale utente
Elba
Elba P90 Series Manuale tecnico
Elba
Elba P6D Manuale utente
Elba
Elba EHS 311D1 S Istruzioni per l'installazione e il funzionamento
Elba
Elba EHS 948 S NK Manuale utente
Elba
Elba ECH-A9004ST Manuale utente
Elba
Elba EIF 46 ASDV Manuale utente
Elba
Elba EAVF 46 PRO Manuale utente
Elba
Elba EVNF 460 Manuale utente
Elba
Elba P60 Istruzioni per l'installazione e il funzionamento
Elba
Elba EGH-K8942G Manuale utente
Elba
Elba DOMINO HOBS Manuale utente
Elba
Elba DOMINO COOKING HOBS Istruzioni per l'installazione e il funzionamento
Elba
Elba Domino E35-100 XD Istruzioni per l'installazione e il funzionamento
Elba
Elba EF60-440 X.1 Manuale utente
Elba
Elba 77-005 SS Manuale utente
