EN Tumble Dryer User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. CONDITIONS OF USE.......................................................................................5

3. SAFETY INSTRUCTIONS..................................................................................5

4. PRODUCT DESCRIPTION................................................................................ 7

5. CONTROL PANEL............................................................................................. 7

6. PROGRAMME TABLE....................................................................................... 9

7. OPTIONS..........................................................................................................10

8. SETTINGS........................................................................................................11

9. BEFORE FIRST USE....................................................................................... 13

10. DAILY USE..................................................................................................... 13

11. HINTS AND TIPS........................................................................................... 14

12. CARE AND CLEANING..................................................................................15

13. TROUBLESHOOTING....................................................................................17

14. TECHNICAL DATA.........................................................................................18

15. WARRANTY .................................................................................................. 19

IMPORTANT INFORMATION THAT MAY IMPACT

YOUR MANUFACTURER'S WARRANTY

Adherence to the directions for use in this manual is extremely important for

health and safety. Failure to strictly adhere to the requirements in this manual

may result in personal injury, property damage and affect your ability to make a

claim under the Electrolux manufacturer’s warranty provided with your product.

Products must be used, installed and operated in accordance with this manual.

You may not be able to claim on the Electrolux manufacturer’s warranty in the

event that your product fault is due to failure to adhere to this manual.

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time. Welcome to

Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.registerelectrolux.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

www.electrolux.com2

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

- Read the supplied instructions.

- Warning; Risk of fire / Flammable materials

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

ENGLISH 3

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, it should be

activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from

your authorized vendor, can be used only with the

appliance specified in the instructions supplied with

the accessory. Read it carefully before installation

(refer to the Installation leaflet).

•The appliance can be installed as freestanding or

below a kitchen counter with correct space (refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully open.

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied

through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on

and off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 8 kg (refer to the

"Programme chart" chapter).

www.electrolux.com4

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. CONDITIONS OF USE

This appliance is intended to be used in

household and similar applications such

as:

• Farm houses

• By clients in serviced apartments,

holiday apartments and other

residential type environments.

3. SAFETY INSTRUCTIONS

3.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

ENGLISH 5

• Do not install or use the appliance

where the temperature can be lower

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when it is being moved.

• The rear surface of the appliance

must be put against a wall.

• When the appliance is in its

permanent position, check if it is

levelled correctly with the aid of a

spirit level. If it is not, adjust the feet

accordingly.

3.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

3.3 Use

WARNING!

Risk of injury, electric shock,

fire, burns or damage to the

appliance.

• Do not dry the damaged items which

contain padding or fillings.

• Only dry fabrics which are applicable

to dry in the tumble dryer. Follow the

instructions on the fabric label.

• If you have washed your laundry with

a stain remover start an extra rinse

cycle before you start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the

tumble dryer.

• Oil-affected items can ignite

spontaneously, especially when

exposed to heat sources such as in a

tumble dryer. The items become

warm, causing an oxidation reaction

in the oil. Oxidation creates heat. If

the heat cannot escape, the items can

become hot enough to catch fire.

Piling, stacking or storing oil-affected

items can prevent heat from escaping

and create a fire hazard.

• If it is unavoidable that fabrics that

contain vegetable or cooking oil or

have been contaminated by hair care

products be placed in a tumble dryer

they should first be washed in hot

water with extra detergent -this will

reduce, but not eliminate, the hazard.

3.4 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use any abrasive products,

abrasive cleaning pads, solvents or

metal objects.

3.5 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

3.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

www.electrolux.com6

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

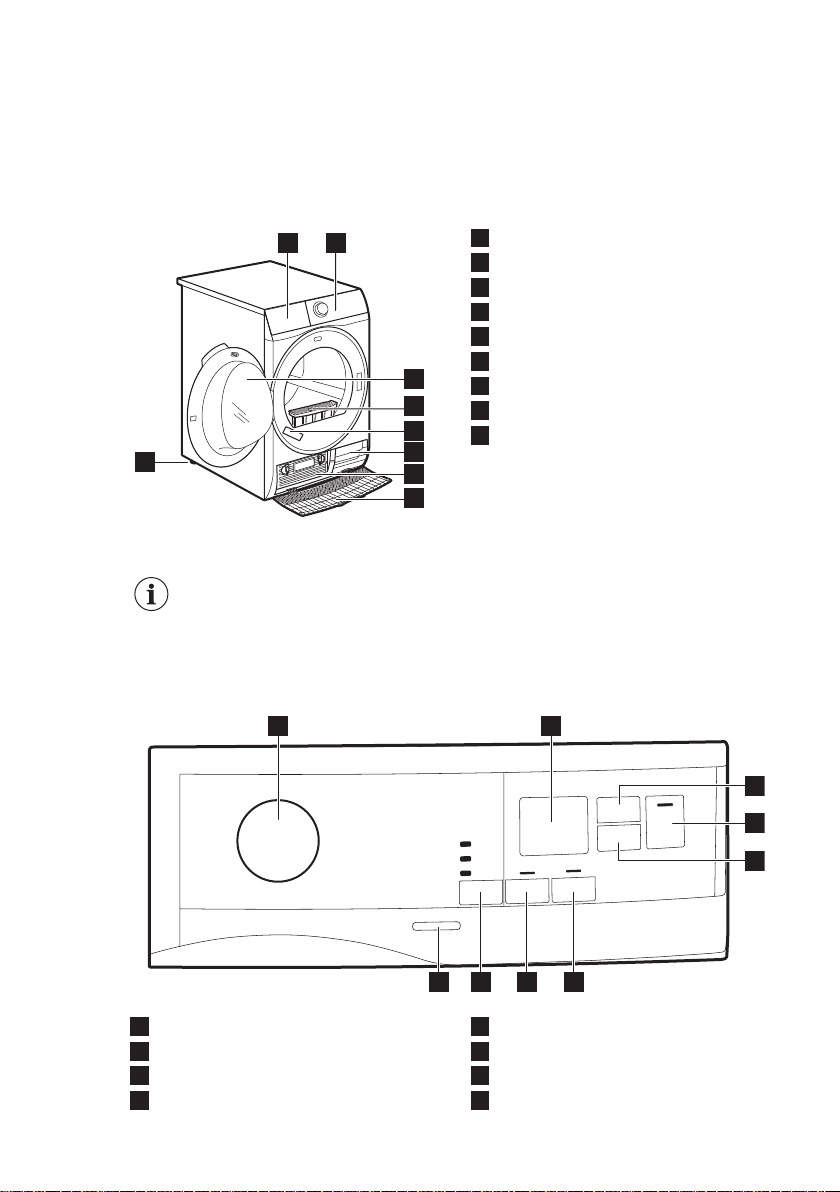

4. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Appliance door

4Filter

5Rating plate

6Airflow slots

7Heat Exchanger lid

8Heat Exchanger cover

9Adjustable feet

For ease of loading laundry

or ease of installation the

door is reversible. (see

separate leaflet).

5. CONTROL PANEL

89 7 6

1Programme knob

2Display

3Time Dry touch button

4Start/Pause touch button

5Delay Start touch button

6Extra Anticrease touch button

7Gentle Dry touch button

8Dryness Level touch button

ENGLISH 7

9On/Off button Press the touch buttons with

your finger in the area with

the symbol or name of the

option. Do not wear gloves

when you operate the

control panel. Make sure

that the control panel is

always clean and dry.

5.1 Display

Symbol on the display Symbol description

time drying option on

delay start option on

indicator:

check Heat Exchanger

indicator:

clean filter

indicator:

drain the water container

indicator:

drying phase

indicator:

cooling phase

indicator:

anti-crease phase

child lock on

wrong selection

programme duration

- time Drying duration

- delay start duration

www.electrolux.com8

6. PROGRAMME TABLE

Programme Load 1) Properties / Fabric type2)

Favourite

Depends

on a mem‐

orised pro‐

gramme

You can do your configuration of programme

and options and memorise in the appliance

memory (See chapter "

Settings - Favourite

").

Cottons3) 8 kg Cotton fabrics. /

Mixed 3kg

Cotton and synthetic fabrics.

Low temperature programme.

Delicate programme with warm

air.

Bedding 3kg

Bed linen such as single and

double sheets, pillowcases, du‐

vet cover. /

Synthetics 3,5 kg Synthetic and mixed fabrics. /

Energy Saver 8 kg

Cycle to be used to dry cotton

with "cotton cupboard" dryness

level, with maximum energy sav‐

ing.

Refresh 1kg Refreshing textiles that were in storage.

Denim 4 kg

Leisure clothing such as jeans,

sweat-shirts of different material

thicknesses (e.g. at the neck,

cuffs and seams).

Sports 2 kg Sportswear, thin and light fab‐

rics, microfiber, polyester. /

Easy Iron 1 kg (or 5

shirts)

Easy care fabrics for which a

minimum of ironing is necessary.

The drying results can be differ‐

ent from one type of fabric to an‐

other. Shake the items before

putting them in the appliance.

When the programme has

ended, immediately remove the

items and put them on a hanger.

Shirts 1,5kg (or 7

shirts)/

Easy care fabrics for which a

minimum of ironing is necessary.

The drying results can be differ‐

ent from one type of fabric to the

other. Shake the items before

you put them in the appliance.

When the programme is comple‐

ted, Immediately remove the

items and put them on a hanger.

ENGLISH 9

Programme Load 1) Properties / Fabric type2)

Wool 1 kg

Woollen fabrics. Gentle drying for hand-wash‐

able woollens. Remove items immediately

when the programme is completed.

Delicates 4 kg Delicate fabrics such as viscose,

rayon, acrylic, and their blends. /

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter

HINTS AND TIPS: Preparing the laundry.

3) For test institutes only: the Cottons program in combination with the extra dry Dryness

Level is the “Standard cotton program”. It is suitable for drying normal wet cotton laundry

and it is the most efficient program in terms of energy consumption for drying wet cotton

laundry. Standard programme for tests are specified in the AS/NZS2442.2 document.

7. OPTIONS

7.1 Dryness Level

This function helps to increase dryness

of the laundry. There are 3 options:

• Extra Dry

• Cupboard Dry

• Iron Dry

7.2 Gentle Dry

With this option you can set a delicate

drying programme that has a low

temperature. Use this option with a

fabrics that have the symbol on the

fabric label (e.g. acrylic, viscose).

7.3 Extra Anticrease

Extends the anti-crease phase by 60

minutes at the end of the drying cycle.

This function reduces creases. The

laundry can be removed during the anti-

crease phase.

7.4 Time Dry

You can set the programme duration,

from a minimum of 10 minutes to a

maximum of 2 hours. The required

duration is related to the quantity of

laundry in the appliance.

We recommend that you set

a short duration for small

quantities of laundry or for

only one item.

7.5 Options table

Programmes1) Dryness Level Gentle Dry Extra Anti‐

crease Time Dry

Favourite Depends on a memorised programme

Cottons ■ ■ ■ ■ ■ ■

Mixed ■ ■ ■ ■

Bedding ■ ■ ■ ■

www.electrolux.com10

Indice

Altri manuali Electrolux Asciugatrice

Electrolux

Electrolux EDH3497RDW Manuale utente

Electrolux

Electrolux EDV705H3WB Manuale utente

Electrolux

Electrolux TWL3E500 Manuale utente

Electrolux

Electrolux EDV500 Manuale utente

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuale utente

Electrolux

Electrolux 137357000A Manuale utente

Electrolux

Electrolux EDC 5345 Manuale utente

Electrolux

Electrolux EWMED70J IW Manuale utente

Electrolux

Electrolux TE1120 Manuale utente

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW Manuale utente

Electrolux

Electrolux FRWADREW4 Manuale utente

Electrolux

Electrolux EIMED60LSS Manuale di servizio

Electrolux

Electrolux EDC 5470 Manuale operativo

Electrolux

Electrolux EDE56150W Manuale operativo e di manutenzione

Electrolux

Electrolux AEQ6000ES Manuale utente

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer Manuale utente

Electrolux

Electrolux Compass Pro TD6-10 Manuale utente

Electrolux

Electrolux Electric Dryer Manuale utente

Electrolux

Electrolux TK 5357 F Manuale utente

Electrolux

Electrolux TE1120P Manuale utente

Electrolux

Electrolux TD6-14 Manuale utente

Electrolux

Electrolux EDH3284PDW Manuale utente

Electrolux

Electrolux EDE 425 M Guida rapida

Electrolux

Electrolux TD6-14LAC Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
