Electrolux EDS6051 Manuale utente
EDS6051
...................................... ........................................................
USER MANUALTUMBLE DRYER
2 www.electrolux.com
The final part of a tumble dryer cycle occurs without
heat (cooling cycle) to ensure that the items are left
at the temperature that ensures that the items will
not be damaged.

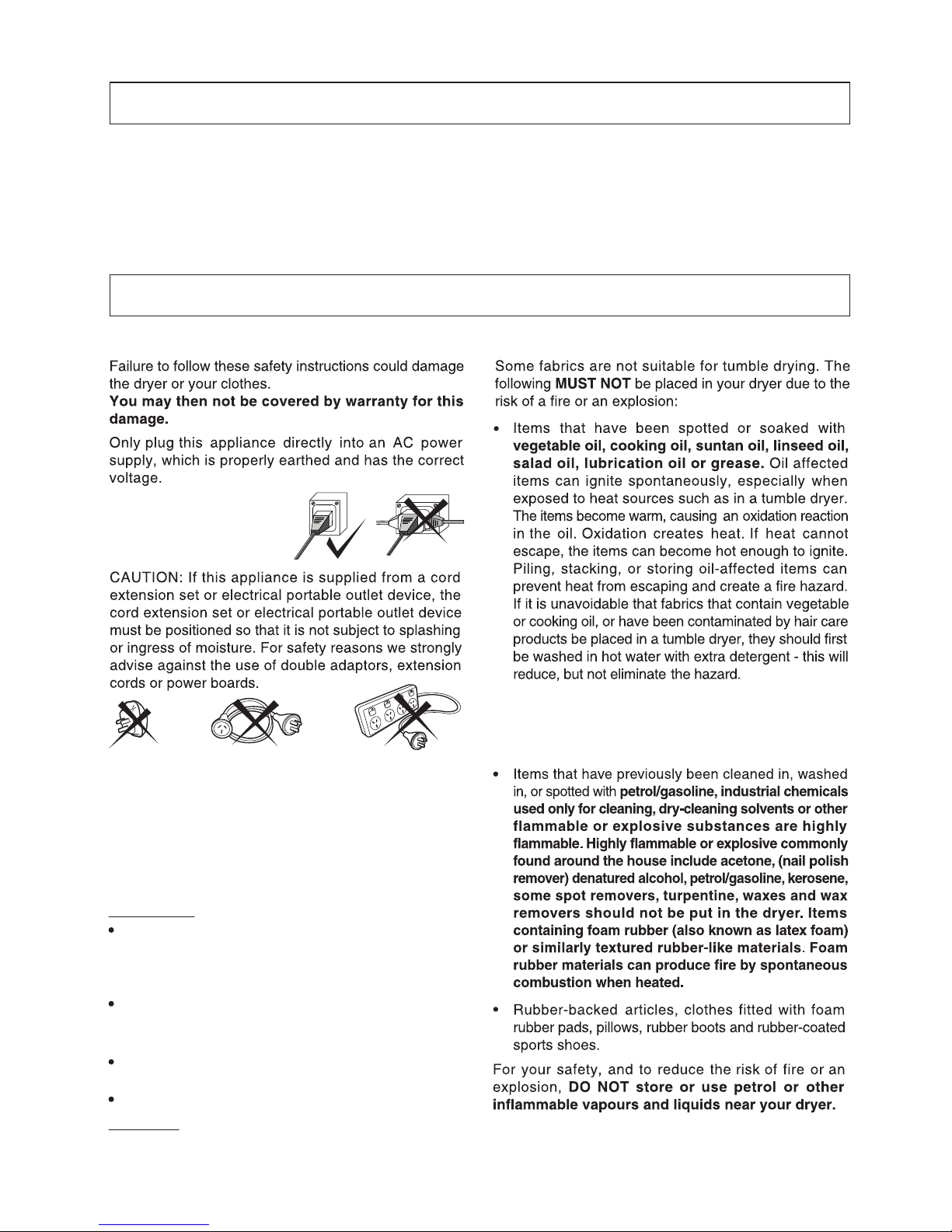

DRYER SAFETY FIRE HAZARDS
Contents
Important Safety Instructions
Important Safety Instructions
Installation Instructions
Dryer Safety
-
-
-
-
Fire Hazards
Cleaning the Lint Filter
Drying Guide
Page 2
Page 2
Page 3
Page 3
Use
-
-
The Control Panel
Operating Sequence
Page 6
Page 7
Page 4...................................
.......................................
....................................
.................................................................
...................
....................................................
...................................................
...................................
................................................... Hints Page 10
.........................................
Care And Cleaning Page 9
Troubleshooting & Accessories Page 11
..........................................................
Warranty Page 15
See the serial number sticker
located on the bottom of the
door opening for voltage
information.
Lint must not be allowed to accumulate around
the tumble dryer.
Do not dry unwashed items in the tumble dryer.
These dryers are for drying clothes, towels and
linen at home. Do not use them for any other
purpose.
If the electrical cord of this appliance is
damaged, it must be replaced by the Manufac-
turer, Authorised Service Agent or similarly
qualified person in order to avoid a hazard.
IMPORTANT:
WARNING: Never stop a tumble dryer before the
end of the drying cycle unless all items are
quickly removed and spread out so that the heat
is dissipated.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
www.electrolux.com
3
EDS6051
Nozzle
Rating Plate
Lint Filter
The lint filter is located at
the front of your dryer at
the bottom of the door
opening.
10
Never operate your dryer without the lint filter.
Do not allow lint to build around your dryer.
A torn or damaged lint filter must be replaced
immediately.
Overloading can increase lint build-up because the
airflow is reduced.
4
www.electrolux.com
Removable
Exhaust
Grille
(Optional Extra)
Control Panel
Door
Door Safety Switch
Button
Door Handle
Exhaust Grille
on top of a front load washing machine using a
stacking kit available as an optional extra (not
available for all washing machine models).
Worktop
Water Connection
Cold water tap must be installed within 110 cm of your
dryer’s water inlet and the tap must be 3/4 inch BSP
thread for laundry hose connection. Water pressure
must be between 200kpa to 800kpa.
Use the hose supplied with the dryer. DO NOT USE
OLD HOSES.
To connect the water inlet to dryer:
Turn off cold water supply
to washer.
Cold
water tap
1.
Mains Cable
Air Inlet Duct
Outlet Cover
Water Inlet Hose
Worktop
www.electrolux.com
5
Remove cold inlet hose from cold water supply.
Check rubber seal,
replace if worn.
Check rubber
seal
2.
Turn on the water tap and check for leaks at all
connection.
6.
Turn on cold supply for a short time to run some
water into a bucket or container to clear any
contaminants in the line.
3.
Connect the Y-Connector to the cold water tap.
4.
Connect the cold inlet hose for the washer and the
dryer to the Y-Connector and tighten them.
5.
Cold water tap
To Washing
Machine
6
www.electrolux.com
When a new program is selected while the dryer is
already running, the drying process will continue
using the settings from the new program.
continue
or
from
unload
The dryer
is
6 58 104 3 7 19
This button allows you to select 2 options.
Iron Aid:
This option should only be used to reduce
wrinkles for clothes which are clean and dry.
When this option is selected, all other
programs will be suppressed.
This option will help in reducing wrinkles on your
clean and dry clothes by using a combination of
moisture and warm air function. Maximum load
should not exceed 1 kg when this option is
selected. This option cannot be combined with any
other programs.
2
www.electrolux.com
7
To activate this option press and hold the “Option”
and “Delay” buttons simultaneously until a long
beep is heard.
To deactivate press and hold the same buttons
until a short beep is heard.
Press door
safety switch
button.
For drying delicates and
synthetics at lower heat for
maximum care of the fabrics.
The Delicate setting will cause
the heater to cycle on for
shorter time than the Normal
setting.
To obtain the best drying results with small loads
it is recommended to use Extra Dry program.
8
www.electrolux.com
at
WARNING: Never stop a tumble dryer before
the end of the drying cycle unless all items
are quickly removed and spread out so that
the heat is dissipated.
both
www.electrolux.com
9
If your water is very hard or contains traces of lime
deposit, the water inlet filter may become clogged.
It is therefore a good idea to clean it from time to time.
Remove the water inlet
hose from the water tap.
Remove the inlet hose behind the appliance.
Clean the filter in the inlet
hose with a stiff brush.
To clean the water inlet filters:
1. Close the water tap.
2.
3.
4.
Care And Cleaning
You must DISCONNECT the appliance from
the electricity supply, before you can carry out
any cleaning or maintenance work.
Clean the appliance only with soap and warm water.
Fully dry all the surfaces.
Do not use alcohol, solvents or chemical
products.
Cleaning The Water Inlet Filter
External Cleaning
Warning!
Caution!
Clean the filter in the valve with a stiff brush or a
towel.
5.
Re-install the inlet hose. Make sure that the
couplings are tight to prevent leakages.
6.
7. Open the water tap.
10
www.electrolux.com
Due to variations in dryer load fabric texture and
thickness it is possible that not all items will be
dried evenly. It you experience uneven dryness on
Normal Dry program please use either Extra Dry or
Timer Program but be mindful of the type of fabric
being dried to avoid overdrying certain types of
fabric. Always follow drying instructions attached to
the items intended to be dried in a clothes dryer.
