Electrolux E30MO75HP Manuale utente

BRUSH DIRECTION

Product No. E30MO75HPSA E30MO75HSSA

Market North America North America

Color stainless steel stainless steel

Volts 120 120

Watts 900 900

Wiring Diagram 5995535084 5995535084

Owner's Guide TINSEB493MRR1

TINSEB493MRR1

Installation Instructions

TINSEB504MRR0

E30MO75HSS Cover.eps E30M075HSS cabinet.eps E30M075HSS controls.eps

E30MO75HSS Wiring.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995535084

09/03/13

(EN/SERVICE/KC)

099

COUNTER-TOP

MICROWAVE

Model No.

E30MO75HP /

E30MO75HS

Publication No: 5995535084 E30MO75HP / E30MO75HS

03/09 2

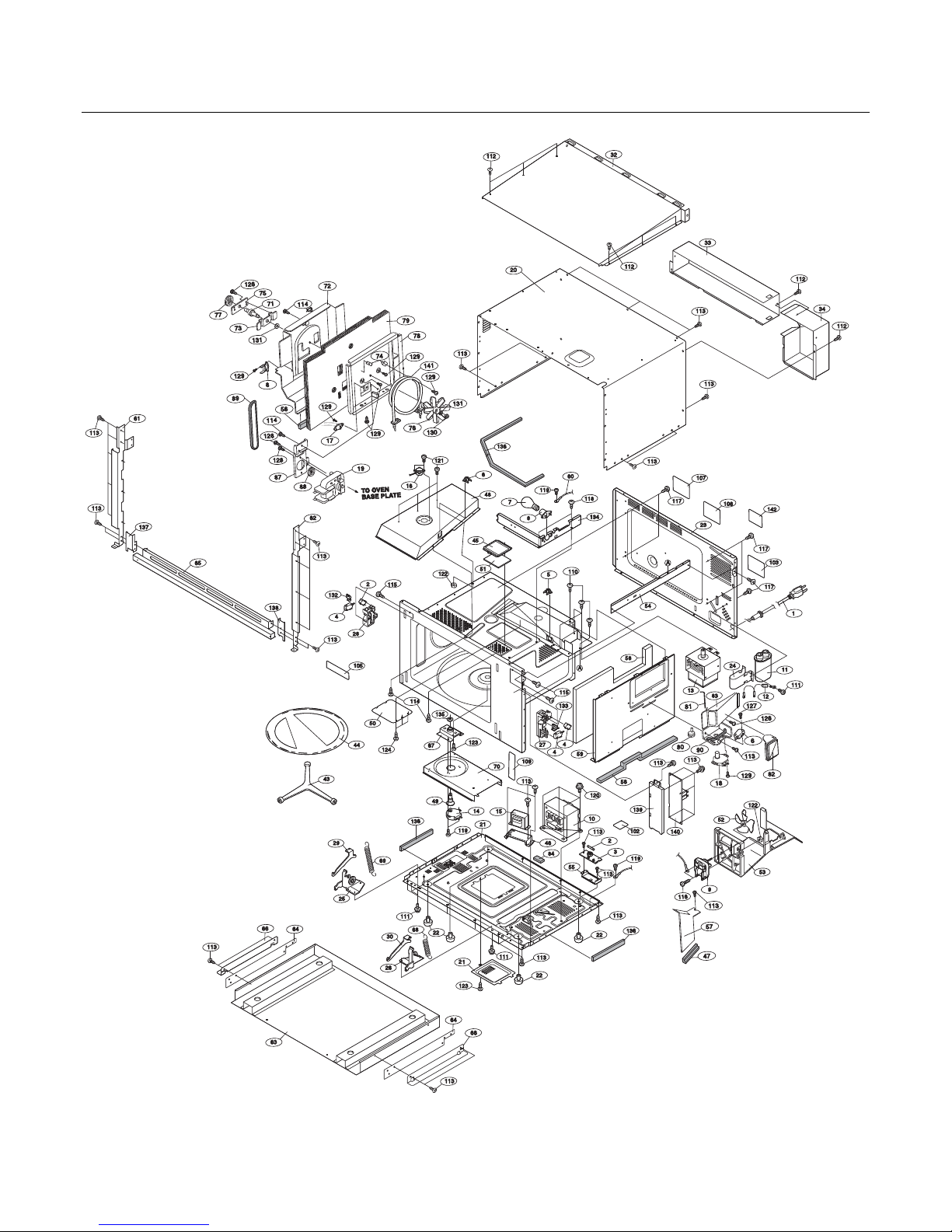

OVEN,CABINET

E30MO75HSS cabinet

E30MO75HP / E30MO75HS Publication No: 5995535084

# Functional Parts 3 03/09

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AE30MO75HP (E30MO75HPSA)

BE30MO75HS (E30MO75HSSA)

POS. NO PART NO. DESCRIPTION

1 # 75304470537 A B Power Cord, electric

2 # 75304461109 A B Assembly, fuse & switch, monitor

3 # 75304461110 A B Filter, noise

4 # 75304440026 A B Switch, interlock, door sensor

5 # 75304461113 A B Thermal Cut-Out, magnetron

6 # 75304461114 A B Thermal Cut-Out, convection/oven, (2)

7 75304464198 A B Lamp, oven light

8 # 75304463785 A B Lampholder, socket

9 # 75304461119 A B Motor, fan

10 # 75304470538 A B Transformer, power

11 # 75304470539 A B Capacitor, high voltage

12 # 75304461122 A B Rectifier, high voltage

13 # 75304470540 A B Magnetron

14 # 75304461124 A B Motor, turntable

15 # 75304470541 A B Transformer, low voltage

16 # 75304461125 A B Sensor Assembly, AH

17 # 75304461112 A B Thermistor

18 # 75304461115 A B Motor, damper

19 # 75304471782 A B Motor, convection fan

20 75304470542 A B Cabinet, outer casing

21 75304470734 A B Base, chassis, w/motor cover

22 75304461127 A B Foot, cabinet, (4)

23 75304470544 A B Panel, cabinet back

24 75304461129 A B Holder, capacitor

25 75304470545 A B Hinge, oven door, left

26 75304470546 A B Hinge, oven door, right

27 75304470547 A B Latch Hook, right side

28 75304470548 A B Latch Hook, left side

29 75304470549 A B Cam, door, left

30 75304470550 A B Cam, door, right

32 75304470552 A B Cover, front

33 75304470553 A B Duct, B

34 75304470554 A B Duct, C

43 75304470562 A B Support, turntable, with rollers

44 75304470563 A B Tray, turntable, glass

45 75304461155 A B Frame, light lens

46 75304470564 A B Bracket, mounting, transformer

47 75304461157 A B Cushion

48 75304461158 A B Duct Assembly, steam release

49 75304451450 A B Coupler, turntable/motor

50 75304461165 A B Cover, waveguide

51 75304461167 A B Lens, light

52 # 75304461173 A B Blade, fan

53 75304461174 A B Duct, cooling fan

54 75304461175 A B Support, chassis

55 75304461178 A B Angle, noise filter

56 75304461156 A B Cushion

57 75304461181 A B Guide, air, magnetron

58 75304461182 A B Sheet, thermal, protection

Publication No: 5995535084 E30MO75HP / E30MO75HS

03/09 4

OVEN,CABINET

E30MO75HSS cabinet

E30MO75HP / E30MO75HS Publication No: 5995535084

# Functional Parts 5 03/09

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AE30MO75HP (E30MO75HPSA)

BE30MO75HS (E30MO75HSSA)

POS. NO PART NO. DESCRIPTION

59 75304461183 A B Cover, thermal sheet, panel

60 # 75304461196 A B Wiring Harness, thermistor

61 75304470565 A B Trim, left side

62 75304470566 A B Trim, right side

63 75304470569 A B Duct, exhaust

64 75304470570 A B Angle, bottom

65 75304470571 A B Louver, inlet

66 75304470572 A B Angle, shipping

67 75304451459 A B Bracket, turntable mount

68 75304470573 A B Spring, door, right side

69 75304470575 A B Spring, door, left side

70 75304470576 A B Insulator, thermal barrier

71 75304461146 A B Bearing Assembly

72 75304461147 A B Plate, thermal protect, LH

73 75304461148 A B Plate, bearing mtg

74 75304461149 A B Holder, element

75 75304461150 A B Plate, bearing holder

76 # 75304461151 A B Fan Blade, convection

77 # 75304471508 A B Pulley, convection fan

78 75304471509 A B Duct Assembly, heater

79 75304461154 A B Sheet, thermal protect, LH

80 75304461159 A B Cam, damper

81 75304461160 A B Shaft, damper

82 75304461161 A B Door Assembly, damper

83 75304461162 A B Duct, damper

84 75304461163 A B Cushion

87 75304461172 A B Plate, motor mtg, convection

88 # 75304461152 A B Pulley, motor, convection fan

89 # 75304461177 A B Belt, convection fan

90 75304461179 A B Cushion, damper duct

102 75304440334 A B Label, Caution-monitor

103 75304465314 A B Label, NHW caution

105 75304451534 A B Label, User Caution, French

106 75304470585 A B Label, height caution

107 75304440333 A B Label, Caution-DHHS

109 75304471514 A B Label, menu

110 75303319636 A B Screw

111 75304451550 A B Screw, 4 mm x 8 mm

112 75304451552 A B Screw, 4 mm x 8 mm, white

113 75304451553 A B Screw, 4 mm x 12 mm

114 75304461203 A B Screw, 4mm x 10mm, (14)

115 75303319641 A B Screw

116 75304461209 A B Screw, 4mm x 25mm, (2)

117 75304470587 A B Screw

118 75304461215 A B Screw, 4mm x 8mm, (6)

119 75304470588 A B Screw

120 75304461221 A B Screw, 6mm x 14mm, (2)

121 75304470589 A B Screw

122 75304470590 A B Nut, special

123 75304450253 A B Screw, 4 mm x 8 mm

124 75304461210 A B Screw, 4mm x 6mm, (7)

Publication No: 5995535084 E30MO75HP / E30MO75HS

03/09 6

OVEN,CABINET

E30MO75HSS cabinet

E30MO75HP / E30MO75HS Publication No: 5995535084

# Functional Parts 7 03/09

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AE30MO75HP (E30MO75HPSA)

BE30MO75HS (E30MO75HSSA)

POS. NO PART NO. DESCRIPTION

126 75304461204 A B Screw, 4mm x 8mm, (2)

127 75304461208 A B Screw, 3mm x 14mm

128 75304471515 A B Screw

129 75304461216 A B Screw, 3mm x 6mm

130 75304451547 A B Nut, element, 4 mm x 3.2 mm, (4)

131 75304461214 A B Washer

132 75304470591 A B Lever, switch actuator, left

133 75304470592 A B Lever, switch actuator, right

134 75304461171 A B Guide, air, RH

135 75304451470 A B Packing, silicon

136 75304461166 A B Cushion, (4)

137 75304470593 A B Trim, decorative, left side

138 75304470594 A B Trim, decorative, right side

139 75304470735 A B Holder, power board

140# 75304470596 A B Power Board, printed circuit

141# 75304461120 A B Element, heating, convection

142 75304471516 A B Label, height caution

Publication No: 5995535084 E30MO75HP / E30MO75HS

03/09 8

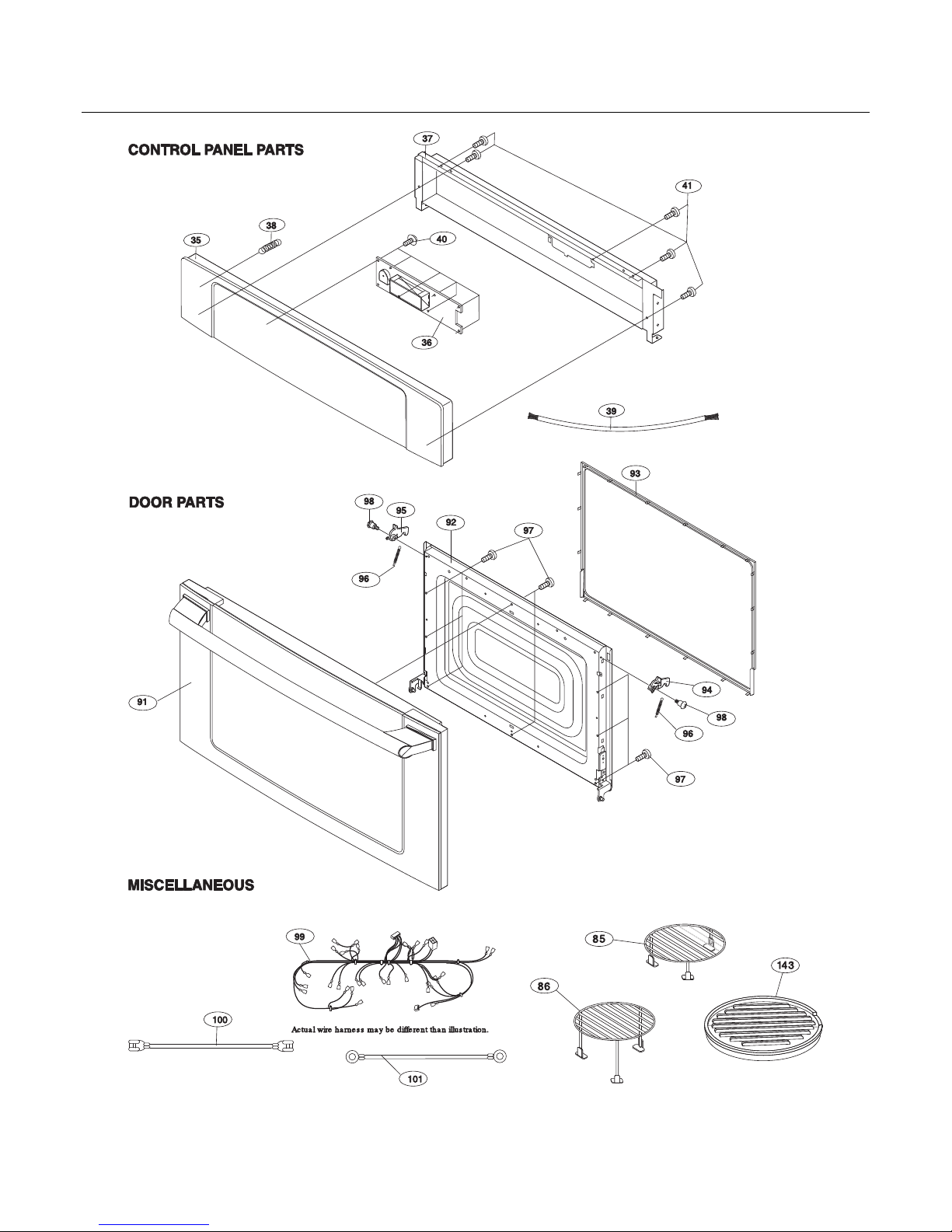

CONTROL PANEL,DOOR,MISC.

E30MO75HSS controls

E30MO75HP / E30MO75HS Publication No: 5995535084

# Functional Parts 9 03/09

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

Model Index: AE30MO75HP (E30MO75HPSA)

BE30MO75HS (E30MO75HSSA)

POS. NO PART NO. DESCRIPTION

35 # 75304471507 A - Touch Control, Professional

35 # 75304471506 - B Touch Control, Designer

36 # 75304470557 A B Display Board, CPU

37 75304470558 A B Bracket, control mount

38 75304470560 A B Spring, grounding

39 # 75304470561 A B Wiring Harness, power supply

40 75304456930 A B Screw, 3 mm x 10 mm

41 75304451517 A B Screw, 4 mm x 8 mm

85 75304461194 A B Rack Assembly, broiling trivit, low

86 75304461195 A B Rack Assembly, baking, high

91 75304471511 A - Door, outer, Pro handle

91 75304471510 - B Door, outer, Designer handle

92 75304471512 A B Panel, inner door

93 75304470579 A B Frame, inner door, choke cover

94 75304470580 A B Latch Head, right side

95 75304470581 A B Latch Head, left side

96 75304470582 A B Spring, latch head

97 75304451561 A B Screw, 4 mm x 8 mm

98 75304470583 A B Screw

99 # 75304471513 A B Wiring Harness, main

100# 75304461198 A B Wire, high voltage, B

101# 75304461199 A B Wire, ground, cooling fan

143 75304461261 A B Rack, bacon

Publication No: 5995535084 E30MO75HP / E30MO75HS

03/09 10

WIRING SCHEMATIC

Figure O-2. Oven Schematic-Microwave Cooking Condition

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

2. COOKING TIME PROGRAMMED.

3. “START” PAD TOUCHED.

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

2. CLOCK APPEARS ON DISPLAY.

Figure O-1. Oven Schematic-OFF Condition

A7A9

L.V.

TRANSFORMER

CONTROL

UNIT

SWITCH

3RD

DOOR

DMFMOL

TURNTABLE MOTOR

CONVECTION MOTOR

TTM

OVEN LAMP

FAN MOTOR

DAMPER MOTOR

PNK

PPL

BRN

ORG

RED EPNK

MONITOR SWITCH

FUSE

20A

60Hz

120V

0.0033 "F AC125V 0.0033 "F AC125V

0.22 "F AC250V

NOISE FILTER UNIT

NOISE SUPPRESSION COIL

OVENMAGNETRON

CUT-OUT

THERMALTHERMAL

CUT-OUT

THERMAL

CONV.

SCHEMATIC DIAGRAM (DOOR CLOSED,COOK OFF CONDITION)

SECONDARY

PRIMARY INTERLOCK SWITCH

(RY1)

MAGNETRON

(RY2)

INTERLOCK

RELAY

RY2RY3

RY4 RY5 RY6 RY1

A5 (RY1)

0.94 "

TRANSFORMER

POWER

CAPACITOR

DAMPER

SWITCH

THER-

MISTOR

E1 E2 E3 E4 E5 F3

AH SENSOR

F2 F1

DOOR

SENSING

SWITCH

WIRE COLOR CODES AREAPPLICABLE TO PRIMARYCIRCUIT ONLYAND NOT

APPLICABLE TO LOW VOLTAGE CIRCUITAND SECONDARY CIRCUIT.

NOTE: 1.

*3.

H.V.

RECTIFIER

ELEMENT

HEATING

HOT WIRE(S) MUST BE CONNECTED TO THE TERMINALWITH BLUE MARK

ON THE LAMP SOCKETAND "H" MARK ON THE POWER SUPPLY CORD.

CIRCUITS SUBJECT TO CHANGE WITHOUTNOTICE

(RY3)

(RY2)

B10

A7A9

L.V.

TRANSFORMER

CONTROL

UNIT

SWITCH

3RD

DOOR

DMFMOL

TURNTABLE MOTOR

CONVECTION MOTOR

TTM

OVEN LAMP

FAN MOTOR

DAMPER MOTOR

PNK

PPL

BRN

ORG

RED EPNK

MONITOR SWITCH

FUSE

20A

60Hz

120V

0.0033 "F AC125V 0.0033 "F AC125V

0.22 "F AC250V

NOISE FILTER UNIT

NOISE SUPPRESSION COIL

OVENMAGNETRON

CUT-OUT

THERMALTHERMAL

CUT-OUT

THERMAL

CONV.

SECONDARY

PRIMARY INTERLOCK SWITCH

(RY1)

MAGNETRON

(RY2)

INTERLOCK

RELAY

RY2RY3

RY4 RY5 RY6 RY1

A5 (RY1)

0.94 "

TRANSFORMER

POWER

CAPACITOR

DAMPER

SWITCH

THER-

MISTOR

E1 E2 E3 E4 E5 F3

AH SENSOR

F2 F1

DOOR

SENSING

SWITCH

WIRE COLOR CODES AREAPPLICABLE TO PRIMARYCIRCUIT ONLYAND NOT

APPLICABLE TO LOW VOLTAGE CIRCUITAND SECONDARY CIRCUIT.

NOTE: 1.

*3.

H.V.

RECTIFIER

ELEMENT

HEATING

HOT WIRE(S) MUST BE CONNECTED TO THE TERMINALWITH BLUE MARK

ON THE LAMP SOCKETAND "H" MARK ON THE POWER SUPPLY CORD.

CIRCUITS SUBJECT TO CHANGE WITHOUTNOTICE

(RY3)

(RY2)

B10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Forno a microonde

Electrolux

Electrolux EME 2661 Guida rapida

Electrolux

Electrolux EW27MO55H S Manuale utente

Electrolux

Electrolux EMSB25XC Manuale di istruzioni

Electrolux

Electrolux EMT25207 Manuale utente

Electrolux

Electrolux Over the Range Microwave Oven Manuale utente

Electrolux

Electrolux EW30MO55HS - 30" Drop Down Door Microwave... Istruzioni per l'installazione

Electrolux

Electrolux EME 1960 Guida rapida

Electrolux

Electrolux EVY6610AAX Manuale utente

Electrolux

Electrolux EMS20300OX Manuale utente

Electrolux

Electrolux EMS28201 Manuale utente

Electrolux

Electrolux TINSEB484MRR0 Manuale utente

Electrolux

Electrolux NF4076 Futurist Manuale utente

Electrolux

Electrolux EMS2321 Manuale utente

Electrolux

Electrolux EMM20000 Manuale utente

Electrolux

Electrolux EW30MC65JB Manuale utente

Electrolux

Electrolux EMS 21400 S Manuale utente

Electrolux

Electrolux E30MO65GSSA Manuale utente

Electrolux

Electrolux MC2660E (EU) Manuale utente

Electrolux

Electrolux EW27MO55HS - 1.5 Cu Ft 900W Microwave Manuale utente

Electrolux

Electrolux EMG23D22B Manuale utente

Electrolux

Electrolux EI24MO45IBB Manuale utente

Electrolux

Electrolux 316902903 Manuale utente

Electrolux

Electrolux EI30MH55GZ - 2.1 cu. ft. Microwave Oven Manuale utente

Electrolux

Electrolux EMM15150 Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente

Impecca

Impecca CM07M2 Manuale utente
