Elite Screens Insta-DE Series Manuale utente

020614-JA www.elitescreens.com 1

Insta-DE Series

Soft-padded Dry-erase Whiteboard Projection Screen

User’s Guide

Product Features

Award winning and GREENGUARD certified VersaWhite material.

1.1 gain with 160 degree wide viewing angle.

Special anti-scratch layer to ensure long use as a dry-erase

projection screen.

Application Advantages

Instantly converts flat surfaces/walls into a dry-erase whiteboard projection screen.

Includes dry-erase pens, eraser, and pen holder.

Perfect dry-erase and projection solution for today's short throw projectors.

Ideal and effective instructional presentation tool in the classroom, boardroom, and training

facilities.

What’s in the package Pad

Please make sure all parts listed below are included. If anything is missing please contact us immediately.

a. b. c. d. e. f.

Notes:

1. For best results and maximum product longevity, ONLY

use Elite Screens high density whiteboard Eraser

2. Please use a microfiber cloth and clean water to cleanse

the surface every 2-4 weeks to maintain a fresh and clean

projection surface.

Commercial use installation recommendation

If you would like your screen to have a professional-grade finish that is flat, durable, and free from imperfections

– Elite Screens strongly recommends hiring a professional wallpaper installer, and using a stronger adhesive

material such as Shur-Stik Heavy Duty Clay Wallcovering Adhesive. You can purchase this product easily online,

or consult with your wallpaper installer for other options.

Parts List

QTY

a. Insta-DE Screen Material

b. Pen Holder

c. Double-sided tape

d. Whiteboard markers

e. Elite special high density eraser

f. 4.5mmx30mm Screw

020614-JA www.elitescreens.com 2

Pre-Installation Notice:

1. Make sure the surface of the wall has been properly patched, sanded, and primered.

2. Remove anything from the wall that may puncture the Insta-DE material.

3. Please consult with a professional wallpaper installer for further assistance. We strongly recommend

two or more people for this installation.

Installation

Watch the Installation video at: www.elitescreens.com/ide-install

1. Clean the location where the Insta-DE Screen will be installed.

2. Measure and mark the top-right and bottom-right corner of the installation location

3. Apply double-sided film tape all around the edges of the Insta-DE back padding.

4. Then, apply vertical double-sided film tape from top to bottom every 3-4 inches.

5. Completely peel the first vertical tape strip and peel off a 1-inch length tape film at the top of the double-

side tape on the rest of the vertical strips.

6. Attach the Insta-DE Screen to the top-right and bottom-right corner of the location

Wall

Tape strip

completely

removed

Double-sided tape

020614-JA www.elitescreens.com 3

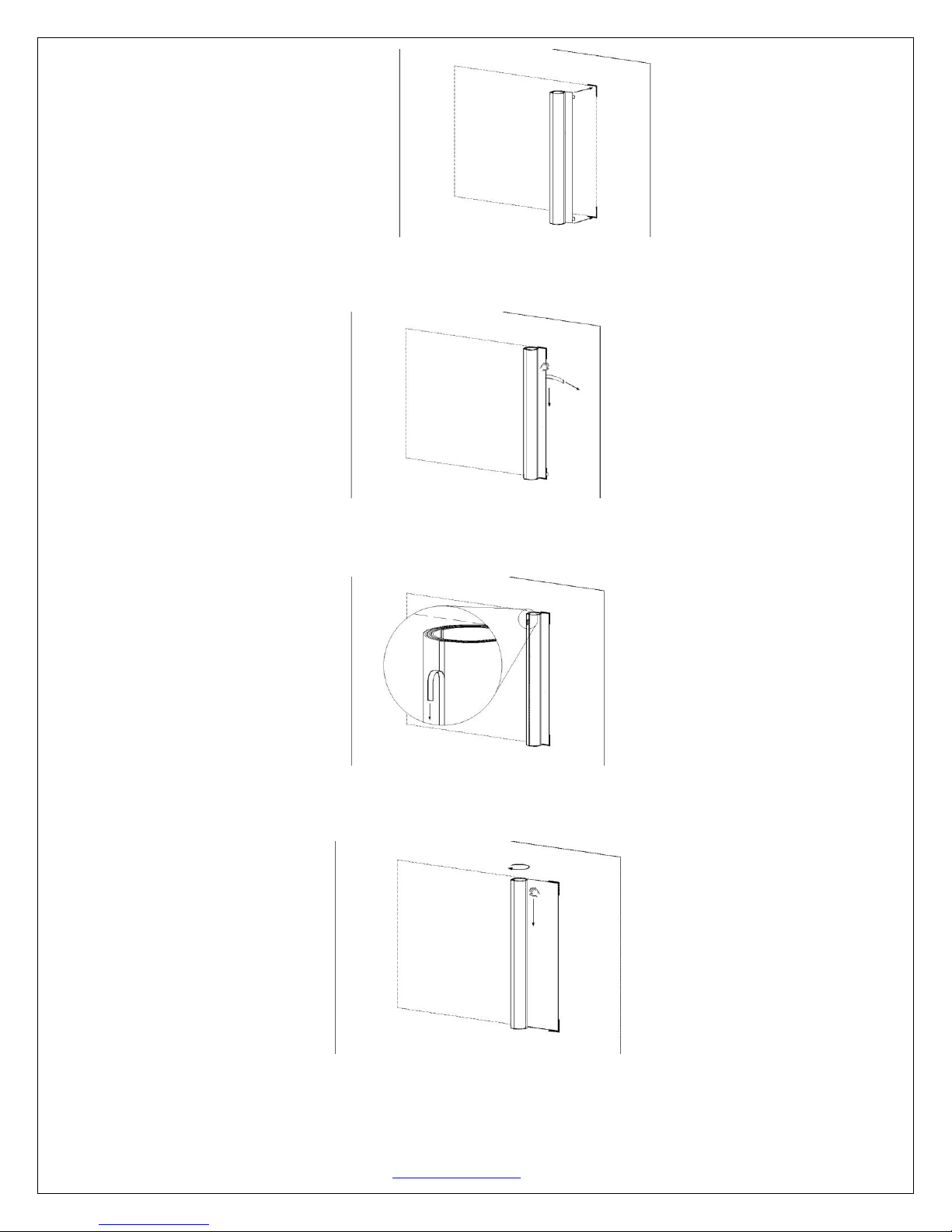

7. Remove the tape film paper while unrolling the material and firmly attach the first taping line with

pressure.

8. Follow the taping line while unrolling the material and continue removing the tape film as the material unrolls.

Continue attaching the double-sided adhesive tape until you’ve reached the end.

9. Unroll the material to the left and firmly attach the following taping line onto the location. Make sure that the

material has completely rolled out perfectly flat.

Wall

020614-JA www.elitescreens.com 4

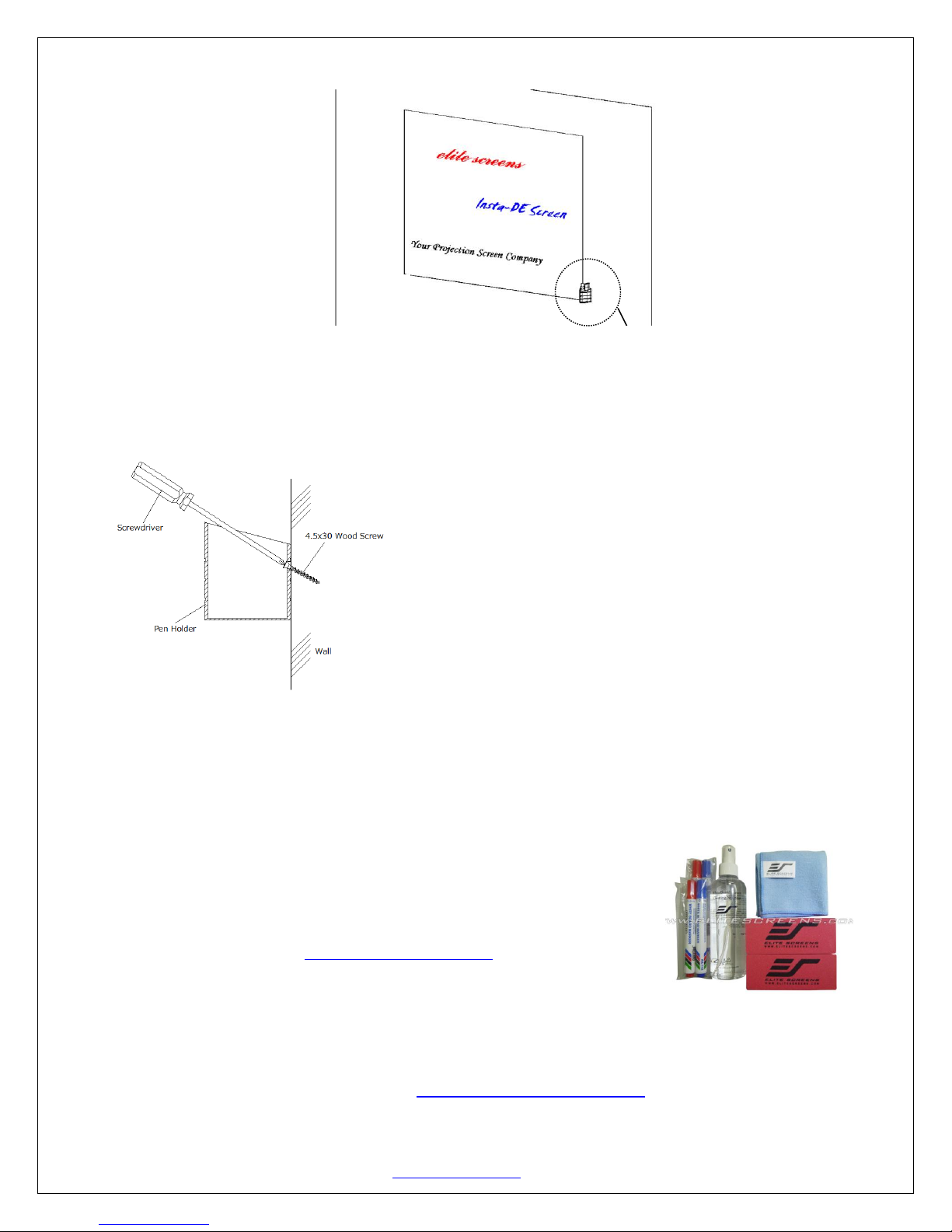

10. Repeat steps 7-9 to finish attaching the material to the wall and complete the Installation.

Pen holder installation

Method one: Peel the tape strip off the back of the pen holder and attach the pen holder to the wall or your

preferred location.

Method two:Install the included screw in the wall and hang the pen-holder. See diagram below for details.

Caution:

The double-sided tape is meant to be permanent for the life of the product. It does not remove easily. Please

attach very carefully to avoid having to remove the product and positioning it in a different location.

Use only the included erasers to remove and erase dry-erase markings. For a deep clean, we recommend using

a non-alcohol based dry-erase board cleaner with a soft microfiber cloth.

Elite offers a replacement kit (part number ZER3) which includes:

1 x bottle of 8.45 oz cleaning solution

1 x microfiber cloth

2 x high density foam erasers

2 x sets of dry-erase markers (4 total)

For more information visit www.elitescreens.com/zer3

Contact your reseller or visit shop.elitescreens.com for pricing and purchase.

For more information, technical support or your local Elite Screens contact,

please visit www.elitescreens.com

Wall

Pen holder
