VMAX2 Series

• Enhanced Multi-Purpose Electric/Motorized Screen

Nominal View View View View Overall Overall Overall Overall Net Net Screen Case Top/Bottom

Model Diagonal Height Width Height Width Width Width Height Height Wt. Wt. Gain Material Color Black Mask

(in) (in) (cm) (cm) (in) (cm) (in) (cm) (lbs.) (Kgs)

VMAX99UWS2 99" (1:1) 70.0 70.0 177.8 177.8 82.0 208.3 83.0 210.8 19.6 8.9 1.1 MaxWhite Black 3"/2" (7.6/5CM)

VMAX99XWS2 99" (1:1) 70.0 70.0 177.8 177.8 82.0 208.3 83.0 210.8 19.6 8.9 1.1 MaxWhite White 3"/2" (7.6/5CM)

VMAX113UWS2 113" (1:1) 79.9 79.9 202.9 202.9 93.0 236.2 89.4 227.1 22.6 10.3 1.1 MaxWhite Black 3"/2" (7.6/5CM)

VMAX113XWS2 113" (1:1) 79.9 79.9 202.9 202.9 93.0 236.2 89.4 227.1 22.6 10.3 1.1 MaxWhite White 3"/2" (7.6/5CM)

VMAX119UWS2 119" (1:1) 84.1 84.1 213.6 213.6 96.0 243.8 93.5 237.5 23.5 10.7 1.1 MaxWhite Black 3"/2" (7.6/5CM)

VMAX119XWS2 119" (1:1) 84.1 84.1 213.6 213.6 96.0 243.8 93.5 237.5 23.5 10.7 1.1 MaxWhite White 3"/2" (7.6/5CM)

VMAX136UWS2 136" (1:1) 96.0 96.0 243.8 243.8 108.0 274.3 105.7 268.5 27.5 12.5 1.1 MaxWhite Black 3"/2" (7.6/5CM)

VMAX136XWS2 136" (1:1) 96.0 96.0 243.8 243.8 108.0 274.3 105.7 268.5 27.5 12.5 1.1 MaxWhite White 3"/2" (7.6/5CM)

VMAX153UWS2 153" (1:1) 108.2 108.2 274.8 274.8 121.0 307.3 117.7 299.0 32.6 14.8 1.1 MaxWhite Black 3"/2" (7.6/5CM)

VMAX153XWS2 153" (1:1) 108.2 108.2 274.8 274.8 121.0 307.3 117.7 299.0 32.6 14.8 1.1 MaxWhite White 3"/2" (7.6/5CM)

VMAX170UWS2 170" (1:1) 120.0 120.0 304.8 304.8 133.0 337.8 135.3 343.5 43.5 19.7 1.1 MaxWhite Black 3"/2" (7.6/5CM)

VMAX170XWS2 170" (1:1) 120.0 120.0 304.8 304.8 133.0 337.8 135.3 343.5 43.5 19.7 1.1 MaxWhite White 3"/2" (7.6/5CM)

VMAX200UWS PLUS3 200" (1:1) 141.0 141.0 358.1 358.1 154.0 391.2 167.0 424.2 95.0 43.1 1.1 MaxWhite Black 6"/2" (15/5CM)

VMAX200XWS PLUS3 200" (1:1) 120.0 160.0 304.8 406.4 154.0 391.2 167.0 424.2 110.8 50.2 1.1 MaxWhite White 6"/2" (15/5CM)

VMAX235UWS PLUS3 235" (1:1) 166.0 166.0 421.6 421.6 178.5 453.4 198.0 502.9 136.4 61.9 1.1 MaxWhite Black 6"/2" (15/5CM)

VMAX235XWS PLUS3 235" (1:1) 166.0 166.0 421.6 421.6 178.5 453.4 198.0 502.9 136.4 61.9 1.1 MaxWhite White 6"/2" (15/5CM)

VMAX84UWV2 84" (4:3) 50.4 67.2 128.0 170.7 79.2 201.2 67.9 172.5 18.0 8.2 1.1 MaxWhite Black 10"/3" (25/7.6CM)

VMAX84XWV2 84" (4:3) 50.4 67.2 128.0 170.7 79.2 201.2 67.9 172.5 18.0 8.2 1.1 MaxWhite White 10"/3" (25/7.6CM)

VMAX84XWV-E30 84" (4:3) 50.4 67.2 128.0 170.7 79.2 201.2 97.9 248.7 19.4 8.8 1.1 MaxWhite White 30"/3" (76/7.6CM)

VWAX92UWV2 92" (4:3) 55.2 73.6 140.2 186.9 85.6 217.4 82.0 208.3 21.2 9.6 1.1 MaxWhite Black 5"/3" (13/7.6CM)

VMAX92XWV2 92" (4:3) 55.2 73.6 140.2 186.9 85.6 217.4 82.0 208.3 21.2 9.6 1.1 MaxWhite White 5"/3" (13/7.6CM)

VMAX100UWV2 100" (4:3) 60.0 80.0 152.4 203.2 93.0 236.2 72.5 184.2 22.1 10.0 1.1 MaxWhite Black 5"/3" (13/7.6CM)

VMAX100XWV2 100" (4:3) 60.0 80.0 152.4 203.2 93.0 236.2 72.5 184.2 22.1 10.0 1.1 MaxWhite White 5"/3" (13/7.6CM)

VMAX100XWV2-E24 100" (4:3) 60.0 80.0 152.4 203.2 93.0 236.2 96.5 245.1 22.2 10.1 1.1 MaxWhite White 24"/3" (61/7.6CM)

VMAX120UWV2 120" (4:3) 72.0 96.0 182.9 243.8 109.0 276.9 83.5 212.1 25.9 11.7 1.1 MaxWhite Black 4"/3" (10/7.6CM)

VMAX120XWV2 120" (4:3) 72.0 96.0 182.9 243.8 109.0 276.9 83.5 212.1 25.9 11.7 1.1 MaxWhite White 4"/3" (10/7.6CM)

VMAX120XWV2-E24 120" (4:3) 72.0 96.0 182.9 243.8 109.0 276.9 107.5 273.1 28.0 12.7 1.1 MaxWhite White 24"/3" (61/7.6CM)

VMAX135UWV2 135" (4:3) 81.0 108.0 205.7 274.3 121.0 307.3 92.5 235.0 31.4 14.3 1.1 MaxWhite Black 4"/3" (10/7.6CM)

VMAX135XWV2 135" (4:3) 81.0 108.0 205.7 274.3 121.0 307.3 92.5 235.0 31.4 14.3 1.1 MaxWhite Black 4"/3" (10/7.6CM)

VMAX135XWV2-E24 135" (4:3) 81.0 108.0 205.7 274.3 121.0 307.3 116.5 295.9 29.7 13.4 1.1 MaxWhite White 24"/3" (61/7.6CM)

VMAX150UWV2 150" (4:3) 90.0 120.0 228.6 304.8 133.0 337.8 101.5 257.8 34.2 15.5 1.1 MaxWhite Black 4"/3" (10/7.6CM)

VMAX150XWV2 150" (4:3) 90.0 120.0 228.6 304.8 133.0 337.8 101.5 257.8 34.2 15.5 1.1 MaxWhite White 4"/3" (10/7.6CM)

VMAX180UWV PLUS2 180" (4:3) 108.0 144.0 274.3 365.8 154.0 391.2 154.0 391.2 52.5 23.8 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX180XWV PLUS2 180" (4:3) 108.0 144.0 274.3 365.8 154.0 391.2 154.0 391.2 52.5 23.8 1.1 MaxWhite White 6"/3" (15/7.6CM)

VMAX200UWV PLUS3 200" (4:3) 120.0 160.0 304.8 406.4 173.0 439.4 146.0 370.8 110.8 50.2 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX200XWV PLUS3 200" (4:3) 120.0 160.0 304.8 406.4 173.0 439.4 146.0 370.8 110.8 50.2 1.1 MaxWhite White 6"/3" (15/7.6CM)

VMAX235UWV PLUS3 235" (4:3) 140.0 187.0 355.6 475.0 200.0 508.0 170.0 431.8 110.8 50.2 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX235XWV PLUS3 235" (4:3) 140.0 187.0 355.6 475.0 200.0 508.0 170.0 431.8 110.8 50.2 1.1 MaxWhite White 6"/3" (15/7.6CM)

VMAX265UWV PLUS3 265" (4:3) 159.0 212.0 403.9 538.5 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX300UWV PLUS3 300" (4:3) 180.0 240.0 457.2 609.6 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX350UVW PLUS3 350" (4:3) 210.0 280.0 533.4 711.2 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX400UWV PLUS3 400" (4:3) 240.0 320.0 609.6 812.8 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX84UWH2 84" (16:9) 41.2 73.2 104.6 185.9 76.2 193.5 59.0 149.9 19.3 8.8 1.1 MaxWhite Black 10"/3" (25/7.6CM)

VMAX84XWH2 84" (16:9) 41.2 73.2 104.6 185.9 76.2 193.5 59.0 149.9 19.3 8.8 1.1 MaxWhite White 10"/3" (25/7.6CM)

VMAX84UWH2-E30 84" (16:9) 41.2 73.2 104.6 185.9 76.2 193.5 89.0 226.1 21.2 9.6 1.1 MaxWhite Black 30"/3" (76/7.6CM)

VMAX92UWH2 92" (16:9) 45.1 80.2 114.6 203.7 84.0 213.4 58.5 148.6 21.5 9.7 1.1 MaxWhite Black 5"/3" (13/7.6CM)

VMAX92UWH2-E30 92" (16:9) 45.1 80.2 114.6 203.7 84.0 213.4 88.5 224.8 22.0 10.0 1.1 MaxWhite Black 30"/3" (76/7.6CM)

VMAX92XWH2 92" (16:9) 45.1 80.2 114.6 203.7 84.0 213.4 58.5 148.6 21.5 9.7 1.1 MaxWhite White 6"/3" (15/7.6CM)

SILVERMAX92H2 92" (16:9) 45.1 80.2 114.6 203.7 84.0 213.4 58.5 148.6 21.5 9.7 1.1 SilverGrey Black 6"/3" (15/7.6CM)

VMAX100UWH2 100" (16:9) 49.0 87.2 124.5 221.5 91.2 231.6 66.5 168.9 22.8 10.3 1.1 MaxWhite Black 10"/3" (25/7.6CM)

VMAX100XWH2 100" (16:9) 49.0 87.2 124.5 221.5 91.2 231.6 66.5 168.9 22.8 10.3 1.1 MaxWhite White 10"/3" (25/7.6CM)

VMAX106UWH2 106" (16:9) 52.0 92.4 132.1 234.7 96.4 244.9 64.8 164.5 22.9 10.4 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX106UWH2-E24 106" (16:9) 52.0 92.4 132.1 234.7 96.4 244.9 88.8 225.4 23.9 10.8 1.1 MaxWhite Black 24"/3" (61/7.6CM)

SILVERMAX106H2 106" (16:9) 52.0 92.5 132.1 132.1 96.4 244.9 64.8 164.5 22.9 10.4 1.1 SilverGrey Black 6"/3" (15/7.6CM)

VMAX120UWH2 121" (16:9) 58.8 104.6 149.4 265.7 108.6 275.8 72.3 183.6 27.7 12.5 1.1 MaxWhite Black 6"/3" (15/7.6CM)

VMAX120UWH2-E24 121" (16:9) 58.8 104.6 149.4 265.7 108.6 275.8 96.3 244.6 27.3 12.4 1.1 MaxWhite Black 24"/3" (61/7.6CM)

VMAX120XWH2 121" (16:9) 58.8 104.6 149.4 265.7 108.6 275.8 72.3 183.6 27.7 12.5 1.1 MaxWhite White 6"/3" (15/7.6CM)

SILVERMAX120H2 121" (16:9) 59.0 105.0 149.9 266.7 108.6 275.8 72.3 183.6 27.7 12.5 1.1 SilverGrey Black 6"/3" (15/7.6CM)

VMAX135UWH2 135" (16:9) 66.2 117.7 168.1 299.0 130.6 331.7 80.7 205.0 32.0 14.5 1.1 MaxWhite Black 8"/2" (20/5.6CM)

VMAX135UWH2-E24 135" (16:9) 66.2 117.7 168.1 299.0 130.6 331.7 104.7 265.9 33.6 15.2 1.1 MaxWhite Black 24"/2" (61/5.6CM)

VMAX135XWH2 135" (16:9) 66.2 117.7 168.1 299.0 130.6 331.7 80.7 205.0 32.0 14.5 1.1 MaxWhite White 8"/2" (20/5.6CM)

VMAX150UWH2 150" (16:9) 73.5 130.7 186.7 332.0 143.7 365.0 84.0 213.4 35.8 16.2 1.1 MaxWhite Black 4"/2" (10/5.6CM)

VMAX150XWH2 150" (16:9) 73.5 130.7 186.7 332.0 143.7 365.0 84.0 213.4 35.8 16.2 1.1 MaxWhite White 4"/2" (10/5.6CM)

VMAX180UWH PLUS2 180" (16:9) 88.3 156.9 224.3 398.5 166.0 421.6 166.0 421.6 52.7 23.9 1.1 MaxWhite Black 4"/3" (10/7.6CM)

VMAX180XWH PLUS2 180" (16:9) 88.0 156.0 223.5 396.2 166.0 421.6 166.0 421.6 52.7 23.9 1.1 MaxWhite White 4"/3" (10/7.6CM)

VMAX200UWH PLUS3 200" (16:9) 98.0 174.0 248.9 442.0 187.0 475.0 128.0 325.1 107.0 48.5 1.1 MaxWhite Black 8"/2" (20/5.6CM)

VMAX200XWH PLUS3 200" (16:9) 98.0 174.0 248.9 442.0 187.0 475.0 128.0 325.1 107.0 48.5 1.1 MaxWhite White 8"/2" (20/5.6CM)

VMAX235UWH PLUS3 235" (16:9) 115.0 205.0 292.1 520.7 218.0 553.7 145.0 368.3 151.3 68.6 1.1 MaxWhite Black 8"/2" (20/5.6CM)

VMAX235XWH PLUS3 235" (16:9) 115.0 205.0 292.1 520.7 218.0 553.7 145.0 368.3 151.3 68.6 1.1 MaxWhite White 8"/2" (20/5.6CM)

VMAX265UWH PLUS3 265" (16:9) 122.0 217.0 309.9 551.2 1.1 MaxWhite Black 8"/2" (20/5.6CM)

VMAX300UWH PLUS3 300" (16:9) 147.0 261.0 373.4 662.9 1.1 MaxWhite Black 8"/2" (20/5.6CM)

VMAX380UWH PLUS3 380" (16:9) 186.3 331.0 473.2 840.7 1.1 MaxWhite Black 8"/2" (20/5.6CM)

001 www.elitescreens.com

Manual ScreensVMAX2 SeriesFixed Frame ScreensPortable Screens

028

www.elitescreens.com

Manual Screens VMAX2 Series Fixed Frame Screens Portable Screens

VMAX2 Screen Diag. Case L End Cap Screw Screen View Bottom Edge Screen Material View Height Screen Screen Material Wire

Models & (A) Hole Distance Width Width Distance to Bottom Bar (B2) Overall to Wall Distance Length (D)

Aspect Ratio (A1) (A2) (A3) (B3) (B1) Height (B) (C)

84H 84" 16:9 85.35 83.19 77.17 73.23 3.74 54.41 41.18 58.07 0.67 70.87

84H-E30 84" 16:9 85.35 83.19 77.17 73.23 3.74 74.92 41.18 78.58 0.67 70.87

92H 92" 16:9 93.15 90.98 83.94 80.00 3.74 54.33 45.12 57.99 0.67 70.87

100H 100" 16:9 100.16 97.99 91.10 87.17 3.74 62.24 49.02 65.91 0.67 70.87

106H 106" 16:9 105.79 103.62 96.34 92.40 3.74 63.70 51.97 67.36 0.67 70.87

106H-E24 106" 16:9 105.79 103.62 96.34 92.40 3.74 79.72 51.97 83.39 0.67 70.87

120H 120" 16:9 117.76 115.59 108.54 104.61 3.74 68.03 58.82 71.69 0.67 70.87

120H-E24 120" 16:9 117.76 115.59 108.54 104.61 3.74 86.57 58.82 90.24 0.67 70.87

125H 125" 16:9 122.17 120.00 112.95 109.02 3.74 69.02 61.30 72.68 0.67 70.87

135H 135" 16:9 130.83 128.66 121.61 117.68 2.76 76.93 66.18 80.59 0.67 70.87

135H-E24 135" 16:9 130.83 128.66 121.61 117.68 2.76 92.99 66.22 96.65 0.67 70.87

150H 150" 16:9 143.90 141.73 134.72 130.79 2.76 80.28 73.54 83.94 0.67 70.87

180H 180" 16:9 168.11 165.91 160.83 156.89 3.86 96.10 88.27 100.24 0.79 98.43

84V 84" 4:3 79.37 77.20 70.16 67.17 3.74 63.62 50.39 67.28 0.67 70.87

84V-E30 84" 4:3 79.37 77.20 70.16 67.17 3.74 84.13 50.39 87.80 0.67 70.87

92V 92" 4:3 85.75 83.58 76.57 73.58 3.74 63.94 55.20 67.60 0.67 70.87

100V 100" 4:3 93.15 90.98 83.94 80.00 3.74 68.23 60.00 71.89 0.67 70.87

100V-E24 100" 4:3 93.15 90.98 83.94 80.00 3.74 87.76 60.00 91.42 0.67 70.87

120V 120" 4:3 109.17 107.01 99.92 95.98 3.74 79.21 71.97 82.87 0.67 70.87

120V-E24 120" 4:3 109.17 107.01 99.92 95.98 3.74 99.72 71.97 103.39 0.67 70.87

135V 135" 4:3 121.14 118.98 111.93 107.99 3.74 88.23 80.98 91.89 0.67 70.87

135V-E24 135" 4:3 121.14 118.98 111.93 107.99 3.74 108.74 80.98 112.40 0.67 70.87

150V 150" 4:3 133.15 130.98 123.94 120.00 3.74 97.24 90.00 100.91 0.67 70.87

180V 180" 4:3 155.20 152.99 147.95 144.02 3.86 117.83 107.99 121.97 0.79 98.43

99S 99" 1:1 82.17 80.00 72.99 70.00 2.76 75.75 70.00 79.41 0.67 70.87

113S 13" 1:1 93.15 90.98 83.86 79.92 2.76 86.14 79.92 89.80 0.67 70.87

119S 119" 1:1 97.32 95.16 88.07 84.13 2.76 89.88 84.13 93.54 0.67 70.87

136S 136" 1:1 109.17 107.01 99.92 95.98 2.76 102.20 96.18 105.87 0.67 70.87

153S 153" 1:1 121.14 118.98 111.93 107.99 2.76 114.21 107.99 117.87 0.67 70.87

170S 170" 1:1 131.42 129.25 123.94 120.00 3.86 126.85 120.00 130.98 0.79 98.43

Unit: Inches

VMAX2 Screen Diag. Case L End Cap Screw Screen View Bottom Edge Screen Material View Height Screen Screen Material Wire

Models & (A) Hole Distance Width Width Distance to Bottom Bar (B2) Overall to Wall Distance Length (D)

Aspect Ratio (A1) (A2) (A3) (B3) (B1) Height (B) (C)

84H 84" 16:9 2168 2113 1960 1860 95 1382 1046 1475 17 1800

84H-E30 84" 16:9 2168 2113 1960 1860 95 1903 1046 1996 17 1800

92H 92" 16:9 2366 2311 2132 2032 95 1380 1146 1473 17 1800

100H 100" 16:9 2544 2489 2314 2214 95 1581 1245 1674 17 1800

106H 106" 16:9 2687 2632 2447 2347 95 1618 1320 1711 17 1800

106H-E24 106" 16:9 2687 2632 2447 2347 95 2025 1320 2118 17 1800

120H 120" 16:9 2991 2936 2757 2657 95 1728 1494 1821 17 1800

120H-E24 120" 16:9 2991 2936 2757 2657 95 2199 1494 2292 17 1800

125H 125" 16:9 3103 3048 2869 2769 95 1753 1557 1846 17 1800

135H 135" 16:9 3323 3268 3089 2989 70 1954 1681 2047 17 1800

135H-E24 135" 16:9 3323 3268 3089 2989 70 2362 1682 2455 17 1800

150H 150" 16:9 3655 3600 3422 3322 70 2039 1868 2132 17 1800

180H 180" 16:9 4270 4214 4085 3985 98 2441 2242 2546 20 2500

84V 84" 4:3 2016 1961 1782 1706 95 1616 1280 1709 17 1800

84V-E30 84" 4:3 2016 1961 1782 1706 95 2137 1280 2230 17 1800

92V 92" 4:3 2178 2123 1945 1869 95 1624 1402 1717 17 1800

100V 100" 4:3 2366 2311 2132 2032 95 1733 1524 1826 17 1800

100V-E24 100" 4:3 2366 2311 2132 2032 95 2229 1524 2322 17 1800

120V 120" 4:3 2773 2718 2538 2438 95 2012 1828 2105 17 1800

120V-E24 120" 4:3 2773 2718 2538 2438 95 2533 1828 2626 17 1800

135V 135" 4:3 3077 3022 2843 2743 95 2241 2057 2334 17 1800

135V-E24 135" 4:3 3077 3022 2843 2743 95 2762 2057 2855 17 1800

150V 150" 4:3 3382 3327 3148 3048 95 2470 2286 2563 17 1800

180V 180" 4:3 3942 3886 3758 3658 98 2993 2743 3098 20 2500

99S 99" 1:1 2087 2032 1854 1778 70 1924 1778 2017 17 1800

113S 13" 1:1 2366 2311 2130 2030 70 2188 2030 2281 17 1800

119S 119" 1:1 2472 2417 2237 2137 70 2283 2137 2376 17 1800

136S 136" 1:1 2773 2718 2538 2438 70 2596 2443 2689 17 1800

153S 153" 1:1 3077 3022 2843 2743 70 2901 2743 2994 17 1800

170S 170" 1:1 3338 3283 3148 3048 98 3222 3048 3327 20 2500

Unit: mm

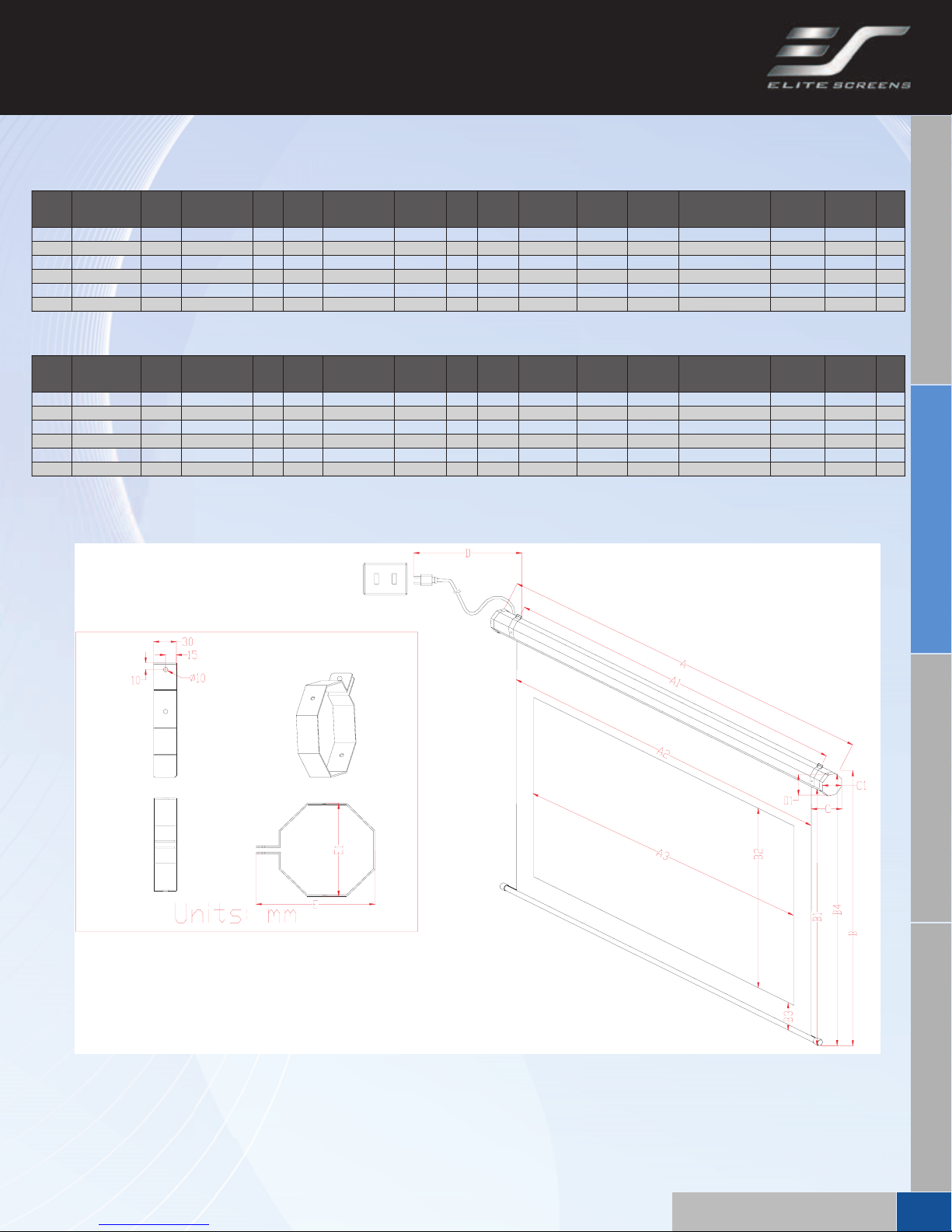

Elite Screens - Spectrum Series & VMAX2 Series Dimension Table

001 www.elitescreens.com

Manual ScreensVMAX2 SeriesFixed Frame ScreensPortable Screens

030

www.elitescreens.com

Manual Screens VMAX2 Series Fixed Frame Screens Portable Screens

Screen Diag. Case L End Cap View Screen Bottom Edge Overall H View Screen Overall H End Cap End Cap Screen Material Brackets Brackets D

Models & (A) Screw Hole W W Distance Exclude H H w/Bracket Height Width Edge to End Cap H W

Aspect Ratio Distance (A1) (A3) (A2) (B3) Case (B4) (B2) (B1) (B) (D1) (C1) Distance (C)

200V 200" 4:3 4410 4245 4064 4164 98 3296 3045 3423 3484 127 127 15 188 138 2500

235V 235" 4:3 5121 5286 4775 4875 98 3831 3581 3971 4023 140 140 18 192 144 2500

200H 200" 16:9 4774 4609 4428 4528 98 2792 2491 2919 2980 127 127 15 188 138 2500

235H 235" 16:9 5549 5384 5203 5303 98 3228 2927 3368 3420 140 140 18 192 144 2500

200S 200" 1:1 3938 3773 3592 3692 98 3842 3592 3969 4030 127 127 15 188 138 2500

235S 235" 1:1 4567 4402 4221 4321 98 4471 4221 4611 4663 140 140 18 192 144 2500

Unit: mm

Screen Diag. Case L End Cap View Screen Bottom Edge Overall H View Screen Overall H End Cap End Cap Screen Material Brackets Brackets D

Models & (A) Screw Hole W W Distance Exclude H H w/Bracket Height Width Edge to End Cap H W

Aspect Ratio Distance (A1) (A3) (A2) (B3) Case (B4) (B2) (B1) (B) (D1) (C1) Distance (C)

200V 200" 4:3 173.6 167.1 160.0 163.9 3.9 129.8 119.9 134.8 137.2 5.0 5.0 0.6 7.4 5.4 98.4

235V 235" 4:3 201.6 208.1 188.0 191.9 3.9 150.8 141.0 156.3 158.4 5.0 5.0 0.7 7.6 5.7 98.4

200H 200" 16:9 188.0 181.5 174.3 178.3 3.9 109.9 98.1 114.9 117.3 5.0 5.0 0.6 7.4 5.4 98.4

235H 235" 16:9 218.5 212.0 204.8 208.8 3.9 127.1 115.2 132.6 134.6 5.0 5.0 0.7 7.6 5.7 98.4

200S 200" 1:1 155.0 148.5 141.4 145.4 3.9 151.3 141.4 156.3 158.7 5.0 5.0 0.6 7.4 5.4 98.4

235S 235" 1:1 179.8 173.3 166.2 170.1 3.9 176.0 166.2 181.5 183.6 5.0 5.0 0.7 7.6 5.7 98.4

Unit: Inches

Elite Screens - Large Size Electric Screens VMAX180 / VMAX200 / VMAX235 PLUS2 Dimension Table

Altri manuali per SILVERMAX106H2

Questo manuale è adatto per i seguenti modelli

114

Altri manuali Elite Screens Schermo di proiezione

Elite Screens

Elite Screens Evanesce Tab-Tension B Series Manuale utente

Elite Screens

Elite Screens Starling Tab-Tension 2 Series Manuale utente

Elite Screens

Elite Screens Aeon CLR 3 Series Manuale utente

Elite Screens

Elite Screens TE200HR2 Manuale utente

Elite Screens

Elite Screens Yard Master Pro B Series Manuale utente

Elite Screens

Elite Screens Kestrel Series Manuale utente

Elite Screens

Elite Screens F60XWV1 Manuale utente

Elite Screens

Elite Screens Kestrel Tab-Tension Series Manuale utente

Elite Screens

Elite Screens QuickStand Series Manuale utente

Elite Screens

Elite Screens VMAX 2 Series Manuale utente

Elite Screens

Elite Screens YardMaster Manual Series Manuale utente

Elite Screens

Elite Screens isf CineWhite UHD-B Sable Frame B2 Series Manuale utente

Elite Screens

Elite Screens VMAX113XWS Manuale utente

Elite Screens

Elite Screens VMAX2 (Plus) Series Manuale utente

Elite Screens

Elite Screens Planate Tab-Tension Series Guida

Elite Screens

Elite Screens SilverFrame 100GH1 Manuale utente

Elite Screens

Elite Screens Raptor Series Manuale utente

Elite Screens

Elite Screens CineTension B Series Manuale utente

Elite Screens

Elite Screens Manual Tab-Tension 2 Series Manuale utente

Elite Screens

Elite Screens Kestrel Stage Series Manuale utente

Elite Screens

Elite Screens CineTension Series Manuale utente

Elite Screens

Elite Screens Evanesce Tension B Series Manuale utente

Elite Screens

Elite Screens F100XWH1 Manuale utente

Elite Screens

Elite Screens Spectrum Series Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Da-Lite

Da-Lite ExecutiveElectrol Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale

SI Dynamic 2 XL Manuale utente

Draper

Draper Nocturne+ E Istruzioni per l'installazione
