Elite Screens WhiteBoardScreen Series Manuale utente

Dual Purpose Projection

Screen

n™

User’sGuide



Rev.093009‐JA

www.elitescreens.com info@elitescreens.com

Rev.093009‐JA

Parts List for WhiteBoardScreen™

Pleasemakesureallpartslistedareincludedbeforeproceedingwithinstallation



a b c

d e f



GandHare

not



actualindividual

partsincludedbut

configurationsonlyby

combiningparts(d)

and(e)withthe

butterflyscrew

g h



I j k



Note:The

WhiteBoardScreen™

Series

eraser shouldonlybeusedfor

theWhiteBoardScreen™.

Parts List

a.Qty4–Butterflyscrew

b. Qty12–Wallscrew

c. Qty12–Hollowwall(ordrywall)anchor

d. Qty2–Tophangingwallbrackets(tothewall)

e. Qty2–Top hangingwhiteboardbrackets(tothewhiteboard)

f. Qty2–Bottomhangingbracket

g. Forwhiteboarddiagonalsize60(4:3)inches

h. Forwhiteboarddiagonal80(4:3),96(16:9)inches.

i. Qty2–whiteboarderaser

j. Qty2–Dry‐erasepens

k. Qty1–WhiteBoardScreen™cleaner

Rev.093009‐JA

X 2

2Fig.

6

Installation

1. MarkthelocationtheWhiteBoard™screenwillbeinstalledanddrillyourholesforallTop HangingWall

Brackets(fig.1)andBottomFrameHangingBrackets(fig.2)

2. AttachtheTopHangingWhiteBoardBrackets(fig.3)totheTo p HangingWallBrackets(fig.1)withthe

ButterflyScrewsaccordingtothesizeoftheWhiteBoardScreen™asspecifiedinfig.4and5

below.



3. Next,affixtheTop HangingWallBrackets(fig.1)andtheBottomFrameHangingBrackets(fig.2)tothe

drilledlocationsandinstallthewallscrews(fig.6).

4. Lastly,hangtheWhiteBoardS creen™onthebrackets(fig.7).



Fig.1 Fig.2 Fig.3



Fig.4 Fig.5



Note:

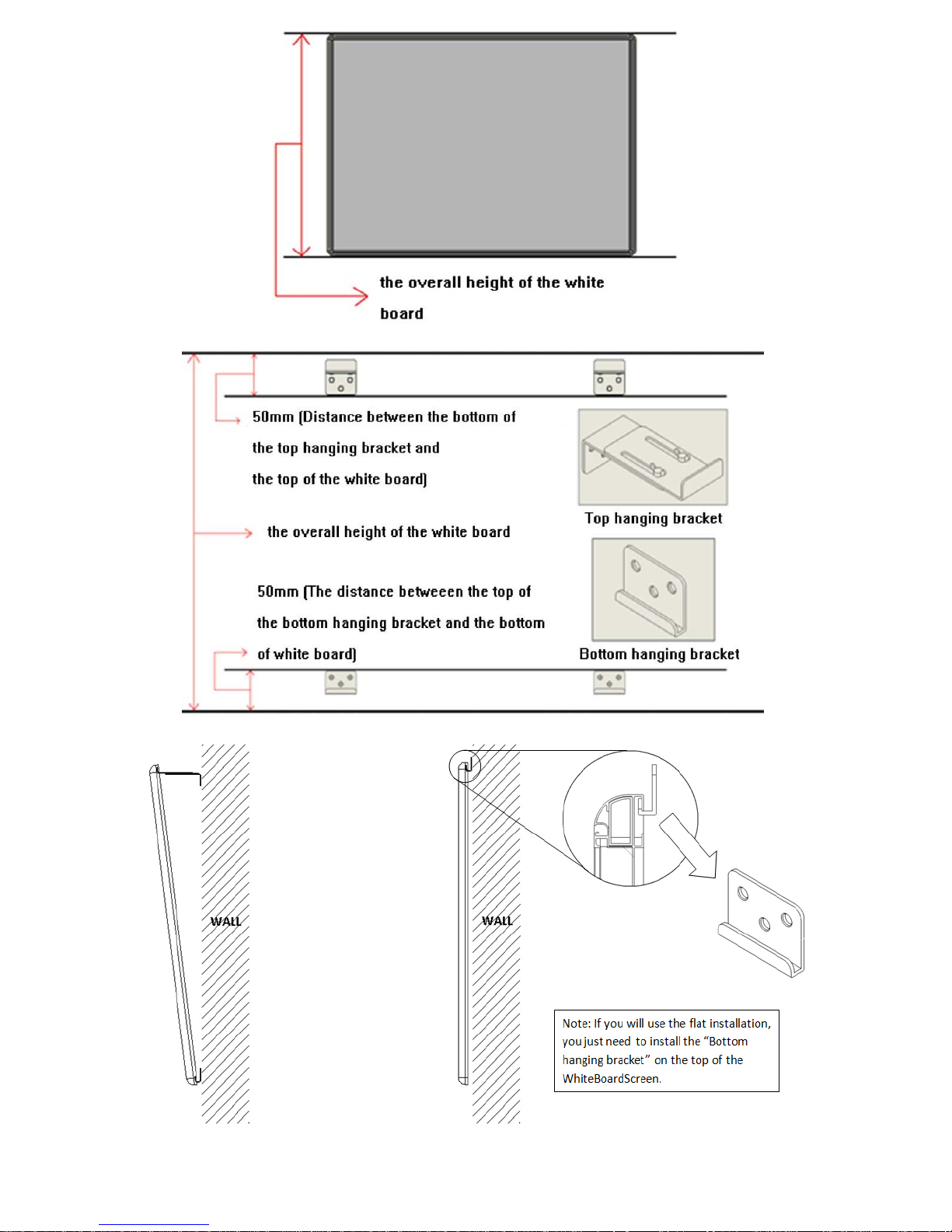

Fig.4Bracketconfigurationforwhiteboard60inchdiagonal(4:3)screens

Fig.5RecommendedBracketconfigurationforwhiteboard80inch(4:3)and96inch(16:9)



C x 12

B X 1 A X 4

Fig.7

Desktop Projector Mode Overhead Projector Mode

Rev.060809‐JA

Recommended Installation Locations for desktop and overhead projector installations

TheStarBright4materialusedinthisWhiteBoardScreen™hasaspecialhighgainthatis

angularreflective. Inordertotakefulladvantageofthisspecialmaterial,itisimportantthat

theWhiteBoardScreen™isinstalledproperlysothattheprojectedimageisviewedwithinthe

recommendedviewingangle.

It is normal for some viewing areas to be less bright than the center due to the nature of the

screen material. It is not a defect and minor “hot spotting” will occur as a result.

The below charts will assist in determining several factors to consider to help you with your installation.

Please note that these are only recommendations.

Desktop projectorinstallation



Unit: mm

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Sit

ting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

Sit

ting

View

Angle

(01)

Standing

View

Angle

(02)

WB60V 1190.0 930.0 1000‐1200 1950‐2950

160 114

800‐1000 1200 1200 1700

9° 6°

Unit: Inches

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Sitting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

Sitting

View

Angle

(01)

Standing

View

Angle

(02)

WB60V 46.9 36.6 39.4‐47.2 76.8‐116.1

6.3 4.5

31.5‐39.4 47.2 47.2 66.9

9° 6°

Standing

View



Sitting

View



Rev.060809‐JA



Unit: mm

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Sit ting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height (D)

Viewer

Distance

(E)

Sit

ting

View

Height

(F1)

Standing

View

Height

(F2)

Sitting

View

Angle

(01)

View

Angle

(02)

WB80V 1630.0 1230.0 1000‐1200 2750‐3750

228

145 800‐1000 1200 1200 1700

10° 6°

Unit: inches

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Sit ting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height (D)

Viewer

Distance

(E)

Sit

ting

View

Height

(F1)

Standing

View

Height

(F2)

Sit

ting

View

Angle

(01)

Standing

View

Angle

(02)

WB80V 64.2 48.4 39.4‐47.2 108.3‐147.6

9.0 5.7

31.5‐39.4 47.2 47.2 66.9

10° 6°

Standing

View



Sitting

View



Rev.060809‐JA



Unit: mm

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Sitting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

Sitting

View

Angle

01)

Standing

View

Angle

(02)

WB96H 2130.0 1230.0 1000‐1200 3200‐4200

187 125

800‐1000 1200 1200 1700

8° 5°

Unit: inches

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Sit

ting

View

Distance

(C1)

Standing

View

Distance

(C2)

Suggested

Projection

Height (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

Sitting

View

Angle

(01)

Standing

View

Angle

(02)

WB96H 83.9 48.4 39.4‐47.2 126‐165.3

7.4 4.9

31.5‐39.4 47.2 47.2 66.9

8° 5°

Standing

View



Sitting

View



DesktopInstallationexplanation:

A=InstallationHeight(Floortobracketdrillinghole)

B=SuggestedProjectionDistance(Projectortoscreen)

C1=SitViewDistance(ThebrightestviewwhenpeoplearesittingdowninrelationtotheanglesettinginF1)

C2=StandViewDistance(ThebrightestviewwhenpeoplearestandinginrelationtotheanglesettinginF2)

****Userselectableaveragerecommendations****

D=SuggestedProjectionHeight(Floortoprojectcenter)

E=ViewerDistance(Usertoprojector)

F1=SitViewHeight

F2=StandViewHeight

****Thebasisofheightisfromanaverageheight****

θ1=SitViewAngle(Screenslopeanglebetweenscreenandwalltoachievebrightestview)

θ2=StandViewAngle(Screenslopeanglebetweenscreenandwalltoachievebrightestview)

(*****RelationbetweenC1,F1andθ1;RelationbetweenC2,F2and

θ2*****)



W=OverallWidth

H=OverallHeight

Rev.060809‐JA

Overhead Projector installation



Unit: mm

Models

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB60V 1190.0 930.0

2340

1950‐2950 2500

130

1200 1200 1700

Unit: Inches

Models

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB60V 46.9 36.6

92.1

76.8‐116.1 98.4

5.1

47.2 47.2 66.9

Standing

View



Sitting

View



Rev.060809‐JA



Unit: mm

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB80V 1630.0 1230.0 2340 2750‐3750 2500

174

1200 1200 1700

Unit: Inches

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB80V 64.2 48.4

92.1

108.3‐147.6 98.4

6.9

47.2 47.2 66.9

Standing

View



Sitting

View



Rev.060809‐JA



Unit: mm

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB96H

2130.0

1230.0

2340 3200‐

4200 2500

1200

1200 1700

Unit: Inches

Model

Number

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance

(B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB96H 83.9 48.4 92.1 126‐165.3 98.4

1.1

47.2 47.2 66.9

Standing

View



Sitting

View



Overheadinstallationexplanation:

A=InstallationHeight(Suggestedfromfloortotopofscreen)

B=SuggestedProjectionDistance(Projectortoscreen)

C=CeilingHeight

D=SuggestedOffset(Distancebetweenprojectioncenterandtopofscreen)

E=ViewerDistance(Usertoprojector)

F1=SitViewHeight

F2=StandViewHeight

****Thebasisofheightisfromanaverageheight****



W=OverallWidth

H=OverallHeight



Note: The data is for reference only.The installer should base the installation according to

the customer and the space provided.

Altri manuali per WhiteBoardScreen Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Elite Screens Schermo di proiezione

Elite Screens

Elite Screens M92UWH Manuale utente

Elite Screens

Elite Screens Tripod Portable Series Manuale utente

Elite Screens

Elite Screens Elite Home 2 Series Manuale utente

Elite Screens

Elite Screens StarBright7 Manuale utente

Elite Screens

Elite Screens YardMaster Manual Series Manuale utente

Elite Screens

Elite Screens Kestrel Series Guida di riferimento rapido

Elite Screens

Elite Screens Kestrel Tab-Tension Series Manuale utente

Elite Screens

Elite Screens Elite CineTension Series Manuale utente

Elite Screens

Elite Screens CineTension B Series Guida

Elite Screens

Elite Screens QuickStand Series Guida di riferimento rapido

Elite Screens

Elite Screens Spectrum Series Manuale utente

Elite Screens

Elite Screens B SERIES Manuale di istruzioni

Elite Screens

Elite Screens Evanesce Tension B Series Manuale utente

Elite Screens

Elite Screens Pro Frame Thin DarkUST Series Manuale utente

Elite Screens

Elite Screens MicroFlip Screen Manuale utente

Elite Screens

Elite Screens Evanesce AcousticPro UHD Series Manuale utente

Elite Screens

Elite Screens EVANESCE TAB-TENSION Series Guida

Elite Screens

Elite Screens WB30VW Manuale utente

Elite Screens

Elite Screens Saker Tension Series Manuale utente

Elite Screens

Elite Screens CineTension 3 Series Manuale utente

Elite Screens

Elite Screens TE100HC2 Manuale utente

Elite Screens

Elite Screens Tab-Tension 3 Series Manuale utente

Elite Screens

Elite Screens EB100HW2-E12 Guida di riferimento rapido

Elite Screens

Elite Screens Daywalker Series Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Da-Lite

Da-Lite ExecutiveElectrol Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale

SI Dynamic 2 XL Manuale utente

Draper

Draper Nocturne+ E Istruzioni per l'installazione
