Elite Screens StarBright7 Manuale utente

Rev.091709‐JA

www.elitescreens.com info@elitescreens.com

StarBright7

Fixed Frame Projection Screen

User Guide

ecex



Attention:

The StarBright7 screen material is composed of high

quality sensitive multi-layer projection material.

Please follow the pre-cautions below for proper care

procedures and to prolong the life of your StarBright7.

Failure to comply will result in voiding your warranty.

Avoid

using

any

chemical

compounds

harsh

abrasives

which

will

result

permanently

damaging

the

screen

material.



USE ONLY a soft non-abrasive cloth

with mild soap

and water

clean

the screen

material



DO NOT rub the cloth with force when cleaning to

avoid permanently scratching the surface



NOT

touch

the

screen surface with sharp

objects



USE

ONLY

soft

feathered brush

remove

dust



Parts List



1.FramePartsx6pcs(4topframepcs.+2sideframepcs)

2.TensionRodsx6pcs(4top/bottomrods+2siderods)

3.StarBright7ScreenMaterialx1pc

4.Centerjointsx2pcs

5.ElbowJointsx4pcs

6.Wallbracketsx2‐3pcs(dependingonmodel)

7.Screwsx16pcs

8.UserGuidex1pc

9.CenterSupportBarx1‐2pcs(dependingonmodel)

10.Supportjoinerx2‐4pcs(dependingonmodel)

11.FixPlatesx30‐90pcs(dependingonmodel)

12.Cottonglovesx2



Note:Pleasemakesureallpartsareincludedinyourpackagebeforeproceedingtoassembleyour

EliteScreensfixedframeprojectionscreen.



ASSEMBLING THE FRAME



1.Insertjointconnectortohorizontalframepieceandthenfastenitwith2screws 







2.Inserttheotherhorizontalframepiecetothejointconnectorandthenfastenitwith2screws.







1/2Long frame

Push



Please do not tighten the screws completely, to make sure the frame piece lines up

correctly.



3.Insertbothcornerjointconnectorsintothelonghorizontalframe(seefig.1)



4. 



Joinallfourframepartstogetherfollowingthestepsshowedbelow.(fig.2)

Join



4.Joinallfourframepartstogetherfollowingthestepsshowedbelow.(fig.2)

Push Push

Short frame



Push Push

Joint

Long frame

( fig.1)



Push Push

( fig.2)

Insert the exposed ends of the joint connectors

into the short (vertical) frame and align the four

corners so that they meet at perfect right angles



5.Aftermakingsurethatallfourcornersjoinatrightanglestoformaperfectrectangle, fastenthe

fouranglestogetherbyusingthe(x8)jointscrewsincluded.(seefig.3)



4.edgeofthescreenasseenbelow.(seefig.4)



Screw

( fig.3)



**Important:Readbeforehandlingmaterial**



TheStarbright7materialisprecisioncraftedtoperformitsroleasahighgain,highcontrastfront

projectionsurface.Becauseofthis,itisverysensitivetohowitishandled.

Whenassemblingthescreen,pleaserolloutthematerialslowlyandcarefully.Itiseasytocreasethis

materialbygrabbing,pinching,foldingorotherwisehandlingitinappropriately.Insteadoflayingitout

onacleanandlevelsurface,itisbettertounrollittoavoiddamage.Pleasekeepthematerialaway

frompetsandchildrensothattheydonotaccidentallytreadonit.



Thephotosaboveindicatehowasimpletwistinthematerialduringtheinstallationcancause

permanentdamage.Beextremelycarefulwithyoursetup,readtheinstructionscarefullyandconsult

anEliteScreensservicerepforanyquestionsregardingtheproductassembly.



Pre‐InstallationmaterialdamagedisclaimerforStarBright7



Attaching the StarBright7 screen material to the frame



(1)



Step1.Topreventdamagetothescreenmaterial,pleaseputonthecottongloves(included)andcarefullylayout

thescreenandframeonacleananddrysurface.

Step2.Removetheprotectivefilmonthescreenmaterial.

Step3.Keep“ThebackoftheScreenMaterial”tagandfaceupasshowninfig.(2).

Step3.Placethescreenmaterialonthebackoftheassembledframeasshowninfig.(3).

Step4.Carefullyunfoldthescreenmaterialandmakeitparallelwiththeframeasshowninfig.(4).





(2)(3)(4)



Step5.Removethewhitepaperverycarefullyasshowninfig.(5).



  (5)(6)



Step6.Insertthetensionrodsthroughthesleevesaccordingtothelengthoneachsideofthescreenandinsert

thetensionrodsintothegroovesofeachsideonthebackoftheframeasshowninfig.(6).

Step7.Attachthefixplatestotheframeinthepositionindicatedbytheredarrowsonthebackoftheframeas

showninfig.(7).



(7)(8)

Screenmaterial

Frame

Whitepaper

Screenmaterial

Tensionrod

Fixplate



CAUTION

Please follow these instructions carefully to ensure proper maintenance and safety

with your StarBright7 ez-Frame Screen

1. When hanging the screen up, please make sure that no other objects such as power switches,

outlets, furniture, ladders, windows, etc. occupy the space designated for your Fixed-Frame

screen.

2. Regardless if the screen is hung on or installed into the wall, make sure that the proper

mounting anchors are used and that the weight is supported appropriately by a strong and

structurally sound surface just as any large and heavy picture frame should.

(Please consult a home improvement specialist for the best advice on installation)

3. Frame parts are made of high quality velour-surfaced aluminum and should be handled with

care.

4. When not in use, cover over the screen with a furniture sheet to protect it from

dust, dirt, grime, paint or any other impurities.

5. Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.

6. In order to avoid damaging the screen, avoid touching it directly with your fingers, tools or

any other sharp or abrasive objects.

7. Spare Parts should be placed out of reach of small children in accordance with

household safety guidelines.



CenterSupportBard



1. Insertthesupportjoinerintoeachsideofthecentersupportbartocompleteassembly.



supportjoiner

Centersupportbar



2. InserttheCenterSupportBarintothegrooveonthebackoftheframewiththebottom

endneartheapproximatecenterpointoftheframeandplaceitinatananglesothatbothends

ofthebarareinalignmentwiththegrooveasshowbelow.



3. Slidethetopendofthebarintothetopcenterpointlocationtocompletecentersupport

barinstallation.Thiswillprovideaddedstabilitytoyourframeandaddedtensiontothe

material.



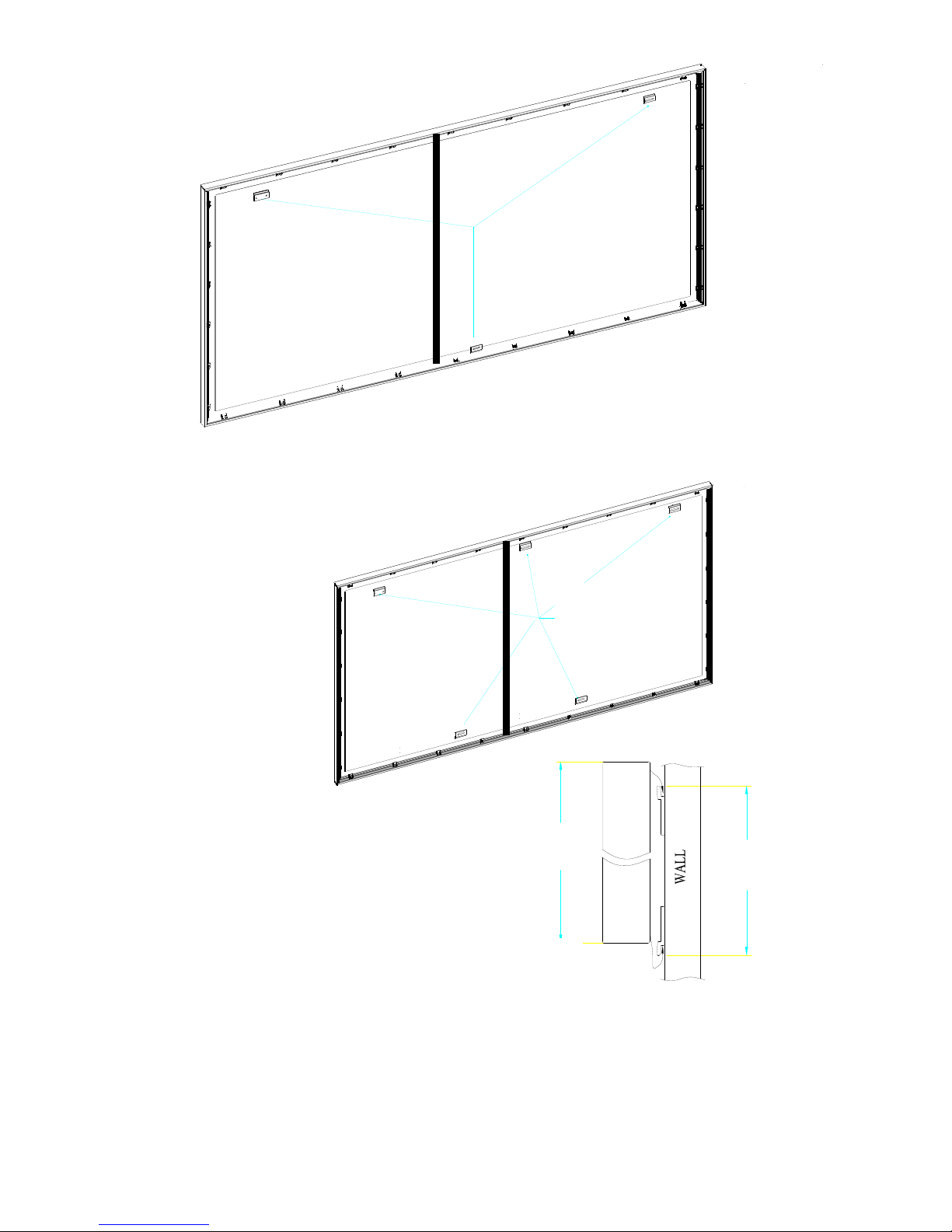

INSTALLATION

1. Locateyourdesiredinstallationlocationwithastudfinder(recommended)andmarkthe

drill‐holeareaofwherethescreenistobeinstalled.



2. Drillaholewiththeproperbitsizeaccordingtothewoodscrewsincluded.



3. Lineupthesmallwallbracketswiththedrilledholesontheinstallationlocationand

screwtheminusingaPhilipsscrewdriver.



4. Positionthefixedframescreenontothetopwallbracketsasshowninfig.1andpush

downatthecenterofthebottomframerailtohookintothelowerwallbracket.

CenterSupport Bar



Method 1 (smaller than 121" diagonal)

Method

(larger than 121" diagonals)

smallwallbrackets3pcs

Smallwallbracket5pcs

(Fig. 1)
