ElproSys DiagProg4 Manuale utente

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

Diagnostic tester

Instruction Manual

Software

Prepared by:

Sylwester Czupryna

Approved by:

Sebastian Żur

ElproSys Sp. z o.o.

ul. Tarnogórska 140

44-102 Gliwice

ENGLISH

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

1LEGAL RESERVATIONS AND AGREEMENT OF USE 3

2MENU NAVIGATION ( MULTI-TOUCH SCREEN) 4

3MAIN SCREEN 5

4KEYPAD 6

5MENU ICONS –DESCRIPTION 6

6SETUP 7

7SUBMENU INFORMATION 8

8SUBMENU TESTS 8

9TOOLS 9

10 MENU –SUBJECT OF PROGRAMMING 10

11 EXEMPLARY PROGRAMMING 11

12 BASIC SETTINGS 12

13 DIAGPROG4 MANUAL UPDATE 14

14 MAINTENANCE 14

15 DISPLAY FIRMWARE UPDATE 15

16 RESTART DIAGPROG4 15

17 DIAGPROG4 MANAGER 16

18 DESCRIPTIVE MENU 17

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

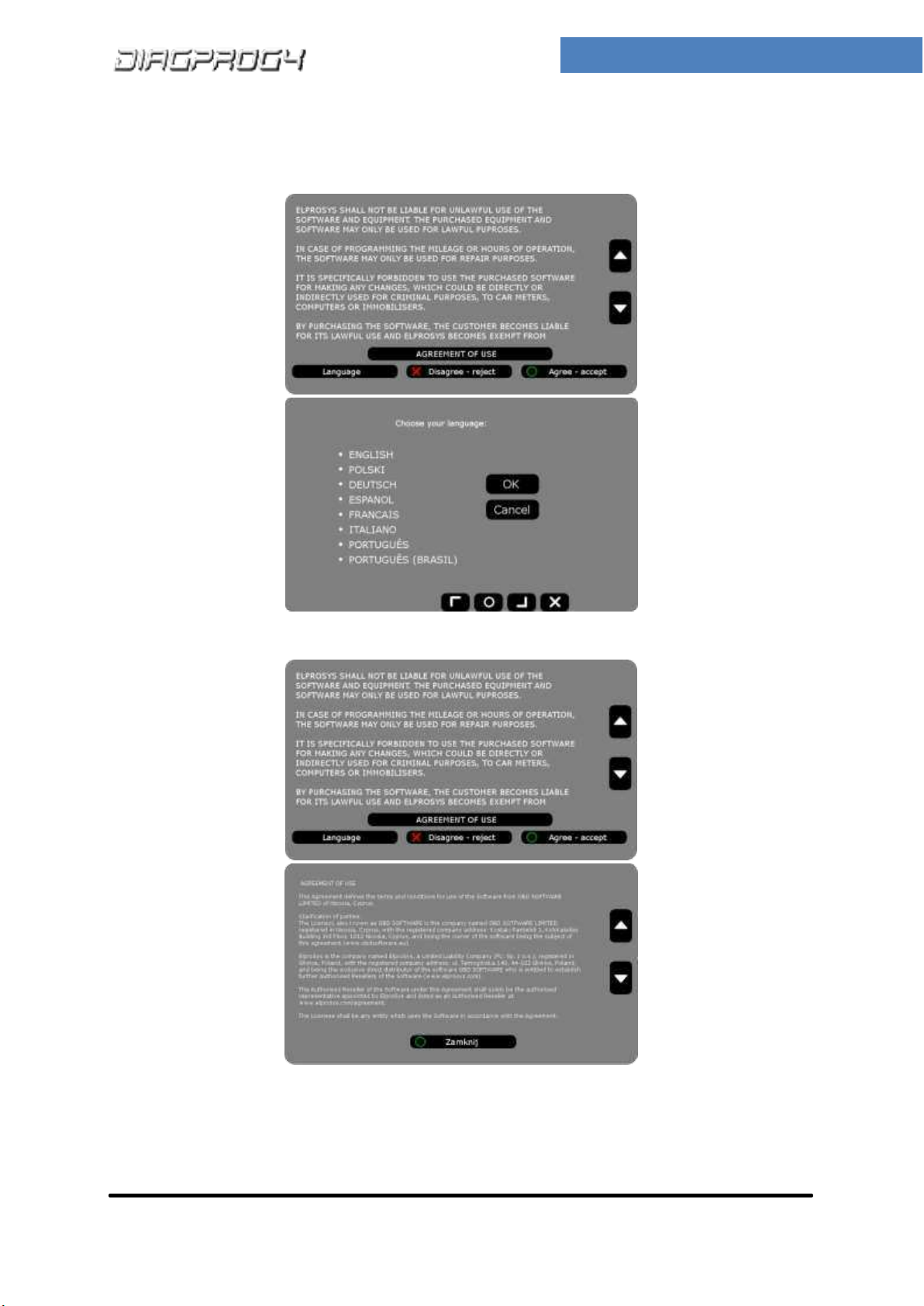

1LEGAL RESERVATIONS AND AGREEMENT OF USE

Once Diagprog4 device is switched on user should select language from the supported languages list.

Language selection will result in the change of language in the entire menu.

User should review LEGAL RESERVATIONS and AGREEMENT OF USE. By selecting the Agree –accept

button user accepts AGREEMENT OF USE and Diagprog4 device will switch on.

It is necessary to accept AGREEMENT OF USE each time device is switched on.

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

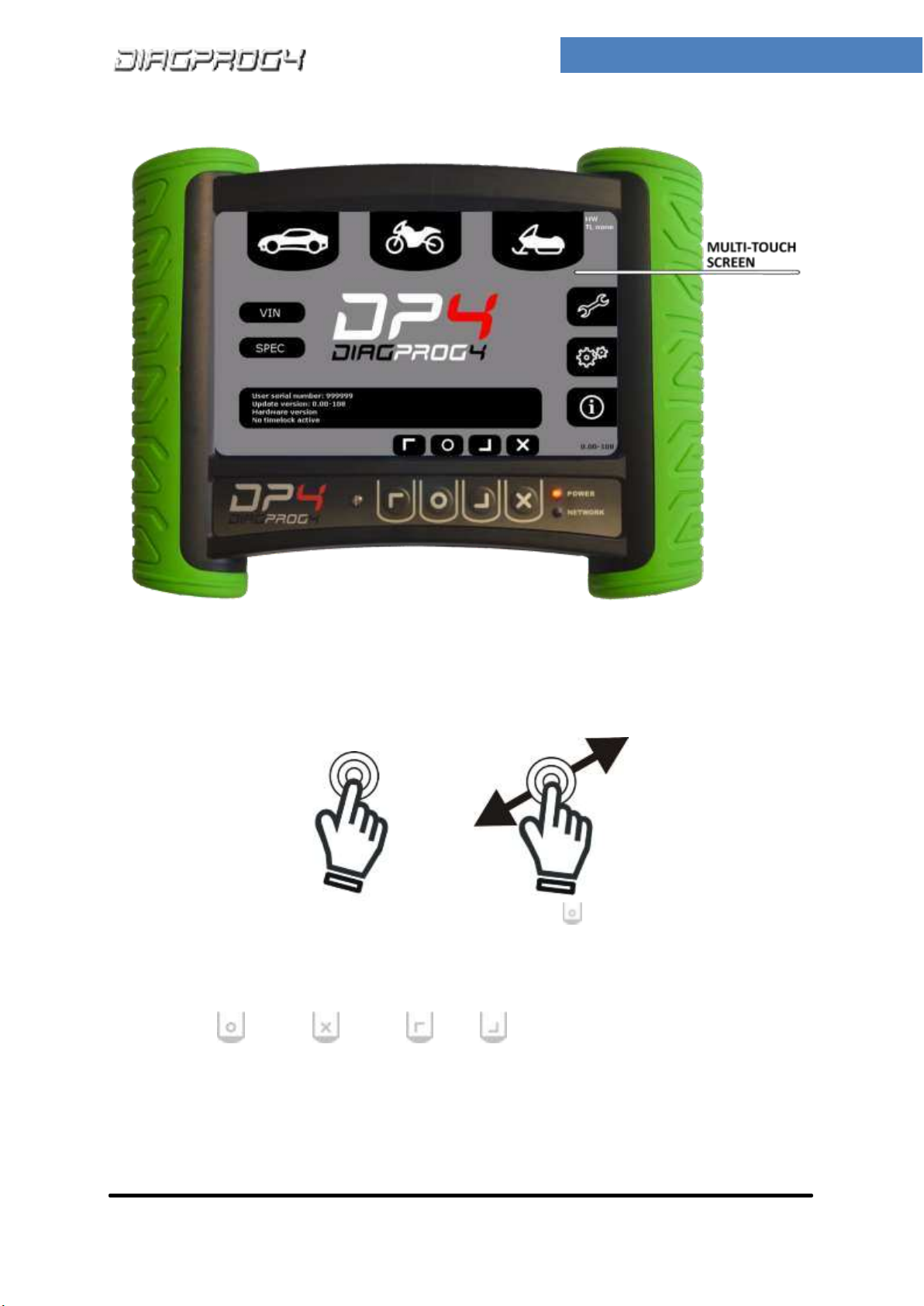

2MENU NAVIGATION ( MULTI-TOUCH SCREEN)

Simple gestures —tapping or pressing with fingers —is enough to select menu options.

In order to navigate the menu using keypad press Accept button to activate it and fully use

keypad.

- Accept, - Cancel, - Top, - Bottom

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

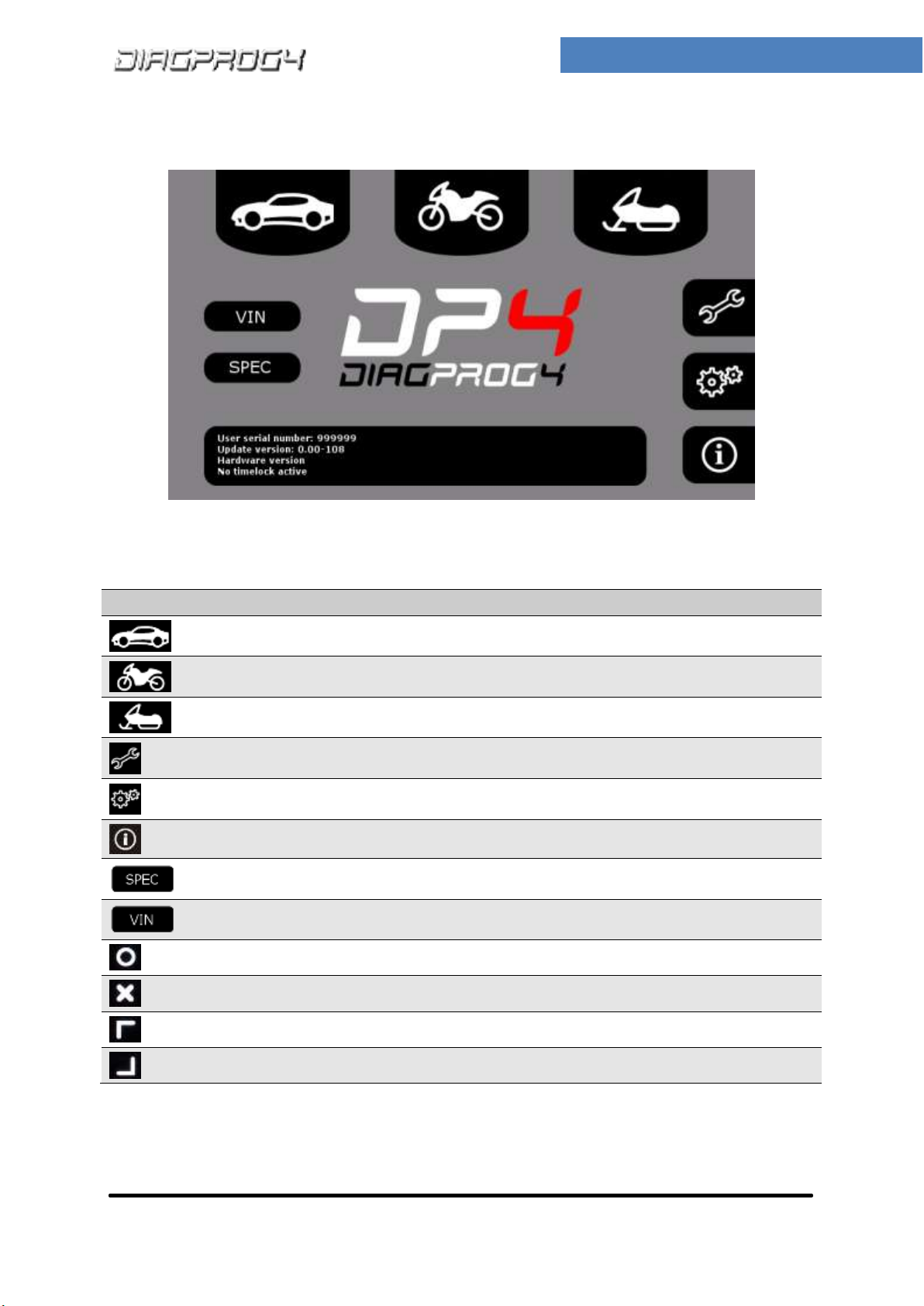

3MAIN SCREEN

To navigate the main screen please use main screen icons or top/bottom buttons on the keypad.

MAIN SCREEN ICONS

ICONS

FUNCTION

Cars

Selection of a car model

Motorbikes

Selection of a motorbike model

Other

Selection of a quad, scooter, tractor model

Tools

Basic Tools

Setup

Basic Setup

Information

Information about Diagprog4

Special programs

Runs special/diagnostic functions

VIN programs

Read car’s VIN numer. Car selection based on VIN number.

Accept Icon

Allows to accept

Cancel Icon

Allows to cancel

Top Icon

Allows to MOVE UPWARDS in the menu

Bottom Icon

Allows to MOVE DOWNWARDS in the menu

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

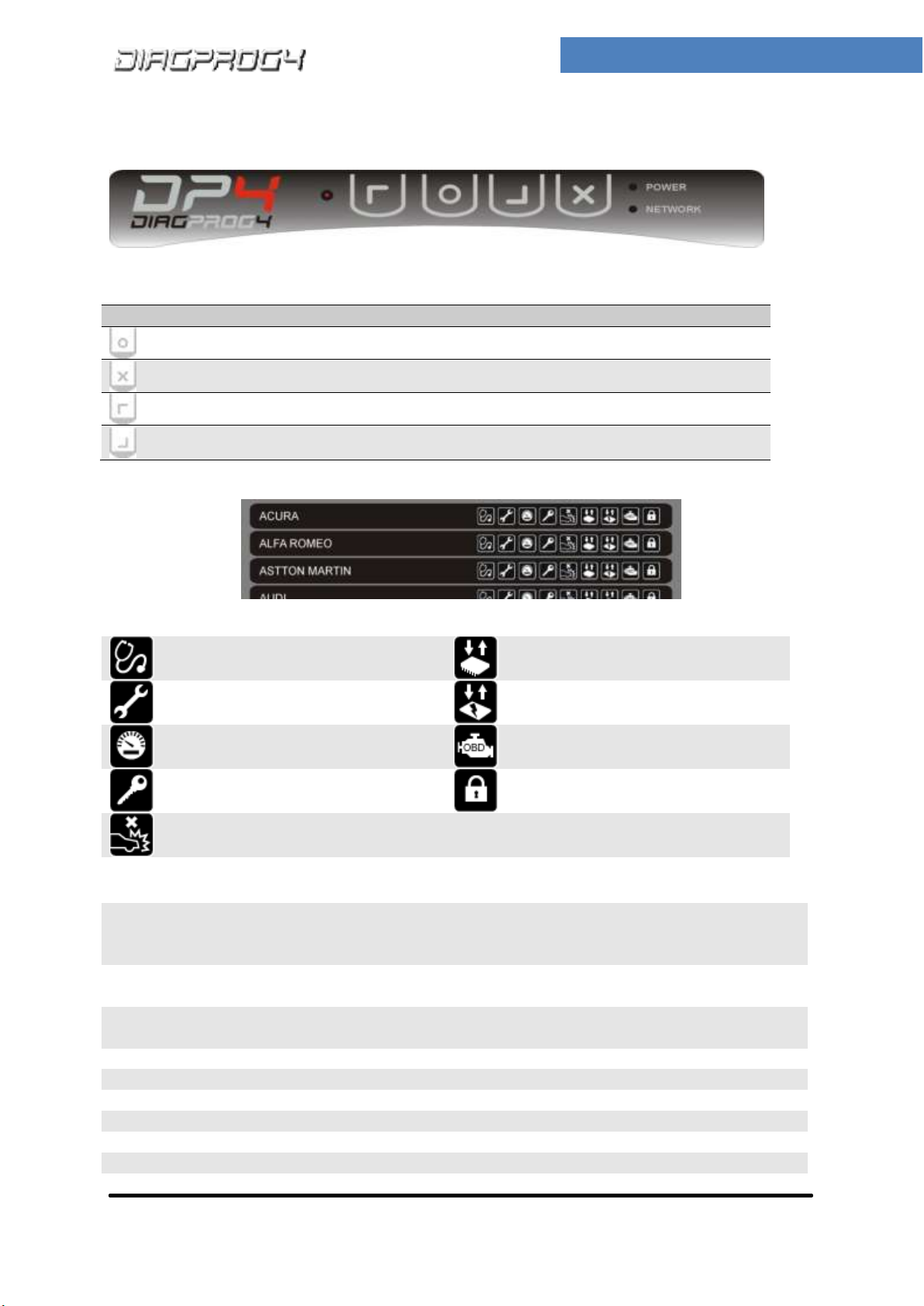

4KEYPAD

Keypad below the multi-touch screen is another way to navigate DiagProg4 menu.

KEYPAD –BUTTONS

BUTTONS

FUNCTION

Accept Button

Button to ACCEPT

Cancel Button

Button to CANCEL

Top Button

Button to MOVE UPWARDS in the menu

Bottom Button

Button to MOVE DOWNWARDS in the menu

5MENU ICONS –DESCRIPTION

Example of MENU

DIAGNOSTICS

EEPROM READ/WRITE

SERVICES –ADVANCED EDITING

FLASH READ/WRITE

DIAGNOSTICS AND REPAIR OF CAR

MODULES

ADVANCED DIAGNOSTIC FUNCTIONS

IMMOBILIZER

FUNCTIONS FOR ADVANCED USERS

CLEAR CRASH DATA

MENU ICONS –description

DIAGNOSTICS

Automotive diagnostics e.g. read and

clear trouble codes DTC, service, module

identification.

SERVICES –ADVANCED EDITING

Service inspection - reading, writing,

editing

DIAGNOSTICS AND REPAIR OF CAR MODULES

Option diagnostics and repair of car

modules

IMMOBILIZER

Immobilizer

CLEAR CRASH DATA

Clearing accident data

EEPROM READ/WRITE

Reading and writing EEPROM content

FLASH READ/WRITE

Reading and writing FLASH content

ADVANCED DIAGNOSTIC FUNCTIONS

Advanced diagnostic functions

FUNCTIONS FOR ADVANCED USERS

Functions for advanced users

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

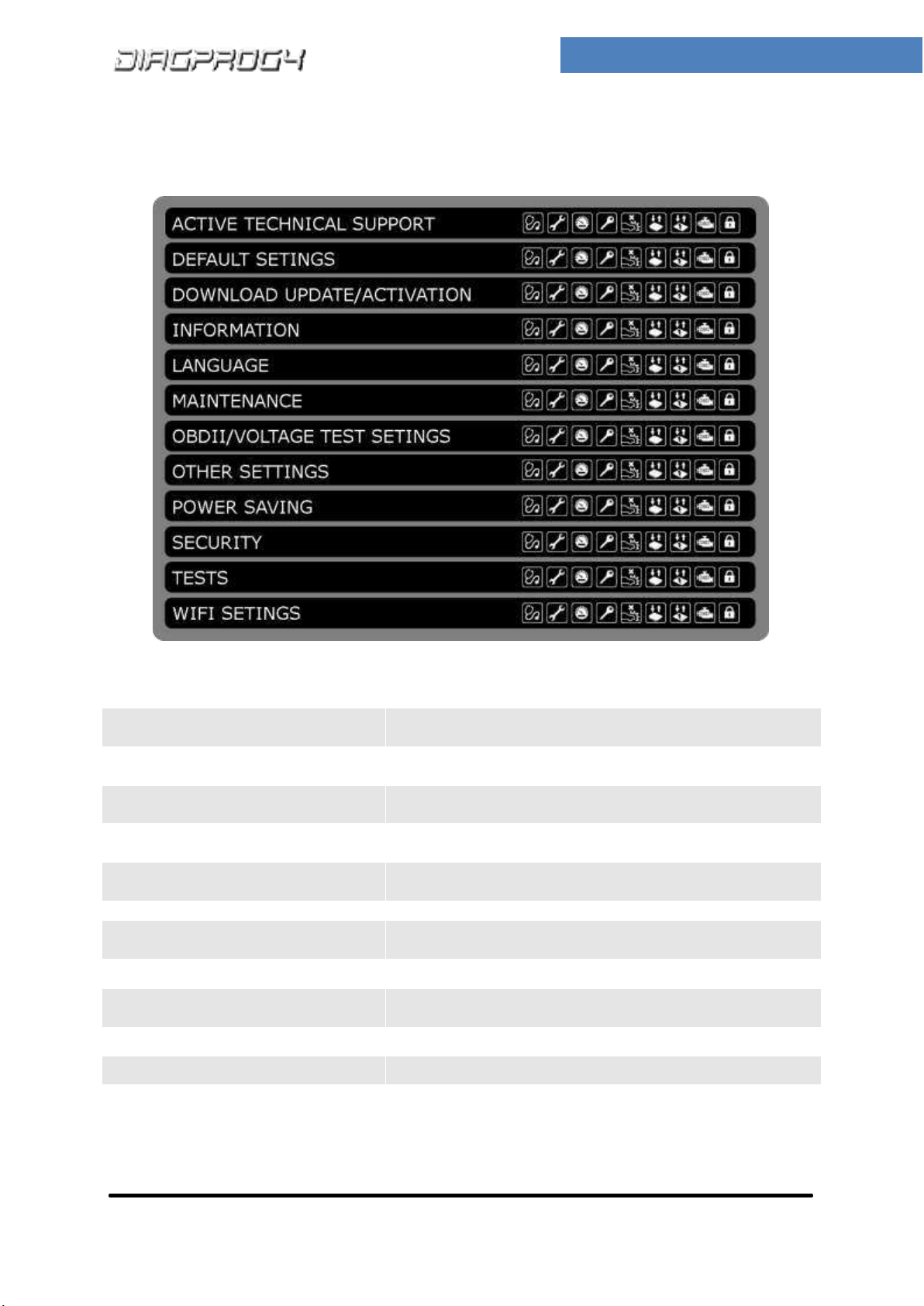

6SETUP

SETUP MENU FEATURES

ICON

DESCRIPTION

ACTIVE TECHNICAL SUPPORT

Provides access to all data sent automatically to seek active

technical support

DEFAULT SETTINGS

Restoring the device to the original state once initially used

DOWNLOAD UPDATE/ ACTIVATION

Allows user to check for new updates/ activations

INFORMATION

Information about DiagProg4

LANGUAGE

Menu language selection: Polish, English, German, French, Italian,

Spanish, Portuguese, Brazilian

MAINTENANCE

File synchronisation between device and files on the server

OBDII/VOLTAGE TEST SETTINGS

Power supply to connected module and OBDII connector

OTHER SETTINGS

Settings modification: e.g. contrast, volume

POWER SAVING

Switch ON/OFF screensaver

SECURITY

DiagProg4 additional security measures

TESTS

Tests available for the user

WIFI SETTINGS

WIFI settings modification

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

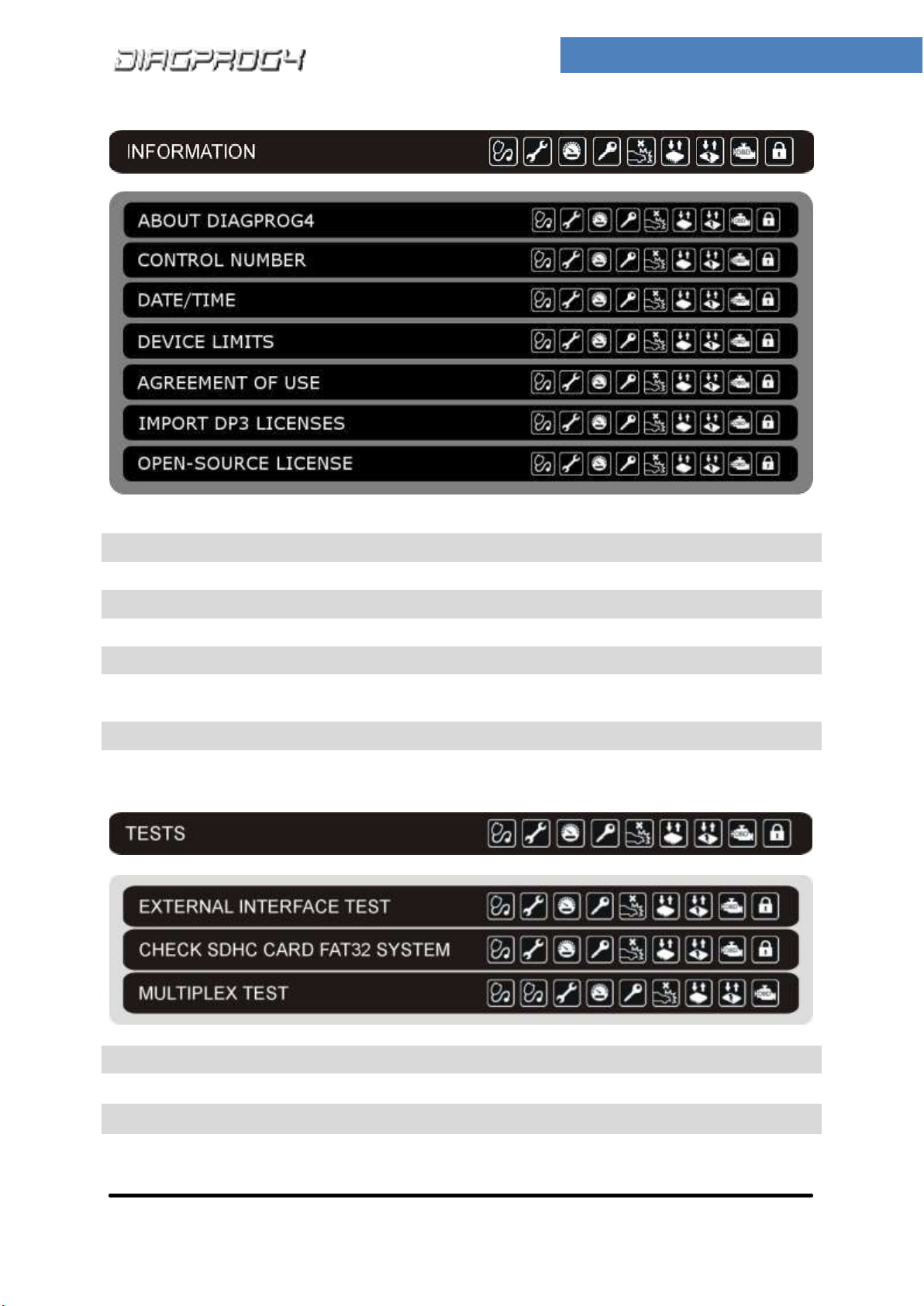

7SUBMENU INFORMATION

ABOUT DIAGPROG4

Information about DiagProg4

CONTROL NUMBER

Used for registration in customer zone at www.diagprog4.com

DATE/TIME

Information about date and time

DEVICE LIMITS

Information about DiagProg4 limits

AGREEMENT OF USE

Information about DiagProg4 Agreement of Use

IMPORT DP3 LICENSES

Allows to transfer all active programs from Diagprog3 to

Diagprog4

OPEN-SOURCE LICENSE

Information about Open-Source license DiagProg4

8SUBMENU TESTS

EXTERNAL INTERFACE TEST

External interface test

CHECK SDHC CARD FAT32 SYSTEM

Micro SDHC card compatibility with FAT32 system test

MULTIPLEX TEST

MULTIPLEX test

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

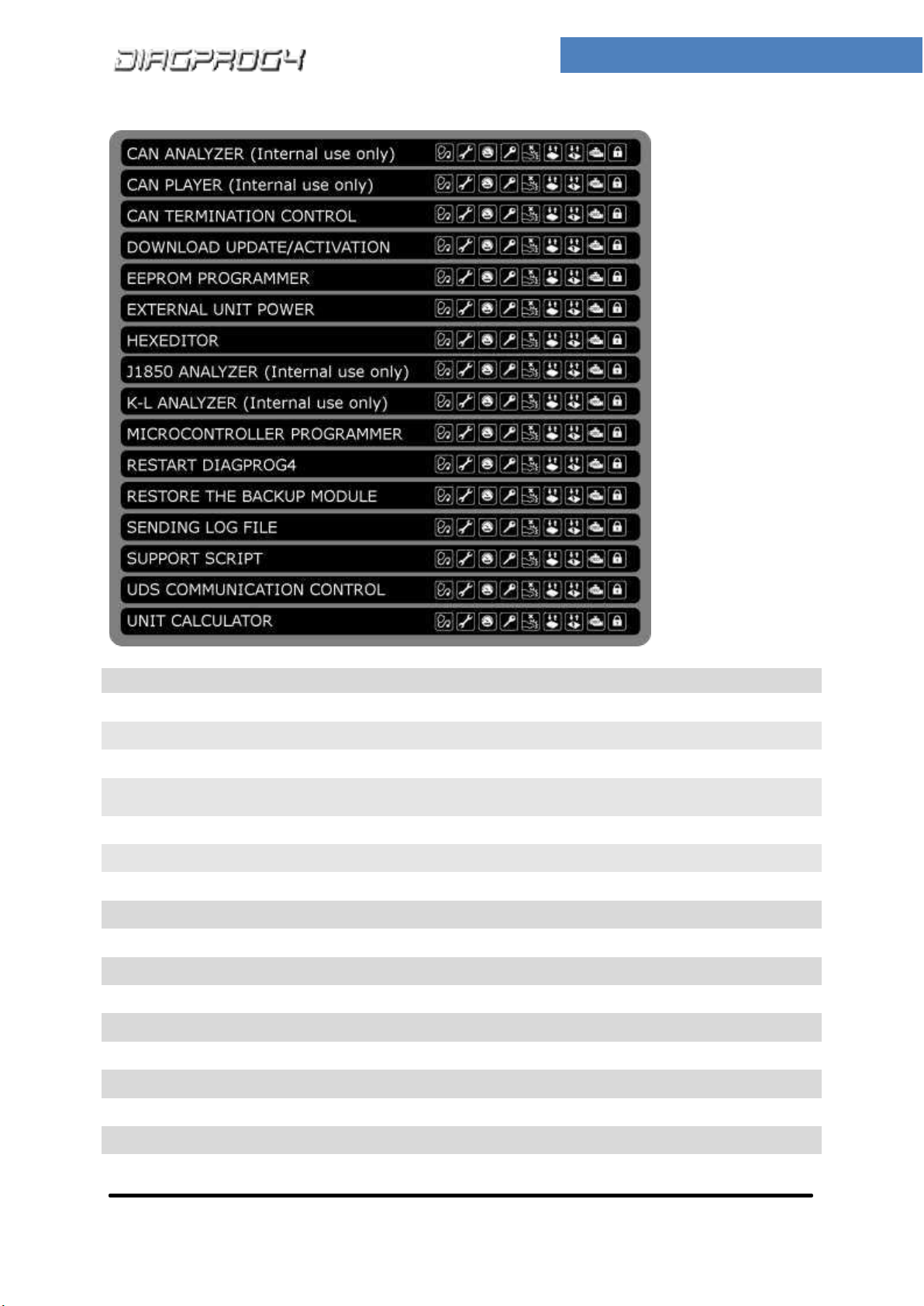

9TOOLS

ICON

DESCRIPTION

CAN ANALYZER (Internal use only)

Programs For Internal Use Only

CAN PLAYER (Internal use only)

Programs For Internal Use Only

CAN TERMINATION CONTROL

Enables/ disables High Speed CAN Termination

DOWNLOAD UPDATE/ ACTIVATION

Allows user to check for new updates/ activations

EEPROM PROGRAMMER

Write EEPROM memory

EXTERNAL UNIT POWER

Power supply to connected module

HEXEDITOR

File editing in hexadecimal system

J1850 ANALYZER (Internal use only)

Programs For Internal Use Only

K-L ANALYZER (Internal use only)

Programs For Internal Use Only

MICROCONTROLLER PROGRAMMER

Write FLASH + EEPROM

RESTART DIAGPROG4

Immediate restart in order to reload operating system

RESTORE THE BACKUP MODULE

Restore backup file saved on SD card

SENDING LOG FILE

Send *.LOG file to ElproSys server for technical support

SUPPORT SCRIPT

Runs support script prepared for user by technical support team

UDS COMMUNICATION CONTROL

Enables/ disables UDS communication

UNIT CALCULATOR

Enables metric conversion

DIAGNOSTIC TESTER

©Elprosys

April 2019 − Rev. 3.1

I N S T R U C T I O N M A N U A L

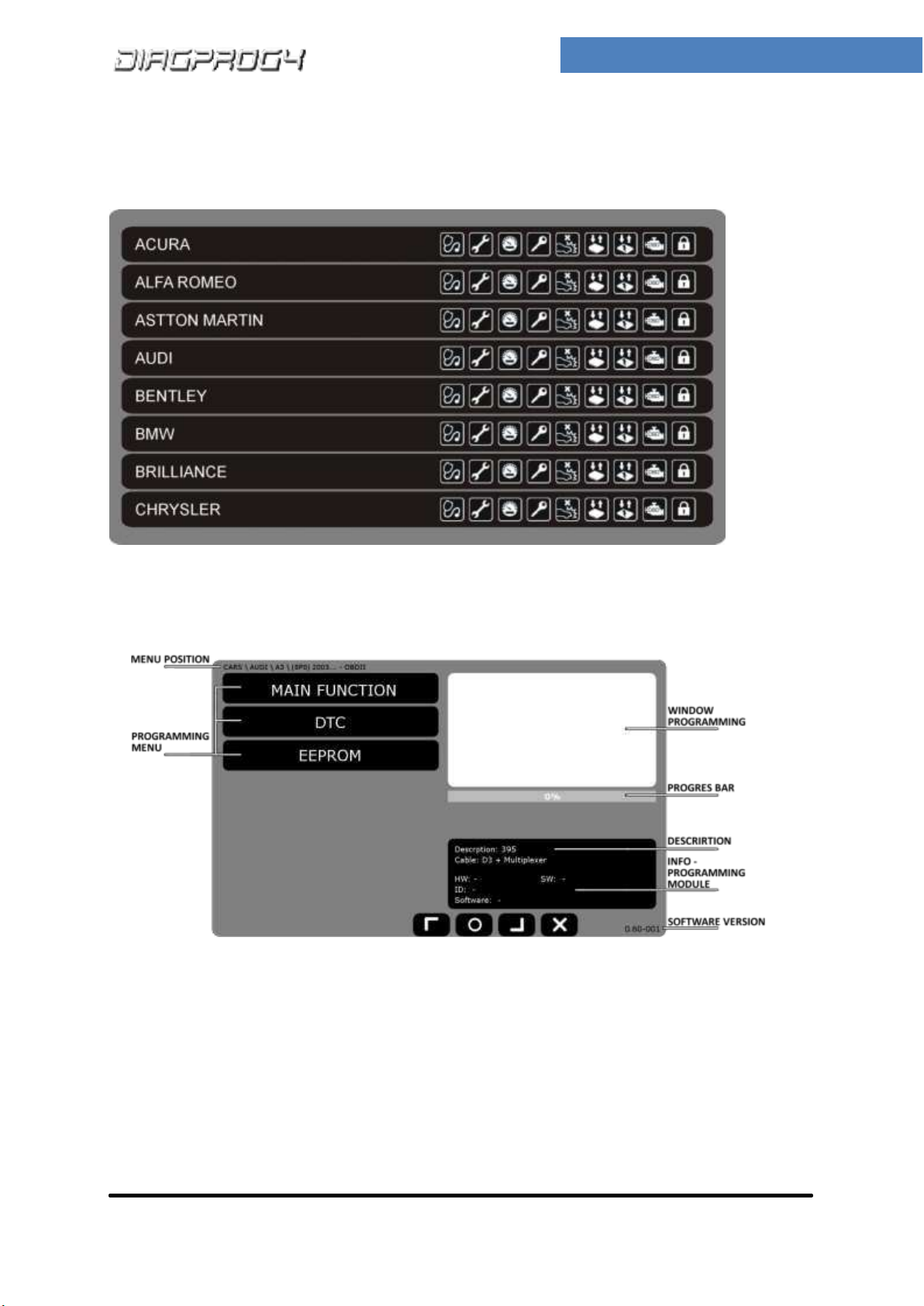

10 MENU –SUBJECT OF PROGRAMMING

Menu –Subject of programming can be Menu for CARS, MOTORBIKES and OTHER VEHICLES.

EXEMPLARY PROGRAMMING MENU
