Elta Skyflow SSMF Manuale utente
Skyflow SSMF
Installation and Maintenance Instructions
THESE INSTRUCTIONS MUST BE READ FULLY BEFORE
COMMENCING INSTALLATION
Code Supply FL Amps Output kW
r/min
SSMF315/6-5-2 230V/1Ph/50Hz 1.05 0.12 935
SSMF315/4-5-2 230V/1Ph/50Hz 1.80 0.25 1395
SSMF350/6-5-2 230V/1Ph/50Hz 1.05 0.12 885
SSMF350/4-4-2 230V/1Ph/50Hz 1.80 0.25 1300
SSMF400/6-5-2 230V/1Ph/50Hz 1.05 0.12 820
SSMF400/4-5-2 230V/1Ph/50Hz 3.60 0.55 1330
SSMF450/6-5-2 230V/1Ph/50Hz 6.00 0.55 935
SSMF450/4-4-2 230V/1Ph/50Hz 4.90 0.75 1290
SSMF500/6-5-2 230V/1Ph/50Hz 6.00 0.55 890
SSMF560/6-3-2 230V/1Ph/50Hz 6.00 0.55 875
Code Supply FL Amps Output kW
r/min
SSMF315/6-5-3 400V/3Ph/50Hz 0.68 0.18 955
SSMF315/4-5-3 400V/3Ph/50Hz 1.40 0.37 1415
SSMF350/6-5-3 400V/3Ph/50Hz 0.68 0.18 920
SSMF350/4-5-3 400V/3Ph/50Hz 1.40 0.37 1330
SSMF400/6-5-3 400V/3Ph/50Hz 0.68 0.18 855
SSMF400/4-5-3 400V/3Ph/50Hz 2.00 0.75 1460
SSMF450/6-5-3 400V/3Ph/50Hz 0.94 0.25 910
SSMF450/4-4-3 400V/3Ph/50Hz 2.00 0.75 1380
SSMF500/6-5-3 400V/3Ph/50Hz 2.00 0.55 920
SSMF500/4-4-3 400V/3Ph/50Hz 4.30 1.5 1390
SSMF560/6-3-3 400V/3Ph/50Hz 2.00 0.55 910
SSMF560/4-2-3 400V/3Ph/50Hz 4.30 1.5 1390
SSMF560/4-4-3 400V/3Ph/50Hz
6.78 3.0 1435
SSMF630/6-3-3 400V/3Ph/50Hz
5.36 2.2 965

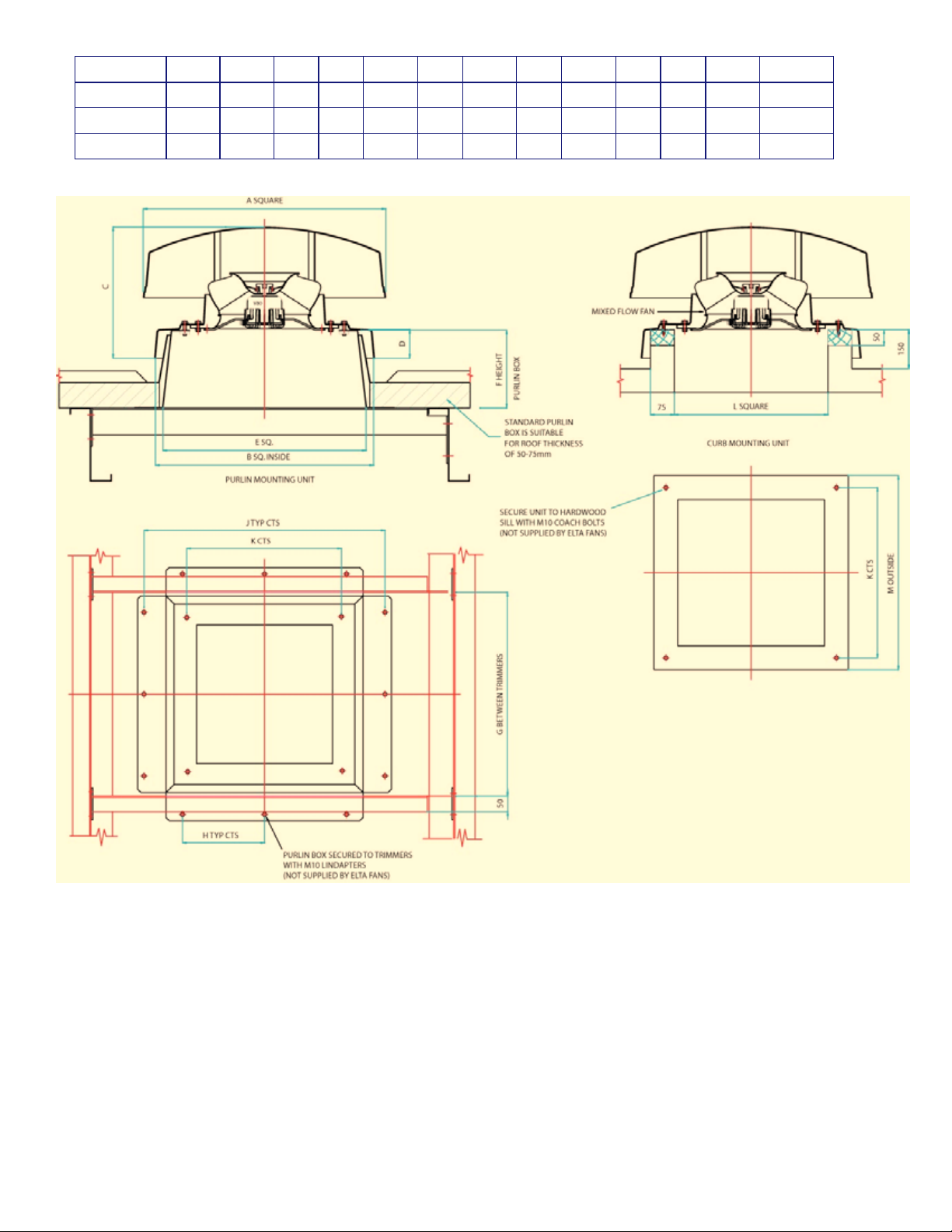

Code
A
B
C
D
E
F
G
H
J K L M Wght
kg
SSMF31 710 684 325 85 610 240 636 250 750 500 460 610 20
SSMF35 800 784 445 90 730 250 756 300 870 600 550 700 25
SSMF40 800 784 445 90 730 250 756 300 870 600 550 700 27
SSMF45 960 934 510
100
860 250
886 350
1000
745
700
850 40
SSMF50 960 934 510
100
860 250
886 350
1000
745
700
850 42
SSMF56 1230
1054
590
105
1000
250
1026
435
1140
870
830
980 82
SSMF63 1230
1054
590
105
1000
250
1026
435
1140
870
830
980 90
1.0 GENERAL
1.1 It is important these Installation and Maintenance Instructions are fully adhered to.
1.2 Full details of the unit supplied are shown on the product nameplate. If in doubt about any detail
contact Elta Fans Ltd or its agents for clarification.
1.3 All electrical installation must be carried out by suitably qualified and competent
personnel in accordance with all current statutory requirements.
1.4 These instructions cover only the Elta Fans Ltd product and do not include the supply or
installation of any safety equipment that may be required e.g. adequate guarding or
protection from rotating parts and proper electrical isolation.
1.5 Any declarations made by Elta Fans Ltd about product installation and safety, are
dependant on the fan equipment being used within installations which themselves
meet the requirements of the relevant Standards and Directives of your region.
1.6 The fan is designed for use in an ambient temperature of -20oC up to +70oC fixed speed, -20oC up
to +50oC when used with a speed controller and up to 95% relative humidity. The fan is not suitable
for corrosive or explosive atmospheres.
1.7 The installer should provide easy access to the fan to facilitate future maintenance.
1.8 The installer should ensure the fan is adequately supported.
1.9 This product is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the product.
2.0 INSTALLATION
WARNING – The fan must be isolated from the power supply during installation and
maintenance. The fan must be earthed in accordance with the local regulations.
2.1 Upon receipt, the fan equipment should be visually inspected to check for any damage. Ensure that
the impeller is free to rotate.
2.2 If there are any queries concerning the fan equipment, Elta Fans Ltd should be contacted prior to
the installation.
2.3 The fan must be securely mounted in the desired position to suit the application. The fan can be
mounted on flat or inclined roofs with a maximum pitch angle of 35o.
2.4 Assembly: SSMF fans are supplied with the fan/motor fully assembled to the base/cowl.
DO NOT OVERTIGHTEN THE BOLTS AS THIS MAY DAMAGE THE BASE.
2.5 Backdraught shutters: Backdraught shutters for SSMF fans are supplied as an assembled unit
and are fitted prior to roof unit installation. The shutter assembly top flange locates onto the curb or
purlin box top face.
2.6 Having fitted the shutter tray, it is necessary to make the connections to the motor terminal box
before fitting the roof unit to the curb or purlin box. Feed the supply cable through the grommet hole
in the bottom flange of the shutter tray and make the connections to the terminal box which is
attached to the motor plate.
2.7 Curb mounting: Position the assembled roof unit onto the curb and secure to the timber sill with
M10 coach bolts (not supplied by Elta Fans), ensuring that fibre washers are positioned under each
bolt head. It is advisable to drill pilot holes prior to fitting the bolts to prevent splitting the timber
curb.
DO NOT OVERTIGHTEN THE BOLTS AS THIS MAY DAMAGE THE BASE.
2.8 Purlin mounting:
•Purlin trimmers: - should be bolted to the vertical flange of the purlin member taking
care to align with the roof opening.
•Purlin box: - position onto trimmers and fit M10 type ‘A’ short tail lindaptors (not
supplied by Elta Fans) into holes in the bottom flanges. Do not tighten nuts at this
stage.
•Soaker sheets: - slip the soaker sheet over the purlin box and fix and seal to the roof
sheeting. Align the purlin box with the soaker sheet and tighten the lindaptor nuts.
•Position the roof unit into the purlin box and insert M10 bolts into the four corner holes
and into the purlin box captive fixings ensuring that fibre washers are positioned under
the bolt heads.
DO NOT OVERTIGHTEN THE BOLTS AS THIS MAY DAMAGE THE BASE.
2.9 Check the details on the motor rating plate to ensure that the correct power supply (voltage,
frequency and phase) is available.
An incorrect power supply will lead to permanent damage to the fan motor.
2.10 Refer to the appropriate wiring diagram. Ensure that all earth connections are made.
2.11 Means for electrical disconnection must be incorporated in the wiring installation in accordance with
the relevant wiring and electrical regulations.
2.12 Precaution must be taken to locate the exhaust discharge terminal so as to avoid the backflow of
gases into the room from the open flue of gas or other fuel burning appliances.
3.0 START-UP
3.1 Before power is supplied to the unit, check that the wiring is correct as per the fan connection
diagram.
3.2 At initial start-up, check that impeller rotation and airflow direction is correct.
3.3 Check that the motor amperage draw does not exceed the nameplate rating.
4.0 FAN MAINTENANCE
4.1 Inspection of the fan at least once every 12 months is recommended to ensure that the motor, fan
blades, and supporting guards, are clean. Any build up of dust and deposits on the blades or
guards should be removed using a non-abrasive cleaner.
4.2 All fastenings should be checked for tightness. In addition, all rotating items should be checked.
4.3 Bearings are of the ‘sealed for life’ type and will not need a detailed inspection.
WARNING – This fan is fitted with an auto-reset thermal contact which switches the fan off in the
event of a fault condition.
Once the motor cools down the fan may start unexpectedly.
Only a suitably qualified and competent person may carry out maintenance after the electrical
supply has been isolated.
WIRING
GUARANTEE
Elta Fans Ltd will, free of charge, within a period of 1 year from the date of despatch from their
works, repair or at its option replace any goods which are proved to have defects as a result of
defective materials or workmanship. The goods MUST be returned to Elta Fans Ltd carriage paid for
examination.
Elta Fans Ltd
17 Barnes Wallis Road
Segensworth East Industrial Estate
Fareham, Hampshire, PO15 5ST, United Kingdom
Visit: eltafans.com
e-mail: mailbox@eltafans.co.uk
Applied Technology: Tel: +44(0) 1489 566500 Fax: +44(0) 1489 566555
Building Services: Tel: +44(0) 1384 275800 Fax: +44(0) 1384 275810
Export: Tel: +44(0) 1489 566500 Fax: +44(0) 1489 566555
SSMF Inst Issue 1: 13-07-07
