Emerson Bettis 2000 Series Manuale utente

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

July 2019

Bettis 2000 Series M2CP User Manual

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

Table of Contents

July 2019

Table of Contents

Section 1: Introduction

Section 2: Features and Specifications

Section 3: Installation and Wiring

Section 4: Module Setup and Calibration

4.1 Indicator Lights ............................................................................................. 6

4.1.1 LED 1.................................................................................................. 6

4.1.2 LED 2.................................................................................................. 6

4.2 Number Display (Firmware Version and Digital Futronic Type)....................... 6

4.2.1 Firmware Version Number Display...................................................... 6

4.2.2 Digital Futronic Number Type Display (New for Ver 4.6)...................... 7

4.3 Setup ............................................................................................................ 7

4.3.1 Normal Run Mode (S1, S2, S3, S4 OFF) ............................................... 7

4.3.2 Cal Analog Input (S1 ON).................................................................... 8

4.3.3 Cal Analog Output Zero (S2 ON)......................................................... 8

4.3.4 Cal Analog Output Span (S3 ON) ........................................................ 8

4.3.5 Set Modulation Delay (S1, S2 ON)....................................................... 9

4.3.6 Set Default Position (S2 & S3 ON) ....................................................... 9

4.3.7 Invert Analog I/O (S1, S2 & S3 ON).................................................... 10

4.3.8 Double Deadband (S1 & S3 ON)........................................................ 10

4.3.9 2% Deadband (S1, S3, S4 ON)........................................................... 11

4.3.10 Pulsing Control (S1, S2, S3, S4, S6 ON & S5 OFF)............................... 12

4.4 Mode Selection ........................................................................................... 13

4.5 Calibration Procedures................................................................................ 14

4.5.1 Calibrate Analog Input (Position Command Signal) .......................... 14

4.5.2 Calibrate Analog Output (Position Feedback) ................................... 15

4.5.3 Select Modulation Delay Time .......................................................... 15

4.5.4 Enable/Disable Go-To-Position on Loss of Signal ............................... 16

4.5.5 Set Default Position (Position of valve on

loss of analog input signal when S4 enabled) .................................... 16

4.5.6 Assign Digital Futronic Type (New for Ver 4.6) .................................. 17

4.5.7 Calibrate To Limits (New for Ver 4.6)................................................. 17

Appendix A: Definitions

July 2019

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

Introduction

Section 1: Introduction

This document covers the current Digital Futronic firmware version

(Ver 4.6 released July 2019) and also references previous versions where applicable.

Section 1: Introduction

The Digital Futronic module uses the latest integrated microcontroller technology to

enable one electronics module to perform valve actuator modulating and positioning

control from analog control signals. The control module uses Bettis’s M2CP TBM01

termination panel for interface of all analog control types.

The Digital Futronic module converts 4-20mA analog input to digital for processing and

from digital to 4-20mA analog output for position feedback. The Digital Futronic module

controls four Bettis motor control starter types.

1. Futronic II Electro-mechanical AC motor starter

2. Futronic III SCR H-Bridge Solid-state DC motor starter (Powered by 115VAC, 1-Ph)

3. Futronic IV Triac Solid-state (SSR) AC motor starter

4. Futronic VII MOSFET Solid-state pure DC motor starter (Powered by 24VDC or 48VDC)

CAUTION

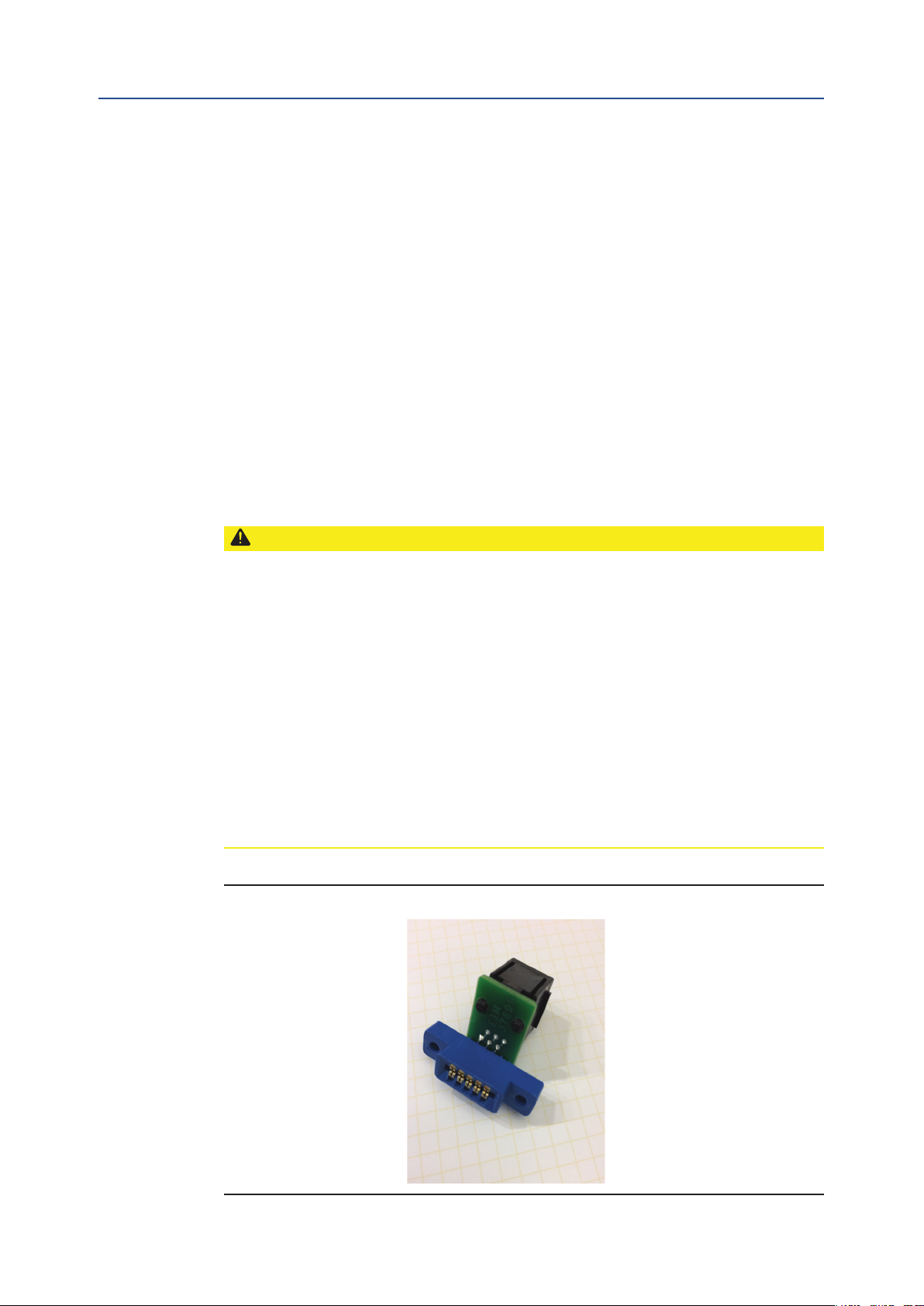

When downloading rmware to the Digital Futronic circuit board using the Programming

Header device, part number VA37696 (See Figure 1 below) or reading EEPROM,

the following conditions are required to validate rmware download.

1. Actuator is NOT fully closed (LSC is not active)

2. Actuator is NOT fully open (LSO is not active)

3. Selector Switch must be in OFF Position

4. DIP 1 is OFF

5. DIP 2 is OFF

6. DIP 3 is OFF

7. DIP 4 is OFF

When calibrating and/or conguring the Digital Futronic circuit board, the following

conditions are required to validate the conguration calibration process.

1. Programming Header device must NOT be connected to the board

2. Selector switch must NOT be in REMOTE position.

Figure 1

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

July 2019

Features and Specifications

Section 2: Features and Specifications

Section 2: Features and Specications

Digital microcontroller adapts to any actuator and valve size, speed/stroke-time, process

pressure, etc. by automatically tuning controls to obtain maximum accuracy without any

user adjustments for deadband, delay time, etc.

Automatic calibration of position input to valve travel limits when selector switch is position

at LOCAL MODE.

Built-in protection for motor and motor controls.

DC motor speed control for Futronic III and Futronic VII.

Easy setup and calibration to user’s external analog control signal input and analog feedback

output. All setup and calibration adjustments by on-board DIP switches and two miniature

push buttons. When selector switch is at OFF position only.

LED indicators for normal/fault operating conditions, setup mode, loss of analog signal, and

solid-state motor control output.

Isolated Analog Input: 4-20mA with 12-bit (.025%) resolution (calibration range of 0-24mA).

210 Ohms input resistance. Operates from 10V to 32V loop supply. Allows up to 750 Ohms

loop resistance at 24V.

Isolated Analog Output: 4-20mA with 16-bit (.0015%) resolution (calibration range of

0-24mA). Drive loop resistance up to 750 Ohms. True current source with internal 24VDC

power supply. No external power source required to power loop. Internal automatic resetting

fuse for 24VDC power supply.

Isolation dielectric strength: 2500V AC for 1 Minute (Input to output and I/O to ground).

Inverted Analog I/O Option: where 20mA = close valve position and 4mA = open valve position.

Go To Default Position Option: On loss of control signal, user selected default valve position

anywhere between 0 and 100%.

Table 1.

Control Accuracy

Futronic II mode +/- 1.0% @ 15 second stroke time or greater

Futronic III mode +/- 0.25% @ 15 second stroke time or greater

Futronic IV mode +/- 0.5% @ 15 second stroke time or greater

Futronic VII mode +/- 0.25% @ 15 second stroke time or greater

Nonlinearity <0.05% of calibrated analog input and output over full range of 0-100%.

Operating

Temperature

Range

-40 °C to +85 °C (-40F to +185F)

Humidity 10% - 95% (Non-condensate)

July 2019

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

Installation and Wiring

Section 3: Installation and Wiring

Refer to the wiring diagram supplied with the actuator for wiring details and options

supplied with the system. Figure 2 below is generic and provided primarily for wiring

4-20mA analog input and output signals. Refer to Figure 2 for proper wiring of analog I/O

and associated polarities relative to external equipment and power supplies.

Use the following rules when wiring analog I/O signals.

1. Route analog I/O cables into actuator enclosure through separate conduit entries

from power wiring.

2. Always use twisted-pair instrumentation cable for wiring 4-20mA analog input and

output signals.

3. Use shielded cable when analog signals are being installed in or routed through

high noise areas.

4. If shielded cable is used, earth ground the shield by connecting only one end of the

shield to earth.

5. Instruments or control equipment must source current to the analog input of the

Digital Futronic.

6. Remote current source to analog input must have own power source, or an

external supply is required.

7. Do not connect an external power source to the 4-20mA analog output of the

Digital Futronic module.

8. The Digital Futronic module contains its own internal 24VDC power supply for the

4-20mA output and sources current to external instruments or control equipment.

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

July 2019

Installation and Wiring

Section 3: Installation and Wiring

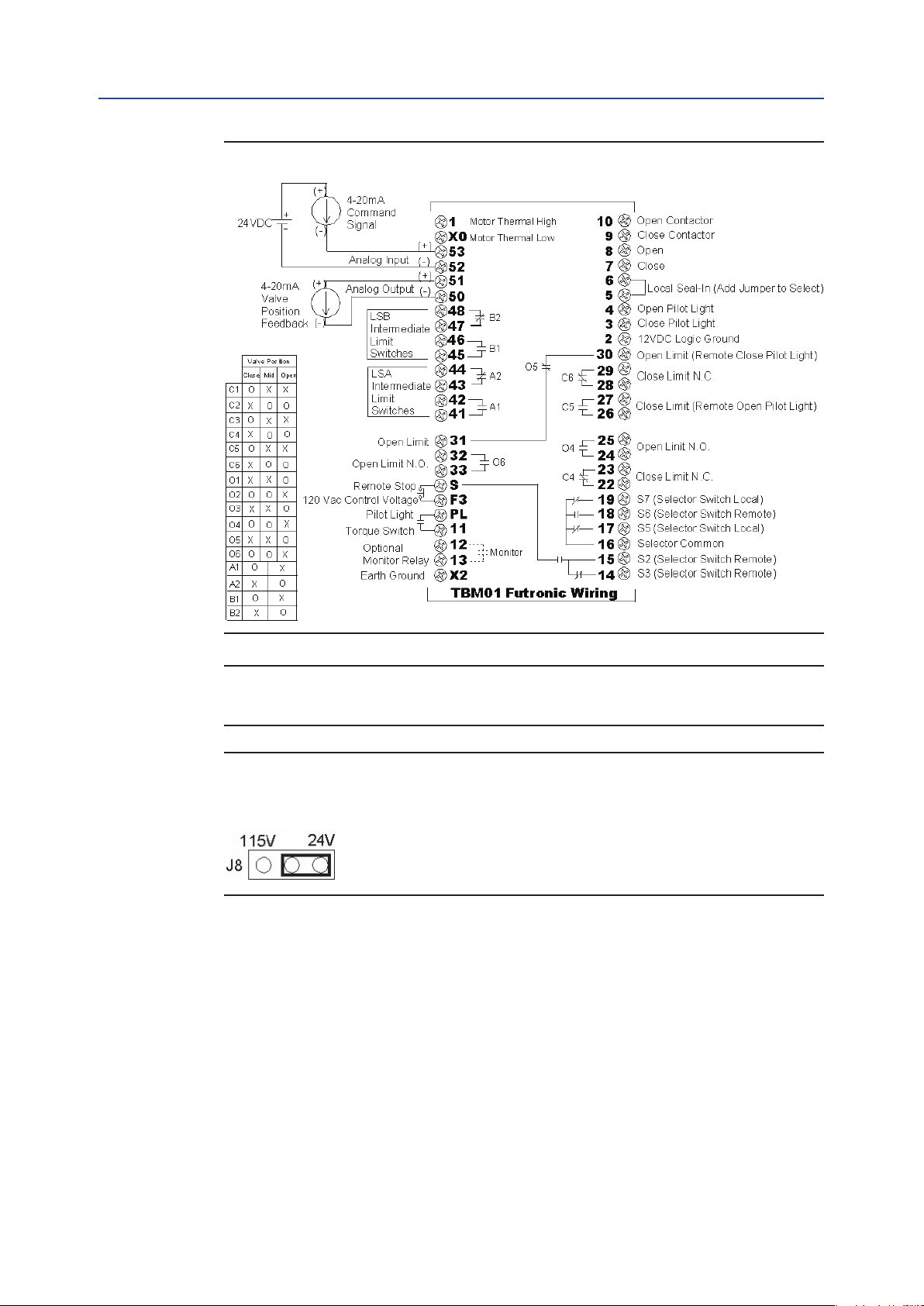

Figure 2 TBM01 Futronic Wiring

NOTE:

Refer to wiring diagram supplied with actuator for wiring details and options.

Important

Jumper J8 located on the bottom of TBM01 must be in the 24V position before the

Digital Futronic card will operate.

July 2019

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

Module Setup and Calibration

Section 4: Module Setup and Calibration

DIP Switch SW3 has 6 switches designated as S1-S6 for calibration and mode selection as

summarized below. There are two miniature push buttons labeled UP and DOWN. Refer

to Figure 3 for location of DIP switches and push buttons. Switches S1-S4 are used for

setup and calibration and switches S5-S6 are used for mode selection. If any one or more

of switches S1, S2, S3, S4 are on, the actuator is in setup mode. The actuator returns to

normal operating mode when all three switches S1-S3 are turned off. When changing from

setup mode to normal operating mode, do not turn off power to the actuator for at least

120 seconds to allow the controller to store the new setup values to EEPROM nonvolatile

memory. Setup and normal operating modes are designated by LED 1 as dened below.

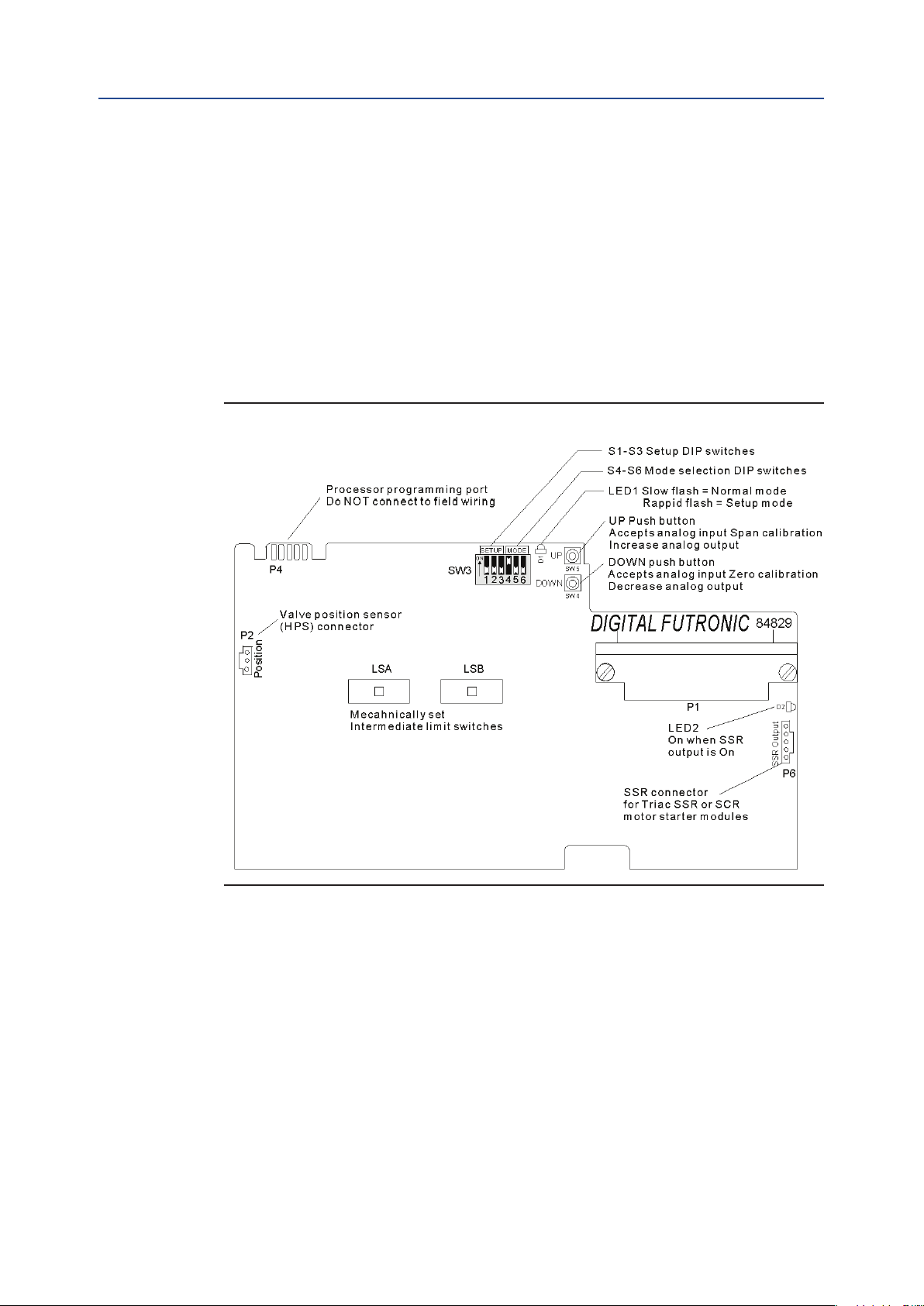

Figure 3 Locations of DIP switches and Push-buttons

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

July 2019

Module Setup and Calibration

Section 4: Module Setup and Calibration

4.1 Indicator Lights

4.1.1 LED 1

• Slow Flash = Normal Operating Mode.

• Rapid Flash = Setup mode (any one of switches S1 through S3 are on).

• Alternating Between Slow and Rapid Flash = Lost Analog Input (Command) Signal.

• Steady On or Steady Off = Module failure.

4.1.2 LED 2

• On when Solid State Relay (SSR or SCR) is On (control power applied to output).

4.2 Number Display (Firmware Version and

Digital Futronic Type)

4.2.1 Firmware Version Number Display

Each time the actuator is powered up, the rmware version number is displayed by LED1

with the following sequence of ashes.

At power up, LED1 stays on for 4 seconds and then begins to ash. Count the number of

times the LED ashes on before it turns on solid again for 2 seconds. The number of ashes

is the high order rmware version number.

After a 2-second solid on delay, the LED will begin to ash again. Count the number of

ashes until the LED turns on solid again for 4 seconds. The number of ashes is the low

order rmware version number. After the 4-second delay, LED1 will then ash at the normal

rate dened under Indicator Lights above.

If unable to correctly count the number of ashes to properly determine the rmware

version number, then cycle power to the actuator and the display process will repeat.

July 2019

Installation, Operation and Maintenance Manual

MAN-02-04-55-0735-EN Rev. 0

Module Setup and Calibration

Section 4: Module Setup and Calibration

4.2.2 Digital Futronic Number Type Display (New for Ver 4.6)

Digital Futronic rmware Ver 4.6 will display additional information on LED1 following ash

sequence shown in 4.2.1. On power up, LED1 will display Actuator Type which is currently

congured after it displays rmware version.

The LED ashes the actuator type as shown below before it turns on solid again for 2 seconds.

• DF II, 2 Flashes

• DF III, 3 Flashes

• DF IV, 4 Flashes

• DF VIII, 7 Flashes

NOTE

LED1 ash sequence for Firmware Version and Digital Futronic type will display every

startup (or power cycle).

4.3 Setup

4.3.1 Normal Run Mode (S1, S2, S3, S4 OFF)

Turn off S1, S2, S3 & S4 for Normal Run Mode - Figure 4.

Figure 4

Altri manuali per Bettis 2000 Series

Indice

Altri manuali Emerson Unità di controllo

Emerson

Emerson OMB Manuale utente

Emerson

Emerson Anderson Greenwood 93 Series Manuale utente

Emerson

Emerson OSE Series Manuale utente

Emerson

Emerson TARTARINI BM5A Manuale utente

Emerson

Emerson Fisher Vee-Ball V200U Series Manuale utente

Emerson

Emerson Fisher Slurry Vee-Ball V300S Manuale utente

Emerson

Emerson Comfort Alert 543-0033-00 Manuale utente

Emerson

Emerson KTM Hindle Manuale di istruzioni

Emerson

Emerson 1805 Series Manuale utente

Emerson

Emerson Daniel 700 Series Manuale utente

Emerson

Emerson Keystone Figure 952 Manuale utente

Emerson

Emerson RSTi-OM Manuale utente

Emerson

Emerson VAREC Series Manuale operativo e di manutenzione

Emerson

Emerson Cash Valve K-10 Manuale

Emerson

Emerson Bettis XTE3000 Manuale utente

Emerson

Emerson VA001-102-01 Guida

Emerson

Emerson Fisher N201 Series Manuale utente

Emerson

Emerson TopWorx PD200 Manuale di istruzioni

Emerson

Emerson PACSystems VersaMax IC200BEM002 Manuale utente

Emerson

Emerson Numatics DeviceLogix G2-2 Series Manuale di istruzioni

Emerson

Emerson Alco Controls M36 Series Manuale utente

Emerson

Emerson PACSystems RX3i IC695ECM850 Manuale utente

Emerson

Emerson KEYSTONE V30 Series Manuale del proprietario

Emerson

Emerson SI-PROFIBUS Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
