Baumann™ 87000 Flexsleev Sanitary

Control Valve

Contents

Introduction 1....................................

Scope of Manual 1.............................

Safety Precautions 2...........................

Maintenance 2.................................

Installation and Maintenance 3...................

Air Piping 3...................................

Disassembly of Valve 4.........................

Reassembly of Valve 4.........................

Parts Ordering 5................................

Mode of Operation 7............................

Dimensions and Weights 8.......................

Figure 1. Baumann 87000 Valve

W9823

RECOMMENDED MOUNTING POSITION

FOR SELF-DRAINING

W9824

WITH FIELDVUE™ DVC2000

DIGITAL VALVE CONTROLLER

Introduction

The Baumann 87000 Flexsleev control valve (figure 1) with tri-clamp body connections and polished flow contours, is

excellent for throttling high purity liquid or gaseous media. The valve is suitable for repeated steam sterilization cycles

with 35 psi maximum steam pressures. Assembly of valve bodysectionsusesonlytwoboltsallowingforeaseof

cleaning and inspection. A lower telltale port is provided. The valve will drain either horizontally or vertically with the

actuator in the horizontal position. The operation is not affected by vacuum.

Scope of Manual

This instruction manual includes installation, maintenance, and parts information for the Baumann 87000 sanitary

control valve.

Do not install, operate, or maintain Baumann 87000 control valves without being fully trained and qualified in valve,

actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is

Instruction Manual

D103373X012

87000 Valve

November 2011

Instruction Manual

D103373X012

87000 Valve

November 2011

important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and

warnings. If you have any questions about these instructions, contact your Emerson Process Management sales office

before proceeding.

WARNING

Always wear protective gloves, clothing and eyewear when performing any installation operations to avoid personal

injury.

Personal injury or property damage caused by sudden release of pressure or bursting of pressure retaining parts may result

if service conditions exceed those for which the product was intended. To avoid injury or damage, provide a relief valve for

over pressure protection as required by government or accepted industry codes and good engineering practices.

Check with your process or safety engineer for any additional measures that must be taken to protect against process

media.

If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this

instruction manual.

CAUTION

This valve is intended for a specific range of pressures, temperatures and other application specifications. Applying

different pressures and temperatures to the valve could result in parts damage, malfunction of the control valve or loss of

control of the process. Do not expose this product to service conditions or variables other than those for which the product

was intended. If you are not sure what these conditions are you should contact your Emerson Process Management sales

office for more complete specifications. Provide the product serial numbers (shown on the nameplate) and all other

pertinent information.

WARNING

If you move or work on an actuator installed on a valve with loading pressure applied, keep your hands and tools away

from the stem travel path to avoid personal injury. Be especially careful when removing the stem connector to release all

loading on the actuator stem whether it be from air pressure on the diaphragm or compression in the actuator springs.

Likewise take similar care when adjusting or removing any optional travel stop. Refer to the relevant actuator Maintenance

Instructions.

Maintenance

WARNING

Avoid personal injury and property damage from sudden release of process pressure or bursting of parts. Before

performing any maintenance operations:

DDo not remove the actuator from the valve while the valve is still pressurized.

DAlways wear protective gloves, clothing, and eyewear when performing any maintenance operations.

DDisconnect any operating lines providing air pressure, electric power, or a control signal to the actuator. Be sure the

actuator cannot suddenly open or close the valve.

Instruction Manual

D103373X012

87000 Valve

November 2011

DUse bypass valves or completely shut off the process to isolate the valve from process pressure. Relieve process pressure

on both sides of the valve. Drain the process media from both sides of the valve.

DDepending on the actuator construction, it will be necessary to manage the pneumatic actuator spring

pre-compression. It is essential to refer to the relevant actuator instructions in this manual to perform safe removal of

the actuator from the valve.

DUselock-outprocedurestobesuretheabovemeasures stay in effect while you work on the equipment.

DThe valve packing box may contain process fluids that are pressurized, even when the valve has been removed from the

pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings, or when

loosening the packing box pipe plug.

DCheck with your process or safety engineer for any additional measures that must be taken to protect against process

media.

Note

Whenever a gasket seal is disturbed by removing or shifting gasketed parts, install a new gasket during reassembly. This provides a

good gasket seal because the used gasket may not seal properly.

WARNING

Avoid personal injury or property damage by thoroughly cleaning the line of all dirt, welding chips, scale, oil or grease, and

other foreign material. Failure to do so could result in damage to the seating and sealing surfaces of the valve and result in

release of process materials.

Installation and Maintenance

1. Before installing the valve in the pipeline, thoroughly clean the line of all dirt, welding chips, scale, oil or grease, and

other foreign material. A micron size filter is recommended upstream of the valve.

2. Install the valve so the controlled fluid will flow through the valve body in the direction indicated by the arrow on

the valve body.

3. Athree-valvebypassmustbeusedtopermitremovalofthecontrolvalvefromthelinewithoutshuttingdownthe

system.

WARNING

To avoid personal injury or property damage, do not attempt to do any work on a valve while the system is in operation,

the valve must be isolated 100% from the active system and the isolated line voided of pressure and/or hazardous fluids.

Air Piping

Refer to figure 2.

1. For an air-to-extend actuator (air-to-close action), connect the actuating air pressure line to the 1/4 NPT opening in

the upper diaphragm case. For an air-to-retract actuator (air-to-open action) connect the actuating air pressure line

to the 1/4 NPT in the lower diaphragm case.

Instruction Manual

D103373X012

87000 Valve

November 2011

2. Use 6.4 mm (1/4 inch) O.D. tubing or equivalent for all air lines. If the air line exceeds 8 m (25 ft) in length, 9.5 mm

(3/8 inch) tubing is preferred. For proper operation, air lines must not leak. Air pressure should not exceed 2.5 bar

(35 psig).

3. Tri-clamp connections should line up properly to provide a tight seal.

CAUTION

Do not place the valve in a vise. This will damage the exterior of the valve body and possibly the end connections of the

valve.

WARNING

If there is evidence of process fluid under pressure leaking from the joint, retighten the valve body/joint nuts. Return to the

Warning at the beginning of the Installation and Maintenance section to ensure proper steps have been taken to isolate the

valve and relieve process pressure.

Disassembly of Valve

Refer to figure 3.

1. Depressurize the pipeline and valve interior. Disconnect air lines from the positioner.

2. Loosen the tri-clamp connections and remove the valve from the line.

3. Remove the hex head cap screws (key 12) that secure the valve body to the lower bonnet (key 3) and the upper

bonnet (key 2). Remove the upper bonnet, actuator and positioner from the valve. Be sure the ceramic ball (key 5)

does not fall out of the assembly and get lost.

4. In order to remove the shaft (key 4), unscrew the alignment pin (key 15) and remove the retaining ring (key 11).

Reassembly of Valve

Refer to figures 3, 4, and 5.

1. Reassemble the valve in reverse order using the instructions above. The valve body is designed so it cannot be

assembled improperly. Make sure the beveled edge of the anvil (key 8) points toward the ceramic ball (key 5). Make

sure the tapered end of the sleeve bushing (key 6) also points towards the ceramic ball.

2. If the sleeve (key 7) seating surface is distorted, the sleeve should be replaced, or be rotated to use a new seating

surface.

3. New O-rings (keys 9 and 50) should be installed after suitable lubrication (e.g. food grade) of the shaft O-ring (key

50).

4. Make sure the alignment pin (key 15) is tight and the shaft (key 4) moves easily.

5. Refer to separate instructions for the actuator (D103352X012) and positioner assembly and maintenance.

6. Place the actuator yoke over the shaft (key 4). While tilting the actuator back, drop the yoke drive nut (key 16) over

the shaft (key 4). Run the locknut (key 27), and travel indicator (key 58) down as far as possible onto the shaft (key

4).

7. Carefully place the actuator yoke in a vertical position and thread the actuator stem onto the shaft, spin the

actuator onto the shaft as far as it will go before adjusting the bench range. Refer to Baumann Pneumatic Actuators

instruction manual, D103352X012.

Instruction Manual

D103373X012

87000 Valve

November 2011

Parts Ordering

When corresponding with your Emerson Process Management sales office about this equipment, always mention the

valve serial number. When ordering replacement parts, also specify the key number, part name, and desired material

using the following parts tables.

WARNING

Use only genuine Fisherrreplacement parts. Components that are not supplied by Emerson Process Management should

not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the

performance of the valve, and could cause personal injury and property damage.

Figure 2. Baumann 87000 Valve

E1369

E1234

AIR-TO-EXTEND (AIR-TO-CLOSE ACTION) AIR-TO-RETRACT (AIR-TO-OPEN ACTION)

Figure 3. Baumann 87000 Flexsleev Valve Assembly

E1295

Instruction Manual

D103373X012

87000 Valve

November 2011

Figure 4. Upper Bonnet and Sleeve Bushing

W9920

UPPER BONNET

(KEY 2)

TAPERED END OF

SLEEVE BUSHING

HOLE FOR

ALIGNMENT

PIN (KEY 15)

SLEEVE BUSHING

(KEY 6)

Figure 5. Upper Bonnet and Sleeve Bushing

W9921

BEVELED EDGE

Table 1. Baumann 87000 Parts List

KEY

NO. QTY DESCRIPTION PART NUMBER

30 Ra 20 Ra

1 1 Valve Body, Cv= 0.25 (orifice diameter = 3.18 mm [0.125 inches]) 87104 87104-1

Valve Body, Cv = 1.25 (orifice diameter = 9.40 mm [0.370 inches]) 87105 87105-1

2 1 Bonnet, Upper 87305

3 1 Bonnet, Lower 87306

4 1 Shaft 87505

5 1 Ceramic Ball 87405

6* 1Sleeve Bushing 87605

7* 1

Sleeve, VMQ (Silicone) 87705-688

Sleeve, EPDM 87705-709

Sleeve, FKM (Fluorocarbon) 87705-697

Sleeve, FFKM (Perfluoroelastomer)(Consult Factory) 87705-703

8 1 Anvil 87406

9* 2

O-Ring, VMQ (Silicone) 87706-688

O-Ring, EPDM 87706-709

O-Ring, FKM (Fluorocarbon) 87706-697

O-Ring, FFKM (Perfluoroelastomer)(Consult Factory) 87706-703

10* 1Spring, Stem 87803

11 1Retaining Ring 87806

12 2Hex Head Cap Screw 87807

13 1Spring, Seat 87802

14 1Protecting Cap 87801

15 1Alignment Pin 87805

16 1Drive Nut, Actuator Yoke 011757-003-153

27 1Jam Nut (locknut) 81841

50* 1O-Ring 24080

58 1Travel Indicator 011765-002-152

Instruction Manual

D103373X012

87000 Valve

November 2011

Figure 6. Mode of Operation

OPEN CLOSED

SHOWN 90 DEGREES

OUT OF POSITION FOR

CLARITY

FLOW

E1296

Mode of Operation

As shown in figure 6, a flexible sleeve is inserted through the length of the valve and sealed between the valve body

and bonnet by O-rings. The actuator-motivated valve stem has a tapered groove that pushes a ceramic ball against the

inside of the sleeve and, thereby, the sleeve against a valve seat.

Figure 7. Sleeve Clearance

E1374

Instruction Manual

D103373X012

87000 Valve

November 2011

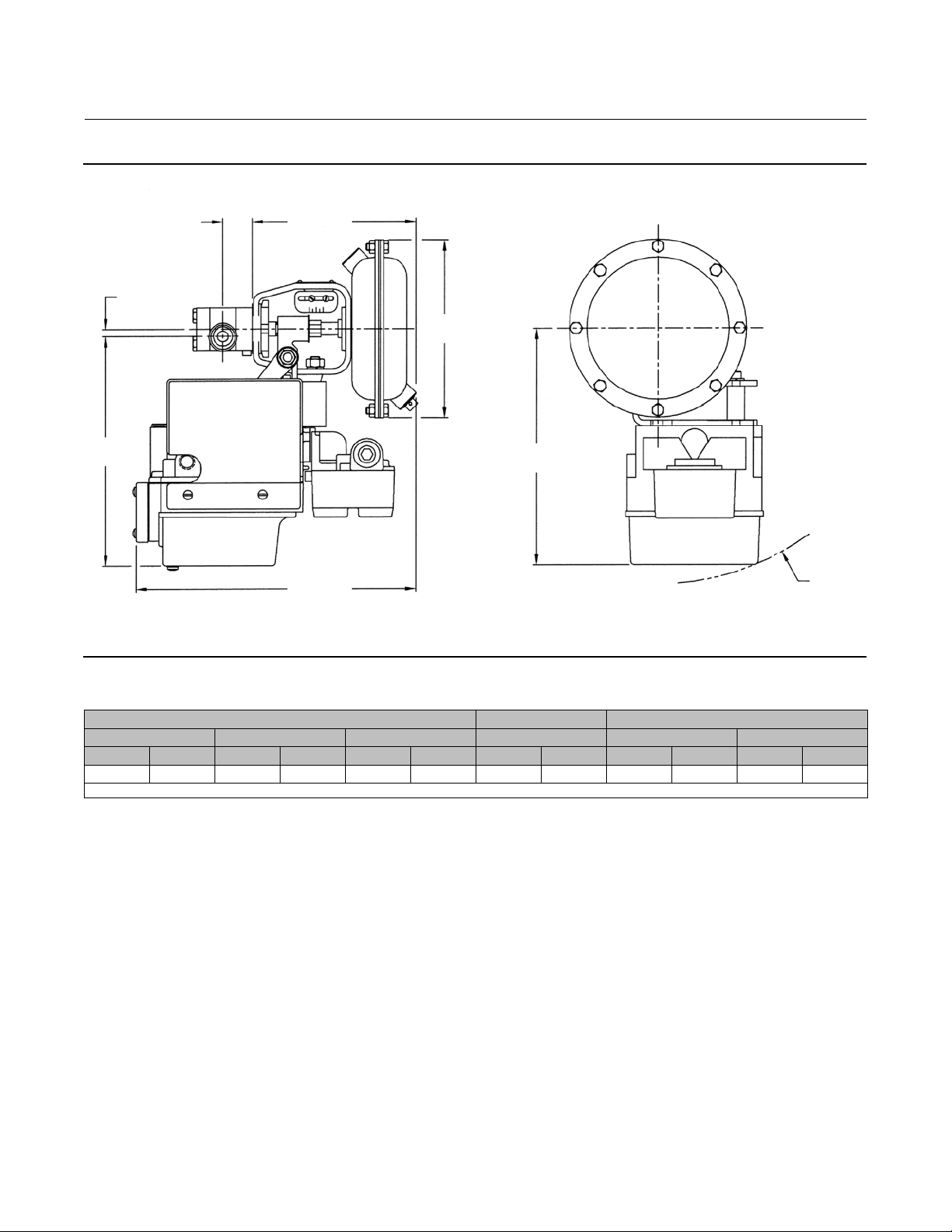

Figure 8. Dimensions

E1297

159

(46.25)

(1.5)

RECOMMENDED MOUNTING FOR SELF-DRAINING (ACTUATOR SHOULD BE MOUNTED HORIZONTALLY)

NOTE: ACTUATOR REQUIRES 115 mm (4.5 INCHES) VERTICAL CLEARANCE.

(0.83) 9

(0.34)

(2.75)

SELF-DRAIN

ANGLE

2 DEGREES

(1.03)

146

(5.8)

(1.05)

(0.83)

(0.34)

FLOW

(inch)

Instruction Manual

D103373X012

87000 Valve

November 2011

Figure 9. Dimensions

E1299

166

(6.52)

127 (5.0) mm

(inch)

RECOMMENDED MOUNTING FOR SELF-DRAINING (ACTUATOR SHOULD BE MOUNTED HORIZONTALLY)

NOTE: ACTUATOR REQUIRES 115 mm (4.5 INCHES) VERTICAL CLEARANCE.

Instruction Manual

D103373X012

87000 Valve

November 2011

Figure 10. Dimensions

E1298

159

(46.25)

211

(8.3)

RECOMMENDED MOUNTING FOR SELF-DRAINING (ACTUATOR SHOULD BE MOUNTED HORIZONTALLY)

NOTE: ACTUATOR REQUIRES 115mm (4.5 INCHES) VERTICAL CLEARANCE.

250

(9.8)

(1.03)

146

(5.8)

R228

(R9.0)

(40.25)

205

(48.06)

(inch)

Table 2. Weights, Valve, Actuator, and Positioner

VALVE ACTUATOR POSITIONER(1)

Size Travel Weight Baumann 16 FIELDVUE DVC2000 FIELDVUE DVC6010

DN NPS mm Inch kg lb kg lb kg lb kg lb

15 1/2 7.9 0.3125 3.6 84.5 10 1.5 3.3 3.5 7.7

1. Not available with Fisher 3660/3661 positioner.

Indice

Altri manuali Emerson Unità di controllo

Emerson

Emerson 903 Manuale utente

Emerson

Emerson ANDERSON GREENWOOD WHESSOE 4110A Manuale

Emerson

Emerson Keystone Figure 221 Series Manuale utente

Emerson

Emerson Fisher 161 Series Manuale utente

Emerson

Emerson KEYSTONE F635 Istruzioni per l'installazione

Emerson

Emerson Fisher TBX Manuale utente

Emerson

Emerson Fisher 92B Manuale utente

Emerson

Emerson Numatics DeviceLogix G2-2 Series Manuale di istruzioni

Emerson

Emerson Bettis Q series Manuale utente

Emerson

Emerson Keystone Manuale utente

Emerson

Emerson 8323G0 Series Istruzioni per l'installazione e il funzionamento

Emerson

Emerson CROSBY Guida

Emerson

Emerson White Rodgers 36H Series Manuale utente

Emerson

Emerson Anderson Greenwood 727 Series Manuale utente

Emerson

Emerson BM6X Series Manuale utente

Emerson

Emerson White-Rodgers 36C01 Manuale utente

Emerson

Emerson Keystone K-Lok 360 Series Istruzioni operative

Emerson

Emerson KTM VIRGO E Series Manuale

Emerson

Emerson White-Rodgers 764-500 Manuale utente

Emerson

Emerson Alco Controls TIH FLR Series Manuale utente

Emerson

Emerson TARTARINI BM5A Manuale utente

Emerson

Emerson FASANI Manuale utente

Emerson

Emerson Fisher NPS 8 CHP Manuale utente

Emerson

Emerson Alco Controls CX2 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
