Emerson IC200UEM001 Manuale utente

IMPORTANT PRODUCT INFORMATION

GFK-2436M

June 2023

VersaMax Micro-20/40/64 PLC

Ethernet Option Module

(IC200UEM001)

GFK-2436M June 2023

Warnings and Caution Notes as Used in this Publication

WARNING

Warning notices are used in this publication to emphasize that hazardous voltages, currents, temperatures, or

other conditions that could cause personal injury exist in this equipment or may be associated with its use.

In situations where inattention could cause either personal injury or damage to equipment, a Warning notice is

used.

CAUTION

Caution notices are used where equipment might be damaged if care is not taken.

Note: Notes merely call attention to information that is especially significant to understanding and

operating the equipment.

These instructions do not purport to cover all details or variations in equipment, nor to provide for every

possible contingency to be met during installation, operation, and maintenance. The information is

supplied for informational purposes only, and Emerson makes no warranty as to the accuracy of the

information included herein. Changes, modifications, and/or improvements to equipment and

specifications are made periodically and these changes may or may not be reflected herein. It is

understood that Emerson may make changes, modifications, or improvements to the equipment

referenced herein or to the document itself at any time. This document is intended for trained personnel

familiar with the Emerson products referenced herein.

Emerson may have patents or pending patent applications covering subject matter in this document. The

furnishing of this document does not provide any license whatsoever to any of these patents.

Emerson provides the following document and the information included therein as-is and without warranty

of any kind, expressed or implied, including but not limited to any implied statutory warranty of

merchantability or fitness for particular purpose.

GFK-2436M June 2023

Introduction

This IPI describes the Ethernet Option module for a VersaMax Micro-20, -40 or -64 PLC CPU. This module

cannot be used with other types of VersaMax Nano or Micro PLCs.

For more information about Option Modules, and about VersaMax Micro-20, -40 and -64 PLCs, please refer

to the VersaMax Nano and Micro PLCs User’s Manual, GFK-1645J or later.

Important Product Information

Functional Compatibility

The default data rate with Ethernet option module firmware version 2.0 is 175000 bps. Micro firmware

versions below 3.83 do not support 175000 bps. If firmware version 2.0 is to be used with Micro firmware

versions prior to 3.83, the data rate on Ethernet Option module should be changed to 38400 bps or less, as

per the requirement.

Problems Resolved by this Product Revision

N/A

New Features and Enhancements in this Revision

N/A

Ordering Information

Part Number

Description

IC200UEM001

RJ 45, 10/100 Mbit Ethernet Option module supporting SRTP.

Upgrades

All previous versions can be upgraded to this firmware version. Once the module is upgraded to the 3.3

version, it will not support downgrade to older revision. Attempting to downgrade firmware may cause the

module to fail permanently.

Note: To reduce the risk of this being accidentally or maliciously used, to permanently disable the module,

Emerson strongly recommends that TFTP be disabled by the user, and only enabled via (password-

protected) telnet when a firmware update is required.

GFK-2436M June 2023

FCC and ICES Requirements for the US and Canada

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Note: This Class A digital apparatus complies with Canadian ICES-003.

Changes or modifications not expressly approved by Emerson could void the user's authority to operate the

equipment.

Release History

Version

Date

Comments

IC200UEM001-EF

June 2023

Product labels have been updated to show compliance with new certifications.

For updated certifications, please refer to https://emerson-

mas.my.site.com/communities/en_US/Article/Certifications-and-Agency-

Approvals-Landing-Page.

IC200UEM001-DF

Nov 2019

Following Emerson’s acquisition of this product, changes have been made to

apply appropriate branding and registration of the product with required

certification agencies. No changes to material, process, form, fit or

functionality.

IC200UEM001-CF

Jan 2018

Firmware release 3.3.0.7 fixes issue of inconsistent Modbus communication

for different baud rate settings.

IC200UEM001-CE

Nov 2017

Firmware release 3.3.0.6 fixes issue of Modbus TCP firmware upgrade with CD

version of modules.

IC200UEM001-CD

Aug 2013

Firmware release 3.3 addresses rare issue of the Ethernet Option module

stopping communication and not responding to commands. It also adds new

security settings in the Telnet interface.

IC200UEM001-CC

Dec 2010

Labeling change. No changes to functions, features or compatibility.

IC200UEM001-BC

Aug 2009

Added support for Modbus/TCP Client, enhanced data throughput

(175,000bps), and 16-character password security.

IC200UEM001-AB

Dec 2007

Improved noise immunity.

IC200UEM001-AA

Aug 2005

Initial release. Compatible with VersaMax Micro 64 firmware release 3.5 and

PAC Machine Edition 5.5

GFK-2436M June 2023

Ethernet Option Module

Ethernet Module IC200UEM001 can be used with a Micro-20, -40 or -64 -Point PLC to provide an Ethernet

Port.

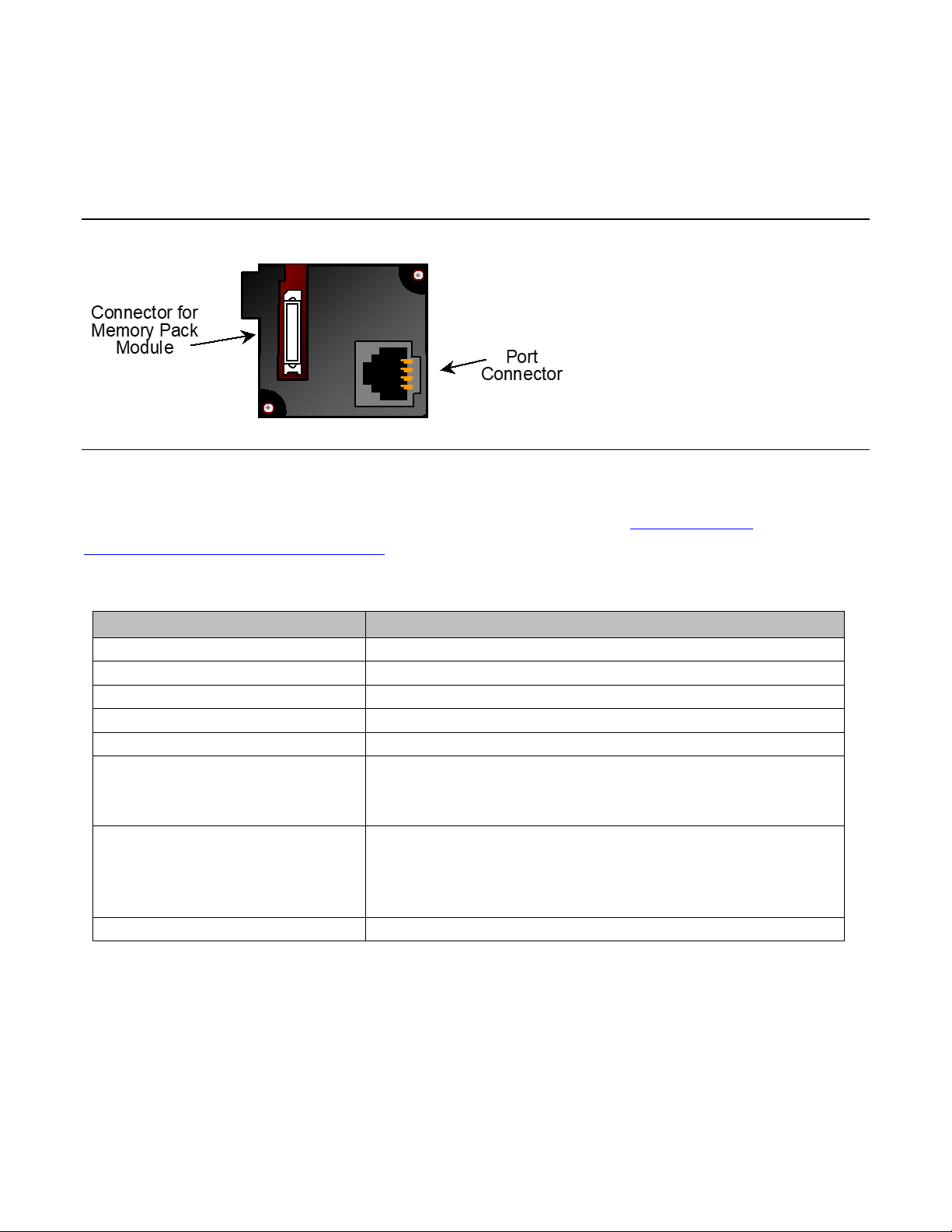

Figure 1: IC200UEM001 Connectors

When installed on the Micro 20, 40 or 64 PLC, the Ethernet Port Option Module becomes Port 2. It supports

the following communications protocols: SRTP, Modbus Server and client (separate download) and pass-

through port (separate download). Protocol options are available online at https://emerson-

mas.my.site.com/communities/CC_Home.

Specifications

Specification

Description

Processor Speed

DSTni-EX CPU, 48MHz

Memory

256 kByte RAM, 512 kByte FLASH

Connection Type

RJ 45 10Base-T/100Base-TX Ethernet

Entity Type

Client/Server

Bus Speed

10/100Mbaud

Protocols Supported

SRTP (preloaded)

Modbus TCP Server and Client (optional)

Tunneling (optional)

Number of Connections Supported

•Supports up to 8 Modbus TCP/IP server channels.

•If client configured, then 1 client and 7 server channels supported.

•Supports 4 SRTP server channels

•Supports 1 connection for Tunneling

Mode

Full Duplex

GFK-2436M June 2023

Status LEDs

LED

Color

Description

Link LED

Amber, On

Connection to Micro PLC established and network is connected

Activity

Green, Flashing

When there is any activity on the network

Status

Off

No errors

Red, On

Duplicate IP address present or network controller error

Red, Blinking (2x/sec)

No DHCP response or Setup menu active

Figure 2: Status LED Location

Installation

Power to the VersaMax Micro PLC must be turned off when installing or removing Option Modules.

1. Remove the two doors shown in Figure 3 by pressing downward on the latches and lifting them

away from the module.

Figure 3: Door Removal

Press Down

Latch and

Remove These

Two Doors

GFK-2436M June 2023

2. If a port-type Option Module is being installed, orient the connector on the Option Module with the

connector in the Micro PLC. Be careful to avoid contact with the exposed components in the

module.

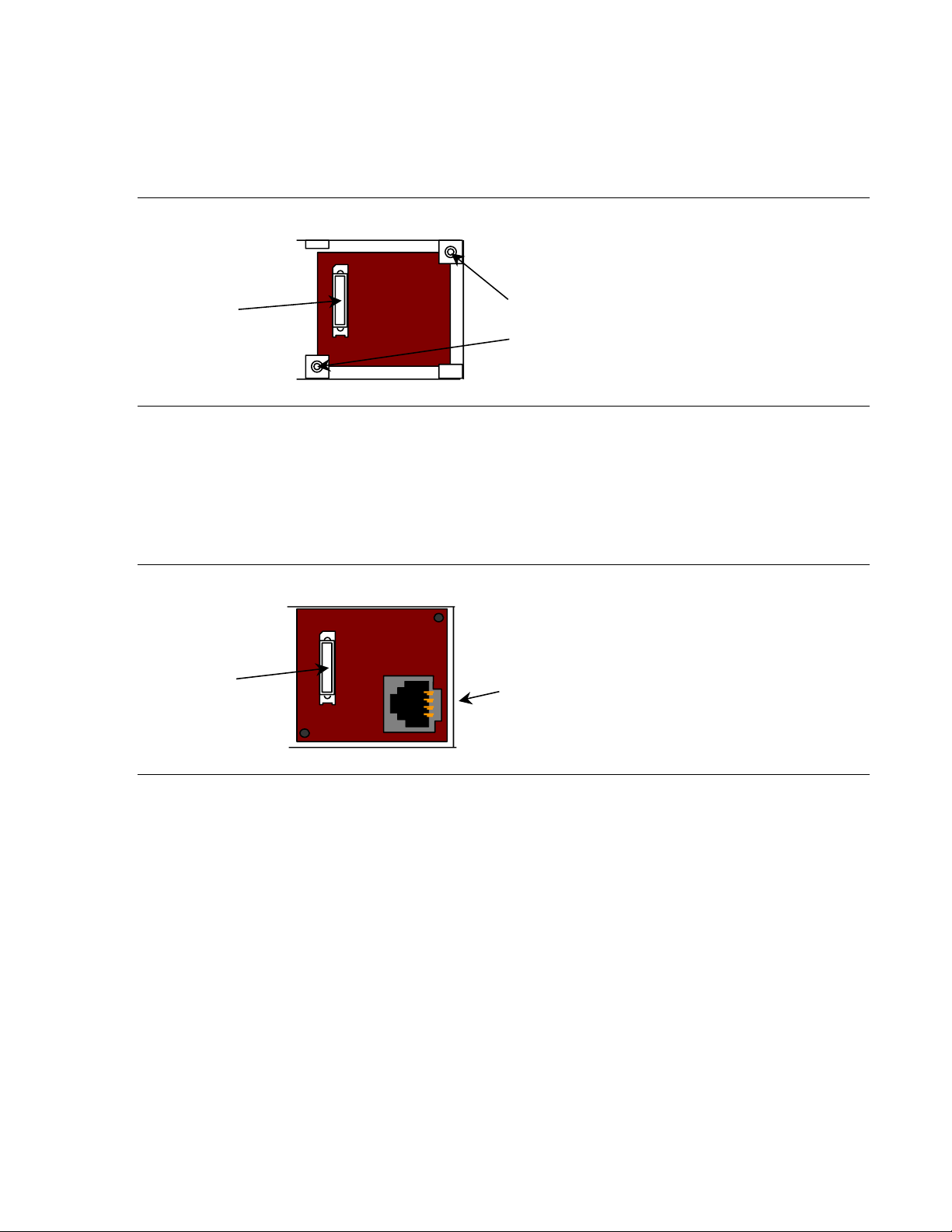

Figure 4: Proper Orientation

Connector for

Option Module

Screws for

Option Module

3. Press the Option Module downward until it clicks into place.

4. Install the screws provided with the Option Module into the corners indicated in Figure 4.

5. If a Memory Pack Module is being installed, orient the connector on the back of the Memory Pack

Module with the connector on the Micro PLC or port-type Option Module. Press the Memory Pack

down until it clicks into place.

Figure 5: Memory Pack Module Connector

Connector for

Memory Pack

Module

Port

Connector

6. Install the protective cover(s). If only the Memory Pack Module is used, both covers may be

installed. If a port module is used, the right-hand cover is not installed, and the port connector

remains accessible.

GFK-2436M June 2023

Configuration

Use of the Port Option module as Port 2 and the protocol selection must be set up in the configuration

software. After making those selections, the communications parameters can also be configured.

The option port should be configured for Ethernet. If the configuration and hardware do not match, the

PLC logs a System Configuration Mismatch fault in the PLC Fault Table.

Protocol

Parameters

Value

SRTP Server

Port Mode

SNP

Port Type

Slave

Data Rate

19.2, 38.4 or 175.0 kbps (default)

Flow Control

None

Parity

Odd (default), Even, None

Stop bits

1 (default) or 2

Time Out

Long

Turnaround Time

Modbus TCP

Client/Server*

Port Mode

RTU

Port Type

Slave

Data Rate

19.2, 38.4 or 175.0 kbps (default)

Flow Control

None

Parity

Odd (default), Even, None

Station Address

Valid range

0–247. Default=1

Modbus/TCP Client

Support (Refer to

the VersaMax Nano

and Micro PLCs

User’s Manual, GFK-

1645J or later.)

Disabled (default) or Enabled.

Enabling Modbus/TCP Client Support sets the %I00488 status bit ON.

Pass-Through or

Tunneling

Port Mode

Serial I/O

Data Rate

19.2, 38.4 or 175.0 kbps (default)

Flow Control

None

Parity

Odd (default), Even, None

Stop bits

1 (default), or 2

Bits/Characters

7 or 8

Station Address

(Byte 1 to Byte 8)

Valid range:

0–F. Default=0

* When the Ethernet Option Module is configured for Modbus/TCP Client, the configured Sequence Number and Command Data

addresses should not overlap or conflict with any other variables used in the logic. These addresses are reserved exclusively for

communications between the CPU and Ethernet module when initiating Modbus TCP commands.

GFK-2436M June 2023

Setting the IP Address

Key items to remember when setting the IP address on the VersaMax Micro Ethernet module (IC200UEM001):

•The default IP address is 10.10.0.5.

•IP address setting must be saved to the Flash on the Ethernet module or it will be lost during power

cycle.

•The second port of the Micro PLC must be configured for Ethernet.

Setting the Permanent IP Address

1. Go to C:/ Prompt on your computer and type: Ping [IP address] and press the Enter key. (This step

is required to “establish” the ARP table by creating an entry in the table.) The address pinged should

reply with Pinged data. (example c:/ Ping 10.10.0.5 and return data)

2. Type: arp –a(space between p and –a). You should see at least one entry in the ARP table. (example

c:/ arp –a)

3. Type: arp –s [IP address, including dots] [MAC Address of the Ethernet module, including dashes]. You

will not see any reply on the screen. (example c:/ arp –s 10.10.0.5 00-20-4a-ff-ff-e9)

4. Type: telnet [IP address] 1 (leave space between IP address and 1) and press the Enter key. You will

be prompted that the connection failed. This is normal. (example c:/ telnet 10.10.0.5 1)

5. Type: telnet [IP address] 9999 (leave space between IP address and 9999) and press the Enter key.

You will be prompted to Press Enter to go into Setup Mode. You have two seconds to press the

Enter key again. If you get the message “Connection to host lost”, re-enter telnet [IP address] and

press the Enter key twice to get to the setup screen. (example c:/ telnet 10.10.0.5 9999)

6. Press 1 to change IP address (Enter the desired IP address) and Net Mask

7. Press 2 to change Serial Settings. For best performance, set the baud rate to 175000. Setting should

be Mode#1, RS232 175000, 8, 0, 1. Port 2 needs to be configured with PAC Machine Edition to

match these settings. Machine Edition should configure Port 2 for Ethernet and baud rate of

175000.

When complete, press Sto save to the Ethernet module. You will see a prompt that informs you Parameters

saved, Display will Restart…. and then Connection to host lost. The data is now stored in the internal Flash

of the IC200UEM001. You can change the settings by repeating the above steps.

Settings are now complete. Verify that Port 2 matches above configuration by connecting to the Micro PLC

serial port and checking hardware configuration.

GFK-2436M June 2023

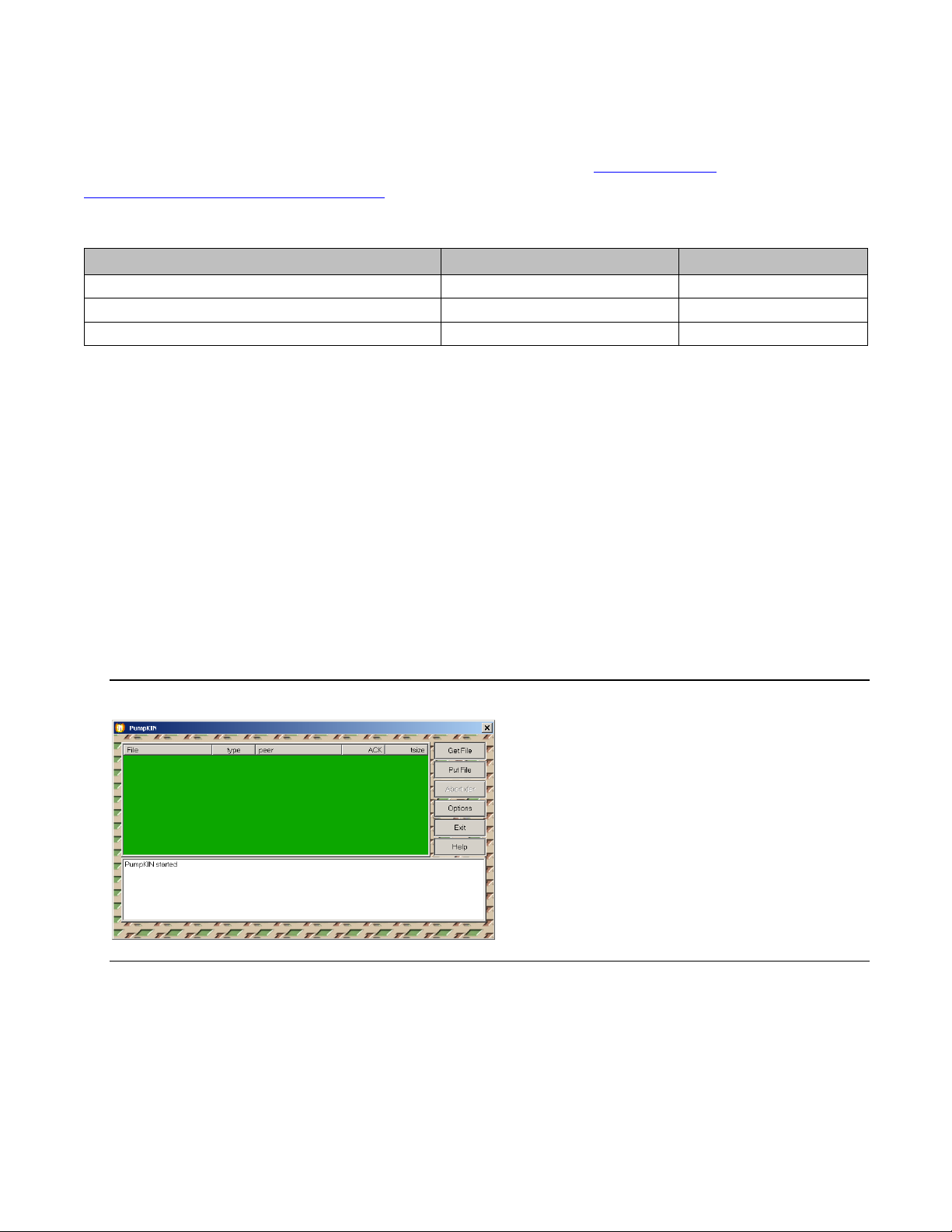

Downloading Ethernet Drivers

The Ethernet drivers for the Ethernet Option Module are downloaded https://emerson-

mas.my.site.com/communities/CC_Home.

Files and passwords are:

Function

Upgrade Kit for Release 3.3

Destination Password

Emerson SRTP

82A1587-MS10-000-B1

Modbus TCP (Client and Server in single firmware)*

82A1588-MS10-000-B3

Tunneling or Pass Thru**

82A1589-MS10-000-B1

* When the Ethernet option module is loaded with the Modbus image it cannot communicate with PME.

**When the Tunneling image is loaded, the 175000 baud rate is configurable only when the CPU Performance parameter is set to High

in Telnet Configurator. The CPU Performance parameter is available in the Expert Setting menu.

Downloading is done using the PumpKIN utility, which is included. To download a driver, perform the

following procedure. Only one driver can be present at one time. After the driver has been downloaded you

will have to reconfigure the port using Telnet.

To Download Ethernet Drivers:

1. Before performing the firmware upgrade, make sure TFTP Download is set to Enabled.

Note: Refer to the Security Settings section for more details.

Important: Failure to enable TFTP Download before updating firmware can result in damage to device.

2. Open the PumpKIN Utility

Figure 6: PumpKIN Utility

Indice

Altri manuali Emerson Unità di controllo

Emerson

Emerson KTM RICHARDS FIGURE R384 Manuale utente

Emerson

Emerson Alco Controls TIH Series Manuale utente

Emerson

Emerson White Rodgers 36C53 Series Manuale utente

Emerson

Emerson CSI 6500 Manuale utente

Emerson

Emerson VAREC 3600B Series Manuale operativo e di manutenzione

Emerson

Emerson ALCO CONTROLS FSE-0 Manuale utente

Emerson

Emerson Fisher ET Manuale utente

Emerson

Emerson Type E Manuale utente

Emerson

Emerson PENBERTHY FHS Manuale

Emerson

Emerson Betis E Series Manuale operativo

Emerson

Emerson KEYSTONE F320 Guida rapida

Emerson

Emerson Vanessa 30000 Series Manuale utente

Emerson

Emerson Fisher 8532 Manuale utente

Emerson

Emerson Fisher OS2 Manuale utente

Emerson

Emerson Fisher Type H800 Manuale utente

Emerson

Emerson White Rodgers 36H Series Manuale utente

Emerson

Emerson FISHER Enardo Rim Vent Manuale utente

Emerson

Emerson Fisher 92C Manuale utente

Emerson

Emerson Baumann 24000 Little Scotty Manuale utente

Emerson

Emerson Keystone Figure 221 Series Manuale utente

Emerson

Emerson Fisher Multiport Flow Selector Manuale utente

Emerson

Emerson Bettis 2000 Series Manuale utente

Emerson

Emerson Fisher VS100 Series Manuale utente

Emerson

Emerson Alco Controls Thermo-TX7 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
