Quick Start Guide
00825-0100-5007, Rev CB
February 2019
Rosemount™ 3051 Pressure Transmitter
NOTICE
This guide provides basic guidelines for Rosemount™ 3051 Transmitters. It does not provide
instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof,
Flameproof, or intrinsically safe (I.S.) installations. Refer to Rosemount 3051 Reference Manual for
more instructions. This manual is also available electronically at Emerson.com/Rosemount.
WARNING
Explosions could result in death or serious injury.
Installation of device in an explosive environment must be in accordance with appropriate local,
national, and international standards, codes, and practices. Review the approvals section of the
Rosemount 3051 Reference Manual for any restrictions associated with a safe installation.
Before connecting a HART®-based communicator in an explosive atmosphere, make sure the
instruments in the loop are installed in accordance with intrinsically safe or non-incendive field
wiring practices.
In an explosion-proof/flameproof installation, do not remove the transmitter covers when power
is applied to the unit.
WARNING
Process leaks
Process leaks may cause harm or result in death.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.
Electrical shock
Electrical shock can result in death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
Conduit/cable entries
Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT
form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing
these entries.
Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all
entries will have the same thread form.
Contents
System readiness........................................... 3
Transmitter installation..................................5
Safety instrumented systems installation.....20
Product Certifications.................................. 21
Quick Start Guide February 2019
2 Emerson.com/Rosemount
1 System readiness
Confirm HART revision capability
•If using HART-based control or asset management systems, confirm the
HART capability of those systems prior to transmitter installation. Not all
systems are capable of communicating with HART Revision 7. This
transmitter can be configured for either HART Revision 5 or 7.
•For instructions on how to change the HART revision of your transmitter,
see Switch HART revision mode.
1.1 Confirm correct device driver
•Verify the latest device driver (DD/DTM™) is loaded on your systems to
ensure proper communications.
•Download the latest device driver at Emerson.com or
Fieldcommgroup.org.
Rosemount 3051 device revisions and drivers
Table 1-1 provides the information necessary to ensure you have the correct
device driver and documentation for your device.
Table 1-1: Rosemount 3051 with 4-20mA HART Protocol Device Revisions
and Files
Release
date
Device identification Device Driver
identification
Review
Instructions
Review
Functio
nality
NAMUR
hardwa
re
Revisio
n(1)
(2) (1) HART
Softwa
re
Revisio
n(3)
HART
univers
al
revisio
n
Device
Revisio
n(4)
Rosemount
2088,
2090P, and
2090F
Pressure
Transmitter
s
Change
descrip
tion
Aug-16 1.1.xx 1.0.xx 3 7 10 with HART
and 1–5 Vdc
Low Power
Protocol
Reference
Manual
with 4–20
mA HART
and 1–5 Vdc
Low Power
Protocol
(5)
5 9
Jan-13 N/A 1.0.xx 1 7 10 (6)
5 9
February 2019 Quick Start Guide
Quick Start Guide 3
Table 1-1: Rosemount 3051 with 4-20mA HART Protocol Device Revisions
and Files (continued)
Release
date
Device identification Device Driver
identification
Review
Instructions
Review
Functio
nality
NAMUR
hardwa
re
Revisio
n(1)
(2) (1) HART
Softwa
re
Revisio
n(3)
HART
univers
al
revisio
n
Device
Revisio
n(4)
Rosemount
2088,
2090P, and
2090F
Pressure
Transmitter
s
Change
descrip
tion
Jan-98 N/A N/A 178 5 3 Reference
Manual
N/A
(1) NAMUR Revision is located on the hardware tag of the device. Differences in level
3 changes, signified above by xx, represent minor product changes as defined per
NE53. Compatibility and functionality are preserved and product can be used
interchangeably.
(2) NAMUR Revision is located on the hardware tag of the device. Differences in level
3 changes, signified above by xx, represent minor product changes as defined per
NE53. Compatibility and functionality are preserved and product can be used
interchangeably.
(3) HART Software Revision can be read using a HART capable configuration tool.
Value shown is minimum revision that could correspond to NAMUR Revisions.
(4) Device Driver file names use Device and DD Revision, e.g. 10_01. HART Protocol is
designed to enable legacy device driver revisions to continue to communicate with
new HART devices. To access new functionality, the new Device Driver must be
downloaded. It is recommended to download new Device Driver files to ensure full
functionality.
(5) HART Revision 5 and 7 Selectable, local operator interface (LOI), scaled variable,
configurable alarms, expanded engineering units.
(6) Rosemount 3051G Pressure Transmitter updated electronics hardware design.
Intrinsic Safety temperature classification change.
Quick Start Guide February 2019
4 Emerson.com/Rosemount
2 Transmitter installation
2.1 Mount the transmitter
2.1.1 Liquid applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the drain/vent valves are oriented
upward.
Figure 2-1: Coplanar and In-line Liquid Applications
A. Coplanar
B. In-line
2.1.2 Gas applications
Procedure
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
February 2019 Quick Start Guide
Quick Start Guide 5
Figure 2-2: Coplanar and In-line Gas Applications
AB
Flow
A. Coplanar
B. In-line
2.1.3 Steam applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Quick Start Guide February 2019
6 Emerson.com/Rosemount
Figure 2-3: Coplanar and In-line Steam Applications
A B
Flow
A. Coplanar
B. In-line
Figure 2-4: Panel and pipe mounting
1. 5/6 x 1½ panel bolts are customer supplied.
February 2019 Quick Start Guide
Quick Start Guide 7
2.1.4 Bolting considerations
If the transmitter installation requires assembly of the process flanges,
manifolds, or flange adapters, follow the assembly guidelines to ensure a tight
seal for optimal performance characteristics of the transmitters. Use only
bolts supplied with the transmitter or sold by Emerson as spare parts. Figure
2-5 illustrates common transmitter assemblies with the bolt length required
for proper transmitter assembly.
Figure 2-5: Common Transmitter Assemblies
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange
adapters
Bolts are typically carbon steel (CS) or stainless steel (SST). Confirm the
material by viewing the markings on the head of the bolt and referencing
Table 2-1. If bolt material is not shown in Table 2-1, contact a local Emerson
representative for more information.
Use the following bolt installation procedure:
Procedure
1. CS bolts do not require lubrication and the SST bolts are coated with a
lubricant to ease installation. However, no additional lubricant should
be applied when installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern.
See Table 2-1 for initial torque value.
Quick Start Guide February 2019
8 Emerson.com/Rosemount
4. Torque the bolts to the final torque value using the same crossing
pattern. See Table 2-1 for final torque value.
5. Verify that the flange bolts are protruding through the isolator plate
before applying pressure.
Table 2-1: Torque Values for the Flange and Flange Adapter Bolts
Bolt material Head markings Initial
torque
Final torque
CS
B7M
300 in-lb
650 in-lb
SST
316
316
316
SW
316
STM
316
R
B8M
150 in-lb 300 in-lb
2.1.5 In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the in-line gage
transmitter is located in the neck of the transmitter, behind the housing. The
vent path is 360° around the transmitter between the housing and sensor.
(See Figure 2-6)
Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the transmitter so that the process can
drain away.
February 2019 Quick Start Guide
Quick Start Guide 9

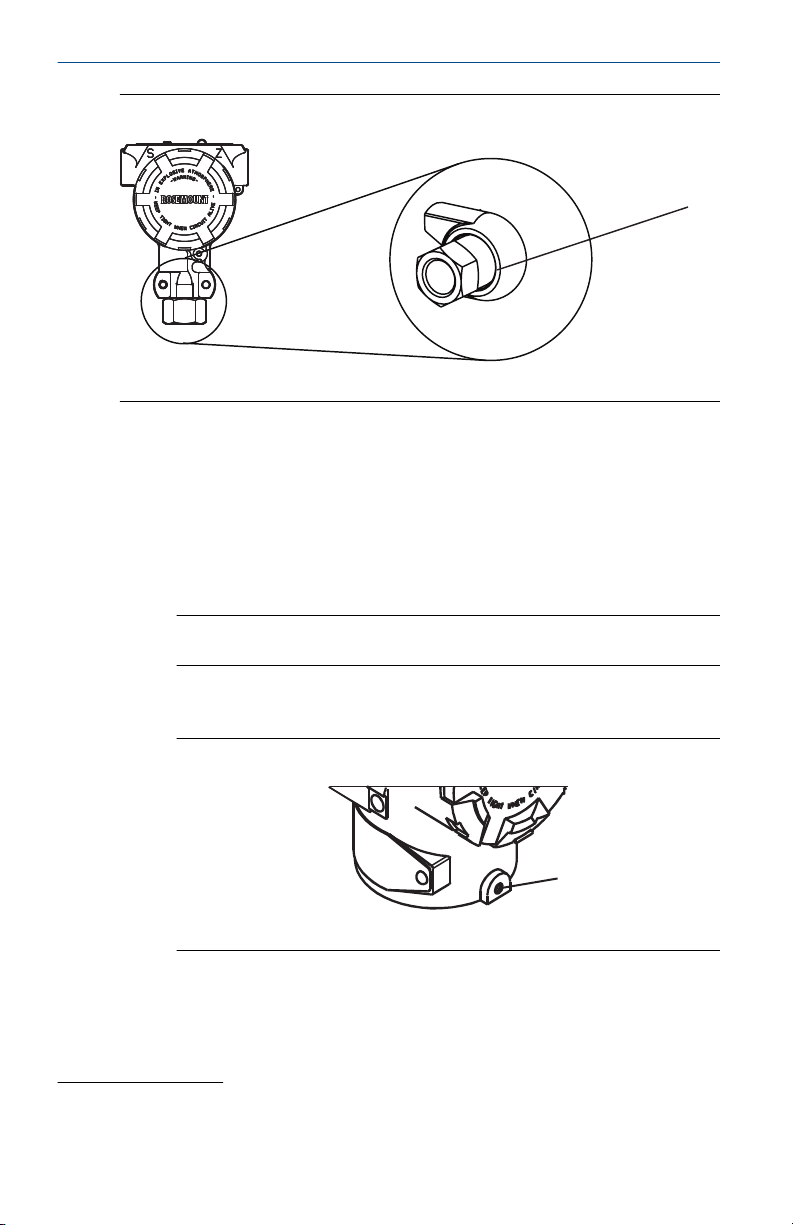

Figure 2-6: In-line Gage Low Side Pressure Port
A
A. Low side pressure port (atmospheric reference)
2.1.6 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
Procedure
1. Loosen the housing rotation set screw using a -in. hex wrench.
2. Turn the housing left or right maximum up to 180° from its original
position.(1)
Note
Over-rotating can damage the transmitter.
3. Re-tighten the housing rotation set screw to no more than 7 in-lb
when desired location is reached.
Figure 2-7: Housing Rotation Set Screw
A
A. Housing rotation set screw (5/64-in.)
(1) Rosemount 3051D original position aligns with “H” side; Rosemount 3051G original
position is the opposite side of bracket holes.
Quick Start Guide February 2019
10 Emerson.com/Rosemount
