ABOUT THIS MANUAL

This manual is designed for use with the ENUET-3USB USB 3-Port Hub with Ethernet

Adapter. Information in this document has been carefully checked for accuracy; however, no

guarantee is given to the correctness of the contents. The information in this document is subject

to change without notice. Encore Electronics Inc. does not make any representations or

warranties (implied or otherwise) regarding the accuracy and completeness of this document

and shall in no event be liable for any loss of profit or any commercial damage, including but not

limited to special, incidental, consequential, or other damage.

SAFETY INSTRUCTIONS

Read the following safety instructions carefully:

Keep this User’s Manual in a safe but easily accessible place for future reference

Keep this equipment away from high humidity

If any of the following situation arises, get the equipment checked by a service technician:

•The equipment has been exposed to moisture or soaked.

•The equipment has been dropped and damaged.

•The equipment has obvious sign of breakage.

•The equipment has not been working well or you cannot get it to work according to the

User’s Manual.

This document contains proprietary information protected by copyright.All right are reserved. No

part of this manual may be reproduced by any mechanical, electronic or other means, in any

form, without prior written permission of the manufacturer.

TRADEMARKS

All trademarks and registered trademarks are the property of their respective owners or

companies.

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com

Table of Contents

1. Introduction............................................................................................................1

Features.............................................................................................................................1

Package Contents..............................................................................................................2

System Requirements........................................................................................................2

2. Installation..............................................................................................................3

Hardware Connection .......................................................................................................3

Software Driver Installation..............................................................................................4

On Windows® 2000/2003/XP/Windows Vista®/Windows® 7 .......................................4

On Mac OS X 10.3 and 10.4.............................................................................................8

On Mac OS X 10.5 and 10.6...........................................................................................11

Verifying the Driver Installation................................................................................... 12

On Windows® 2000/2003/XP/Windows Vista®/Windows® 7 .....................................13

On Mac OS X 10.3/10.4/10.5/10.6 ...............................................................................155

3. Specifications.......................................................................................................16

4. Regulatory Compliance.......................................................................................17

FCC Conditions ..............................................................................................................17

CE ...................................................................................................................................17

WEEE Information .........................................................................................................17

1. Introduction

The Encore’s ENUET-3USB is a two-in-one product. It is a combination of a 3-port USB

Hub and an Ethernet Adapter. As a fully integrated USB solution, the ENUET-USB

allows users to connect to the Ethernet network while adding 3 more extra USB ports.

Each USB port can be rotated up to 180º giving more space to larger USB devices. It

comes with a flexible thus sturdy built-in cable allowing you to adjust to the larger

devices around your laptop, and to give space to the moving USB devices such as

mouse. ENUET-3USB is very convenient device to accessorize your computing power, a

perfect accessory device for all active and busy mobile power users.

Features

Ethernet LAN

Ethernet 10/100M LAN port RJ-45 Connector

Compliant with USB 2.0 and USB 1.1 specifications

Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX)

standards

Supports both full-duplex and half-duplex operations

Auto MDI / MDI-X Auto Cross Over detection

Driver supports Windows®XP, Windows Vista®, Windows®7 and Mac OSX

V10.3 and 10.4. The Mac OS X 10.5 and 10.6 comes with a built-in driver,

no need to load from the installation CD.

USB Hub

1 upstream and 3 downstream USB ports

Compliant with USB 2.0 (Data Rate 1.5/12/480 Mbps)

Connects up to 127 USB Devices

Bus-power and self-power mode used (Power adaptor not included)

Over electric current detection and protection

Plug-n-Play. Works on almost all operating systems

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com

Package Contents

ENUET-3USB USB 3-port Hub with Ethernet

Adapter 1 pc

Setup Disc CD (Manual & Driver) 1 pc

Quick Installation Guide 1 pc

System Requirements

Computer, Netbook or Laptop running Windows®2000/XP/2003/ Windows

Vista®Windows®7, Mac OSX V10.3 10.4 10.5 and 10.6

One available USB port

CDROM Drive

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com

2. Installation

Hardware Connection

General instructions for installing the ENUET-3USB USB 3-port Hub with Ethernet

Adapter is provided below.

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com

Software Driver Installation

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com

For MS Windows Users

NOTE:

DO NOT connect the ENUET-3USB to your computer at this time. You will be

instructed to do so later.

1. Insert the provided setup CD into your disc drive. An Encore Welcome

screen will pop up briefly followed by the Main Menu as seen in the images

below: The USB Hub is a Plug-N-Play, no driver needed. The ”Windows

Driver” icon in the main menu is for the 10/100 Ethernet Adapter only. Click

on the “Windows Driver” icon to start the driver installation.

If for some reason the Welcome and the Main Menu screens did not

automatically pop up, you can load the driver manually by locating the

setup.exe file under the Windows folder in the CDROM, double-click the

setup.exe file and proceed to Step 2.

Welcome Screen

Main Menu Screen

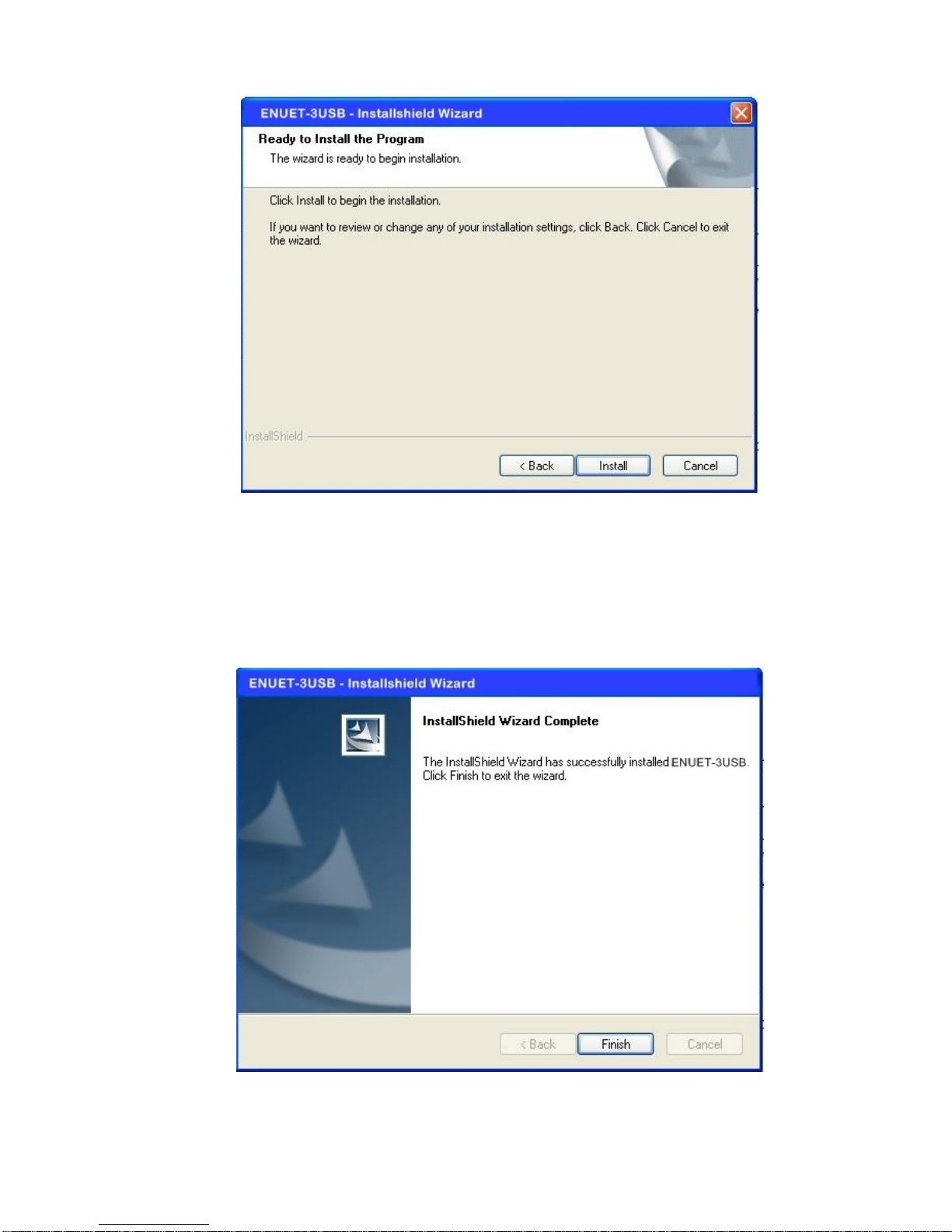

2. The ENUET-3USB InstallShield Wizard will guide you thru the rest of the

hardware installation. Click Next to proceed.

3. Click Install to begin. The installation process may take a few minutes.

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com

4. Click Finish to finish the driver installation. You will be prompted to re-start

your computer after. If you prefer not to re-start your computer the Ethernet

LAN port will not work until the PC is restarted. It is highly recommended you

restart your computer at this stage.

ENUET-3USB User’s Manual

Encore Electronics Inc.

Tel – (626) 336-4567

Fax – (626) 336-2345

Web Site – www.encore-usa.com
