Brief Operating Instructions

Proservo NMS80

Tank Gauging

These Instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

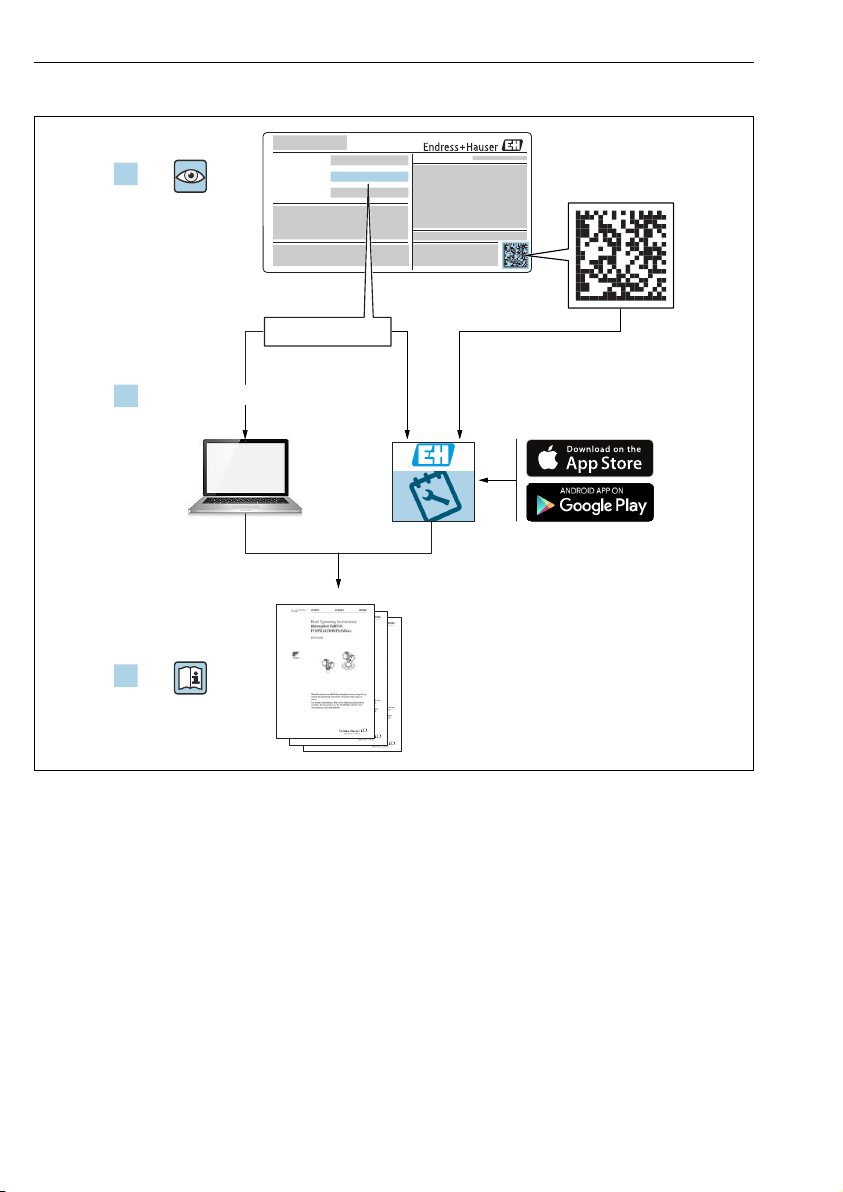

Detailed information about the device can be found in the

Operating Instructions and the other documentation:

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

KA01200G/00/EN/05.22-00

71593767

2022-11-10

Proservo NMS80

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Proservo NMS80 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 4

1.1 Symbols ............................................................................. 4

1.2 Documentation ........................................................................ 6

2 Basic safety instructions .......................................................... 7

2.1 Requirements for the personnel ............................................................ 7

2.2 Intended use .......................................................................... 7

2.3 Workplace safety ...................................................................... 7

2.4 Operational safety ......................................................................8

2.5 Product safety ......................................................................... 8

3 Product description ............................................................... 9

3.1 Product design ........................................................................ 9

4 Incoming acceptance and product identification ................................. 10

4.1 Incoming acceptance .................................................................. 10

4.2 Product identification .................................................................. 10

4.3 Storage and transport .................................................................. 10

5 Installation ...................................................................... 12

5.1 Requirements ........................................................................ 12

5.2 Mounting of the device ................................................................. 14

6 Electrical connection ............................................................ 27

6.1 Terminal assignment .................................................................. 27

6.2 Connecting requirements ............................................................... 41

6.3 Ensuring the degree of protection ......................................................... 42

7 Commissioning .................................................................. 43

7.1 Operating methods .................................................................... 43

7.2 Terms related to tank measurement ....................................................... 46

7.3 Initial settings ........................................................................ 47

7.4 Calibration .......................................................................... 50

7.5 Configuration of the inputs .............................................................. 58

7.6 Linking measured values to tank variables ................................................... 66

7.7 Configuration of the alarms (limit evaluation) ................................................ 67

7.8 Configuration of the signal output ......................................................... 68

About this document Proservo NMS80

4 Endress+Hauser

1 About this document

1.1 Symbols

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Alternating current

Direct current and alternating current

Direct current

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a grounding

system.

Protective earth (PE)

Ground terminals that must be connected to ground prior to establishing any other

connections.

The ground terminals are located on the interior and exterior of the device:

• Interior ground terminal: protective earth is connected to the mains supply.

• Exterior ground terminal: device is connected to the plant grounding system.

1.1.3 Tool symbols

Phillips head screwdriver

Flat blade screwdriver

Proservo NMS80 About this document

Endress+Hauser 5

Torx screwdriver

Allen key

Open-ended wrench

1.1.4 Symbols for certain types of information and graphics

Permitted

Procedures, processes or actions that are permitted

Preferred

Procedures, processes or actions that are preferred

Forbidden

Procedures, processes or actions that are forbidden

Tip

Indicates additional information

Reference to documentation

Reference to graphic

Notice or individual step to be observed

Series of steps

Result of a step

Visual inspection

Operation via operating tool

Write-protected parameter

1, 2, 3, ...

Item numbers

A, B, C, ...

Views

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions

Temperature resistance of the connection cables

Specifies the minimum value of the temperature resistance of the connection cables

About this document Proservo NMS80

6 Endress+Hauser

1.2 Documentation

The following documentation types are available in the Downloads area of the Endress

+Hauser website (www.endress.com/downloads):

For an overview of the scope of the associated Technical Documentation, refer to the

following:

•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from

the nameplate

•Endress+Hauser Operations App: Enter the serial number from the nameplate or scan

the matrix code on the nameplate

1.2.1 Technical Information (TI)

Planning aid

The document contains all the technical data on the device and provides an overview of the

accessories and other products that can be ordered for the device.

1.2.2 Brief Operating Instructions (KA)

Guide that takes you quickly to the 1st measured value

The Brief Operating Instructions contain all the essential information from incoming

acceptance to initial commissioning.

1.2.3 Operating Instructions (BA)

The Operating Instructions contain all the information that is required in various phases of

the life cycle of the device: from product identification, incoming acceptance and storage, to

mounting, connection, operation and commissioning through to troubleshooting,

maintenance and disposal.

It also contains a detailed explanation of each individual parameter in the operating menu

(except the Expert menu). The description is aimed at those who work with the device over

the entire life cycle and perform specific configurations.

1.2.4 Description of Device Parameters (GP)

The Description of Device Parameters provides a detailed explanation of each individual

parameter in the 2nd part of the operating menu: the Expert menu. It contains all the device

parameters and allows direct access to the parameters by entering a specific code. The

description is aimed at those who work with the device over the entire life cycle and perform

specific configurations.

1.2.5 Safety Instructions (XA)

Depending on the approval, the following Safety Instructions (XA) are supplied with the

device. They are an integral part of the Operating Instructions.

The nameplate indicates the Safety Instructions (XA) that are relevant to the device.

1.2.6 Installation instructions (EA)

Installation Instruction are used to replace a faulty unit with a functioning unit of the same

type.

Proservo NMS80 Basic safety instructions

Endress+Hauser 7

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Intended use

Application and measured materials

Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

Measuring devices for use in hazardous areas, in hygienic applications or in applications

where there is an increased risk due to process pressure, are labeled accordingly on the

nameplate.

To ensure that the measuring device remains in proper condition for the operation time:

‣Only use the measuring device in full compliance with the data on the nameplate and the

general conditions listed in the Operating Instructions and supplementary documentation.

‣Check the nameplate to verify if the device ordered can be put to its intended use in the

approval-related area (e.g. explosion protection, pressure vessel safety).

‣Use the measuring device only for media against which the process-wetted materials are

adequately resistant.

‣If the measuring device is not operated at atmospheric temperature, compliance with the

relevant basic conditions specified in the associated device documentation is absolutely

essential.

‣Protect the measuring device permanently against corrosion from environmental

influences.

‣Observe the limit values in the "Technical Information".

The manufacturer is not liable for damage caused by improper or non-designated use.

Residual risk

During operation the sensor may assume a temperature near the temperature of the

measured material.

Danger of burns due to heated surfaces!

‣For high process temperatures: Install protection against contact in order to prevent burns.

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

Basic safety instructions Proservo NMS80

8 Endress+Hauser

2.4 Operational safety

Risk of injury!

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for interference-free operation of the device.

Hazardous area

To eliminate danger to persons or the facility when the device is used in the hazardous area

(e.g. explosion protection):

‣Check the nameplate to verify if the device ordered can be put to its intended use in the

hazardous area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these instructions.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate. It meets the general safety standards and legal requirements.

NOTICE

Loss of degree of protection by opening of the device in humid environments

‣If the device is opened in a humid environment, the degree of protection indicated on the

nameplate is no longer valid. This may also impair the safe operation of the device.

2.5.1 CE mark

The measuring system meets the legal requirements of the applicable EU directives. These are

listed in the corresponding EU Declaration of Conformity together with the standards applied.

The manufacturer confirms successful testing of the device by affixing to it the CE mark.

2.5.2 EAC conformity

The measuring system meets the legal requirements of the applicable EAC guidelines. These

are listed in the corresponding EAC Declaration of Conformity along with the standards

applied.

The manufacturer confirms successful testing of the device by affixing to it the EAC mark.

Proservo NMS80 Product description

Endress+Hauser 9

3 Product description

3.1 Product design

A0030105

 1 Configuration of NMS80

1 Front cover

2 Display

3 Modules

4 Sensor unit (detector unit and cable)

5 Housing

6 Wire drum

7 Bracket

8 Housing cover

9 Displacer

Incoming acceptance and product identification Proservo NMS80

10 Endress+Hauser

4 Incoming acceptance and product identification

4.1 Incoming acceptance

Upon receipt of the goods check the following:

• Are the order codes on the delivery note and the product sticker identical?

• Are the goods undamaged?

• Do the nameplate data match the ordering information on the delivery note?

• If required (see nameplate): Are the Safety Instructions (XA) enclosed?

If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center.

4.2 Product identification

The following options are available for identification of the measuring device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the

nameplate

•Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the

matrix code on the nameplate

For an overview of the scope of the associated Technical Documentation, refer to the

following:

•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from

the nameplate

•Endress+Hauser Operations App: Enter the serial number from the nameplate or scan

the matrix code on the nameplate

4.2.1 Manufacturer address

Endress+Hauser SE+Co. KG

Hauptstraße 1

79689 Maulburg, Germany

Place of manufacture: See nameplate.

4.3 Storage and transport

4.3.1 Storage conditions

• Storage temperature: –50 to +80 °C (–58 to +176 °F)

• Store the device in its original packaging.

Altri manuali per Proservo NMS80

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Endress+Hauser Strumento di misura

Endress+Hauser

Endress+Hauser Micropilot S FMR530 Manuale utente

Endress+Hauser

Endress+Hauser ORIA15 Specifiche tecniche

Endress+Hauser

Endress+Hauser Prosonic S FMU90 Manuale utente

Endress+Hauser

Endress+Hauser Deltapilot S FMB70 Manuale utente

Endress+Hauser

Endress+Hauser Topclean S CPC30 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex FMP53 Specifiche tecniche

Endress+Hauser

Endress+Hauser Deltabar FMD71 Guida all'applicazione

Endress+Hauser

Endress+Hauser Teqwave T Manuale utente

Endress+Hauser

Endress+Hauser EngyVolt RV15 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag P 100 Manuale utente

Endress+Hauser

Endress+Hauser MMP20 SONO Mobil Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag H 100 EtherNet/IP Manuale utente

Endress+Hauser

Endress+Hauser HART Proline Promag 51 Manuale utente

Endress+Hauser

Endress+Hauser FQG61 Series Manuale

Endress+Hauser

Endress+Hauser SpectraSensors SS2100i-1 Guida utente

Endress+Hauser

Endress+Hauser Proline Promag L 800 Specifiche tecniche

Endress+Hauser

Endress+Hauser Gammapilot FTG20 Istruzioni per l'installazione

Endress+Hauser

Endress+Hauser Ceraphant PTP31B Manuale utente

Endress+Hauser

Endress+Hauser Proline Prowirl F 200 Manuale utente

Endress+Hauser

Endress+Hauser Proline Prowirl F 200 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50D Manuale

Endress+Hauser

Endress+Hauser ria45 Specifiche tecniche

Endress+Hauser

Endress+Hauser Cerabar PMP21 Manuale utente

Endress+Hauser

Endress+Hauser Teqwave F Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente

Acterna

Acterna MS1400 Manuale utente

R&S

R&S ZPH Manuale utente
