Endress+Hauser RIA16 Specifiche tecniche

Products Solutions Services

Brief Operating Instructions

RIA16

Loop-powered field indicator

These Brief Operating Instructions are not a substitute for the

Operating Instructions pertaining to the device.

Detailed information is provided in the Operating Instructions

and other documentation.

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smartphone/tablet: Endress+Hauser Operations app

KA00279R/09/EN/05.23-00

71615262

2023-03-01

RIA16

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

RIA16 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 3

1.1 Symbols ............................................................................. 3

1.2 Documentation ........................................................................ 5

2 Basic safety instructions .......................................................... 6

2.1 Requirements for the personnel ............................................................ 6

2.2 Intended use .......................................................................... 6

2.3 Workplace safety ...................................................................... 6

2.4 Operational safety ......................................................................6

2.5 Product safety ......................................................................... 6

3 Identification ..................................................................... 7

3.1 Nameplate ........................................................................... 7

3.2 Scope of delivery ....................................................................... 7

3.3 Certificates and approvals ................................................................ 7

4 Mounting ......................................................................... 8

4.1 Mounting requirements ................................................................. 8

4.2 Mounting the measuring device ............................................................9

4.3 Post-mounting checks .................................................................. 10

5 Electrical connection ............................................................ 10

5.1 Connecting the device .................................................................. 12

5.2 Ensuring the degree of protection ......................................................... 13

5.3 Post-connection check ..................................................................13

6 Operation options ............................................................... 14

6.1 Overview of operation options ............................................................ 14

6.2 Access to the operating menu via the operating keys ........................................... 14

6.3 Device configuration ................................................................... 16

1 About this document

1.1 Symbols

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

About this document RIA16

4 Endress+Hauser

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Symbol Meaning

Potential equalization connection (PE: protective earth)

Ground terminals that must be connected to ground prior to establishing any other connections.

The ground terminals are located on the interior and exterior of the device:

• Interior ground terminal: potential equalization is connected to the supply network.

• Exterior ground terminal: device is connected to the plant grounding system.

1.1.3 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation

Reference to page

Reference to graphic

… Series of steps

Result of a step Visual inspection

RIA16 About this document

Endress+Hauser 5

1.1.4 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

1.2 Documentation

For an overview of the scope of the associated Technical Documentation, refer to the

following:

•Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the

nameplate

•Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix

code on nameplate.

1.2.1 Document function

The following documentation may be available depending on the version ordered:

Document type Purpose and content of the document

Technical Information (TI) Planning aid for your device

The document contains all the technical data on the device and provides an

overview of the accessories and other products that can be ordered for the

device.

Brief Operating Instructions (KA) Guide that takes you quickly to the 1st measured value

The Brief Operating Instructions contain all the essential information from

incoming acceptance to initial commissioning.

Operating Instructions (BA) Your reference document

The Operating Instructions contain all the information that is required in the

various phases of the life cycle of the device: from product identification,

incoming acceptance and storage, to mounting, connection, operation and

commissioning through to troubleshooting, maintenance and disposal.

Description of Device Parameters (GP) Reference for your parameters

The document provides a detailed explanation of each individual parameter.

The description is aimed at those who work with the device over the entire life

cycle and perform specific configurations.

Safety Instructions (XA) Depending on the approval, safety instructions for electrical equipment in

hazardous areas are also supplied with the device. The Safety Instructions are

an integral part of the Operating Instructions.

Information on the Safety Instructions (XA) relevant to the device is

provided on the nameplate.

Supplementary device-dependent

documentation (SD/FY)

Always comply strictly with the instructions in the relevant supplementary

documentation. The supplementary documentation is an integral part of the

device documentation.

Basic safety instructions RIA16

6 Endress+Hauser

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Intended use

• The device is a configurable field indicator with one sensor input.

• It is designed for mounting in the field.

• The manufacturer accepts no liability for damages resulting from improper or non-intended

use.

• Safe operation is only guaranteed if the Operating Instructions are observed.

• Only operate the device in the permitted temperature range.

2.3 Workplace safety

When working on and with the device:

‣Wear the required personal protective equipment as per national regulations.

2.4 Operational safety

Damage to the device!

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for the interference-free operation of the device.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EU

directives listed in the device-specific EU Declaration of Conformity. The manufacturer

confirms this by affixing the CE mark to the device.

RIA16 Identification

Endress+Hauser 7

3 Identification

3.1 Nameplate

The correct device?

Compare the order code on the nameplate of the device to the code on the delivery note.

A0011268

 1 Nameplate of the field indicator (example)

1 Description, order code, serial number and identification number of the device

2 Degree of protection

3 Power supply and output signal

4 Ambient temperature

5 Approvals

6 Manufacturer name and address

3.2 Scope of delivery

The scope of delivery of the field display unit comprises:

• Field indicator

• Cable shield grounding clamps (only for aluminum housing)

• Hard copy of Brief Operating Instructions

• ATEX safety instructions for use of a device approved for hazardous areas, optional

• Accessories (e.g., pipe mounting bracket), see 'Accessories' section in Operating Instructions

→ BA00280R.

3.3 Certificates and approvals

3.3.1 CE mark

The product meets the requirements of the harmonized European standards. As such, it

complies with the legal specifications of the EC directives. The manufacturer confirms

successful testing of the product by affixing to it the CE-mark.

Mounting RIA16

8 Endress+Hauser

3.3.2 EAC mark

The product meets the legal requirements of the EEU guidelines. The manufacturer confirms

the successful testing of the product by affixing the EAC mark.

3.3.3 UL approval

More information under UL Product iq™, search for keyword "E225237")

4 Mounting

4.1 Mounting requirements

The device is designed for use in the field.

Its orientation is determined by the readability of the display.

Operating temperature range:

• –40 to +80 °C (–40 to +176 °F)

• –20 to +80 °C (–4 to +176 °F) when the Open Collector output is used

Operating the device in the upper temperature limit range reduces the operating life of

the display.

The display may respond slowly at temperatures < –20 °C (–4 °F).

Readability of the display can no longer be guaranteed at temperatures < –30 °C (–22 °F).

Operating altitude Up to 2 000 m (6 561.7 ft) above sea level

Overvoltage category Overvoltage category II

Pollution degree Pollution degree 2

4.1.1 Dimensions

133 (5.24)

199 (7.83)

96 (3.78)

158 (6.22)

115 (4.53)

163 (6.42)

A-A

A0011162

 2 Dimensions of the field indicator; dimension in mm (in)

1 Bore hole for mounting directly to wall or optional mounting plate with 4 screws ⌀ 5 mm (0.2 in)

RIA16 Mounting

Endress+Hauser 9

4.1.2 Mounting location

For information on the conditions that must be present at the mounting location before the

device can be mounted correctly (such as ambient temperature, type of protection, climate

class etc.), see the "Technical data" section in the Operating Instructions → BA00280R.

4.2 Mounting the measuring device

The device can either be mounted directly to the wall or mounted to the pipe or wall using the

optional mounting kit.

4.2.1 Direct wall mounting

To mount the indicator directly on the wall:

1. Drill 4 holes (see dimensions, →  2,  8)

2. Attach the device to the wall using 4 screws ⌀5 mm (0.2 in).

4.2.2 Pipe mounting

The mounting bracket is suitable for pipes with a diameter of 25 to 125 mm (1 to 5 in). The

mounting kit comprises a mounting plate (item 1), 2 metal strips (item 2) and 4 screws (item

3), →  3,  9.

To mount the indicator on a pipe:

1. 2.

A0011269

 3 Preparing for mounting

Electrical connection RIA16

10 Endress+Hauser

3mm

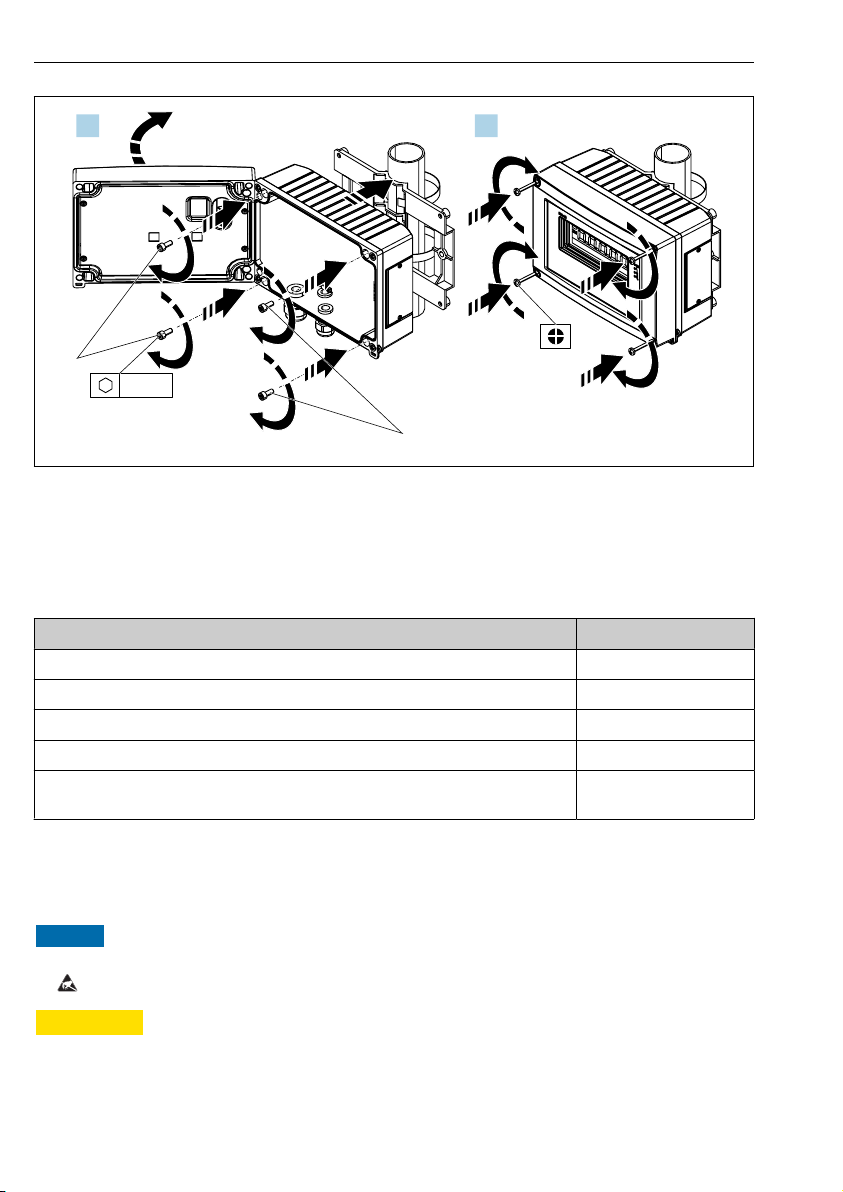

3. 4.

A0011270

 4 Attaching the indicator to the mounting plate

4.3 Post-mounting checks

Perform the following checks after mounting the device:

Device condition and specifications Note

Is the measuring device damaged? Visual inspection

Is the seal undamaged? Visual inspection

Is the device firmly screwed to the wall or mounting plate? -

Is the housing cover securely fitted? -

Does the device comply with the measuring point specifications (ambient temperature,

measuring range etc.)?

See "Technical data' section".

5 Electrical connection

NOTICE

Destruction or malfunction of parts of the electronics

‣ ESD - Electrostatic discharge. Protect the terminals from electrostatic discharge.

LCAUTION

Destruction of parts of the electronics

‣Switch off the power supply before installing and connecting the device.

Altri manuali per RIA16

Indice

Altri manuali Endress+Hauser Strumento di misura

Endress+Hauser

Endress+Hauser Proline Prosonic Flow 92F Series Istruzioni per l'installazione

Endress+Hauser

Endress+Hauser Prosonic S FMU90 Manuale utente

Endress+Hauser

Endress+Hauser Proservo NMS80 Istruzioni per l’uso

Endress+Hauser

Endress+Hauser Micropilot FMR50 Specifiche tecniche

Endress+Hauser

Endress+Hauser analytikjena Biometra TMS Manuale utente

Endress+Hauser

Endress+Hauser HART Proline t-mass I 300 Manuale utente

Endress+Hauser

Endress+Hauser Liquiline CA80FE Specifiche tecniche

Endress+Hauser

Endress+Hauser Proline Promag 50 Manuale utente

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promass 80 Guida all'applicazione

Endress+Hauser

Endress+Hauser FHG65 Manuale

Endress+Hauser

Endress+Hauser Proline Promass F 300 Manuale di istruzioni

Endress+Hauser

Endress+Hauser Liquiline CM44 series Manuale dell'operatore

Endress+Hauser

Endress+Hauser Micropilot FMR10 Manuale

Endress+Hauser

Endress+Hauser PROline promag 53 Manuale utente

Endress+Hauser

Endress+Hauser Memosens Wave CAS80E Manuale utente

Endress+Hauser

Endress+Hauser Prosonic T FMU30 Manuale utente

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manuale utente

Endress+Hauser

Endress+Hauser LT5 Manuale utente

Endress+Hauser

Endress+Hauser Proline Prowirl C 200 Specifiche tecniche

Endress+Hauser

Endress+Hauser Smartec S CLD132 Manuale utente

Endress+Hauser

Endress+Hauser PROline promag 50 w Manuale

Endress+Hauser

Endress+Hauser Deltapilot S FMB70 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 55 Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente

Acterna

Acterna MS1400 Manuale utente

R&S

R&S ZPH Manuale utente
