Operating Instructions

RIA452

Panel meter

with pump control

BA00265R/09/EN/14.16

71349719

Valid from version

02.01.xx (device software)

RIA452 Table of contents

Endress+Hauser 3

Table of contents

1 Document information .............. 4

1.1 Document conventions ................... 4

2 Safety instructions .................. 6

2.1 Requirements for the personnel ............ 6

2.2 Designated use ........................ 6

2.3 Operational safety ...................... 6

2.4 Product safety ......................... 7

3 Incoming acceptance and product

identification ....................... 8

3.1 Product identification .................... 8

3.2 Scope of delivery ....................... 8

3.3 Storage and transport ................... 8

4 Installation ........................ 9

4.1 Installation conditions ................... 9

4.2 Mounting the display unit ................ 9

5 Electrical connection .............. 10

5.1 Universal input option .................. 11

5.2 Connecting the device .................. 12

5.3 Post-connection check .................. 14

6 Operability ........................ 15

6.1 Overview of operation options ............ 15

6.2 Structure and function of the operating

menu .............................. 16

6.3 Access to the operating menu via the local

display ............................. 17

7 Commissioning .................... 20

7.1 Function check ....................... 20

7.2 Switching on the measuring device ......... 20

7.3 Device configuration ................... 20

8 Maintenance ...................... 43

9 Accessories ....................... 43

9.1 Device-specific accessories ............... 43

10 Troubleshooting .................. 44

10.1 Troubleshooting instructions ............. 44

10.2 Process error messages ................. 44

11 Return ............................ 47

12 Disposal .......................... 47

13 Technical data .................... 48

13.1 Input ............................... 48

13.2 Output ............................. 49

13.3 Power supply ......................... 51

13.4 Performance characteristics .............. 52

13.5 Installation .......................... 54

13.6 Environment ......................... 54

13.7 Mechanical construction ................ 55

13.8 Operability .......................... 56

13.9 Certificates and approvals ............... 57

13.10 Supplementary documentation ............ 57

14 Appendix ......................... 58

14.1 Flow conversion ....................... 58

Index .................................. 59

Document information RIA452

4 Endress+Hauser

1 Document information

1.1 Document conventions

1.1.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will

result in serious or fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in serious or fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in minor or medium injury.

NOTICE

NOTE!

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Symbol Meaning

Direct current

Alternating current

Direct current and alternating current

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a

grounding system.

Protective ground connection

A terminal which must be connected to ground prior to establishing any other

connections.

Equipotential connection

A connection that has to be connected to the plant grounding system: This may be a

potential equalization line or a star grounding system depending on national or

company codes of practice.

1.1.3 Symbols for certain types of information

Symbol Meaning

Permitted

Procedures, processes or actions that are permitted.

Preferred

Procedures, processes or actions that are preferred.

Forbidden

Procedures, processes or actions that are forbidden.

Tip

Indicates additional information.

Reference to documentation

RIA452 Document information

Endress+Hauser 5

Symbol Meaning

Reference to page

Reference to graphic

,…

Series of steps

Result of a step

Help in the event of a problem

Visual inspection

1.1.4 Registered trademarks

HART®

Registered trademark of the HART Communication Foundation, Austin, USA

Applicator®, FieldCare®, Field Xpert™, HistoROM®

Registered or registration-pending trademarks of the Endress+Hauser Group

Safety instructions RIA452

6 Endress+Hauser

2 Safety instructions

2.1 Requirements for the personnel

The personnel for installation, commissioning, diagnostics and maintenance must fulfill

the following requirements:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the

application).

‣Follow instructions and comply with basic conditions.

The operating personnel must fulfill the following requirements:

‣Are instructed and authorized according to the requirements of the task by the facility's

owner-operator.

‣Follow the instructions in this manual.

2.2 Designated use

The process display unit analyzes analog process variables and depicts them on its

multicolored display. Processes can be monitored and controlled using outputs and limit

relays. The device provides the user with a wide range of software functions for this

purpose. Power can be supplied to 2-wire sensors with the integrated transmitter power

supply.

• The device is seen as an associated electrical apparatus and may not be installed in

hazardous areas.

• The manufacturer does not accept liability for damage caused by improper or non-

designated use. The device may not be converted or modified in any way.

• The device is designed for installation in a panel and may only be operated in an

installed state.

2.3 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers.

‣If, despite this, modifications are required, consult with Endress+Hauser.

Repair

To ensure continued operational safety and reliability,

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

‣Use original spare parts and accessories from Endress+Hauser only.

RIA452 Safety instructions

Endress+Hauser 7

2.4 Product safety

This measuring device is designed in accordance with good engineering practice to meet

state-of-the-art safety requirements, has been tested, and left the factory in a condition in

which it is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EC

directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser

confirms this by affixing the CE mark to the device.

Incoming acceptance and product identification RIA452

8 Endress+Hauser

3 Incoming acceptance and product

identification

3.1 Product identification

3.1.1 Nameplate

Compare the nameplate on the device with the following figure:

A0031242

 1 Nameplate of the process display unit (example)

1 Order code and serial number of the device

2 Power supply

3 Software version number

4 Ambient temperature

5 Power consumption

6 Name and address of manufacturer

3.2 Scope of delivery

The scope of delivery of the process display unit comprises:

• Process display unit for panel mounting

• Multilanguage Brief Operating Instructions as hard copy

• CD-ROM with PC configuration software and interface cable RS232 (optional)

• Fixing clips

• Sealing ring

Please note the device accessories in Section 'Accessories' →  43.

3.3 Storage and transport

Storage temperature

–30 to +70 °C (–22 to +158 °F)

RIA452 Installation

Endress+Hauser 9

4 Installation

4.1 Installation conditions

The permitted ambient conditions must be observed during installation and operation (see

the "Technical data" section of the Operating Instructions). The device must be protected

from exposure to heat.

4.1.1 Installation dimensions

Required panel cutout 92 mm (3.62 in)x92 mm (3.62 in). Ensure an installation depth of

150 mm (5.91 in) for the device plus cable. For additional dimensions, see →  2,  9

and the "Technical data" section of the Operating Instructions.

4.1.2 Mounting location

Installation in a panel (according to EN 60529). The mounting location must be free from

vibrations.

4.1.3 Orientation

Horizontal, ±45 ° in every direction.

4.2 Mounting the display unit

92 (3.62)

145 (5.71)

A0031247

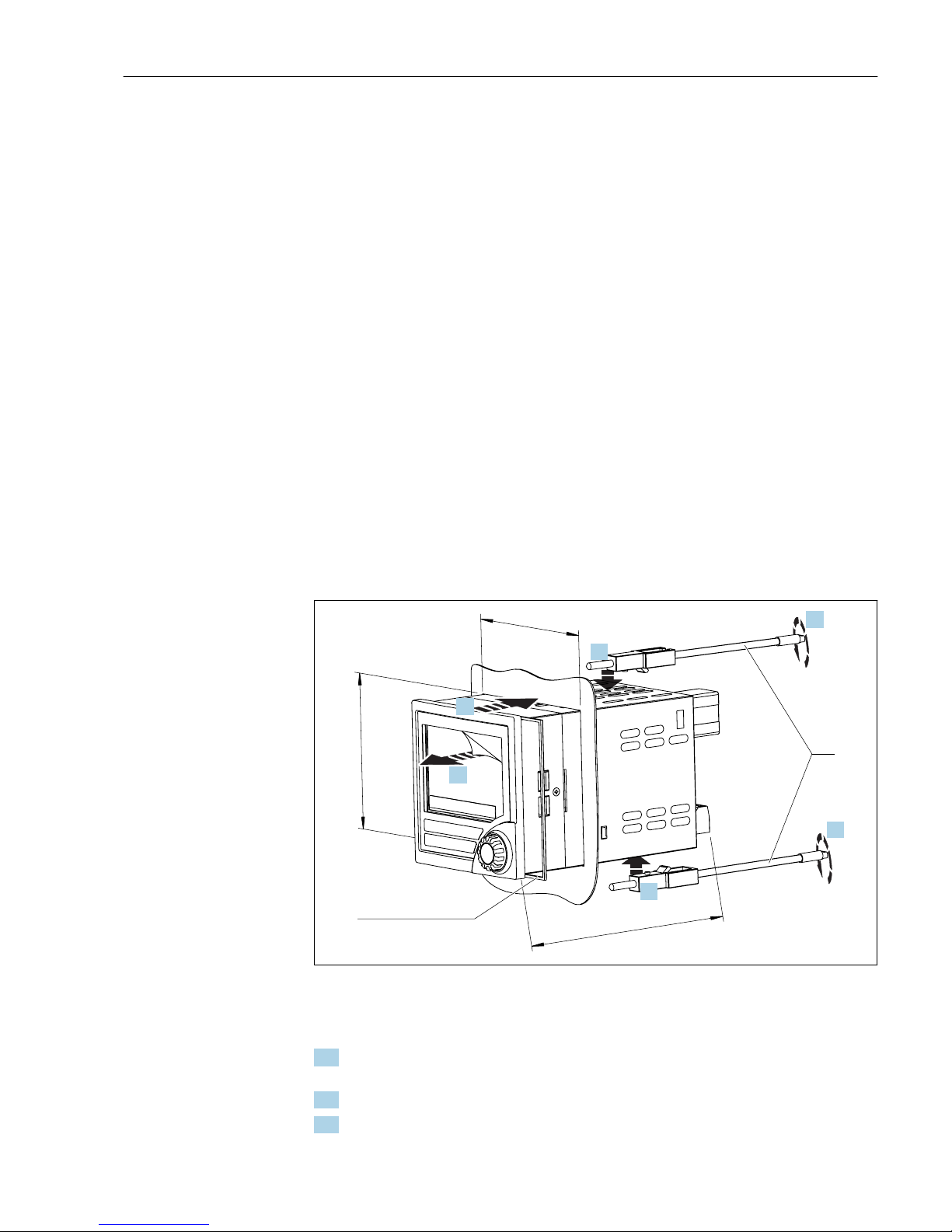

 2 Installation in a panel

Mounting the display unit

1. Push the device with the sealing ring (item 1) through the panel cutout from the

front.

2. Hold the device level and clip the fastening clips (item 2) into the openings provided.

3. Tighten the screws of the fastening clips uniformly using a screwdriver.

Electrical connection RIA452

10 Endress+Hauser

4. Remove the protective foil from the display.

5 Electrical connection

A0031253

 3 Terminal assignment of the process display unit. Internal circuits represented by dashed lines.

1 Current input, terminals 12 and 82 are internally

bridged.

6 Digital output, passive open collector, max. 28 V,

200 mA

2 Current loop transmitter power supply max.

22 mA current input

7 Digital inputs as per DIN 19240; voltage level:

–3 to 5 V low, 12 to 30 V high, input current

typically 3 mA (with overload and reverse polarity

protection), input voltage max. 34.5 V, sampling

frequency max. 10 Hz

3 Current input 0 to 20 mA

4 Analog output 0 to 20 mA, 0 to 10 VDC

5 Transmitter power supply, 24 V, ≤250 mA. 8 Relay output: Relays 1-8; 250 VAC/30 VDC, 3 A

Terminal Terminal assignment Description

L/L+ L for AC

L+ for DC

Power supply

N/L- N for AC

L- for DC

NC Not connected

J1 Jumper for locking device operation via hardware. If the

jumper is set to J1, the configuration cannot be

modified.

The device can always be configured with

the PC software via RS232 even if the

jumper is set to J1.

J2 Not connected

11 +0/4 to 20 mA Current input

Altri manuali per RIA452

Indice

Altri manuali Endress+Hauser Strumento di misura

Endress+Hauser

Endress+Hauser cerabar S Manuale utente

Endress+Hauser

Endress+Hauser FEC 12 Manuale utente

Endress+Hauser

Endress+Hauser Turbimax CUE21 Manuale utente

Endress+Hauser

Endress+Hauser Micropilot FMR56 Manuale utente

Endress+Hauser

Endress+Hauser RID14 Manuale utente

Endress+Hauser

Endress+Hauser Deltapilot S FMB70 Manuale utente

Endress+Hauser

Endress+Hauser iTEMP TMT85 Specifiche tecniche

Endress+Hauser

Endress+Hauser Cerabar M PMC51? Cerabar M PMP51 Manuale utente

Endress+Hauser

Endress+Hauser Proline Prowirl 200 Istruzioni per l'installazione

Endress+Hauser

Endress+Hauser Levelflex FMP53 Specifiche tecniche

Endress+Hauser

Endress+Hauser SS500 Manuale di istruzioni

Endress+Hauser

Endress+Hauser RID14 Specifiche tecniche

Endress+Hauser

Endress+Hauser FieldEdge SGC200 Manuale utente

Endress+Hauser

Endress+Hauser Cleanfit CPA450 A Series Manuale utente

Endress+Hauser

Endress+Hauser Micropilot S FMR531 Manuale utente

Endress+Hauser

Endress+Hauser QG2000 Manuale

Endress+Hauser

Endress+Hauser Deltapilot M FMB51 Specifiche tecniche

Endress+Hauser

Endress+Hauser Micropilot FMR54 Istruzioni per l'installazione

Endress+Hauser

Endress+Hauser MMP20 SONO Mobil Manuale utente

Endress+Hauser

Endress+Hauser Deltabar S PMD75 Manuale

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manuale utente

Endress+Hauser

Endress+Hauser Liquiphant M FTL50 Manuale

Endress+Hauser

Endress+Hauser Proline t-mass 65F Manuale utente

Endress+Hauser

Endress+Hauser Proline Promass I 300 PROFIBUS PA Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente

Acterna

Acterna MS1400 Manuale utente

R&S

R&S ZPH Manuale utente
