Endress+Hauser Flowphant T DTT31 Manuale utente

BA235R/09/en/12.06

71036991

Release

01.00.03

Operating Instructions

Flowphant®T DTT31, DTT35

Flow Switch

Brief overview

For quick and easy commissioning:

Safety instructions →Page 4

Installation →Page 6

Wiring →Page 9

Operation →Page 10

Display and operating elements

Onsite operation

Operation with PC and configuration software

Troubleshooting →Page 28

Endress+Hauser 3

DTT31, DTT35

Table of contents

1 Safety instructions . . . . . . . . . . 4

1. 1 Designated use . . . . . . . . . . . . . . . . . . . . . 4

1. 2 Installation, commissioning and operation . 4

1. 3 Operational safety . . . . . . . . . . . . . . . . . . . 4

1. 4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Device identification. . . . . . . . . 5

2. 1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . 5

3 Installation . . . . . . . . . . . . . . . . 6

3. 1 Incoming acceptance, storage . . . . . . . . . . 6

3. 2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 6

3. 3 Process connection . . . . . . . . . . . . . . . . . . 7

3. 4 Installation instructions . . . . . . . . . . . . . . . 8

4 Wiring. . . . . . . . . . . . . . . . . . . . 9

4. 1 DC voltage version with M12x1 connector 9

4. 2 DC voltage version with valve connector . 10

5 Operation . . . . . . . . . . . . . . . . 10

5. 1 Onsite operation . . . . . . . . . . . . . . . . . . . 10

5. 2 Operation with PC and ReadWin® 2000 . 21

6 Maintenance. . . . . . . . . . . . . . 22

7 Accessories. . . . . . . . . . . . . . . 22

7. 1 Adapter concept for DTT35 . . . . . . . . . . . 22

7. 2 Welding bosses and coupling . . . . . . . . . 25

7. 3 Electrical connection . . . . . . . . . . . . . . . . 26

7. 4 Configuration kit . . . . . . . . . . . . . . . . . . . 27

8 Troubleshooting . . . . . . . . . . . 28

8. 1 Error messages and warning messages . . . 28

8. 2 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8. 3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 29

8. 4 Change status (release) . . . . . . . . . . . . . . 30

8. 5 Software history . . . . . . . . . . . . . . . . . . . 30

9 Technical data . . . . . . . . . . . . 30

9. 1 Power supply . . . . . . . . . . . . . . . . . . . . . 30

9. 2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . 31

9. 3 Operating conditions . . . . . . . . . . . . . . . . 31

10 Dangerous Goods sheet. . . . . . 33

Safety instructions DTT31, DTT35

4Endress+Hauser

1 Safety instructions

1. 1 Designated use

The Flowphant®T is a flow switch for monitoring mass flow rates in industrial processes. The

device is designed to meet state-of-the-art safety requirements and conforms to applicable stan-

dards and EC regulations. It can, however, be a source of danger if used incorrectly or for any-

thing other than the designated use.

1. 2 Installation, commissioning and operation

Installation, electrical connection, commissioning, operation and maintenance of the measuring

system must be carried out by trained, qualified specialists authorized to perform such work by

the facility's owner-operator. The specialist must have read and understood these Operating

Instructions and must follow the instructions they contain. The device may only be modified and

repair work carried out if this is explicitly permitted in the Operating Instructions. Damaged

devices which could be a source of danger may not be commissioned and must be labeled and

identified as defective.

1. 3 Operational safety

• Functional safety

The Flowphant®T flow switch has been developed in accordance with the IEC 61508 and

IEC 61511-1 (FDIS) standards. The device version with a PNP switch output and additional

analog output is equipped with features for detecting and preventing errors within the elec-

tronics and software.

•Ex-area

The Flowphant®T is not approved for use in Ex-areas.

1. 4 Return

The following procedures must be carried out before a device is returned to Endress+Hauser:

• Always enclose a fully completed “Declaration of Contamination” form with the device. Only

then can Endress+Hauser transport and examine a returned device. A copy of the “Declara-

tion of Contamination” can be found on the second last page of these Operating Instructions.

• Remove all fluid residues. This is particularly important if the fluid is hazardous to health, e.g.

flammable, toxic, caustic, carcinogenic, etc.

#Warning!

Do not return a measuring device if you are not absolutely certain that all traces of hazardous

substances have been removed, e.g. substances which have penetrated crevices or diffused

through plastic.

DTT31, DTT35 Device identification

Endress+Hauser 5

2 Device identification

2. 1 Nameplate

To identify your device, compare the complete order code and the version information on the

delivery papers with the data on the nameplate.

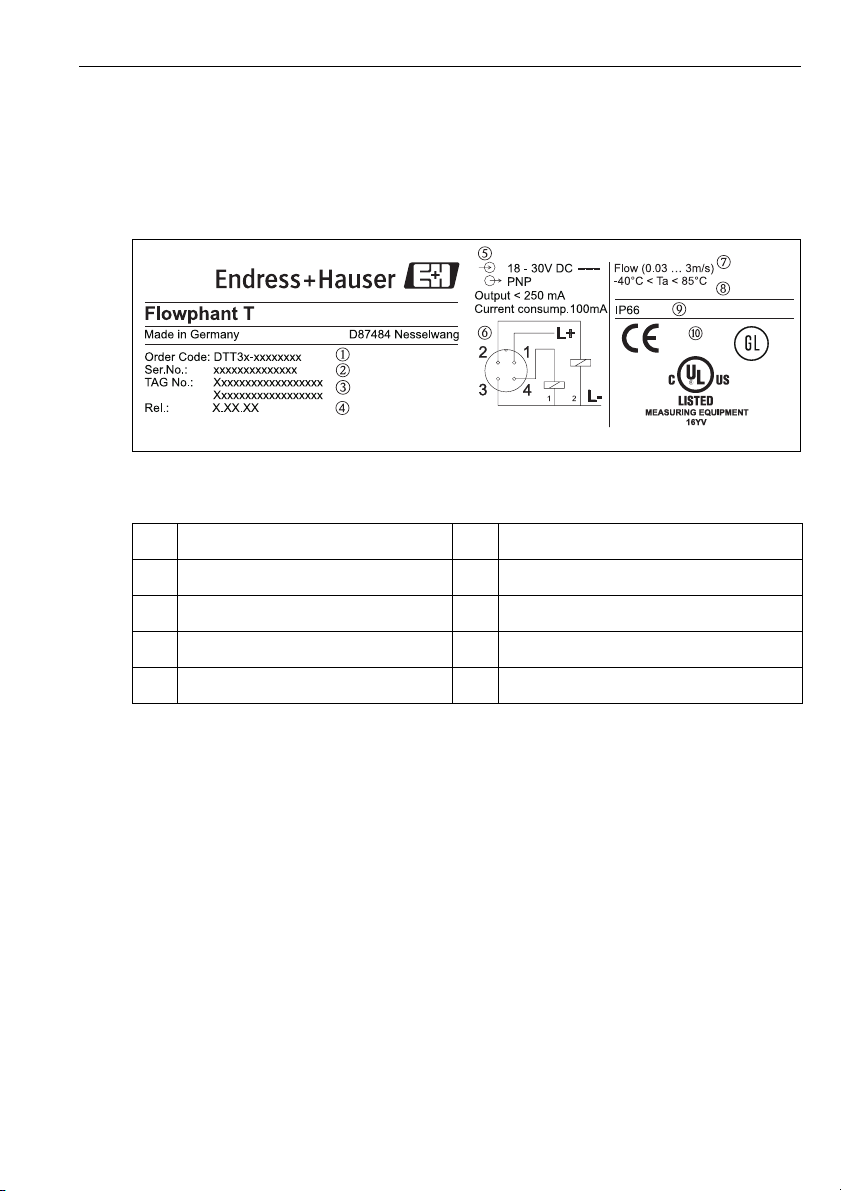

a0006981

Fig. 1: Nameplate for device identification (as example)

!Note!

The release number indicates the change status of the device. A change in the last two figures

does not have any affect on the compatibility →Chap. 8. 4.

mOrder code rConnection diagram

nSerial number sMeasuring range

oTAG number tAmbient temperature range

pRelease number (change status) uDegree of protection

qConnection values vApprovals

Installation DTT31, DTT35

6Endress+Hauser

3 Installation

3. 1 Incoming acceptance, storage

• Incoming acceptance:

Check the packaging and the device for damage. Check that the goods delivered are complete

and nothing is missing.

•Storage:

Storage temperature -40 °C to +85 °C (-40 °F to 185 °F).

3. 2 Dimensions

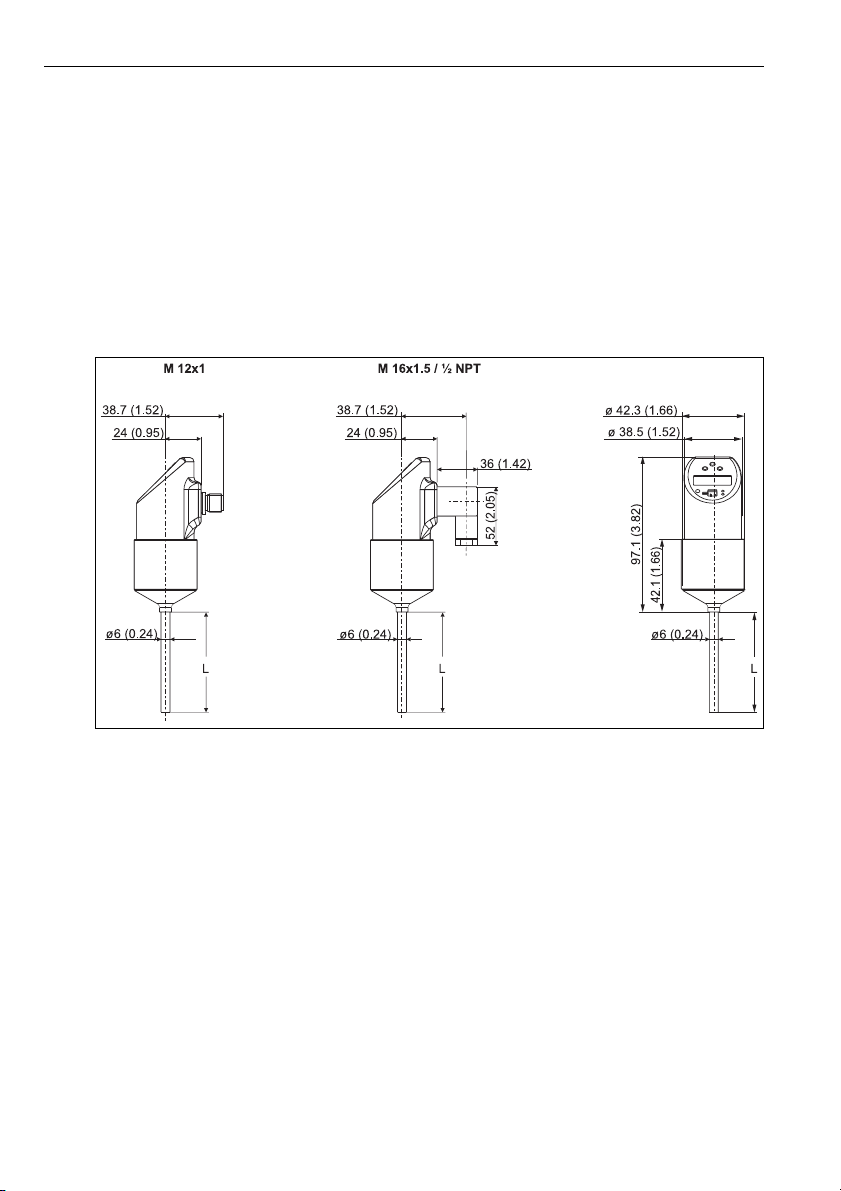

A0005279

Fig. 2: Dimensions in mm (inch)

Version L with 30 and 100 mm (1.18 and 3.94 in) for DTT31

Version L with 30, 50 and 100 mm (1.18, 1.97 and 3.94 in) for DTT35

M 12x1 connector as per IEC 60947-5-2

M 16x1.5 or ½" NPT valve connector as per DIN 43650A/ISO 4400

DTT31, DTT35 Installation

Endress+Hauser 7

3. 3 Process connection

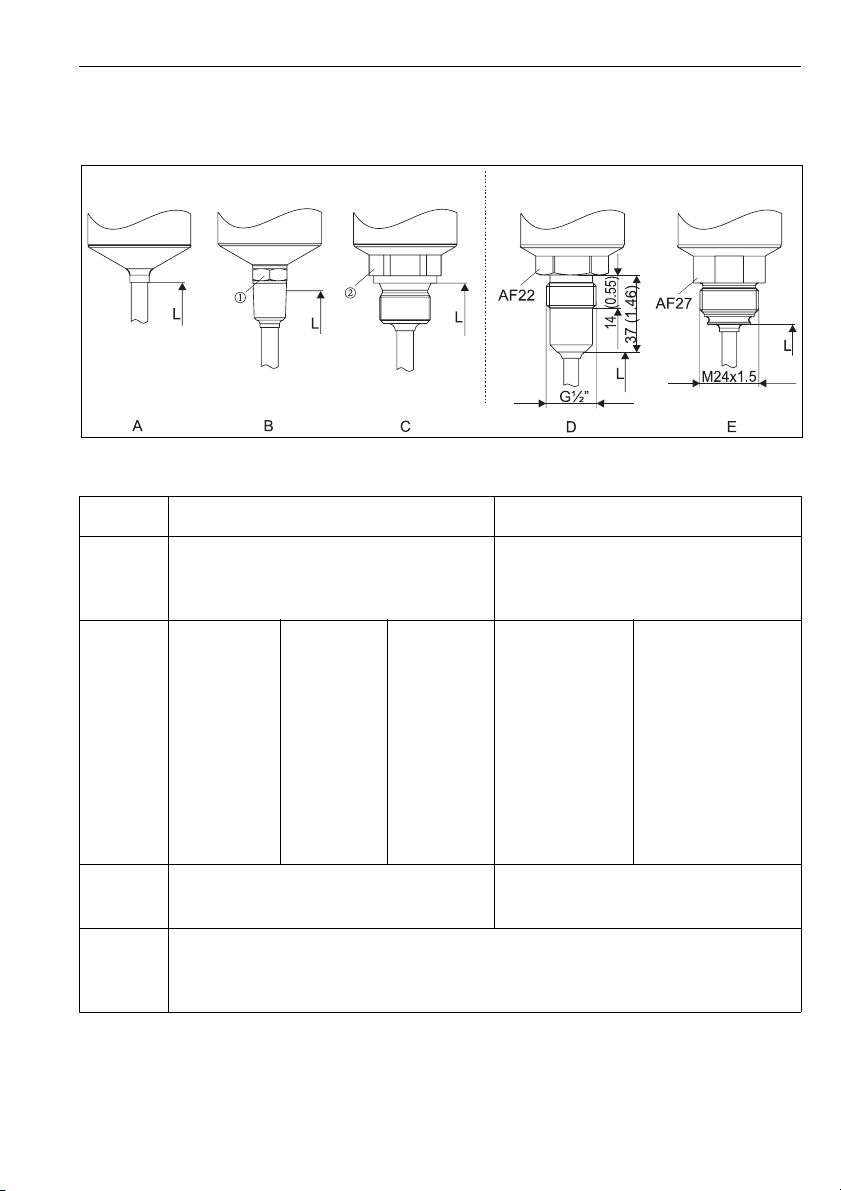

The following graphic illustrates the versions of Flowphant®T.

T09-TTR31xxx-17-xx-xx-en-000

Fig. 3: Process connections of the device

!Note!

The maximum process pressure for the conical metal-metal process connection (→Fig. 3,

item D) is 16 bar!

DTT31 DTT35

Field of

applica-

tion

Monitoring of mass flow rates Monitoring of mass flow rates in hygienic

processes

Process

connec-

tion

Item A

Version with-

out process

connection

(’w’). Suit-

able welding

bosses and

coupling

(→Chap. 7)

Item B

Version with

threaded

process con-

nection

ANSI ¼"

NPT

(m= AF14)

and

½" NPT

(m= AF27)

Item C

Version with

threaded

process con-

nection

G ¼"

(n= AF14)

and G ½"

(n= AF27)

as per

ISO 228

Item D

Conical,

metal-metal,

version: G½"

thread. Suitable

welding boss

(→Chap. 7.2.3).

Item E

Adapter concept - ver-

sion with M24x1.5

thread for adapters

with process connec-

tion for hygienic pro-

cesses

(→Chap. 7.1.2)

Sensor

length L

Version L with 30 and 100

mm (1.18 and 3.94 in)

Version L with 30, 50 and 100 mm

(1.18, 1.97 and 3.94 in)

Opera-

tional

range

Liquids from 0.03 to 3.0 m/s (0.1 to 9.84 ft/s)

Installation DTT31, DTT35

8Endress+Hauser

3. 4 Installation instructions

3.4.1 Installation conditions

!Note!

The sensor requires a fully developed flow profile for correct monitoring. For this reason, steady-

ing sections (5x DN) must be provided in the pipe after a pump, pipe bend, internal fittings and

cross-sectional changes.

"Caution!

Do not turn the device into the process connection thread at the housing. Always install the

device at the spanner flats (Fig. 4, item 1). Use a suitable open-ended wrench for this task (see

Table →Kap. 3. 3).

• The sensor tip should be completely surrounded by medium.

• Position the sensor tip in the area of maximum fluid velocity (pipe

center).

• Minimum sensor immersion length: Li ≥10 mm.

A0006976

Fig. 4: Installation conditions

Orientation

• For horizontal pipes: lateral installation.

!Note!

Installation from above only if the pipe is completely filled with

medium.

• For vertical pipes: installation in the ascending pipeline.

A0006977

Fig. 5: Correct orientation

"Caution!

• Do not install in down pipes open towards the end.

• The sensor tip should never touch the pipe wall.

A0006978

Fig. 6: Incorrect installation!

DTT31, DTT35 Wiring

Endress+Hauser 9

• The onsite display can be rotated electronically 180°, →Chap. 5. 1 "Onsite operation".

• The upper housing section can be rotated mechanically up to 310°.

4 Wiring

4. 1 DC voltage version with M12x1 connector

a0006818

Fig. 7: Flowphant®T with M12x1 connector

A1: 1x PNP switch output

A2: 2x PNP switch outputs R1 and m(R2)

A2’: 2x PNP switch output R1 and m(diagnosis/NC contact for "DESINA" setting)

A3: 1x analog output and 1x PNP switch output

"Caution!

To avoid any damage to the analog input of a PLC, do not connect the active PNP switch output

of the device to the 4 to 20 mA input of a PLC.

!Note!

DESINA (→Chap. 5.1.4, basic settings):

R2 = diagnosis/NC contact (more information on DESINA can be found at www.desina.de).

"Caution!

Once connected to the power supply, the sensor tip of the device heats up! The temperature can

reach up to approx. 90 °C (194 °F).

Operation DTT31, DTT35

10 Endress+Hauser

4. 2 DC voltage version with valve connector

P01-PTx3xxxx-04-xx-xx-xx-003

Fig. 8: Flowphant®T with M 16x1.5 valve connector or ½" NPT

B: 1x PNP switch output

5 Operation

5. 1 Onsite operation

The Flowphant®T is operated by means of three keys. The digital display and the light emitting

diodes (LED) support navigation in the operating menu.

T09-TTR31xxx-19-xx-xx-en-001

Fig. 9: Position of operating elements and possibilities for display
