Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

ENTTEC PIXIE DRIVER

Features

Drives 2 DMX universes worth of 5 Volt Pixel Tape

or 12/24V Pixel Dots (model dependent).

In-Built 5V DC power supply with 55 and 110

watts output power units available (pn: 73540 and

73451)

In-Built 12V DC power supply with 65 and 130

watts output power units available (pn: 73542 and

73453)

In-Built 24V DC power supply with 65 and 130

watts output power units available (pn: 73547 and

73548)

Enhanced data outputs with surge protections

D3 is a duplicated output of D1 for backup

D4 is a duplicated output of D2 for backup

55W and 65W drivers can individually control and

power up to 300 RGB pixel LEDs

110W and 130W drivers can individually control

and power up to 600 RGB pixel LEDs

Smart thermal management

DMX512 Controllable and USB configurable

Supports RGB and RGBW pixel tape and pixel

dots based on WS2811, WS2812 & WS2812B.

Quick 2 steps test installation: connect your pixel

strips to the screw terminal output and plug

mains cable to a wall outlet. It is that easy!

Standalone test output sequences (no external data

required)

Show record and playback (Art-Net to USB using

PRO-Manager App)

Power and output status LED indicators

High quality powder coated metal box

Scalable design for large projects

Up to 8 units stackable using standard 19” modular

rack accessory (sold separately)

Standard IEC mains and 5Pin-XLR DMX input con-

nectors

Plug-unplug screw terminal output connector

Automatic multi voltage mains input (110-250V AC)

Safety

This unit is intended for indoor use only

Do not expose the PIXIE DRIVER to rain or moisture,

doing this will void the warranty

Make all the connections before you plug in the

mains power

Do not remove the cover, there are no serviceable

parts inside

Never plug this unit in to a dimmer pack

Always be sure to mount this unit in an area that will

allow proper ventilation. Allow about 6” (20 cm) be-

tween this device and a wall

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

Power-supply cords should be routed so that

they are not likely to be walked on or pinched by

items placed upon or against them, paying partic-

ular attention to the point they exit from the unit

Start-Up Demo Installation

The PIXIE Driver comes loaded with a scrolling rainbow

demo sequence which will run and loop every time you

power the unit up so you can get your installation tested

straight away once you connect your LED pixel strips.

When any valid data is fed through the DMX or USB ports

it will override the demo playback sequence and keep lis-

tening to the data ports until you re-power the unit.

If you do not want the PIXIE driver to generate any output

when powered up, it can be done by erasing the pre-

loaded show or overwriting it with your own as further de-

scribed in the ENTTEC PRO Manager software section.

Power Budgeting

This section explains how many Dots or LEDs can be con-

nected to the unit. Please note that the 55W and 65W mod-

els have only one power supply (VCC) and the VCC0 output

will not be available.

Warning: (VCC and VCC0) cannot be connected in paral-

lel.

Pixel Strips and Pixel Tile

The strips/tile supported by the PIXIE driver are based on the

WS2811, WS2812 and WS2812B protocol.

The following table shows the maximum number of LEDs that

the driver can power when driven to the max. (RGB channels

on 100% or white).

300 RGB LEDs can be substituted for 240 RGBW LEDs in the

above table.

Pixel Dots

The dots supported by the PIXIE driver are based on the

WS2811, WS2812 and WS2812B protocol.

Regardless of the output power (65w or 130W) and output

voltage (12V or 24V), any PIXIE drivers can process 1024 DMX

channels. However, since Pixel Dots have much higher light

output compared to Pixel strip, this leads to the higher power

consumption.

This limits the number of dots that a driver can control, and

can be calculated by: dividing the total output of driver with

the output of each dot. For example,

This calculation can also be used to calculate how many PIXIE

drivers will suit your application when one driver is not

enough.

Warning: Overloading the outputs could cause the driver

and the connected strips to malfunction or flicker.

Status LED

The Pixie driver comes with two LED indicators located in the

front panel.

Power

Source

73540(55W)

73541(110W)

VCC

300 RGB LEDs/2 Tiles

VCC0

Unused

300 RGB LEDs/2 Tiles

TOTAL:

300 RGB LEDs/2 Tiles

600 RGB LEDs/4 Tiles

Item

Value

Pixel Dot

8PDOT1-CF rated at 0.6w/dot

PIXIE Driver

73453 12V 130w

Max quantity

130w/0.6w= 216pcs

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

The orange LED indicates that the internal power supply is

working properly and the unit is ready to operate and sup-

ply power to the strips. If the LED is OFF and you have al-

ready connected the mains cable to a working wall outlet,

it means that there is a problem in the unit. In such case

please contact ENTTEC support.

The green LED indicates the PIXIE status and should be

constantly flashing. Please refer to the following table for

information about current operating status:

Flashing Frequency

Unit Status

Constant on

Overheating/Error

0.5 Hz

Unit is running normally

2 Hz

Show is playing

8 Hz

Receiving data from DMX

25 Hz

Receiving data from USB

Operation Modes

The PIXIE Driver can drive LED strips in three ways: DMX

mode, Playback mode and additionally sequences can be

sent through USB. It is only possible to use one mode at a

time and the one with higher precedence will override the

others. A general explanation of all the modes is made in

this chapter and you can find further information on how

to use and configure the settings in the ENTTEC Pro Man-

ager software section.

USB

The USB 2.0 port is mainly used to configure the unit and

download new shows. It also allows sequences to be run

through the free application as described in the Pro Man-

ager software section.

When running the sequences all other modes will be over-

ridden by the USB port as it has the highest precedence.

DMX mode

When data is fed through the DMX ports and there is no

active USB sequence, this will be reflected on the strips

outputs D1 and D2.

By default the data coming from DMX1 connector will be sent

to the beginning of the strips (section 1) through D1 and D2

outputs and the data coming from DMX2 will be sent to sec-

tion 2 through both outputs.

The full DMX LED strip update message format is shown be-

low for RGB Pixel Tape. If the DMX message has less than 510

slots other than the start code, the data for missing slots will

be zero.

Size In

Bytes

RGB Tape DMX Description

Must be 0 or frame will be ignored since it is not

DMX.

R1, G1, B1. 8 bit intensity of each color of first

LED pixel.

R2, G2, B2. 8 bit intensity of each color of second

LED pixel.

...

…

R170, G170, B170. 8 bit intensity of each color of

last LED pixel.

Unused.

The full DMX LED strip update message format is shown be-

low for RGBW Pixel Tape. Full 512 DMX slots are used when

Pixie driver is in RGBW modes.

Size In

Bytes

RGBW Tape DMX Description

Must be 0 or frame will be ignored since it is not

DMX.

R1, G1, B1, W1. 8 bit intensity of each color of

first LED pixel.

R2, G2, B2, W2 8 bit intensity of each color of

second LED pixel.

...

…

R128, G128, B128, W128. 8 bit intensity of each

color of last LED pixel.

Playback mode

Trigger the stored show from the Pro Manager software or by

configuring the PIXIE to start playing it on power up.

USB

DMX

PLAYBACK

Input Data

Precedence

Highest

Middle

Lowest

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

The PIXIE driver comes with a pre-loaded scrolling rainbow

sequence which will playback and loop forever on power

up. More sequences can be recorded or loaded using PRO-

Manager App. The maximum length of the sequence de-

pends on the recording parameters.

E.g. The shortest possible show with 510 channels at 40

frames per second, will be 25 seconds. If the show has a

repetitive nature you could also get it to loop-back forever.

Remember that any data coming from DMX or USB ports

will override the playback mode.

Reference Design

PIXIE driver supports any kind of DMX output device.

Here is a reference diagram of connections.

PRO-MANAGER

ENTTEC provides a free cross-platform (Windows & Mac only)

application to configure, test and update the PIXIE. It also al-

lows the user to record an Art-net show into the memory and

set-up the standalone mode. The application is available for

Windows or Mac from the ENTTEC website.

When connected by usb, it should be correctly identified as

ENTTEC PIXIE Driver by your computer. Please install and run

PRO-Manager with the Pixie driver connected.

“Devices” Tab

From the PRO Manager Home page, you can click the “Find

Devices” button to search for ENTTEC devices connected to

your computer. Once it finds it, please select the PIXIE from

the selection box to start communication.

Once selected, you will see all the device information on the

Home Page, from here you can configure Settings and up-

date the firmware on the PIXIE.

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

Firmware Update

Use the latest firmware file meant for PIXIE driver available

on the ENTTEC website (www.enttec.com/pixie) and upload

it using the upload button (“Choose File” - as per Chrome

browser).

After selecting the correct file, click on the Update Firm-

ware button and let the update proceed.

Once finished, the page will automatically refresh, and de-

vice information will be updated to reflect the updated

firmware.

Pixie Settings

DMX Personality

Personality options decide the flow of DMX.

Personality1: Both outputs (D1 & D2) are mapped to-

gether to both DMX inputs. DMX1 drives section1 and

DMX2 drives section2 of both the outputs.

Personality2: DMX1 is mapped to D1 only, and DMX2 is

mapped to D2 only.

Additional setting for Personality2, allows the physical LED

pixels to be grouped onto desired number of DMX pixels.

LED Strip protocol

Allows compatibility amongst the supported protocols

(WS2811, WS2812, and WS2812B). Please check your strip

to see which protocol it supports.

Run show on DMX loss

If standalone show is programmed onto Pixie, and this option

is set to Yes and, if no DMX input is received, the show will be

played back. (3 seconds timeout for DMX input)

Pixel Ordering

Allows the order of Pixel mapping to be changed on the Pixie,

usually to conform to the pixel ordering of the LED. This set-

ting applies to all input data sources: DMX, USB, and show

replay.

The default ordering assumes that both the DMX input and

the led strip outputs are in RGB order.

RGB Ordering modes will map every Pixel to 3 DMX Slots.

RGBW Ordering modes will map every Pixel to 4 DMX Slots.

For example, to use ENTTEC RGBW Pixel Tape with your Pixie

driver, you will set the ordering to GRBW.

“SEND” Tab

It is possible to send pre-defined testing sequences,

personalized data or Art-Net packets coming from any

external source to your strips using the tools provided in this

window.

Select one out of the three available sources: “Test Patterns”,

“Live Art-net” or “From Faders”. Then select the Output con-

figuration depending on your particular wiring need.

The Test Patterns mode will start sending predefined se-

quences to your strips once you select the desired one from

the drop down.

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

The Live Art-Net section will allow the user to send any in-

coming valid Art-Net data straight to the pixel strips whilst

the pro manager is running and a USB cable is connected.

Please select the matching start universe and make sure

the Art-net data is being sent to your computer IP address

or broadcasted.

PRO-Manager will show the mapping from universe to sec-

tions on each output, based on your selections.

Closing or changing the Send window, will stop Art-Net to

Pixie send, PRO-Manager only sends to Pixie while on this

page.

Finally, data can be sent to any particular pixel by using

the channel faders which allow you to adjust the intensity

of any desired LED on the strip.

“Standalone” Tab

Standalone mode allows you to record (and playback)

shows via Art-Net input to PIXIE memory. The duration of

the recording depends on the configuration selected be-

fore recording. The recorder is smart enough to only rec-

ord changes in the frames, so as to accommodate as

many frames as possible.

The recording trigger feature will let you select a channel in

your show to start/stop the recording when it is greater than

a selected value. Once the configuration is all set, you can click

on “Record Art-Net” button to start recording the show.

The recording is saved to a file, and is only transferred to the

memory when recording is stopped by using the “Stop Re-

cording” button or driving the trigger channel to the right

value. Whilst recording, live data is sent to the strips, so you

can decide when to stop.

The recording can now be transferred to memory using “Write

to Memory” button and the upload to memory progress is

shown as it happens.

Once the show is uploaded to memory successfully, the page

is automatically refreshed to allow show control on the rec-

orded show.

The show can now be played and stopped using the controls

on this page. These controls will only be available, if there is a

show stored in memory.

You can also export and import recorded shows using the “Ex-

port Show to File” or “Import Show to PIXIE Driver” buttons.

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

Thermal Management

PIXIE driver (revB onwards) has an in-built thermal control

system. It constantly monitors the hardware’s internal tem-

perature and acts on the condition of overheating.

When internal temperature is higher than the limit (as

shown in the chart below), the thermal control system will

gradually lower the intensity of the connected strips or

dots to cool down the driver. Once the internal tempera-

ture is within the limit, the driver will resume its normal op-

eration.

Application Usage Examples

Example1: Drive 300 leds from 1 DMX Universe

Strip used: 8PL-60-F (5M of Smart Pixel Tape)

Pixie is setup to use DMX Personality2, with pixel group-

ing set to 2.

This setup allows you to map 450 channels of DMX to 300

LEDs (each RGB DMX address is mapped to 2 pixel LEDs)

Example2: Drive 300 leds from DMX1 & DMX2

Strip used: 8PL-60-F (5M of Smart Pixel Tape)

Pixie is setup to use DMX Personality1

This setup allows you to map DMX1 to the first section (170

leds) and DMX2 to the second section (remaining 130 leds) –

allowing upto 300 leds in total

Physical Dimensions

The unit is designed to fit the modular rack accessory (sold

separately) which allows stacking up to 8 units in a standard

19” rack using 3 standard rack mount units (3RU).

100

010 20 30 40 50

Load(%)

Amibient Temperature (° C)

Output Derating

Pixie User Manual

50478 (H)

www.enttec.com/pixie

ID: 24

Specifications

Due to continuous improvements and innovations of all

ENTTEC products, specifications and features are subject

to change without notice.

Item

Value

Input Voltage

110 –240V AC

Input Frequency

50/60Hz

Maximum Total

Output Power

55W and 110W versions (5V)

65W and 130W versions

(12/24V)

Maximum Current per

source (VCC or VCC0)

11 Amps

Maximum Current per

Pin (Screw Terminal)

10 Amps

Data Output Type

Serial WS2812 & WS2812B

supported

Data Output Channels

Control Input

DMX512

Show Recording

From Art-Net using Pro

Manager software

Show upload

Through USB port

Cooling Method

Smart Fan (revB onwards)

Operating Ambient

Temperature

0 - 40° C

Connectors

2x 5-Pin Male XLR for DMX

input

1x Double layer 6-Pin screw

terminal

1x 3-Pin IEC C14 Male Socket

10Amps

IP Rating

IP20

Ordering Information

Part Number

Description

73541

PIXIE DRIVER 5V (55 WATTS)

73540

PIXIE DRIVER 5V (110 WATTS)

73542

PIXIE DRIVER 12V (65 WATTS)

73543

PIXIE DRIVER 12V (130 WATTS)

73547

PIXIE DRIVER 24V (65 WATTS)

73548

PIXIE DRIVER 24V (130 WATTS)

73545

PIXIELINKER (5V)

73550

8 WAY PIXIE RACK

73527

STACKABLE RACK ADAPTER PLATE

8PL144-2

144 LEDS/M RGB Pixel tape –2 Meter Roll

8PL30-F

30 LEDS/M RGB Pixel tape - 5 Meter Roll

8PL60-F

60 LEDS/M RGB Pixel tape - 5 Meter Roll

8PL144-1

144 LEDS/M RGB Pixel tape –1 Meter

8PL30-1

30 LEDS/M RGB Pixel tape –1 Meter

8PL60-1

60 LEDS/M RGB Pixel tape –1 Meter

8PX60-4

RGBW TAPE 60 LEDS/M –4 Meter Roll

8PX60-1

RGBW TAPE 60 LEDS/M- 1 Meter

8PDOT1-CF-10

30mm dia/3 RGB/125mm pitch/12V/Clear

Flat

8PDOT1-FD-10

30mm Dia/125mm pitch/12V/Frosted Dome

8PDOT2-FD

50mm Dia/105mm pitch/12V/ Frosted

Dome

8PDOT3-CD-10

120mm Dia /400mm pitch/12

RGB/24V/Clear Dome

8PDOT4-FD-10

100mm Dia/12 RGB /450mm

pitch/24V/Frosted Dome

8PDOT5-CF-10

40mm dia/6 RGB/95mm pitch/12V/Clear

Flat

Stackable Modular Rack (Accessory)

The modular rack (PN: 73550 - sold separately) allows up to 8

Pixie units to be stacked up using only 3 standard rack units

(3RU). The Rack also has an in-built fan at the rear side

Email: [email protected]om

Website: www.enttec.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Enttec Unità di controllo

Enttec

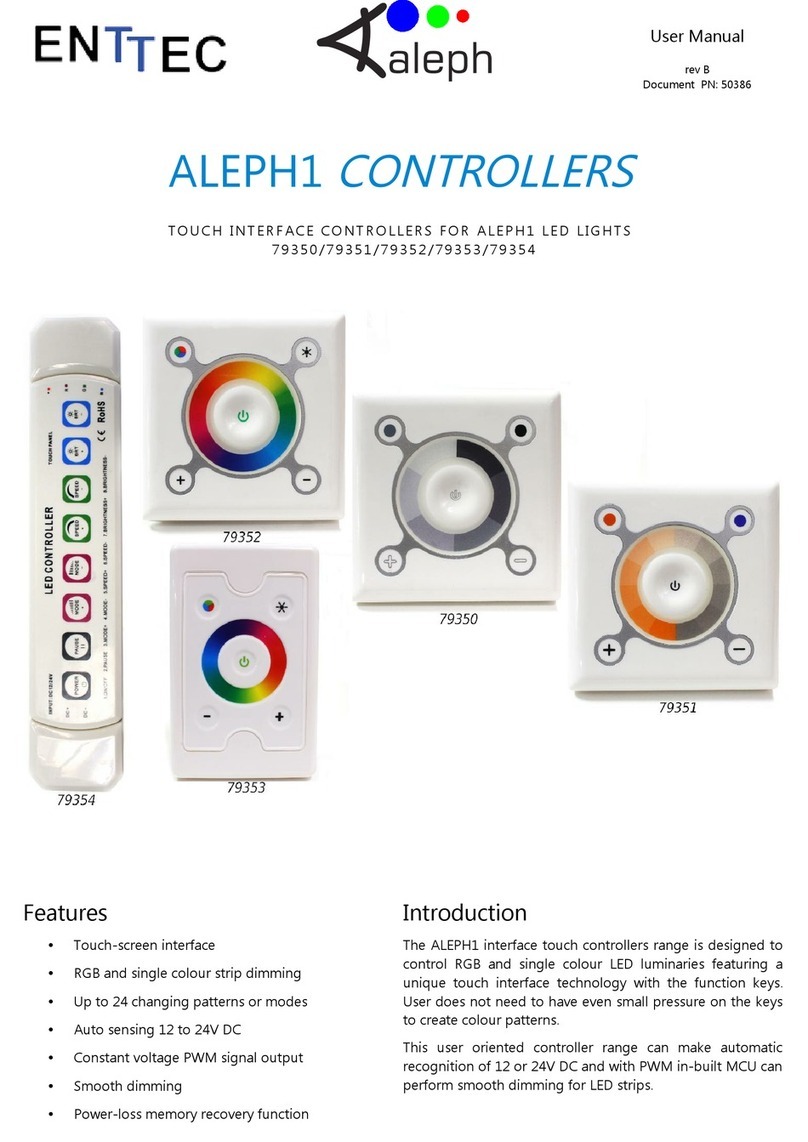

Enttec ALEPH1 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
