Episode CORE 3 Series Manuale utente

CONTINUED ON OTHER SIDE

CUTOUT TEMPLATE AND INSTALLATION GUIDE

ES-CORE-IC& IC-POINT

INTRODUCTION

Thank you for purchasing Episode® speakers. Visit our website for design recommendations and

speaker calculators.

NEW CONSTRUCTION INSTALL

Episode speaker installations can be simplified by using Episode pre-construction brackets (sold

separately). Install them prior to drywall to allow for precise placement of the speaker.

Secure the wiring within reach of the bracket for easy access.

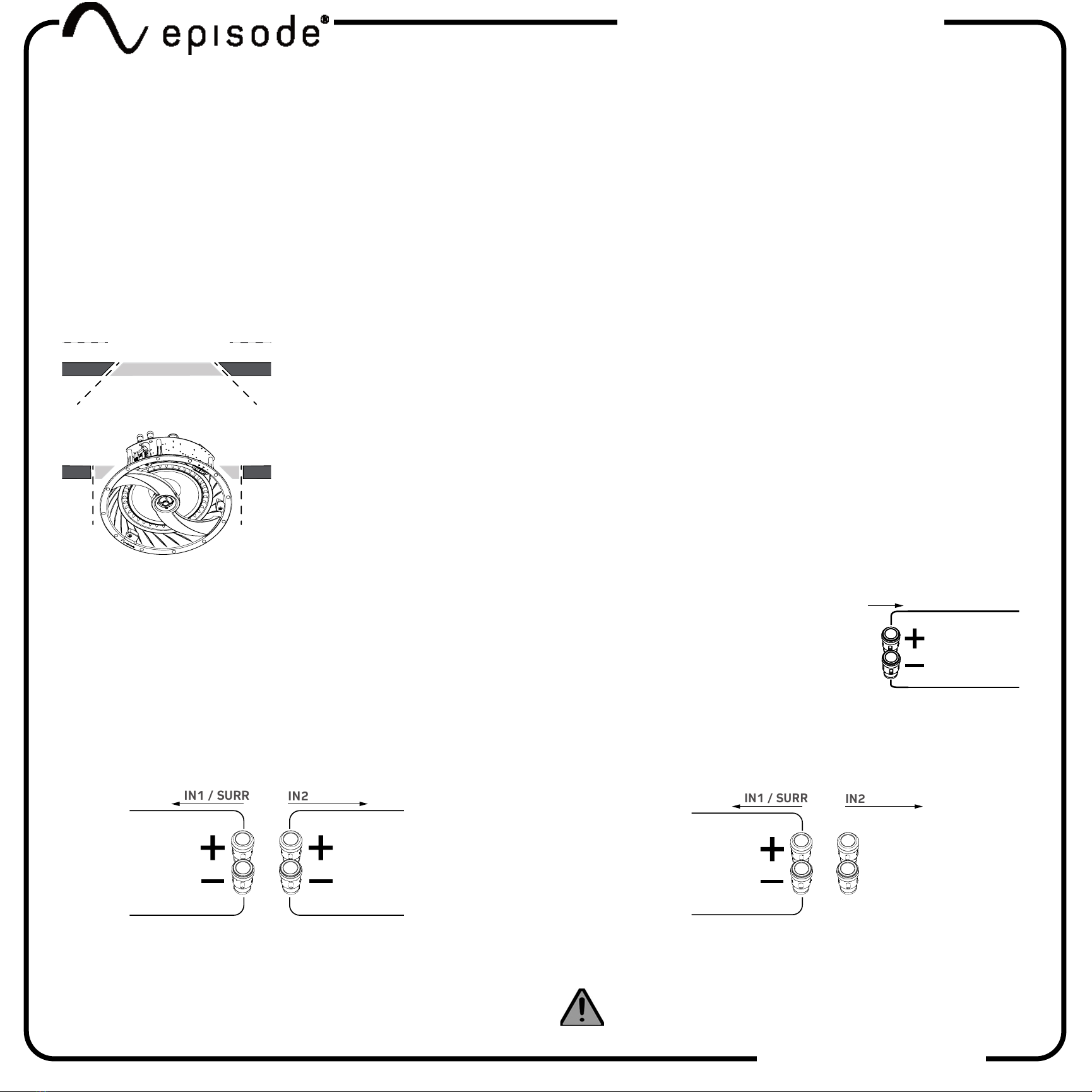

EXISTING CONSTRUCTION INSTALL

Make a cutout for the speaker using the supplied template. Allow space for

the bezel if installing near adjacent objects, or cut the hole in two steps as

shown below.

1. Cut the drywall at a 45° angle so that if the speaker is too close to

an obstruction, you can easily ‘plug’ the hole. This is known as a

“pumpkin cut.”

2. If there are no obstructions, cut the drywall again, this time at a

90° angle.

3. Insert the speaker into the cutout.

OBSTRUCTION

PLUG

CONNECT

Strip the insulation on each conductor approximately ¼" and insert into the speaker

terminals. Ensure no strands of wire protrude from the connectors.

Observe proper polarity for each speaker to the amplifier (+to +and –to –).

Dual Voice Coil / Surround (DVCS) Selector Switch (Select Models)

There are two options for DVCS (Dual Voice Coil / Surround) models, selected by using the selector switch

on the crossover PCB. DVC (default position) and SURR.

Amp

SINGLE VOICE COIL

For DVC installs, wire the left channel to either

of the two connections and wire the right

channel to the other.

IN1 / SURR

IN2

IN1 / SURR

IN2

For SURR installs, wire the surround channel to

In1/SURR.

Do not use stereo inputs while in surround

mode.

ES-CORE-IC & IC-POINT

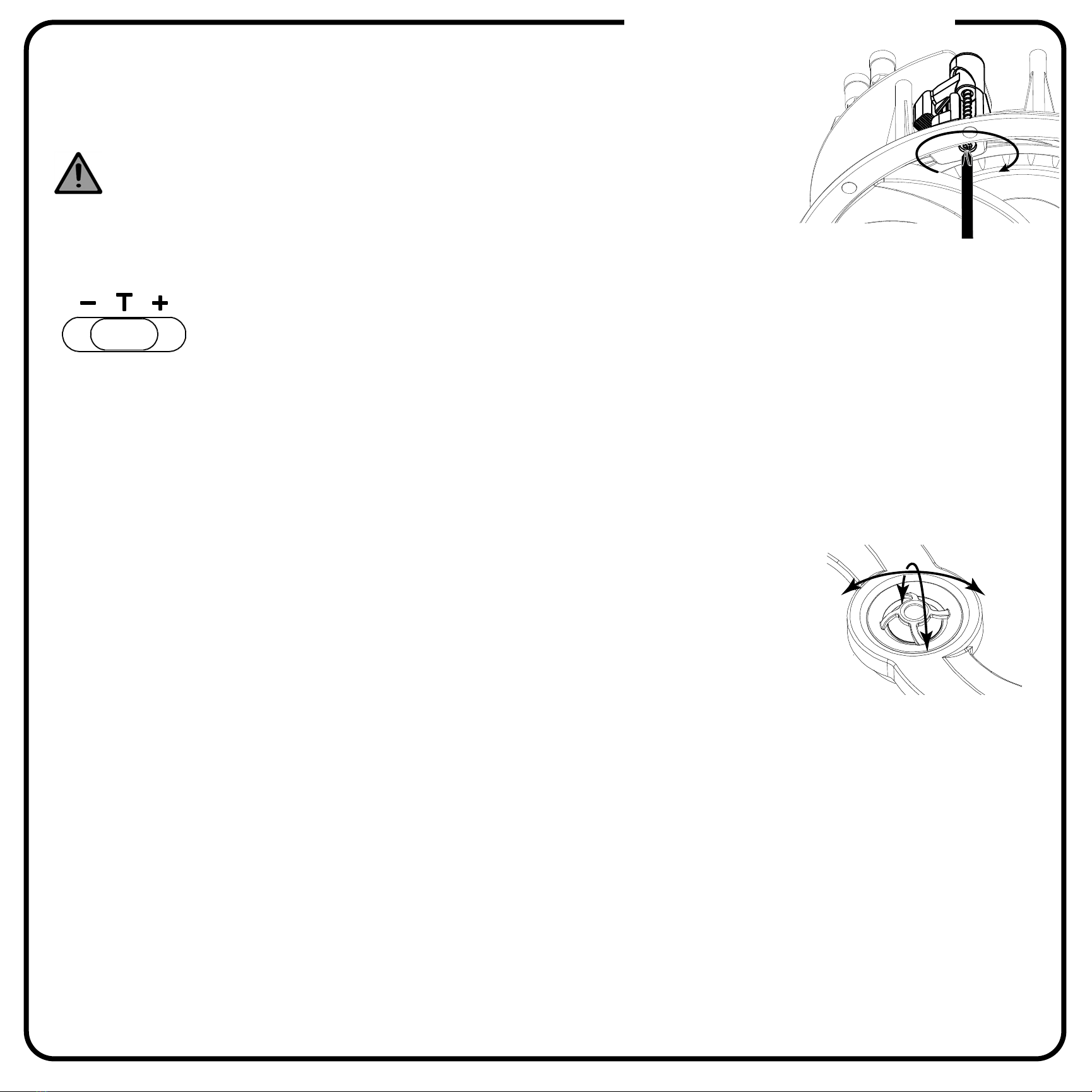

SECURE

Insert the speaker into the opening and tighten each of the three dog screws

to clamp the speaker against the wall or ceiling.

Tighten until you feel resistance but do not over tighten.

If using a drill / power screwdriver, use a low-torque setting.

FINE TUNE (SELECT MODELS)

Use the switch on the face of the speaker for sound adjustment. Switches can vary by

model.

Tweeter Switch: Select +, T, or –

• The default setting is T, meaning flat.

• In furnished rooms, we recommend +to increase response by +3dB.

• In more open spaces, we recommend –to decrease response by -3dB.

Pivoting Tweeter (Select Models)

The pivoting tweeter assembly can be directed to focus the sound where desired.

Two common practices are to:

• Point it directly at the listening area for a more directed sound source.

• Reflect if off hard surfaces for a more diffused sound field.

WARRANTY

Limited Warranty

Find details of this product’s Limited Warranty at snapav.com/warranty, or request a paper copy

from Customer Service at (866) 424-4489. Find other legal resources, such as regulatory notices and

patent information, at snapav.com/legal.

marks or trademarks of Wirepath Home Systems, LLC, dba “Control4” and/or dba “SnapAV” in the United States and/or other countries.

Episode is a registered trademark or trademark of Wirepath Home Systems, LLC. Other names and brands may be claimed as the

property of their respective owners. All specifications subject to change without notice.

200-ES-CORE-IC-A 21-05-04 TW
