EPOX EP-3VCA Manuale utente

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

December 20, 1999

EP-3VEP-3V

EP-3VCACA

CACA

A SocA Soc

A Sockk

ket 370 Pret 370 Pr

et 370 Pret 370 Pr

et 370 Processor based 4Xocessor based 4X

ocessor based 4Xocessor based 4X

ocessor based 4X AA

AGPGP

GPGP

mainboard (133/100/66MHz)mainboard (133/100/66MHz)

mainboard (133/100/66MHz)

SupporSuppor

Supports PC-133 SDRAM Modulets PC-133 SDRAM Module

ts PC-133 SDRAM Modulets PC-133 SDRAM Module

ts PC-133 SDRAM Module

EP-3VCA

User Notice

No part of this product, including the product and software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language

in any form without the express written permission of EPoX Computer Company

(hereinafter referred to as EPoX) except for documentation kept by the purchaser

for backup purposes.

We provide this manual “as is” without warranty of any kind, either expressed or

implied, including but not limited to the implied warranties or conditions of

merchantability or fitness for a particular purpose. In no event shall EPoX be liable

for any loss of profits, loss of business, loss of use or data, interruption of busi-

ness or for indirect, special incidental, or consequential damages of any kind, even

if EPoX has been advised of the possibility of such damages arising from any

defect or error in the manual or product. EPoX may revise this manual from time

to time without notice. For updated BIOS, drivers, or product release information

you may visit our websites at http://www.epox.com or http://www.epox.com.tw.

Products mentioned in this manual are mentioned for identification purposes only.

Product names appearing in this manual may or may not be registered trademarks

or copyrights of their respective companies. The product name and revision

number are both printed on the mainboard itself.

Handling Procedures

Static electricity can severely damage your equipment. Handle the EP-3VCA and

any other device in your system with extreme care and avoid unnecessary contact

with system components on the mainboard. Always work on an antistatic surface to

avoid possible damage to the mainboard from static discharge. Always have the

power supply unplugged and powered off when inserting and removing devices

within the computer chassis. EPoX assumes no responsibility for any damage to

the EP-3VCA mainboard that results from failure to follow instruction or failure to

observe safety precautions.

CAUTION

The EP-3VCA mainboard is subject to

damage by static electricity. Always

observe the handling procedures.

EP-3VCA

Technical Support Services

If you need additional information, help during installation or normal use of this

product, please contact your retailer. Your retailer will have the most current

information about your configuration. If your retailer cannot help, you may visit

our online technical support website and/or contact our support technicians at the

locations listed below.

Record your serial number before installing your EP-3VCA mainboard. (The serial

number is located near the ISA slots at the edge of the board.)

EP-3VCA serial number: ____________________________

Contacting Technical Support

EPoX technical support is working hard to answer all of your questions online.

From our website you can find answers to many common questions, drivers, BIOS

updates, tech notes, and important technical bulletins. If you are still unable to

locate the solution you are seeking, you always have the option to contact our

support technicians directly.

North American website (English language)

http://www.epox.com

[email protected]

European website (Multi-language)

http://www.epox.nl

[email protected]

Taiwan website (Chinese language)

http://www.epox.com.tw

[email protected]

Thank you for using EPoX mainboards!

EP-3VCA

Table of Contents

Section 1 Introduction

Components Checklist ........................................1-1

Overview

EP-3VCA Form-Factor ....................................... 1-2

I/O Shield Connector ..........................................1-3

Power-On/Off (Remote).....................................1-3

System Block Diagram........................................1-4

Section 2 Features

EP-3VCA Features .............................................. 2-1

Section 3 Installation

EP-3VCA Detailed Layout..................................3-2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings ................................................... 3-5

System Memory Configuration ..........................3-6

Device Connectors ..............................................3-8

External Modem Ring-in Power ON and

Keyboard Power ON Function (KBPO) ............. 3-10

Section 4 Award BIOS Setup

BIOS Instructions ................................................ 4-1

Standard CMOS Setup .........................................4-2

BIOS Features Setup ........................................... 4-3

Chipset Features Setup........................................4-8

Power Management Setup...................................4-11

PNP/PCI Configuration ...................................... 4-14

Load Setup Defaults ............................................4-16

Integrated Peripherals .........................................4-16

Sensor and CPU Speed Setup..............................4-20

Change Supervisor or User Password.................4-22

IDE HDD Auto Detection ...................................4-23

Page

EP-3VCA

Save & Exit Setup ................................................ 4-25

Exit Without Saving .............................................4-25

Appendix

Appendix A

Memory Map ....................................................... A-1

I/O Map ................................................................A-1

Timer & DMA Channels Map .............................A-2

Interrupt Map ....................................................... A-2

RTC & CMOS RAM Map ....................................A-3

Appendix B

POST Codes.........................................................A-5

Unexpected Errors...............................................A-8

Appendix C

Load Setup Defaults ............................................A-9

Appendix D

GHOST 5.1 Quick User’s Guide......................... A-11

EP-3VCA

Page Left Blank

IntroductionEP-3VCA

Page 1-1

Section 1

INTRODUCTION

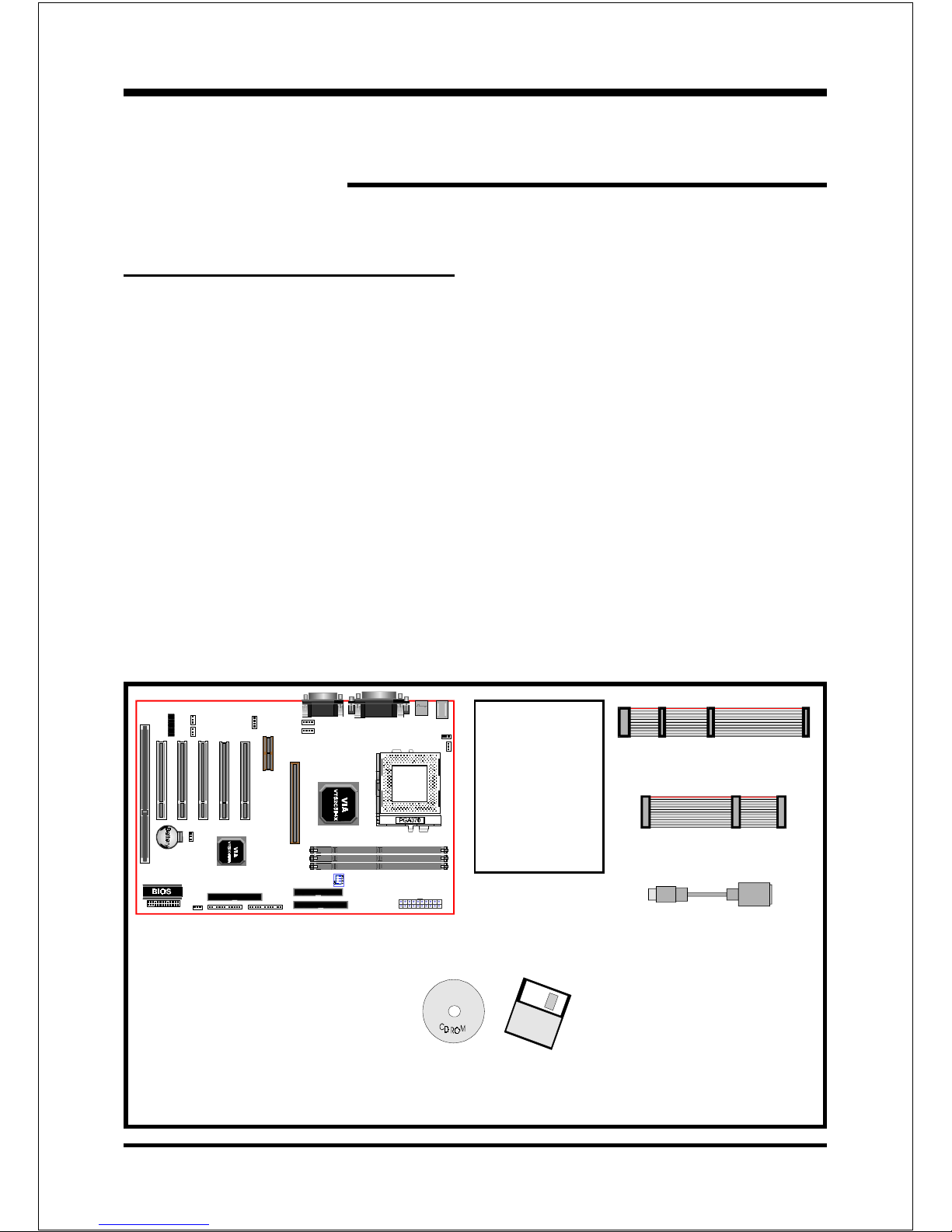

Components Checklist

üü

üA. (1) EP-3VCA mainboard

üü

üB. (1) EP-3VCA user’s manual

üü

üC. (1) Floppy ribbon cable

üü

üD. (1) ATA-66 Hard drive ribbon cable

E. (1) PS/2 to AT keyboard connector adapter (optional)

üü

üF. (1) Driver and utility

USER’S

MANUAL

EP-3VCA

Introduction EP-3VCA

Page 1-2

EP-3VCA Form-Factor

The EP-3VCA is designed with ATX form factor - the new industry standard of

chassis. ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees

within the chassis enclosure and a new mounting configuration for the power

supply. With these changes the processor is relocated away from the expansion

slots, allowing them all to hold full length add-in cards. ATX defines a double

height aperture to the rear of the chassis which can be used to host a wide range of

onboard I/O. Only the size and position of this aperture is defined, allowing PC

manufacturers to add new I/O features (e.g.; TV input, TV output, joystick, modem,

LAN, etc.) to systems. This will help systems integrators differentiate their

products in the marketplace, and better meet your needs.

• By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors material cost of cables and add-in cards is

reduced.

• By reducing the number of cables and components in the system, manufactur-

ing time and inventory holding costs are reduced and reliability will increase.

• By using an optimized power supply, it's possible to reduce cooling costs and

lower acoustical noise. An ATX power supply, which has a side-mounted fan,

allows direct cooling of the processor and add-in cards making a secondary

fan or active heatsink unnecessary in most system applications.

Full length

slots

Expandable I/O

5 1/4"

Bay

3 1/2"

Bay

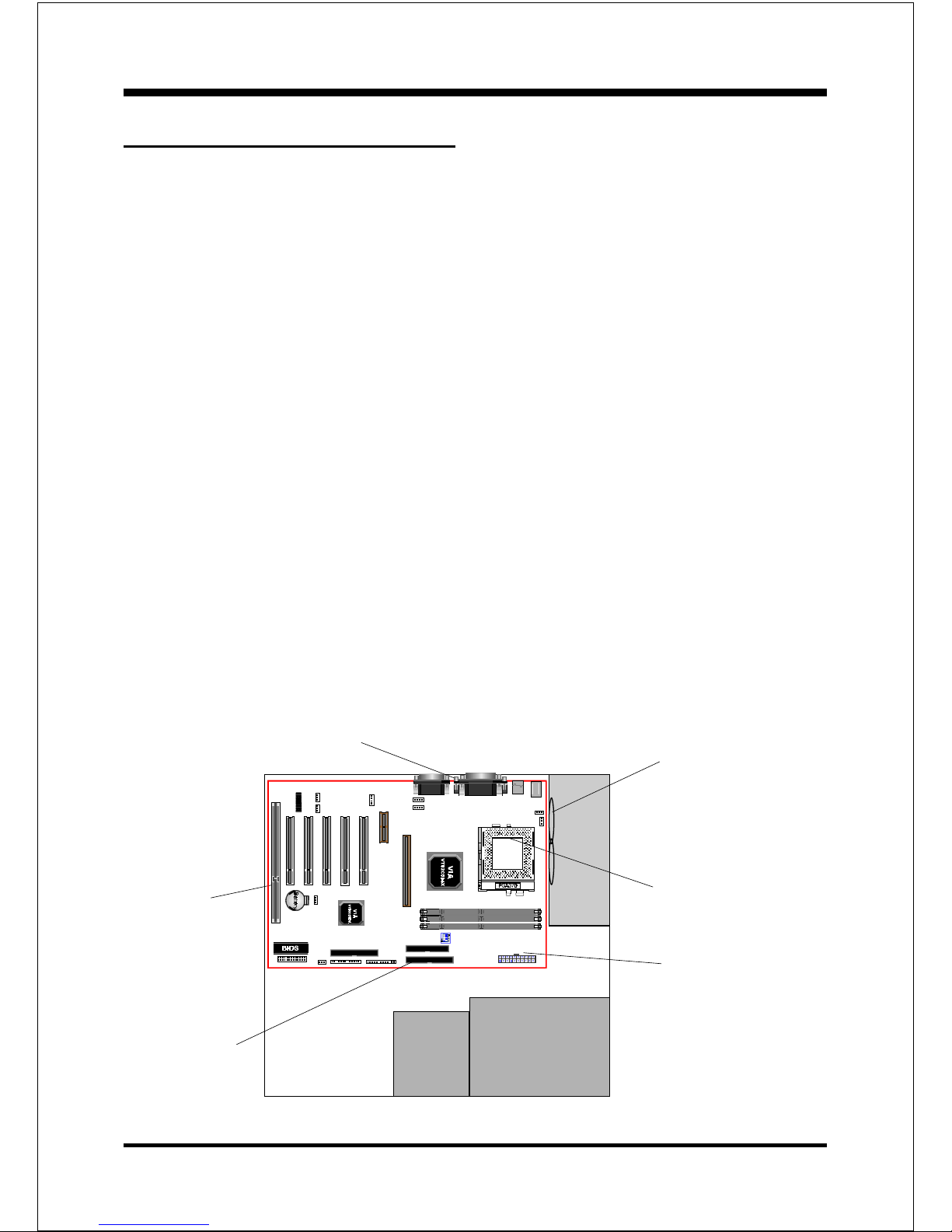

Figure 2: Summary of ATX chassis features

CPU located near

Power Supply

Single chassis

fan for system

ATX

Power

Supply

ATX power connec-

tor

Floppy / IDE

connectors

close to

peripheral

bays

IntroductionEP-3VCA

Page 1-3

Power-On/Off (Remote)

The EP-3VCA has a single 20-pin connector for ATX power supplies. For ATX

power supplies that support the Remote On/Off feature, this should be connected

to the systems front panel for system Power On/Off button. The systems power

On/Off button should be a momentary button that is normally open.

The EP-3VCA has been designed with “Soft Off" functions. You can turn Off the

system from one of two sources: The first is the front panel Power On/Off

button, and the other is the "Soft Off" function (coming from the EP-3VCA’s

onboard circuit controller) that can be controlled by the operating system.

Windows 95/98 will control this when the user clicks that they are ready to

Shutdown the system.

Figure 4: Simple ATX Power ON/OFF Controller

J 3

ATX

POWERSUPPLY

Case (chassis) Power

ON/OFF button (J 3)

I/O Shield Connector

The EP-3VCA is equipped with an I/O back panel. Please use the appropriate I/O

shield (figure 3).

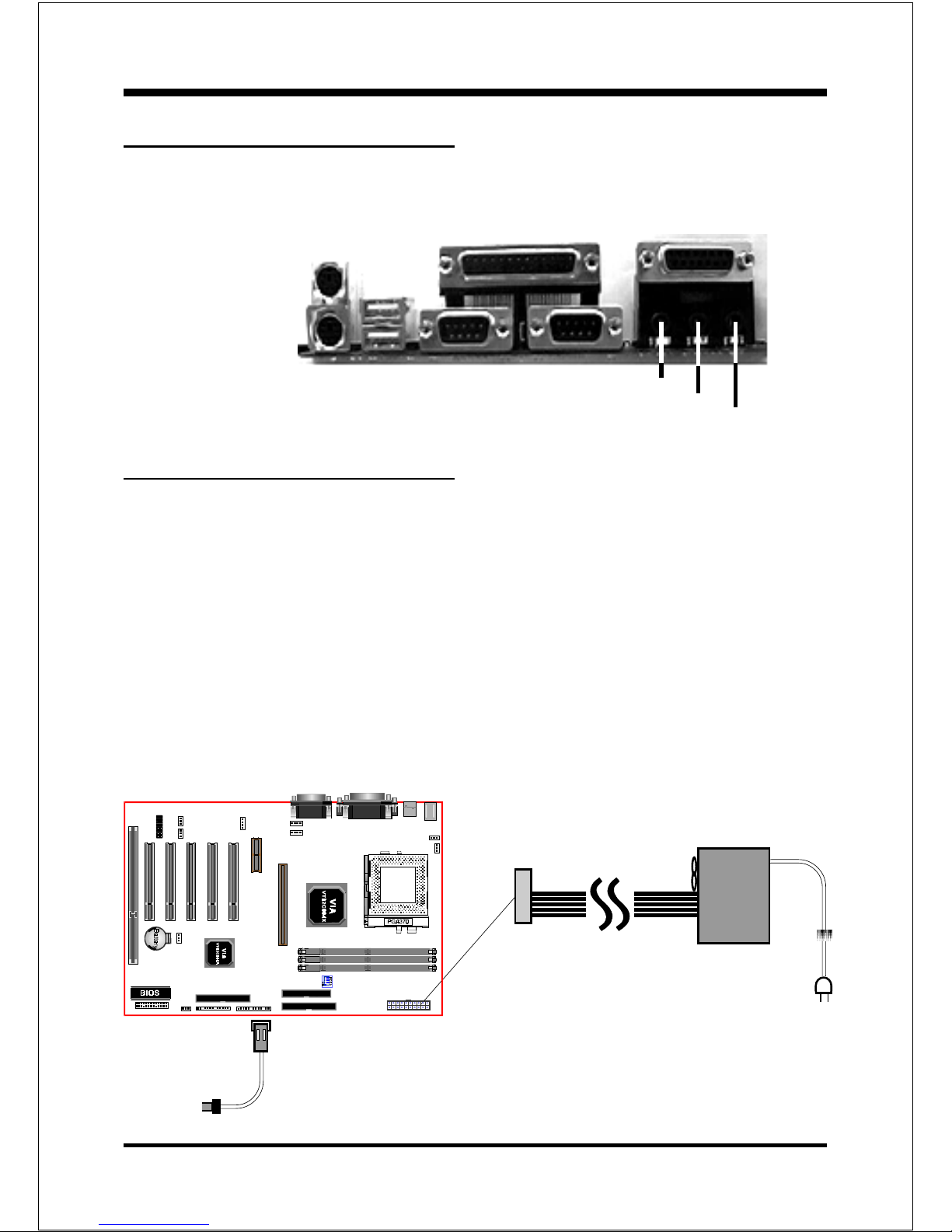

Figure 3: I/O back panel layout

PS/2 Mouse

PS/2

KEYBOARD

USB port

COM1 COM2

parallel port

Speaker

Line_in

MIC

Joystick/Midi

Introduction EP-3VCA

Page 1-4

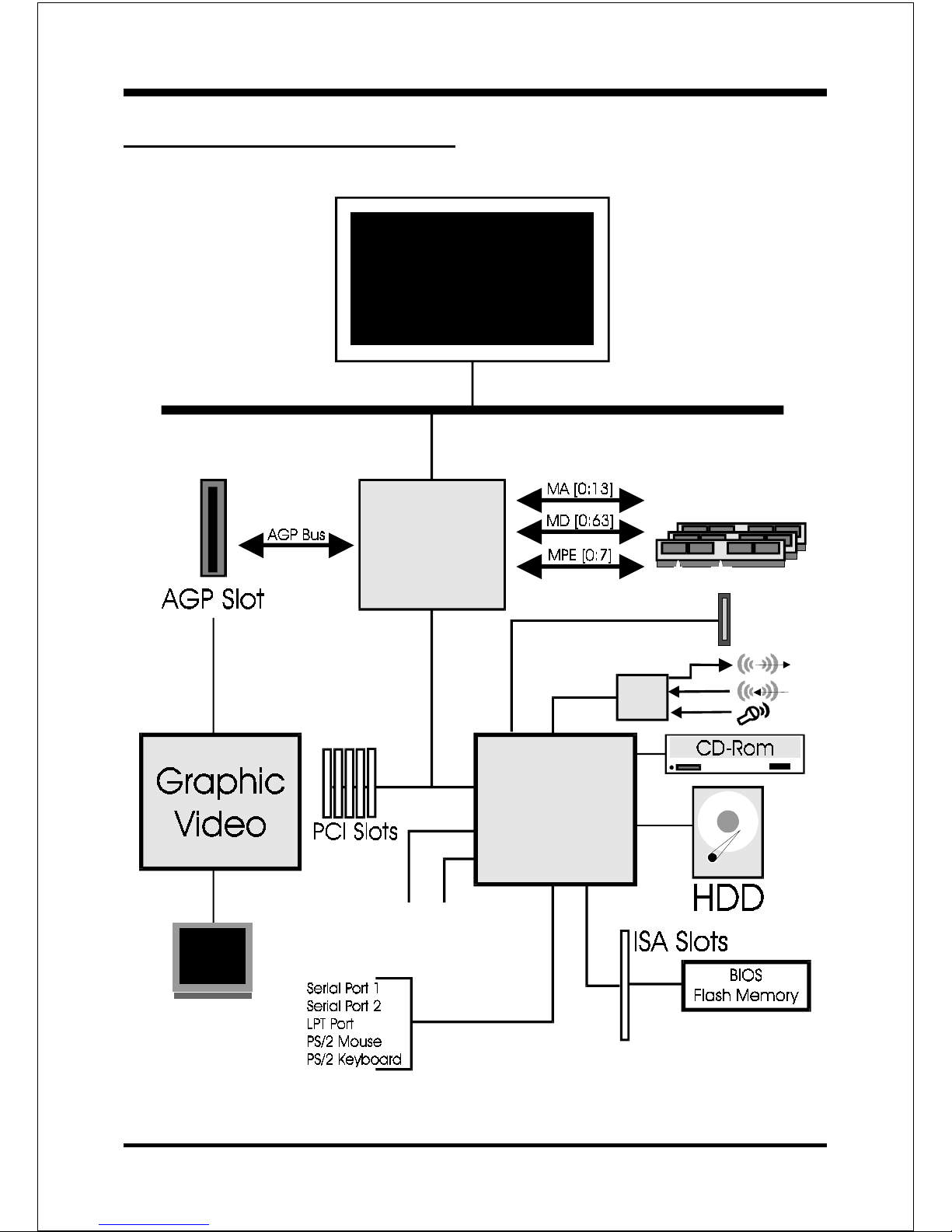

Figure 5: System Block Diagram

System Block Diagram

PAC

PCI Bridge

and memory

controller

VT82C694X

133/100/66MHz

66MHz

Socket 370

Processor

VT82C686A

I/O Bridge

USB 0,1 USB 2,3

AMR Slot
