Table of Contents

Section 1 Introduction

Components Checklist ........................................ 1-1

Overview

AMD DuronTM & AthlonTM Processors ............. 1-2

Accelerated raphics Port .................................. 1-3

Ultra ATA66/100/133 ......................................... 1-3

Hardware Monitoring .......................................... 1-3

Mainboard Form-Factor ...................................... 1-4

I/O Shield Connector .......................................... 1-5

Power-On/Off (Remote) ..................................... 1-5

System Block Diagram........................................ 1-6

Section 2 Features

Mainboard Features ............................................. 2-1

Section 3 Installation

Mainboard Detailed Layout ................................. 3-2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings ................................................... 3-5

System Memory Configuration .......................... 3-6

Device Connectors .............................................. 3-8

STR (Suspend To RAM) Function ....................... 3-12

CPU Overheating Protection .............................. 3-13

Section 4 Award BIOS Setup

BIOS Instructions................................................. 4-1

Standard CMOS Setup ......................................... 4-2

Advanced BIOS Features..................................... 4-3

Page

Advanced Chipset Features ................................. 4-8

Integrated Peripherals ......................................... 4-13

Power Management Setup ................................... 4-19

PNP/PCI Configuration Setup ............................ 4-24

PC Health Status ..................................................4-27

Frequency/Voltage Control ................................. 4-29

Defaults Menu ..................................................... 4-32

Supervisor/User Password Setting ..................... 4-33

Exit Selecting ...................................................... 4-34

Section 5 Driver Installation

Easy Driver Installation ....................................... 5-1

ALC650 Configuration Setup ............................. 5-2

Appendi Appendi A

Avance Media Player Users uide .......................... A-1

Appendi B

Update Your System BIOS .................................. B-1

Appendi C

EEPROM BIOS Remover ................................... C-1

Appendi D

HOST 7 Quick Users uide (Optional) .............. D-1

Introduction

Page 1-1

Section 1

INTRODUCTION

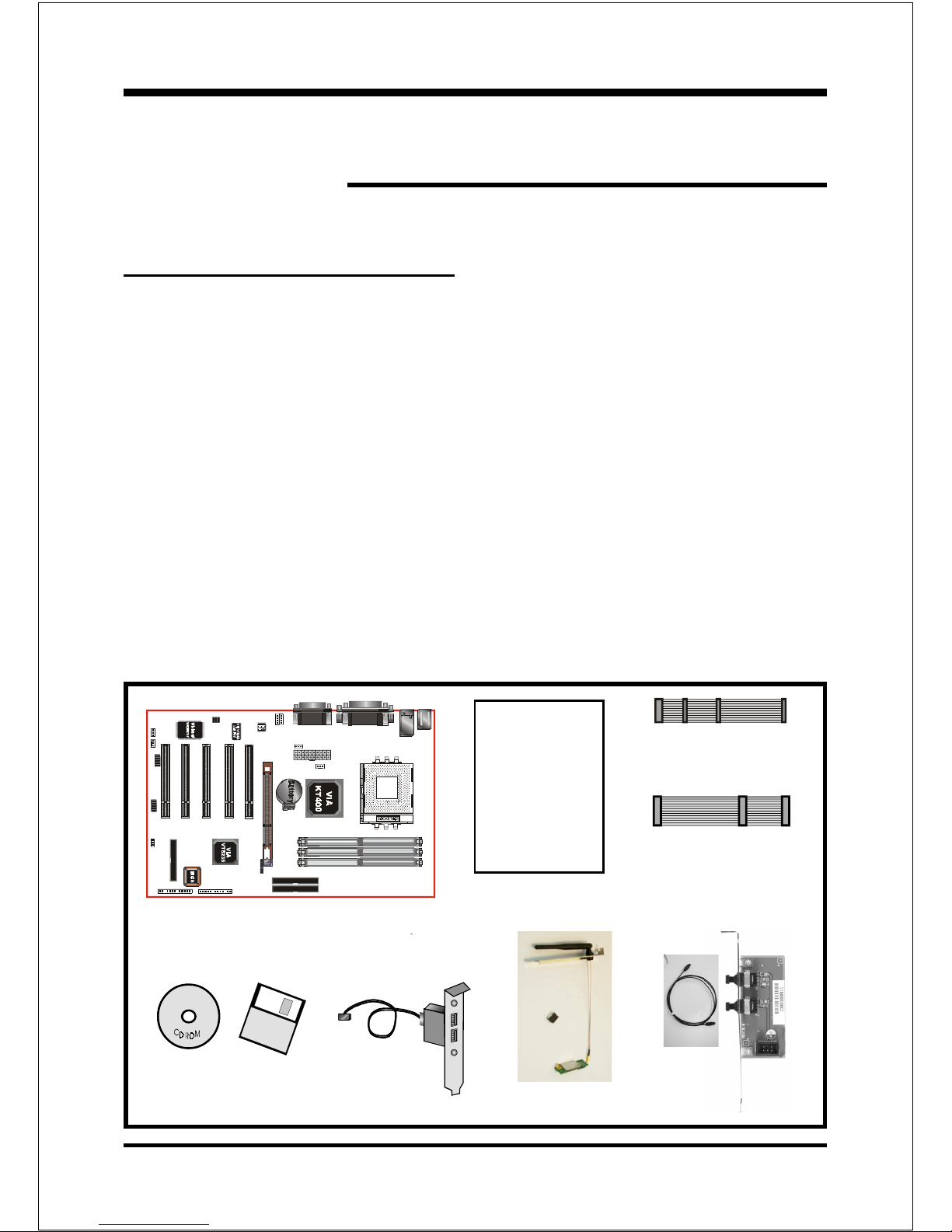

Package Contents

USERS

MANUAL

Contents

A. (1) Mainboard

B. (1) Users manual

C. (1) Floppy ribbon cable

D. (1) ATA-66 100 Hard drive ribbon

cable

E. (1) Driver and utility

Optional Item

F. (1) USB2.0 Cable

G. (1)Bluetooth Module

H. (1) SPD650 card

Introduction

Page 1-2

Overview

AMD DuronTM & AthlonTM Processors

The AMD AthlonTM is a seventh-generation micro architecture with an integrated

L2 cache, which is powerful enough to support the bandwidth requirements of a

large range of applications, hardware, graphics, and memory technologies. These

processors implement advanced design techniques such as:

!"Socket A (PGA 462)

!"200 266 333MHz system interface based on the Alpha EV6 bus protocol.

!"Three out-of-order, superscalar, pipelined Multimedia Units.

!"Three out-of-order, superscaler, pipelined Integer Units.

!"Fixed-sized internal instruction formats (MacroOPs).

!"72-entry Instruction Control Units.

!"AMD enhanced 3DNow! technology

!"L1 and L2 caches.

!"Dynamic branch prediction.

Socket A is the name for AMDs new socketed interface designed to support both

AMD DuronTM and AMD AthlonTM processors. This innovation is made possible

by integrating the L2 cache memory on chip with the processor. Socket A will

help enable smaller enclosures, and ultimately result in a wider variety of solu-

tions in the market.

The AMD DuronTM & AthlonTM processors in the Socket A format continue to

deliver the ultimate performance for cutting-edge applications. Both bring to

desktop systems running industry-standard x86 software superscalar RISC

performance. Being provided in the Socket A format they are the worlds most

powerful x86 processors. They easily deliver the highest integer, floating-point,

and 3D multimedia performance for applications running on x86 platforms

around.

The AMD DuronTM processor is derived from the AMD AthlonTM processor core.

It features full-speed, on-chip cache memory, a 200 266 333MHz front side

Introduction

Page 1-3

system bus, and enhanced 3DNow! technology. Although both processors are

related, there are key differences. The AMD AthlonTM processor is targeted at the

performance segment, and as such will have more cache memory and higher clock

speeds.

Accelerated Graphics Port (AGP or A.G.P.)

Typically, 3D graphics rendering requires a tremendous amount of memory, and

demands ever increasing throughput speed as well. As 3D products for the

personal computer become more and more popular, these demands will only

increase. This will cause a rise in costs for both end users and manufacturers.

Lowering these costs as well as improving performance is the primary motivation

behind AGP. By providing a massive increase in the bandwidth available between

the video card and the processor, it will assist in relieving some of these pressures

for quite sometime.

The board provides the AGP 3.0 interface. The AGP interface can support

external AGP slot (1.5V only) with AGP 8X 4X 2X and Fast Write Transactions.

The AGP Interface Specification revision 3.0 enhances the functionality of the

original AGP Interface Specification by allowing 8X data transfers (8 data

samples per clock) and 1.5 volt (Power supply) operation. Supports Maximum

AGP interface bandwidth 2.1GB s. (1.5 volt AGP Card supports only).

Ultra ATA/66/100/133

The board provides Ultra ATA 66 100 133 Bus Master IDE controller, that

support Ultra ATA 66 100 133 protocols, perfect for such demanding applications

as real-time video, multimedia, and high performance operating system. A new

IDE cable is required for Ultra ATA 66 100 133. This cable is an 80 conductor

cable; however the connectors are, of course, backwards compatible with ATA 33.

Hardware Monitoring

Hardware monitoring allows you to monitor various aspects of your systems

operations and status. The features include CPU temperature, voltage and RPM of

fan.

Introduction

Page 1-4

Mainboard Form-Factor

The board is designed with ATX form factor - the new industry standard of chassis.

ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees within the

chassis enclosure and a new mounting configuration for the power supply. With

these changes the processor is relocated away from the expansion slots, allowing

them all to hold full length add-in cards. ATX defines a double height aperture to

the rear of the chassis which can be used to host a wide range of onboard I O.

Only the size and position of this aperture is defined, allowing PC manufacturers

to add new I O features (e.g.; TV input, TV output, joystick, modem, LAN, etc.) to

systems. This will help systems integrators differentiate their products in the

marketplace, and better meet your needs.

 Smaller size promotes a smaller system size.

 I O shield does not need to be retooled in an ATX 2.01 or later. The

mainboard should be used in an ATX 2.01 (or later) compliant case.

 A smaller power supply can be used. High integration on mainboard

reduces the system cost.

PCI slots

Expandable I O

5 1/4"

Bay

3 1/2"

Bay

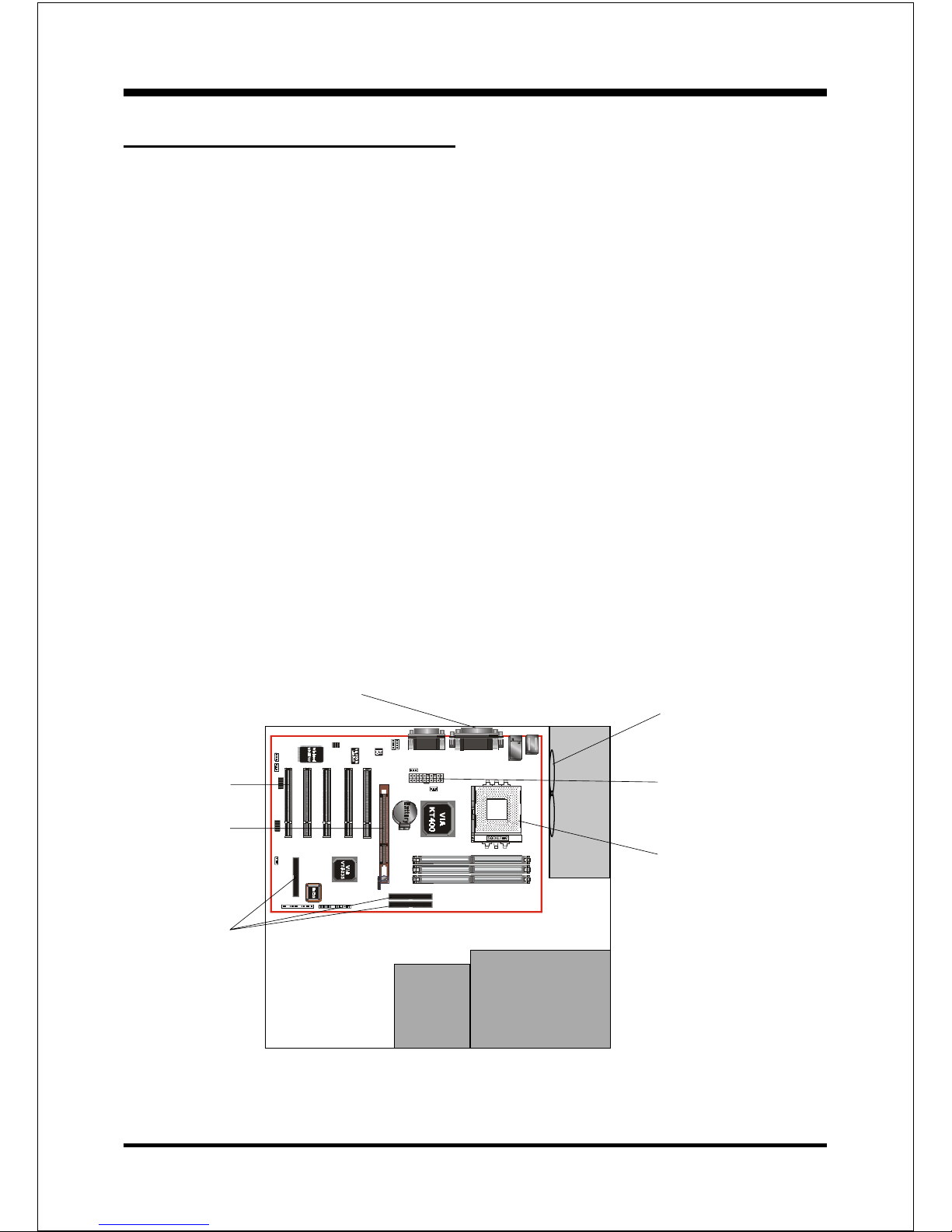

Figure 2: Summary of ATX chassis features

CPU

Single chassis

fan for system

ATX

Power

Supply

ATX power connec-

tor

Floppy IDE

connectors

AGP slot

Introduction

Page 1-5

Power-On/Off (Remote)

The board has a single 20-pin connector for ATX power supplies. For ATX power

supplies that support the Remote On Off feature, this should be connected to the

systems front panel for system Power On Off button. The systems power On Off

button should be a momentary button that is normally open.

The board has been designed with Soft Off" function. You can turn Off the system

from one of two sources: The first is the front panel Power On Off button, and

the other is the "Soft Off" function (coming from the M Bs onboard circuit

controller) that can be controlled by the operating system such asWindows® 95

98 SE ME or Windows®2000.

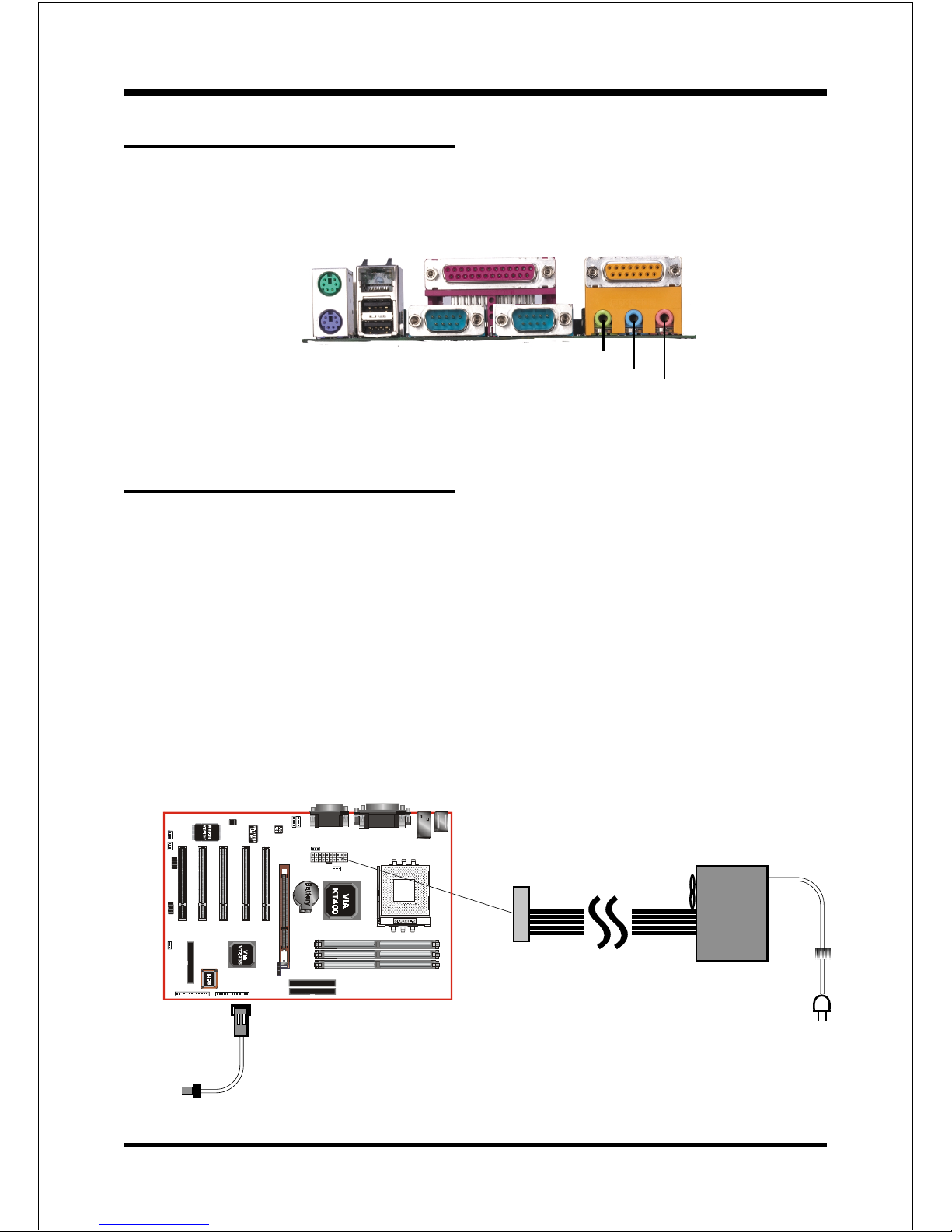

Figure 4: Simple ATX Power ON/OFF Co troller

ATX

POWER SUPPLY

I/O Shield Connector

The board is equipped with an I O back panel. Please use the appropriate I O

shield (figure 3).

Figure 3: I/O ports

J 3

Case (chassis) Power ON/OFF butto (J 3)

Mic_in

USB 2.0

ports Line_out

Line_in

PS/2 Mouse

PS/2 Keyboard

COM1

Parallel Port

J45 LAN

(Optional) Joystick/Midi port

COM2

Introduction

Page 1-6

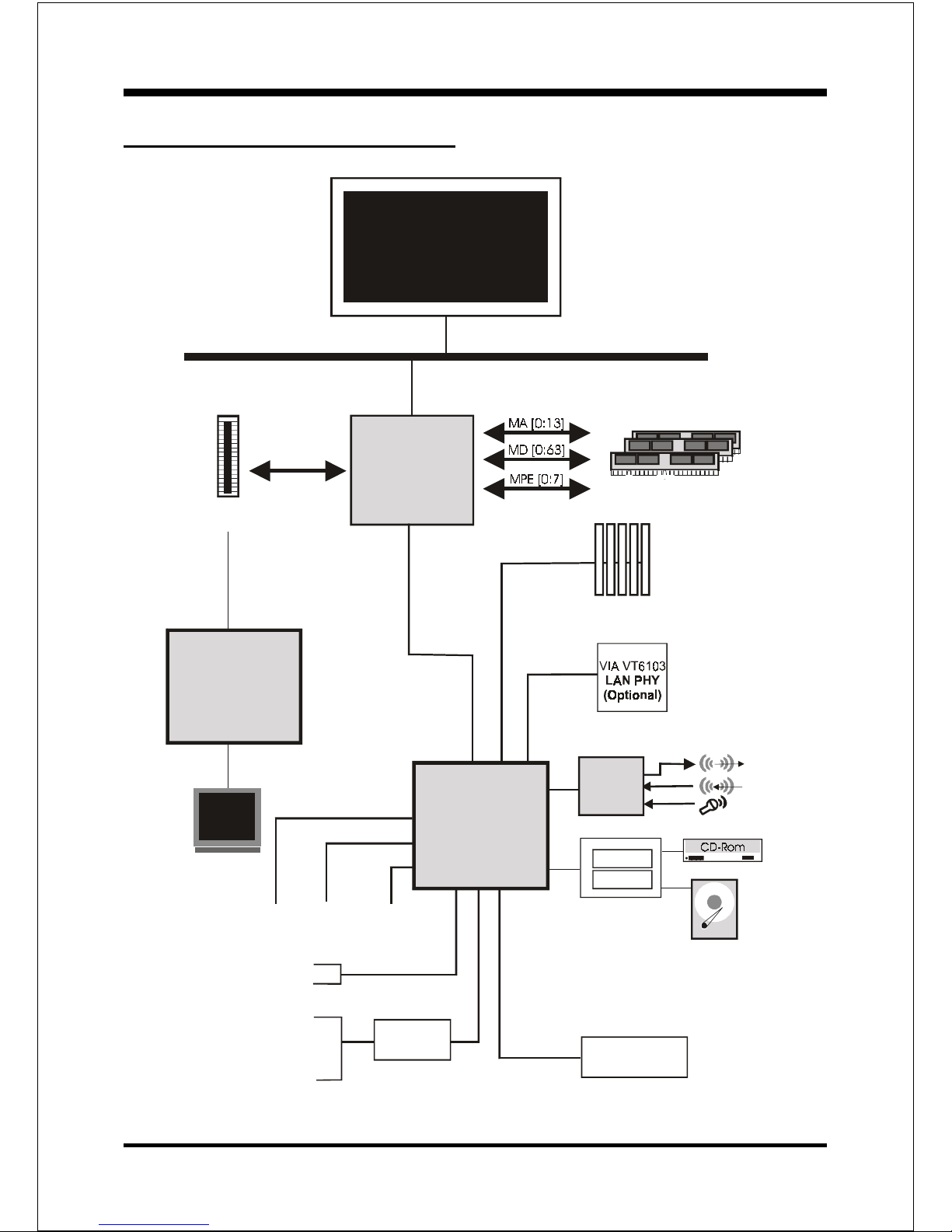

Figure 5: System Block Diagram

System Block Diagram

PAC

PCI Bridge

and memory

controller

KT400

200/266/333MHz

166/133/100MHz

66MHz

)/2*KI

8X (1.5V only)

AMD

Socket A

Processor

V 8235T

I/O Bridge

AC'97

Audio

US 0, 1

V_Link

AGP Slot

Graphic

Video

Serial Port 1

Serial Port 2

LPT Port

FDD Port

Game Port

PS/2 Mouse

PS/2 Keyboard

US 4, 5US 2, 3

HDD

(ATA-66/100/133)

PCI Slots

1,-

1,-

DDR SDRAM

LPC

W83697HF IOS

Flash Memory
