SC-F6400 Series/SC-F6400H Series General Information

Copyrights and Trademarks

Contents

Copyrights and Trademarks

Notes on Manuals

MeaningofSymbols........................ 4

Screenshots.............................. 4

Illustrations.............................. 4

ManualOrganization....................... 4

OpeningandViewingManuals................ 5

OpeningManuals........................ 5

ViewingVideoManuals................... 5

ViewingPDFManuals.....................5

Supported Media Types

Using the Printer

PrintingProcess........................... 8

LoadingtheMedia......................... 8

MakingSettingsfortheLoadedMedia...........8

LoadingintotheAutoTake-upReelUnit......... 9

Printing................................. 9

System conditions

EpsonEdgeDashboard..................... 10

EpsonEdgePrint......................... 11

WebConfig............................. 11

Specifications Table

SC-F6400 Series/SC-F6400H Series General Information

Contents

Notes on Manuals

Meaning of Symbols

This manual uses the following symbols to indicate

dangerous operations or handling procedures to

prevent harm to users or other people or damage to

property. Make sure you understand these warnings

before reading the content of this manual.

Warning: Warnings must be followed to

avoid serious bodily injury.

Caution: Cautions must be followed to

avoid bodily injury.

Important: Important must be followed to

avoid damage to this product.

Note: Notes contain useful or

additional information on the

operation of this product.

UIndicates related reference

content.

Screenshots

The screenshots used in this manual may differ

slightly from the actual screens.

Illustrations

Unless otherwise specified, illustrations used in this

manual are for SC-F6400 Series.

The illustrations may differ slightly from the model

you are using. Please be aware of this when using the

manual.

Manual Organization

The manuals for the product are organized as shown

below.

You can view the PDF manuals using Adobe Reader or

Preview (Mac OS X).

Setup Guide

(booklet)

Provides information on how

to setup the printer after

unpacking it from the box.

Make sure you read this

manual to perform operations

safely.

General Information

(this manual)

This manual provides

specifications and contact

details for the product.

Safety Instructions This section provides

information that must be

followed to prevent harm to

users or other people or

damage to property. Make sure

you read this section to

perform operations safely and

correctly. For some regions,

this content is included in the

Setup Guide.

Epson Support (PDF) Provides information about

Epson Support for each region.

Online Manuals

User's Guide

(PDF)

This manual explains how to

use the printer.

Epson Video

Manuals

These videos show you how to

load media and perform

maintenance.

Network Guide

(PDF)

This manual provides

information on using the

printer over a network.

Epson Support

(PDF)

Provides information about

Epson Support for each region.

SC-F6400 Series/SC-F6400H Series General Information

Notes on Manuals

Opening and Viewing

Manuals

Opening Manuals

See the "Setup Guide" and execute software

installation from the supplied software disc or

from Setup Navi.

When installation is complete, an [EPSON

Manuals] icon is created on the desktop of the

computer being used.

Double-click the [EPSON Manuals] icon on the

desktop.

Select the manual you want to view.

When [Online Manuals] is selected, your Web

browser opens and the top page of Online

Manuals is displayed.

Click the manual or item you want to view.

You can view the Online Manuals in an

environment that can connect to the Internet.

Viewing Video Manuals

The video manuals have been uploaded to YouTube.

Click [Epson Video Manuals (video)] from the top

page of Online Manuals, or click the following blue

text to view the manuals.

Epson Video Manuals

If the subtitles are not displayed when you play the

video, click the subtitles icon shown in the image

below.

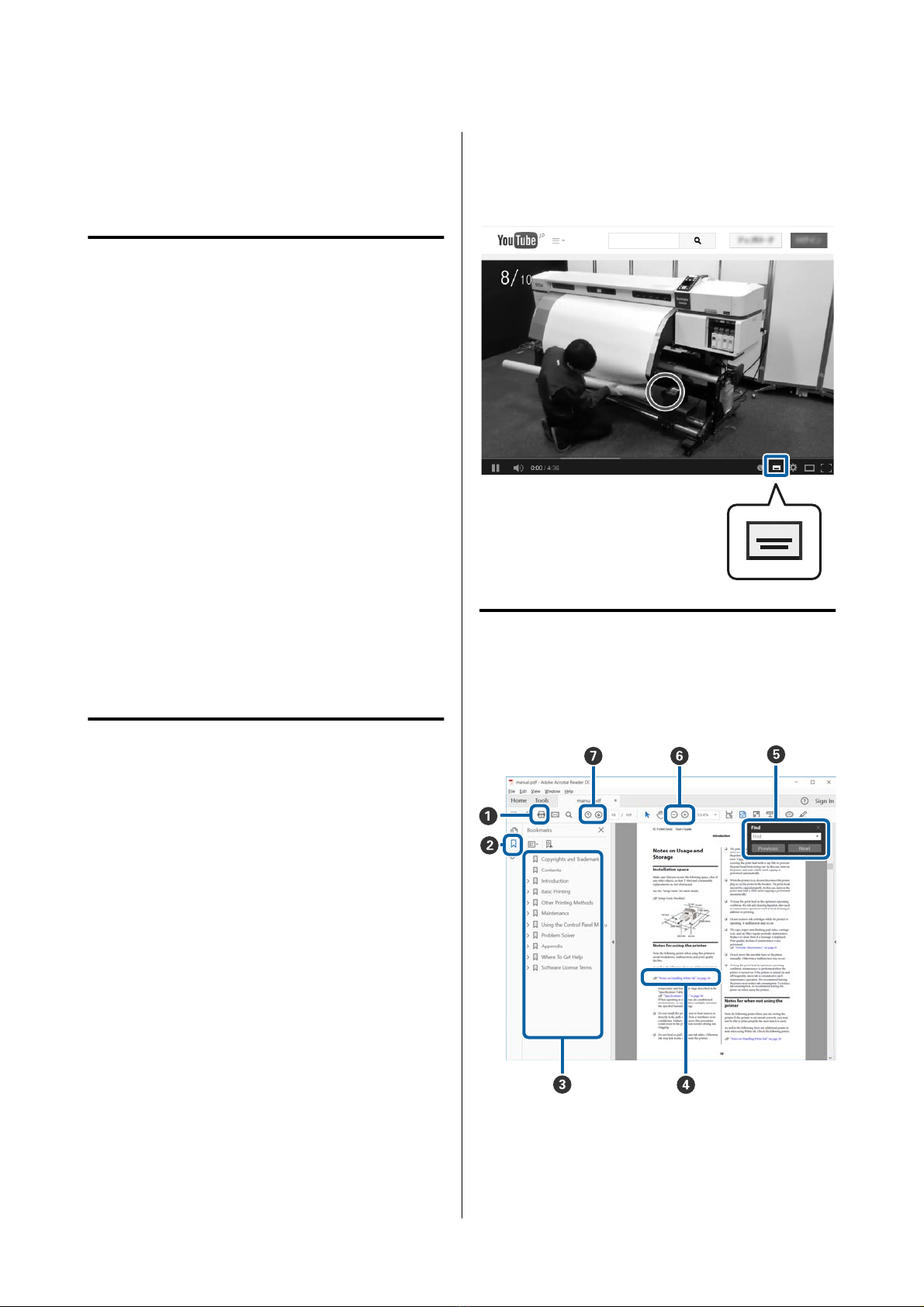

Viewing PDF Manuals

This section uses the Adobe Acrobat Reader DC as an

example to explain the basic operations for viewing

the PDF in Adobe Reader.

AClick to print the PDF manual.

BEach time it is clicked the bookmarks are hidden

or shown.

SC-F6400 Series/SC-F6400H Series General Information

Notes on Manuals

CClick the title to open the relevant page.

Click [+] to open the titles lower in the hierarchy.

DIf the reference is in blue text, click the blue text to

open the relevant page.

To return to the original page, do the following.

For Windows

While pressing the Alt key, press the key.

For Mac

While pressing the command key, press the

key.

EYou can input and search for keywords, such as the

names of items you want to confirm.

For Windows

Right click on a page in the PDF manual and select

Find in the menu that is displayed to open the

search toolbar.

For Mac

Select Find in the Edit menu to open the search

toolbar.

FTo enlarge text in the display that is too small to

see well, click . Click to reduce the size. To

specify a part of an illustration or screenshot to

enlarge, do the following.

For Windows

Right click on the page in the PDF manual and

select Marquee Zoom in the menu that is

displayed. The pointer changes to a magnifying

glass, and you can use it to specify the range of the

place you want to enlarge.

For Mac

Click View menu - Zoom - Marquee Zoom in this

order to change the pointer to a magnifying glass.

Use the pointer as a magnifying glass to specify the

range of the place you want to enlarge.

GOpens the previous page or next page.

SC-F6400 Series/SC-F6400H Series General Information

Notes on Manuals

Supported Media

Types

The following media can be used with the printer.

Print quality is greatly affected by the type and quality

of media used. Choose media suited to the task at

hand. For information on use, see the documentation

supplied with the media or contact the manufacturer.

Before buying media in large quantities, try printing

on a smaller sample and check the results.

Important:

Do not use media that is wrinkled, has fluff, is

ripped, or stained.

Roll media

Roll core size

(core

diameter)

2 or 3 inches

Roll outer

diameter

Up to 150 mm

Media width

254 mm (10 inches) to 1118 mm (44

inches)

Media

thickness

0.08 to 0.5 mm

* 432 mm (17 inches) to 1118 mm (44 inches) when using the

auto take-up reel unit

SC-F6400 Series/SC-F6400H Series General Information

Supported Media Types

Using the Printer

This section explains the procedures from loading

media to printing.

To obtain optimum print quality, you need to

download the necessary EMX files (print setup files),

check the nozzles, and make print adjustments. See

the User's Guide (Online Manual) for more details on

performing operations.

Printing Process

1. Loading the Media

U“Loading the Media” on page 8

2. Making Settings for the Loaded Media

U“Making Settings for the Loaded Media” on page 8

3. Loading into the Auto Take-up Reel Unit

SC-F6400 Series is an optional item.

U“Loading into the Auto Take-up Reel Unit” on

page 9

4. Printing

U“Printing” on page 9

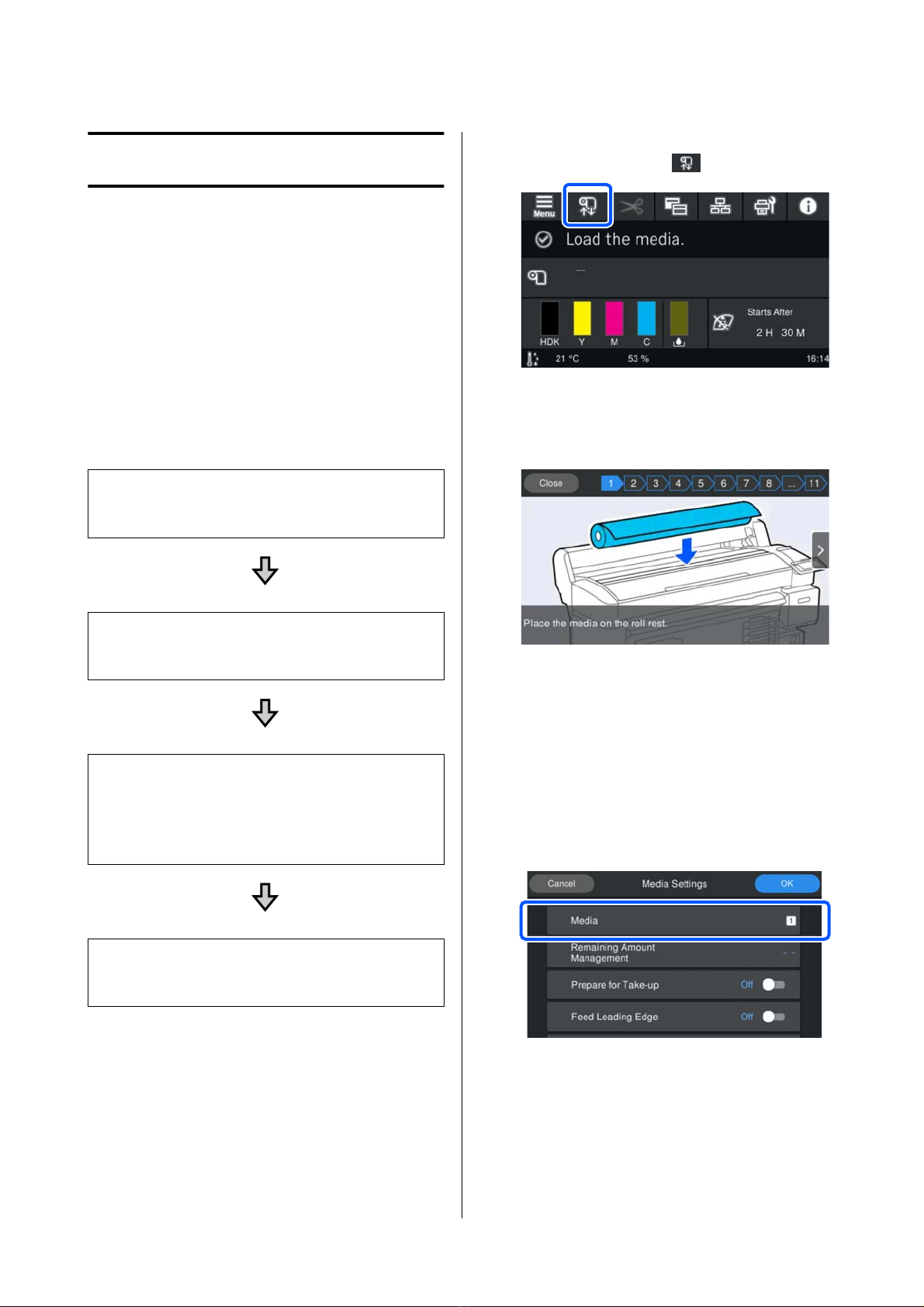

Loading the Media

You can load media while viewing the procedure on

the screen.

Check that Load the media. is displayed on the

screen, and then press .

Press Start - See Description on the screen to

check the loading procedure.

You can then follow the on screen instructions.

Making Settings for the

Loaded Media

Make settings for the loaded media.

Press Media to select the registered media

number that corresponds to the loaded media.

When media settings have not been registered

for the loaded media

Temporarily select an unregistered number.

SC-F6400 Series/SC-F6400H Series General Information

Using the Printer

In an unregistered status, the media type is set

to Med-Thick 70g/m

. If the paper weight of

the loaded media is 61 to 89 g/m

, you can

leave this as it is.

If the paper weight differs from that of the

loaded media, change the media type. Failure to

select the appropriate media type can cause

print quality problems.

UUser’s Guide (Online Manual)

When media settings have been registered for

the loaded media/EMX files have already

been downloaded

Select the registered media number.

If necessary, set the action to be performed

when feeding paper.

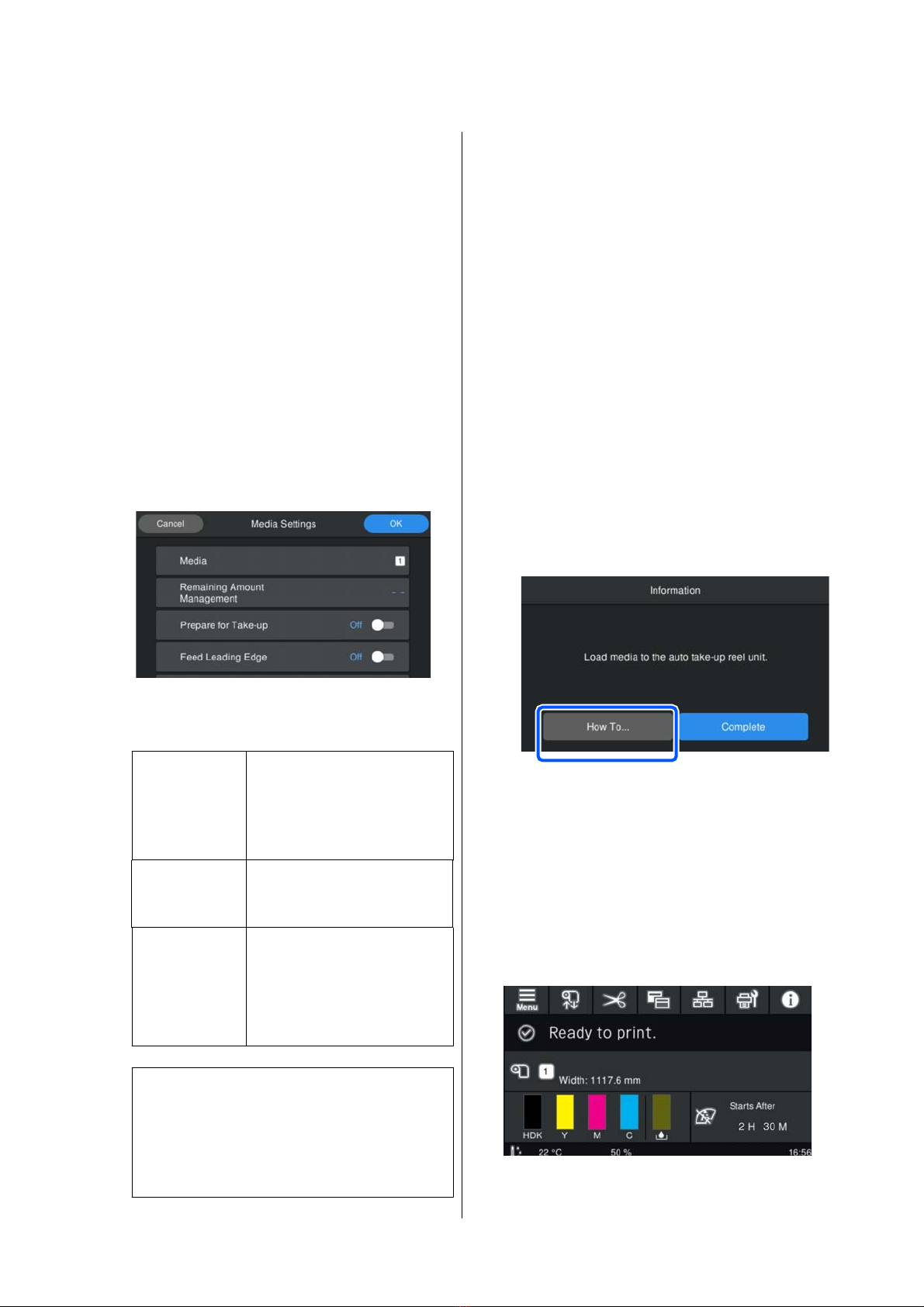

The following shows the details for each

operation.

Prepare for

Take-up

Displayed when the auto

take-up reel unit is installed.

After feeding media, set this to

On to continue loading media

into the take-up reel unit.

Cut Leading

Edge

Set this to On when the leading

edge of the loaded media is not

straight or is not cut neatly.

Feed Leading

Edge

Set this to On when the

remaining media value is

printed on the leading edge of

the loaded media. The printed

section is fed forward to avoid

printing over it.

Note:

If necessary, set Remaining Amount

Management and Media Detection when the

printer is ready to print.

UUser’s Guide (Online Manual)

Press OK when you have finished making

settings.

Media feeding starts.

See the following when the auto take-up reel

unit is not installed, or when Prepare for

Take-up is set to Off.

U“Printing” on page 9

See the next section when Prepare for Take-up

is set to On.

Loading into the Auto

Take-up Reel Unit

You can load media into the auto take-up reel unit

while viewing the procedure on the screen.

Press How To....

Press Complete when you have finished

loading media.

Printing

When Ready to print. is displayed on the screen, you

can start printing.

SC-F6400 Series/SC-F6400H Series General Information

Using the Printer

System conditions

The software can be used in the following environments. (As of May, 2022)

Supported OS and other elements may change.

For the latest information, see the Epson Web site.

Epson Edge Dashboard

Important:

Make sure the computer on which the Epson Edge Dashboard is installed meets the following requirements.

If these requirements are not met, the software cannot monitor the printer correctly.

❏Disable your computer's hibernate function.

❏Disable the sleep function so that the computer does not enter sleep status.

Windows

Operating system Windows 7 SP1 / Windows 7 x64 SP1

Windows 8 / Windows 8 x64

Windows 8.1 / Windows 8.1 x64

Windows 10 / Windows 10 x64

Windows 11

CPU Intel Core2Duo 2.5GHz or more

Free memory 1 GB or more

Hard disk

(free space during installation)

2 GB or more

Display resolution 1280 × 1024 or better

Communication interface High Speed USB

Ethernet 1000Base-T

Browser Internet Explorer 11

Microsoft Edge

Mac OS X

Operating system Mac OS X 10.7 Lion or later

CPU Intel Core2Duo 2.5GHz or more

Free memory 1 GB or more

SC-F6400 Series/SC-F6400H Series General Information

System conditions

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Epson Stampante

Epson

Epson Small-in-One XP-300 Manuale utente

Epson

Epson Aculaser M1200 series Manuale utente

Epson

Epson WorkForce 600 Series Manuale utente

Epson

Epson Stylus Pro 5000 Manuale utente

Epson

Epson Expression Home XP-305 Istruzioni per il montaggio

Epson

Epson 785EPX - Stylus Photo Color Inkjet Printer Manuale utente

Epson

Epson Stylus COLOR 3000 Manuale utente

Epson

Epson TM-U220 Series Manuale di installazione e funzionamento

Epson

Epson TM-T88IV ReStick Manuale di istruzioni

Epson

Epson L455 Manuale utente

Epson

Epson EPL-5900L Manuale

Epson

Epson LQ-680 Manuale utente

Epson

Epson Stylus Pro GS6000 Manuale utente

Epson

Epson PLQ-22CS/CSM Manuale utente

Epson

Epson R340 - Stylus Photo Color Inkjet Printer Manuale di istruzioni

Epson

Epson XP-7100 Manuale utente

Epson

Epson 1400 - Stylus Photo Color Inkjet Printer Manuale utente

Epson

Epson R800 - Stylus Photo Color Inkjet Printer Manuale utente

Epson

Epson SureColor F7070 Manuale utente

Epson

Epson Stylus Pro XL Manuale utente

Epson

Epson Stylus SX110 Manuale utente

Epson

Epson PowerLite 4100 Manuale

Epson

Epson SC-F3000 Series Manuale utente

Epson

Epson C11C644001 - PictureMate Pal PM 200 Color Inkjet... Manuale di installazione e funzionamento

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente

IRA3D

IRA3D POETRY4 Manuale utente

Ricoh

Ricoh Aficio AP400 Manuale utente

BIXOLON

BIXOLON SRP-352plusV Manuale utente
