Epson TM-T58 Manuale utente

User’s Manual / Petunjuk Penggunaan

Di Impor oleh:

PT. Epson Indonesia

Wisma Kyoei Prince Lt.16

Jalan Jenderal Sudirman Kav.3

Jakarta Pusat 10220, Indonesia

M00031200

TM-T58 User’s Manual 3

English

User’s Manual

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect

to the use of the information contained herein. While every precaution has been taken in the preparation of

this book, Seiko Epson Corporation assumes no responsibility for errors or omissions. Neither is any liability

assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident,

misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or

(excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance

instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original Epson Products or Epson

Approved Products by Seiko Epson Corporation.

EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.

NOTICE: The contents of this manual are subject to change without notice.

4TM-T58 User’s Manual

EnglishEnglish

Safety Precautions

This section presents important information intended to ensure safe

and effective use of this product. Please read this section carefully and

store it in an accessible location.

WARNING:

Shut down your equipment immediately if it produces smoke, a strange

odor, or unusual noise. Continued use may lead to fire. Immediately

unplug the equipment and contact your dealer or a Seiko Epson service

center for advice.

Never attempt to repair this product yourself. Improper repair work can

be dangerous.

Never disassemble or modify this product. Tampering with this product

may result in injury or fire.

Be sure to use the specified power source (EPSON AC Adapter. C,

Model number: M235A). Connection to an improper power source may

cause fire.

Do not allow foreign matter to fall into the equipment. Penetration by

foreign objects may lead to fire.

If water or other liquid spills into this equipment, unplug the power cord

immediately, and then contact your dealer or a Seiko Epson service

center for advice. Continued usage may lead to fire.

Do not use aerosol sprayers containing flammable gas inside or around

this product. Doing so may cause fire.

CAUTION:

Be sure to set this equipment on a firm, stable, horizontal surface. The

product may break or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive

humidity and dust may cause equipment damage or fire.

Do not place heavy objects on top of this product. Never stand or lean

on this product. Equipment may fall or collapse, causing breakage and

possible injury.

Take care not to injure your fingers on the manual cutter

• When you remove printed paper

• When you perform other operations such as loading/replacing

roll paper

Do not pull out roll paper while the printer cover is closed. Doing so may

cause a breakdown.

TM-T58 User’s Manual 5

English

To ensure safety, unplug this product before leaving it unused for an

extended period. When moving this product, make sure to unplug the

power cable and all other wires.

Restriction of Use

When this product is used for applications requiring high reliability/

safety, such as transportation devices related to aviation, rail, marine,

automotive, etc.; disaster prevention devices; various safety devices,

etc.; or functional/precision devices, etc.; you should use this product

only after giving consideration to including fail-safes and

redundancies into your design to maintain safety and total system

reliability. Because this product was not intended for use in

applications requiring extremely high reliability/safety, such as

aerospace equipment, main communication equipment, nuclear power

control equipment, or medical equipment related to direct medical

care, etc., please make your own judgment on this product’s suitability

after a full evaluation.

Caution Label

The caution label on the product indicates the following precaution.

CAUTION:

The thermal head is hot when in use or right after use. Touching the

thermal head may cause a burn. Wait until the head is cool enough

before cleaning, etc.

Purpose of this Manual

This manual provides basic information on how to handle the product

properly and safely.

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be downloaded from the following

URL:

http://www.epson-pos.com/

6TM-T58 User’s Manual

EnglishEnglish

Unpacking

The following items are included with the standard specification

printer. If any item is damaged, contact your dealer.

❏Printer ❑Interface cable

❏AC adapter C ❑User’s Manual (this manual)

Part Names

Control Panel

(Power) LED

This LED is on when the printer is on.

ERROR LED

This indicates an error.

FEED button

This button feeds paper.

Important Installation Notes

❏Install the driver before connecting the printer.

❏Make sure to use the interface cable that was included in the

package.

Cover open lever

(back side)

Printer cover

Control panel

Power switch

Interface connector Power connector

Drawer kick-out connector

FEED button

Power LED ERROR LED

TM-T58 User’s Manual 7

English

Installing the Printer

You can install the printer only horizontally.

How to Open the Printer Cover

Raise the cover open lever to open the printer cover.

How to Close the Printer Cover

Hold down the central part of the cover to close the printer cover.

Installing Roll Paper

CAUTION:

Use only the specified paper. Using paper other than those designated

as Original Epson Products may affect the print results or may cause a

breakdown.

Specified original paper: TF50KS-E, P350, PD150R/160R, F5041, KF50

1. Open the printer cover. (Refer to “How to Open the Printer Cover”

on page 7.)

2. Remove any used roll paper core.

Cover open lever

(back side)

8TM-T58 User’s Manual

EnglishEnglish

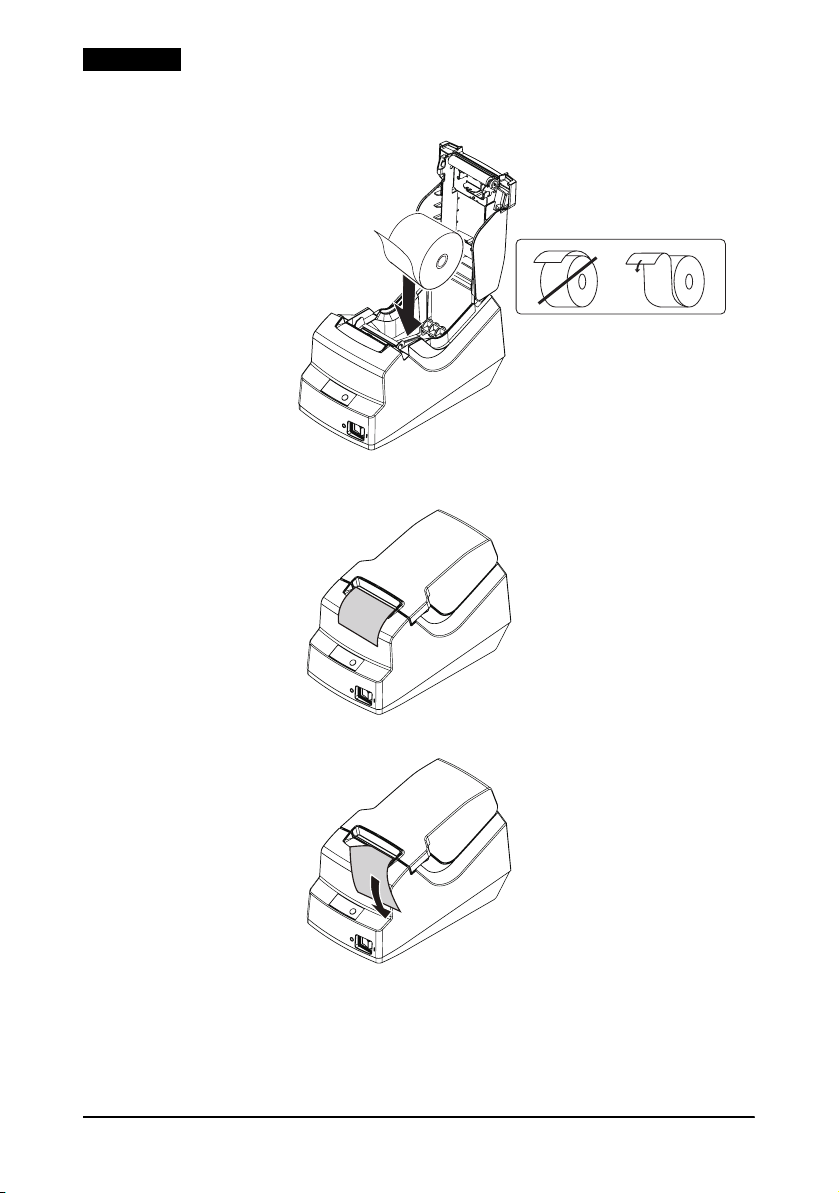

3. Refer to the figure below, and set the roll paper in the correct

direction.

4. Pull out a small amount of the roll paper and close the printer

cover. (Refer to “How to Close the Printer Cover” on page 7.)

5. Cut off the excess paper.

TM-T58 User’s Manual 9

English

Setting the Memory Switch

With Memory switch, you can set the following:

❏Selecting the transmission speed (serial interface only): 9600bps

(default)/19200bps

❏Selecting darkness/lightness of the print results (only available at

the print speed of 70 mm/s): 100% (default)/110%

❏Selecting print speed: 100 mm/s (default)/70 mm/s

To set the memory switch, follow the steps below.

1. Open the printer cover and turn ON the printer while pressing the

FEED button.

2. Press the FEED button twice and close the printer cover.

3. Setting items and operation method will be printed. To set the

memory switch, follow the instruction.

4. When the initial setting is complete, the settings are saved and the

printer is initialized.

5. The printer is ready to print once the initialization is complete.

Note:

The print speed of raster bit image and barcode cannot be set to 100mm/s.

Cleaning the Thermal Head

To ensure print quality of receipts, periodical maintenance on the

thermal head is recommended (once every 3 months).

CAUTION:

After printing, the thermal head can be very hot. Be careful not to

touch it and to let it cool before you clean it. Do not damage the

thermal head by touching it with your fingers or any hard object.

10 TM-T58 User’s Manual

EnglishEnglish

Turn off the printer, open the printer cover, and clean the thermal

elements (thin black lines) of the thermal head with a cotton swab

moistened with an alcohol solvent (ethanol or IPA).

Troubleshooting

No lights on the control panel

Check the power supply cable connections and the power outlet.

ERROR LED on (not flashing) with no printing

Either one of the following is the cause.

❏Roll paper is not set.

❏Roll paper is finished.

❏The printer cover is not closed properly.

ERROR LED flashing with no printing (and no paper jam)

Printing stops if the head overheats and resumes automatically when it

cools.

If printing is not resumed, turn the printer off, and after 10 seconds, back

on.

Unclear printing result

The thermal head is dirty. Clean the thermal head. (Refer to “Cleaning the

Thermal Head.”)

Thermal head
