EMP Monitor Operation Guide

What You Can Do With EMP Monitor

You can display status information on a computer screen for multiple

projectors that are connected to a network and also carry out batch operations

on all projectors such as turning the power on and off and changing the input

source. A maximum of 64 projectors can be monitored and controlled by batch

operations.

System configuration example

Operating Environment

* Macintosh computers cannot be used.

Before Starting Operations

Check the following points before starting up EMP Monitor.

• EMP Monitor must be installed in the computer to be used for monitoring

and control.

If using EMP-835 s"Installing EasyMP Software" in the EasyMP

Network Setup Guide

If using EMP-830 s"Installation and Uninstallation" in the EMP

NetworkManager Operation Guide

• Make the network settings so that the projector and the computer are

connected in access point mode or wired LAN connection mode.

If using EMP-835 s"Connecting in Access Point Mode or Wired LAN

Mode" in the EasyMP Network Setup Guide

If using EMP-830 s"Projector Network Connecting Settings (EMP-

830)" in the User's Guide

• If using Windows 2000, NT4.0 or XP, the computer must be started up in

administrator mode.

Projector A

Projector B

Projector C

Turn on

projector B

EMP Monitor

TIP

• If the projector's "Extended" - "Standby Mode" configuration

menu is set to "Network ON", the projector can still be set and

controlled using EMP Monitor even when it is in standby mode

(when the Power indicator is lit orange).

• The administration functions of EMP Monitor cannot be used when

using easy connect mode with a wireless LAN.

OS* 98SE/Me/NT4.0/2000 Professional/XP Home Edition/XP

Professional

CPU Pentium MMX 166 MHz or higher (Pentium II 233 MHz

or higher recommended)

Memory

capacity

64 MB or more (128MB or more recommended)

Free hard disk

space

6 MB or more

Display XGA (1024×768) or higher resolution, 16 bit or higher

display colour

EMP Monitor Operation Guide

Registering Projectors for Monitoring

This operation is carried out when starting EMP Monitor for the first time after

it has been installed and when you would like to add projectors. Once a

projector has been registered, the status for the projector will be displayed

automatically each time EMP Monitor is started from that point onwards.

PROCEDURE

Click "Start" - "Programs" (or "All Programs") -

"EPSON Projector" - "EMP Monitor" in that order to

start EMP Monitor.

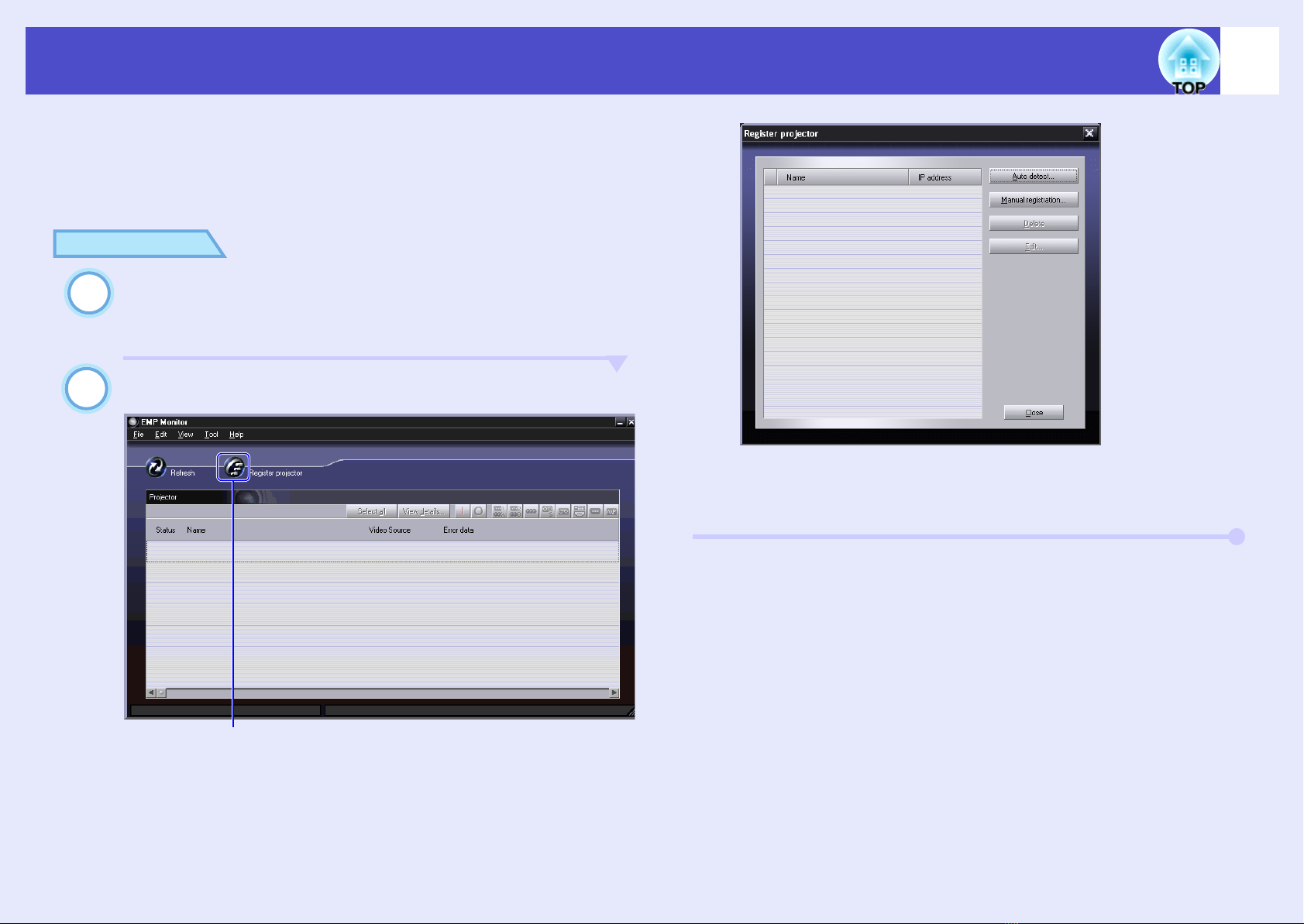

Click the "Register projector" icon.

The "Register projector" window will be displayed.

Use the "Registration Using Automatic Detection" (sp.4) or

"Registration Using IP Address (Manual Registration)"

(sp.5) procedure to register projectors.

Click to add a projector to be monitored.

EMP Monitor Operation Guide

Registering Projectors for Monitoring

Registration Using Automatic Detection

PROCEDURE

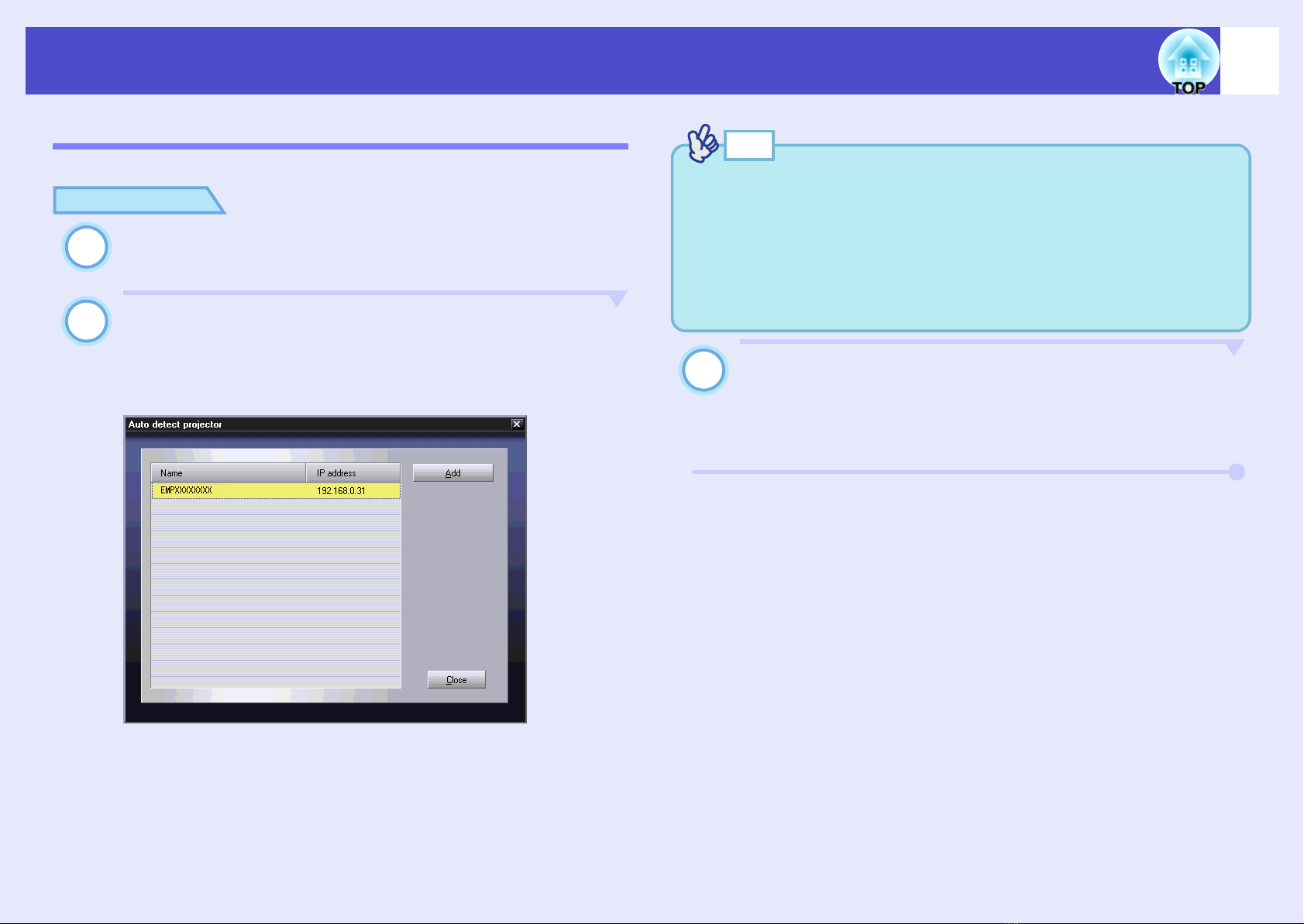

Click the "Auto detect" button in the "Register

projector" window.

Select the projector(s) to be registered, and then click

the "Add" button.

If a projector does not appear in the list, use "Registration

Using IP Address (Manual Registration)". sp.5

Click the "Close" button to return to the main EMP

Monitor window.

Refer to "Main EMP Monitor Window" for details on using the

main window. sp.6

• Projectors that have been registered using automatic detection will

be re-detected on the basis of projector name each time EMP

Monitor is started.

• If a password entry window is displayed, enter the password for the

projector's administrator and then click the "OK" button.

If more than one projector was selected, the password entry windows

for each projector will be displayed in succession.

TIP

EMP Monitor Operation Guide

Registering Projectors for Monitoring

Registration Using IP Address (Manual Registration)

PROCEDURE

Click the "Manual registration" button in the

"Register projector" window.

Enter the IP address for the projector to be registered

in the "IP address" box, and then click the "Confirm"

button.

If a projector with the specified IP address is found on the

network, the projector's name will be displayed, so check that it

is the target projector. If it is not the target projector, re-enter

the IP address.

Click the "Add" button.

Editing the Manually-Registered Projector List

Use the following procedure to change the projector name or IP address for

projectors that have been registered manually.

PROCEDURE

Select the projector to be edited in the "Register

projector" window, and then click the "Edit" button.

If the projector name has changed, simply click the

"Confirm" button.

If the IP address has changed, enter the new IP

address and then click the "Confirm" button.

Check that the projector name is correct.

Click the "Update" button.

Deleting a Projector from the Projector List

Select the projector to be deleted from the list in the

"Register projector" window, and then click the "Delete"

button.

More than one projector can be selected at the same time.

If a password entry window is displayed, enter the password for the

projector's administrator and then click the "OK" button.

TIP

EMP Monitor Operation Guide

Main EMP Monitor Window

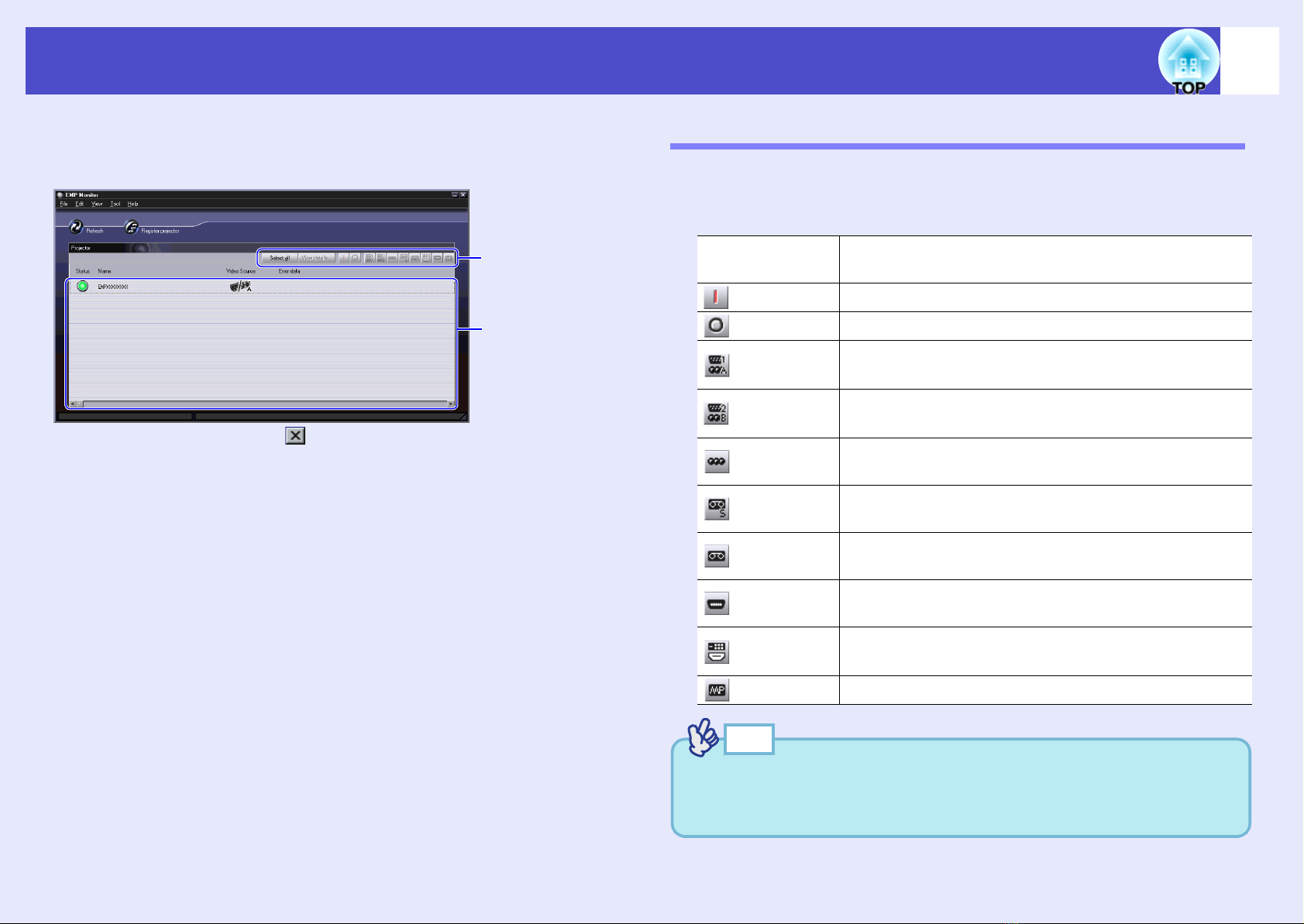

The main window shows the status information for each projector. To carry

our operations for projectors, select the projectors from the projector list and

then click the buttons.

To close the window, click the in the top-right corner.

Button Functions

The power can be turned on or off and the input source can be changed for

the projectors that are selected from the projector list. The same operations

can also be carried out using the commands in the "Tool" menu.

Buttons

Projector list

"View details"

button Shows detailed information for the selected projectors.

Power ON Turns the projector power on.

Power OFF Turns the projector power off.

PC1,

InputA

Switches to the input source connected to the

[Computer1] port, [Computer] port or [InputA] port.

PC2,

InputB

Switches to the input source connected to the

[Computer2] port or [InputB] port.

BNC Switches to the input source connected to the [BNC]

port.

S-Video Switches to the input source connected to the

[S-Video] port.

Video Switches to the input source connected to the [Video]

port.

D4 Switches to the input source connected to the [D4]

port.

DVI,

HDMI

Switches to the input source connected to the [DVI]

port or [HDMI] port.

EasyMP Switches to EasyMP or EasyMP.net.

Some connected projectors may not be equipped with all of the above

ports or functions. If you click a button for a port or function that is

not available, the button will not work.

TIP

EMP Monitor Operation Guide

Main EMP Monitor Window

Understanding the Projector List

The projector list uses the following icons to show the projector statuses.

The projector information that is generated when a problem is detected is

stored until EMP Monitor is closed. The EMP Monitor displays will not be

updated automatically even if the projector status returns to normal. Click

the "Refresh" button in the main window to update the status.

Status: Shows the projector status.

Power on and normal status

Power off and normal status

Power on and abnormal status

Power off and abnormal status

Network error (such as not connected to network or

power cable not connected)

Name: Shows the projector name.

Input source: Shows the selected input source.

Computer, Computer1 or InputA

Computer2 or InputB

S-Video

Video

D4 (Digital)

DVI or HDMI (Digital)

Error information: If an error occurs with a projector, the following

icons are used to show the status.

End of lamp life warning

Replace with a new lamp.

s"Replacing the Lamp"

in the "Replacing

Consumables" section of

the User's Guide.

Lamp problem Refer to "Reading the

Indicators" to remedy the

problem.

s"Problem Solving" in

the User's Guide

High internal temperature

(overheating)

Temperature warning

Internal problem

Fan problem

Temperature sensor

problem

EMP Monitor Operation Guide

Main EMP Monitor Window

Displaying Detailed Information

You can check detailed information on the status of individual projectors

that are connected.

PROCEDURE

Select the projector to be checked in the main

window.

Click the "View details" button.

Detailed status information will be displayed in the "Details"

window.

The details that are displayed may vary slightly depending on

the projector connected.

Click to

display

details.

EMP Monitor Operation Guide

If a Projector Cannot be Monitored or Controlled Using EMP Monitor

Cause Remedy

Is the projector connected to

the network correctly?

Connect the network cable correctly.

s"Network Cable Connections" in the

User's Guide

Has the projector been set

up correctly for connection

to the network?

Check the projector's network settings.

If using EMP-835 s"Connecting in

Access Point Mode or Wired LAN Mode"

in the EasyMP Network Setup Guide

If using EMP-830 s"Projector Network

Connecting Settings (EMP-830)" in the

User's Guide

Has EMP Monitor been

installed to the computer

correctly?

Uninstall EMP Monitor and then re-install

it.

Have all projectors that are

to be monitored and

controlled been registered in

the projector list?

sp.3

Is the projector's "Standby

Mode" configuration menu

set to "Network ON"?

In order to use EMP Monitor to monitor

and control the projector when it is in

standby mode, the projector's

"Extended" - "Standby Mode"

configuration menu must be set to

"Network ON".

s"List of Configuration Menu

Commands" in the User's Guide

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Epson Software

Epson

Epson EMP-6100 Manuale utente

Epson

Epson Panorama Stitcher Light EP and QuickTime 5 Manuale utente

Epson

Epson LQ Color driver Dimensioni

Epson

Epson Software Film Factory v2.5 Manuale utente

Epson

Epson 745c - PowerLite XGA LCD Projector Dimensioni

Epson

Epson Stylus Pro 9500 - Print Engine Dimensioni

Epson

Epson Stylus Pro 9880 ColorBurst Edition - Stylus Pro 9880... Manuale utente

Epson

Epson Stylus Pro 10000 Series Manuale utente

Epson

Epson WorkForce 600 Series Manuale utente

Epson

Epson FX-1180 - Impact Printer Manuale utente

Epson

Epson 4012033-00 XXX Manuale utente

Epson

Epson BrightLink 455Wi Manuale utente

Epson

Epson Stylus Pro - Stylus Color Pro Ink Jet... Manuale utente

Epson

Epson SpectroProofer Mounter 44 Manuale utente

Epson

Epson PowerLite Pro G5450WU Manuale utente

Epson

Epson 1280 - Stylus Photo Color Inkjet Printer Manuale utente

Epson

Epson ActionNote 866C Manuale utente

Epson

Epson Software Film Factory Manuale utente

Epson

Epson BrightLink 455Wi Manuale utente

Epson

Epson M00002104 Manuale

Epson

Epson EasyMP Network Projection Manuale utente

Epson

Epson C82357 Manuale utente

Epson

Epson PowerLite Pro Z8250NL Manuale utente

Epson

Epson 4000 - Stylus Pro Color Inkjet Printer Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

HP ProLiant BL420c Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Canon

Canon Vixia HF21 Manuale utente

Canon

Canon ZR950 Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente
