EPSON Remote

Configuration Manager

User’s Guide

The EPSON Remote Configuration Manager lets you change your

printer’s default settings, update the printer with the new settings,

and save them in a configuration file which you can use any time.

This is especially convenient in a multi-printer network environment;

individual configuration files can be created for each printer’s specific

requirements.

The program also lets you quickly view the current settings for the

printer(s).

Note:

If you are using the serial port, you need to switch the printer driver to

COM2 before you run the Remote Configuration Manager. Switch it back to

COM1 when you’re done.

If you have not already installed the program, follow the instructions

in your DFX-9000 User’s Guide to install it.

Starting the Program

From the Start menu, select Programs or (All Programs) >

Epson Remote Configuration Mgr > Epson Remote Configuration

Manager.

You see this window:

❏To create a new configuration, see the next section.

❏If you want to make changes to a configuration file that was

created previously, see page 9.

❏To display the current settings (status) for a printer, see page 12.

Creating a New Configuration

1. Select Create New Configuration and click OK.

You see the printer model window:

2. Highlight the DFX-9000 and click Select. You see the printer

settings screen:

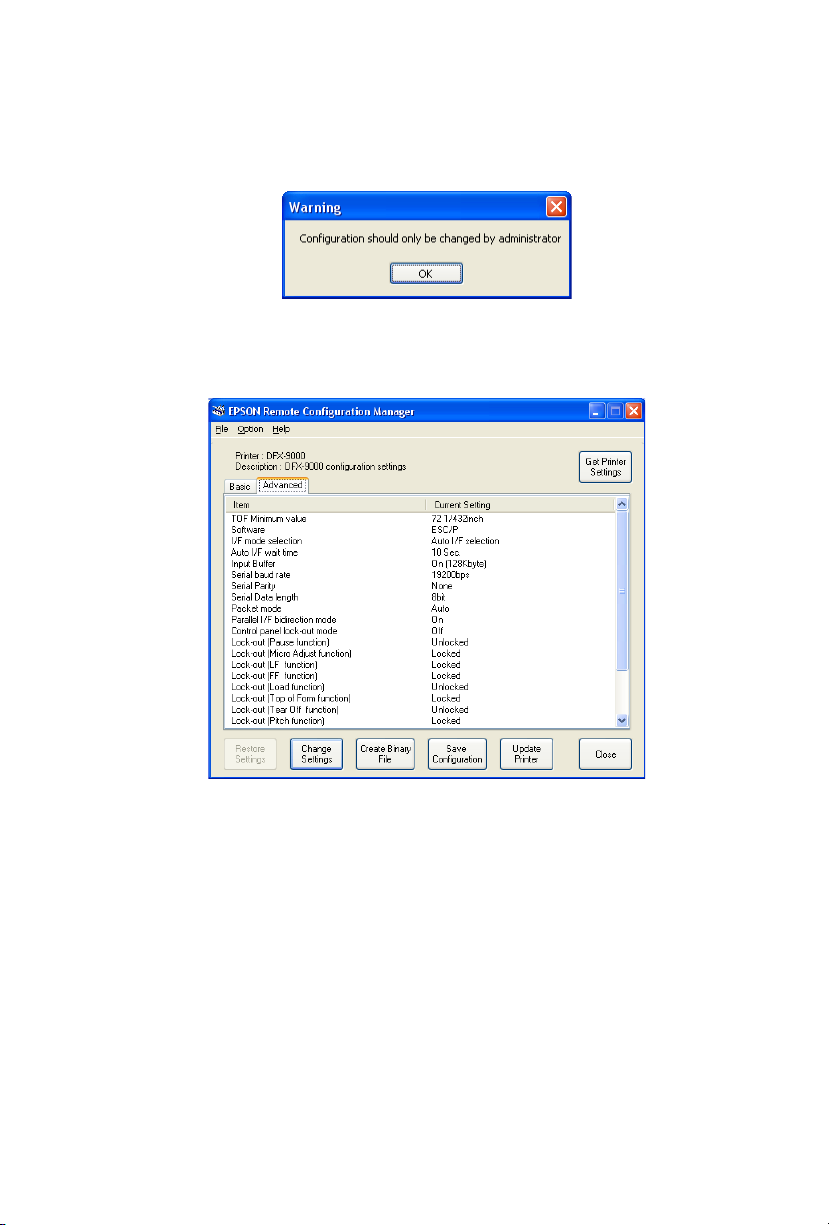

You can change settings in the Basic tab (shown above) and the

Advanced tab. If you select the Advanced tab, you see this

message:

3. Click OK to display the Advanced tab settings:

See the following section to change settings in the Basic or Advanced

tab.

Changing the Printer Settings

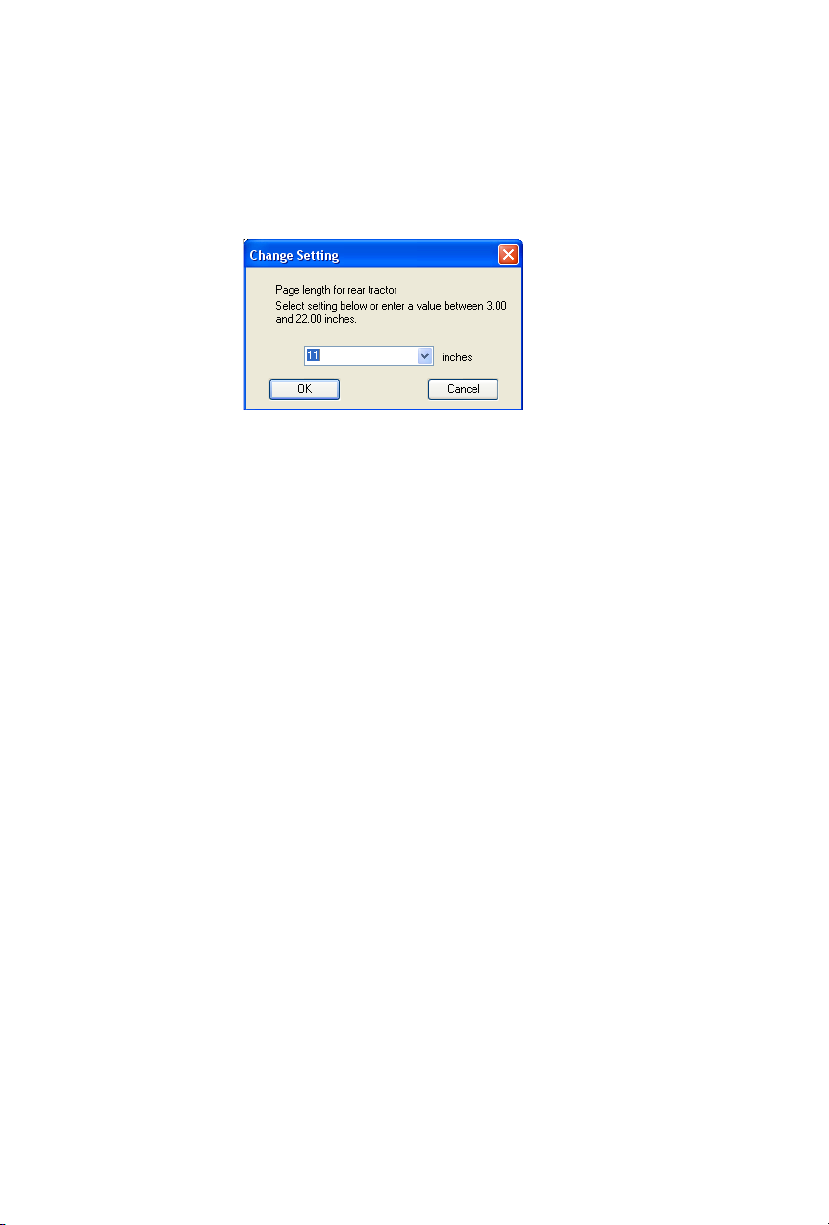

1. Double-click the setting you want to change, or select it from the

list and click the Change Settings button. You see a window like

this:

2. Select the value you want from the pull-down list or enter the

setting you want and click OK.

If you decide not to change a setting, click Cancel.

Note:

For more information about printer settings and options, see your printer

documentation.

When you finish making changes to the settings, you can either

update the printer now with the new settings, as described below,

or save the settings in a configuration file to be used in the future

(see page 8).

Important: You must update the printer for the settings to take

effect.

Updating the Printer With the New Settings

When you want the printer to use the new settings, you must update

it as follows:

1. If the configuration file you want to use is not already open,

open it now as described on page 9.

2. Click the Update Printer button. If the file has not been saved,

you see this message:

If you want to save your changes, click Yes. Enter a name for

the file (keeping the extension .cfg), and click Save. (See “Saving

the Configuration File” on page 8 for more information.)

If you don’t need to save your changes, click No.

3. When you see the following window, select the correct interface

for your printer (Parallel, USB, Serial or TCP/IP) and click

Update.

If you did not select the correct interface, or if the printer is not

turned on or connected properly, you’ll see a message such as

this:

Make sure the printer is connected properly and turned on.

Then click Yes (or OK) to update the printer.

Note:

You may need to click the Update Printer button again (step 2).

You see this message:

4. Click OK. The control panel lights flash and the print head

moves as the printer settings are changed.

The new settings remain in effect until you select another

configuration file or restore the default settings.

Saving the Configuration File

If you want to save your new set of printer settings in a configuration

file, do one of the following:

❏To save a new configuration file or overwrite the current one

with the new settings, click Save Configuration. If you are

making changes to an existing file, the new settings overwrite

the original ones.

If this is a new file, you see this message:

Enter a new name for the configuration file and a description

of it, if desired. Then click Save. Make sure the extension

remains .cfg.

❏To save the file with a new name so you don’t overwrite the

open one, select Save As from the File menu. Enter a new name

for the configuration file and click Save. Make sure the

extension remains .cfg.

Configuration files are saved in this directory:

Program Files\Epson Remote Configuration\Setting

Note:

If you want to remove a configuration file, delete it from the \Setting

directory.

Type a file name with

the extension .cfg

Type a description of

the file, if desired

Using an Existing Configuration File

If you already created a configuration file, you need to open it to:

❏Check its settings

❏Change one or more settings

❏Update the printer with the configuration file settings

Follow these steps:

1. Start the Remote Configuration Manager. (See page 2.)

2. When you see the screen shown below, click the

Open Existing Configuration button and click OK.

You see a window like this:

3. Choose the configuration file you want to open and click Select.

You see the printer settings for this file.

Now you can change any settings, if necessary. If you want to

save your changes, click the Save Configuration button or select

Save As from the file menu.

4. When you are ready to update the printer with the current

settings, click the Update Printer button.

Restoring Original or Default Settings

If you made changes in the open configuration file but then change

your mind, you can restore the original settings or the factory default

settings:

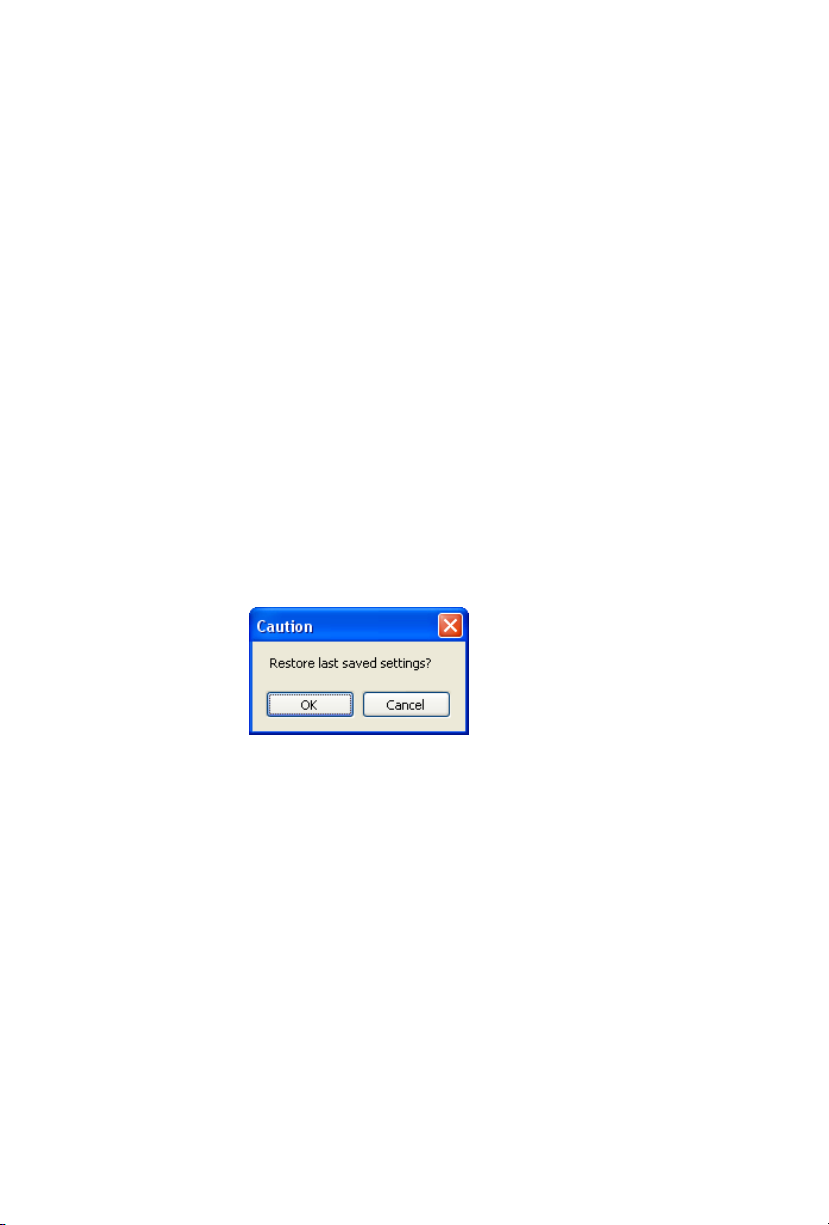

❏To restore the original saved settings, click the Restore Settings

button or select Restore Settings from the File menu. You see

this message:

Click OK.

❏If you want to restore the factory default settings for all the

options, select Factory Settings from the Option menu. When

you see the confirmation message, click OK.
