Ergotron LX Sit-Stand Collar Kit Manuale utente

1 of 4

888-97-348-G-00 rev. B • 08/19

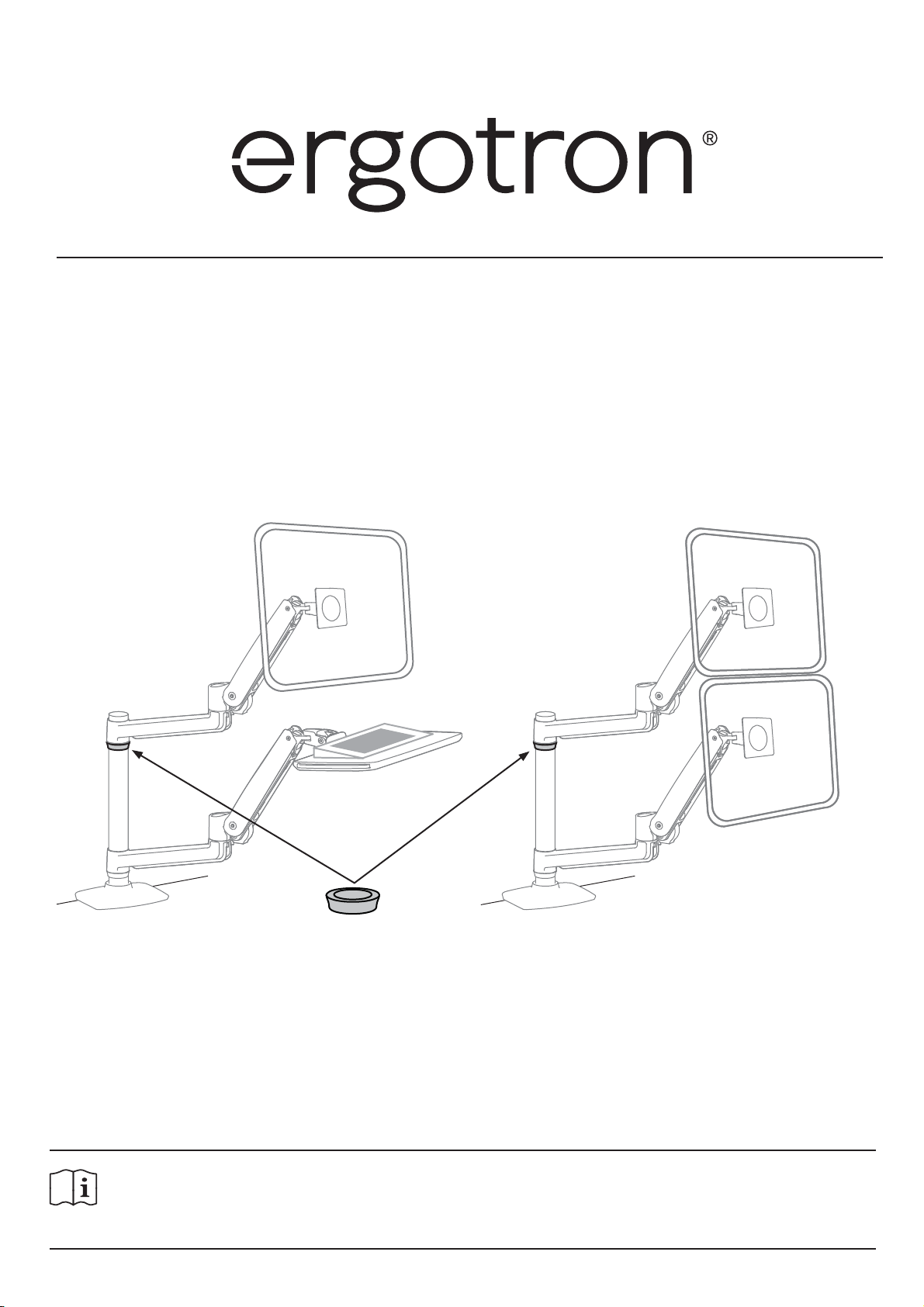

LX Sit-Stand Collar Kit

for 40mm Poles

www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]

English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语

User's Guide

English

For the latest User Installation Guide please visit: www.ergotron.com

2 of 4

888-97-348-G-00 rev. B • 08/19

< 25 lbs

(11.3 kg)

< 30 lbs

(13.6 kg)

AB

11x 2.5mm

1x

Components

CLAMP

GROMMET HOLE

WARNING!

When using LX HD Sit-Stand Arms, weight capacity is reduced to

25 lbs. (11.3 kg) per arm for Desk Clamp conﬁ gurations and 30 lbs.

(13.6 kg) per arm for Grommet Hole conﬁ gurations. Failure to follow

these maximum weight restrictions will create an unsafe situation

that may result in product damage and/or personal injury.

Max Weight Capacity for each LX HD Sit-Stand Arm:

3 of 4

888-97-348-G-00 rev. B • 08/19

2

1

3

1x

2.5mm

1x

2.5mm

1x

a

ab c

bc

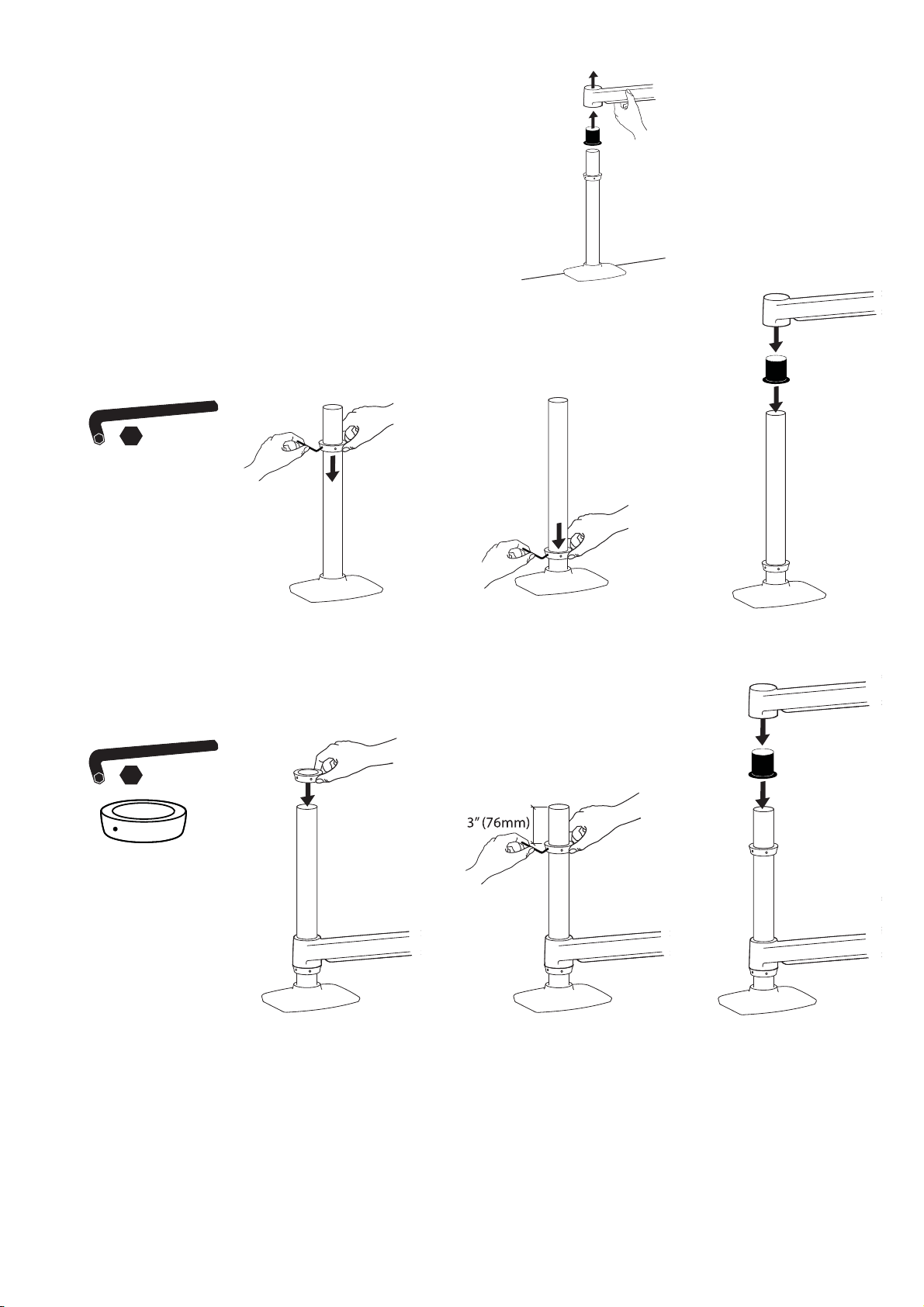

With the pole and base securely mounted to the desk

surface, remove any arms mounted to the pole.

a. Loosen the collar, lower to desired height for lower arm.

b. Tighten the two set screws in the collar to secure.

c. Attach lower arm.

a. Attach the provided collar.

b. Tighten the two set screws in the collar to secure at least 3" (76mm) from the top of the pole.

c. Attach top arm.

4 of 4

888-97-348-G-00 rev. B • 08/19

© 2013 Ergotron, Inc. All rights reserved.

www.ergotron.com |

USA: 1-800-888-8458

|

Europe: +31 (0)33-45 45 600

|

China: 400-120-3051

|

Japan: [email protected]

For local customer care phone numbers visit: http://contact.ergotron.com

For Service visit: www.ergotron.com

For Warranty visit: www.ergotron.com/warranty

Learn more about ergonomic computer use at: www.ergotron.com/ergonomics
