Rogue

Instruction manual

0463 732 201 GB 20220318 Valid for: HA017-, HA018-xxxx-xxxx

ES 150i, ES 180i

TABLE OF CONTENTS

0463 732 201 © ESAB AB 2022

1SAFETY ....................................................................................................... 5

1.1 Meaning of symbols ............................................................................... 5

1.2 Safety precautions ................................................................................. 5

2INTRODUCTION.......................................................................................... 9

2.1 Equipment ............................................................................................... 9

3TECHNICAL DATA ...................................................................................... 10

4INSTALLATION............................................................................................ 12

4.1 Location................................................................................................... 12

4.2 Lifting instructions ................................................................................. 12

4.3 Mains supply........................................................................................... 13

5OPERATION ................................................................................................ 15

5.1 Overview ................................................................................................. 15

5.2 Connections and control devices ......................................................... 15

5.3 Connecting welding and return cables ................................................ 15

5.4 Turning the power on/off ....................................................................... 16

5.5 Fan control .............................................................................................. 16

5.6 Thermal protection ................................................................................. 16

5.7 Functions and symbols ......................................................................... 16

5.8 Setting panel ........................................................................................... 18

6MAINTENANCE........................................................................................... 19

6.1 Routine maintenance ............................................................................. 19

6.2 Cleaning instruction............................................................................... 19

7TROUBLESHOOTING ................................................................................. 21

8ORDERING SPARE PARTS ........................................................................ 22

DIAGRAM ............................................................................................................ 23

ORDERING NUMBERS....................................................................................... 24

ACCESSORIES ................................................................................................... 25

Rights reserved to alter specifications without notice.

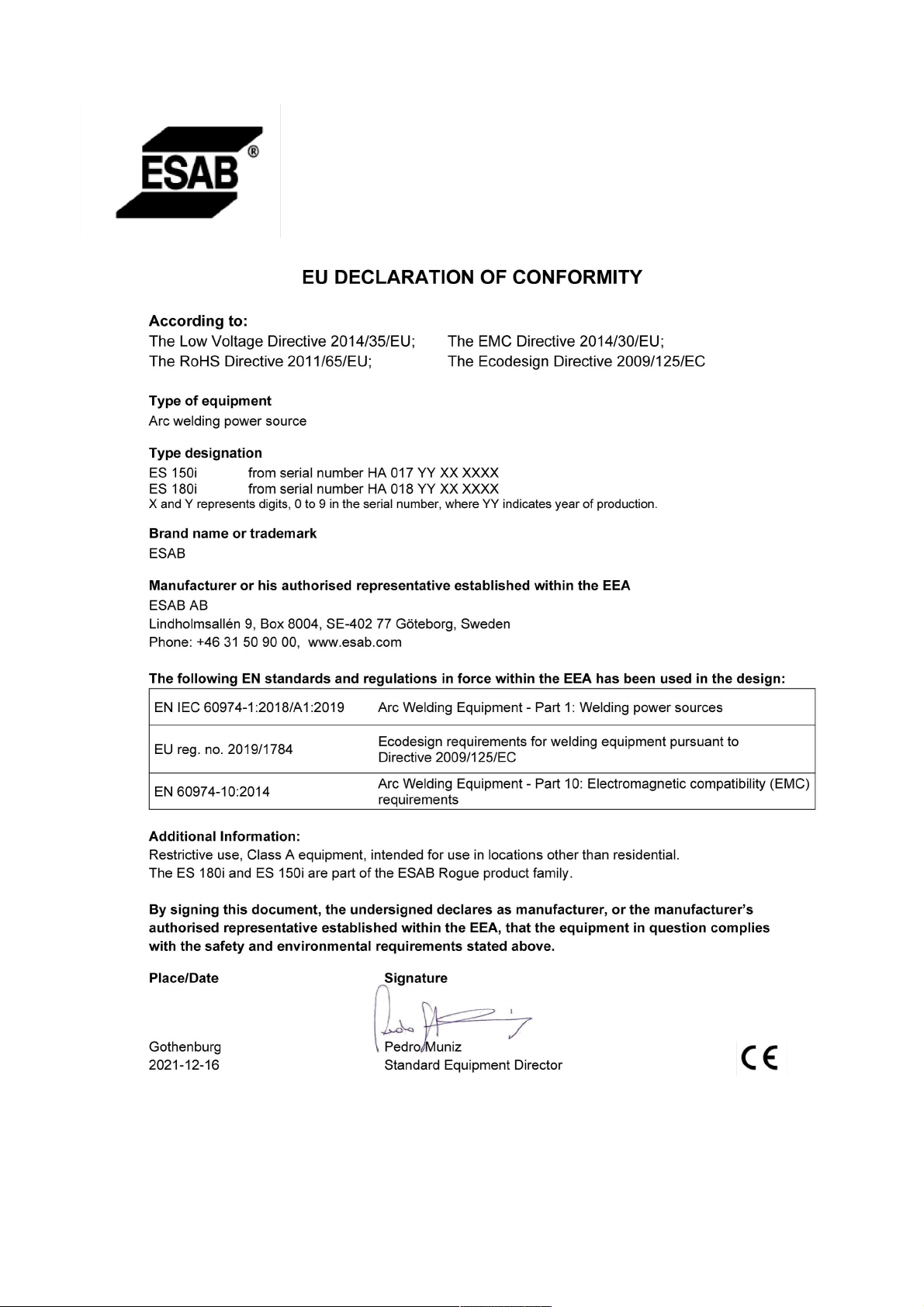

1 SAFETY

0463 732 201 -5- © ESAB AB 2022

1 SAFETY

1.1 Meaning of symbols

As used throughout this manual: Means Attention! Be Alert!

DANGER!

Means immediate hazards which, if not avoided, will result in immediate,

serious personal injury or loss of life.

WARNING!

Means potential hazards which could result in personal injury or loss of life.

CAUTION!

Means hazards which could result in minor personal injury.

WARNING!

Before use, read and understand the instruction manual

and follow all labels, employer´s safety practices and

Safety Data Sheets (SDSs).

1.2 Safety precautions

Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who

works on or near the equipment observes all the relevant safety precautions. Safety

precautions must meet the requirements that apply to this type of equipment. The following

recommendations should be observed in addition to the standard regulations that apply to

the workplace.

All work must be carried out by trained personnel well-acquainted with the operation of the

equipment. Incorrect operation of the equipment may lead to hazardous situations which can

result in injury to the operator and damage to the equipment.

1. Anyone who uses the equipment must be familiar with:

○ its operation

○ location of emergency stops

○ its function

○ relevant safety precautions

○ welding and cutting or other applicable operation of the equipment

2. The operator must ensure that:

○ no unauthorised person is stationed within the working area of the equipment

when it is started up

○ no-one is unprotected when the arc is struck or work is started with the

equipment

3. The workplace must:

○ be suitable for the purpose

○ be free from drafts

1 SAFETY

0463 732 201 -6- © ESAB AB 2022

4. Personal safety equipment:

○ Always wear recommended personal safety equipment, such as safety glasses,

flame-proof clothing, safety gloves

○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which

could become trapped or cause burns

5. General precautions:

○ Make sure the return cable is connected securely

○ Work on high voltage equipment may only be carried out by a qualified

electrician

○ Appropriate fire extinguishing equipment must be clearly marked and close at

hand

○ Lubrication and maintenance must not be carried out on the equipment during

operation

If equipped with ESAB cooler

Use ESAB approved coolant only. Non-approved coolant might damage the equipment and

jeopardize product safety. In case of such damage, all warranty undertakings from ESAB

cease to apply.

Recommended ESAB coolant ordering number: 0465720002.

For ordering information, see the "ACCESSORIES" chapter in the instruction manual.

WARNING!

Arc welding and cutting can be injurious to yourself and others. Take precautions

when welding and cutting.

ELECTRIC SHOCK - Can kill

• Install and ground the unit in accordance with instruction manual.

• Do not touch live electrical parts or electrodes with bare skin, wet gloves or

wet clothing.

• Insulate yourself from work and ground.

• Ensure your working position is safe

ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health

• Welders having pacemakers should consult their physician before welding.

EMF may interfere with some pacemakers.

• Exposure to EMF may have other health effects which are unknown.

• Welders should use the following procedures to minimize exposure to

EMF:

○ Route the electrode and work cables together on the same side of

your body. Secure them with tape when possible. Do not place your

body between the torch and work cables. Never coil the torch or work

cable around your body. Keep welding power source and cables as

far away from your body as possible.

○ Connect the work cable to the workpiece as close as possible to the

area being welded.

FUMES AND GASES - Can be dangerous to health

• Keep your head out of the fumes.

• Use ventilation, extraction at the arc, or both, to take fumes and gases

away from your breathing zone and the general area.

1 SAFETY

0463 732 201 -7- © ESAB AB 2022

ARC RAYS - Can injure eyes and burn skin

• Protect your eyes and body. Use the correct welding screen and filter lens

and wear protective clothing.

• Protect bystanders with suitable screens or curtains.

NOISE - Excessive noise can damage hearing

Protect your ears. Use earmuffs or other hearing protection.

MOVING PARTS - Can cause injuries

• Keep all doors, panels and covers closed and securely in place. Have only

qualified people remove covers for maintenance and troubleshooting as

necessary. Reinstall panels or covers and close doors when service is

finished and before starting engine.

• Stop engine before installing or connecting unit.

• Keep hands, hair, loose clothing and tools away from moving parts.

FIRE HAZARD

• Sparks (spatter) can cause fire. Make sure that there are no inflammable

materials nearby.

• Do not use on closed containers.

HOT SURFACE - Parts can burn

• Do not touch parts bare handed.

• Allow cooling period before working on equipment.

• To handle hot parts, use proper tools and/or insulated welding gloves to

prevent burns.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

CAUTION!

This product is solely intended for arc welding.

WARNING!

Do not use the power source for thawing frozen pipes.

CAUTION!

Class A equipment is not intended for use in residential

locations where the electrical power is provided by the

public low-voltage supply system. There may be

potential difficulties in ensuring electromagnetic

compatibility of class A equipment in those locations,

due to conducted as well as radiated disturbances.

1 SAFETY

0463 732 201 -8- © ESAB AB 2022

NOTE!

Dispose of electronic equipment at the recycling

facility!

In observance of European Directive 2012/19/EC on

Waste Electrical and Electronic Equipment and its

implementation in accordance with national law,

electrical and/or electronic equipment that has reached

the end of its life must be disposed of at a recycling

facility.

As the person responsible for the equipment, it is your

responsibility to obtain information on approved

collection stations.

For further information contact the nearest ESAB dealer.

ESAB has an assortment of welding accessories and personal protection equipment

for purchase. For ordering information contact your local ESAB dealer or visit us on

our website.

2 INTRODUCTION

0463 732 201 -9- © ESAB AB 2022

2 INTRODUCTION

Overview

Rogue ES 150i, ES 180i are an inverter-based power source intended for MMA (Manual

Metal Arc) and TIG (Tungsten Inert Gas) welding.

ESAB accessories for the product can be found in the "ACCESSORIES" chapter of

this manual.

2.1 Equipment

Rogue ES 150i, ES 180i includes:

• Power Source

• Work Clamp Leadset

• Electrode Holder Leadset

• Safety Manual

• Quick Start Guide

• Shoulder Strap

3 TECHNICAL DATA

0463 732 201 - 10 - © ESAB AB 2022

3 TECHNICAL DATA

Technical data

Rogue ES 180i Rogue ES 150i

Outlet voltage 230V±15%

1~ 50/60Hz

230V±15%

1~ 50/60Hz

Primary current

Imax MMA 36A 30A

ImaxLiveTIG 24A 18.5A

No-loadpower demand when in

energy saving mode 30W 30W

Setting range

MMA 20-180A 20-150A

Live TIG 10-180A 10-150A

Permissible load at MMA

20%dutycycle 170A/ 26.8V

25% duty cycle 150A/ 26V

60% duty cycle 97A/ 23.9V 97A/ 23.9V

100% duty cycle 75A/ 23V 75A/ 23V

Permissible load at Live TIG

25% duty cycle 180A/ 17.2V 150A/ 16V

60% duty cycle 116A/ 14.6V 97A/ 13.9V

100% duty cycle 90A/ 13.6V 75A/ 13V

Apparent power I2at maximum

current 8.7kVA 6.9kVA

Active

power I2

at maximum current 5.5kW 4.35kW

Power factor at maximum current

Live TIG 0.63 0.63

MMA 0.63 0.63

Efficiency at maximum current

MMA 89% 89%

Live TIG 89% 89%

Open-circuit voltage U0max

VRD 35 V deactivated 63VDC 63VDC

VRD 35 V activated <30V <30V

Operating temperature -10to+40°C

(+14to 104°F)

-10to+40°C

(+14to 104°F)

Transportation temperature -20 to +55°C

(-4 to +131°F)

-20 to +55°C

(-4 to +131°F)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ESAB Sistema di saldatura

ESAB

ESAB Mig 325 Manuale utente

ESAB

ESAB AristoMig U400 Manuale utente

ESAB

ESAB Origo Arc 250 Manuale utente

ESAB

ESAB Buddy Tig 160 Manuale utente

ESAB

ESAB LPH 120 Manuale utente

ESAB

ESAB ESP-150 Manuale utente

ESAB

ESAB Renegade ET 300i Manuale utente

ESAB

ESAB Renegade EC 1000 Manuale utente

ESAB

ESAB A6 SFD1 Series Manuale utente

ESAB

ESAB A2 Multitrac Guida

ESAB

ESAB Origo Arc 458T Guida

ESAB

ESAB Miggytrac 2000 Manuale utente

ESAB

ESAB Jesse James SIGNATURE Series Manuale utente

ESAB

ESAB Precision Plasmarc IEFC-S PT-24 Istruzioni generali

ESAB

ESAB LHF 405 PIPEWELD Manuale utente

ESAB

ESAB Origo Tig 3000i Manuale utente

ESAB

ESAB Aristo RoboFeed 3004w Manuale utente

ESAB

ESAB Origo Mig 320 Manuale utente

ESAB

ESAB MEF 44N Manuale utente

ESAB

ESAB EPP-200 Manuale utente

ESAB

ESAB Retrofit Aristo Mig 4004i WeldCloud Manuale utente

ESAB

ESAB OXWELD C-62 Manuale utente

ESAB

ESAB MIG-41 Manuale utente

ESAB

ESAB fabricator 141i Manuale utente

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuale utente
