EtherWAN EX42905 Series Manuale utente

EX42905/EX42914 series www.etherwan.com

Quick Start Guide

This quick start guide describes how to install and use the

Hardened Gigabit Ethernet Switch. Capable of operating at

temperature extremes of -40°C to 75°C, this is the Switch of

choice for harsh environments constrained by space.

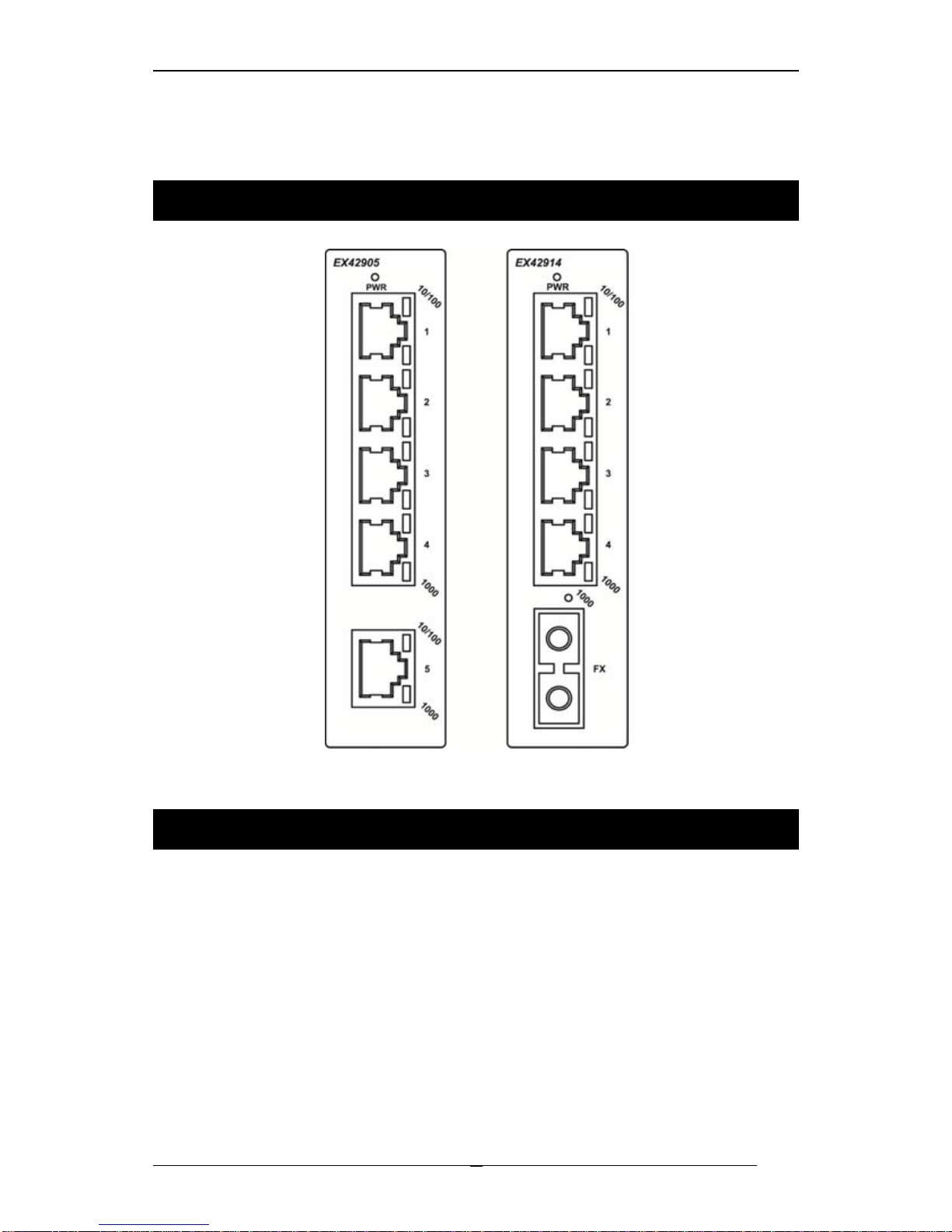

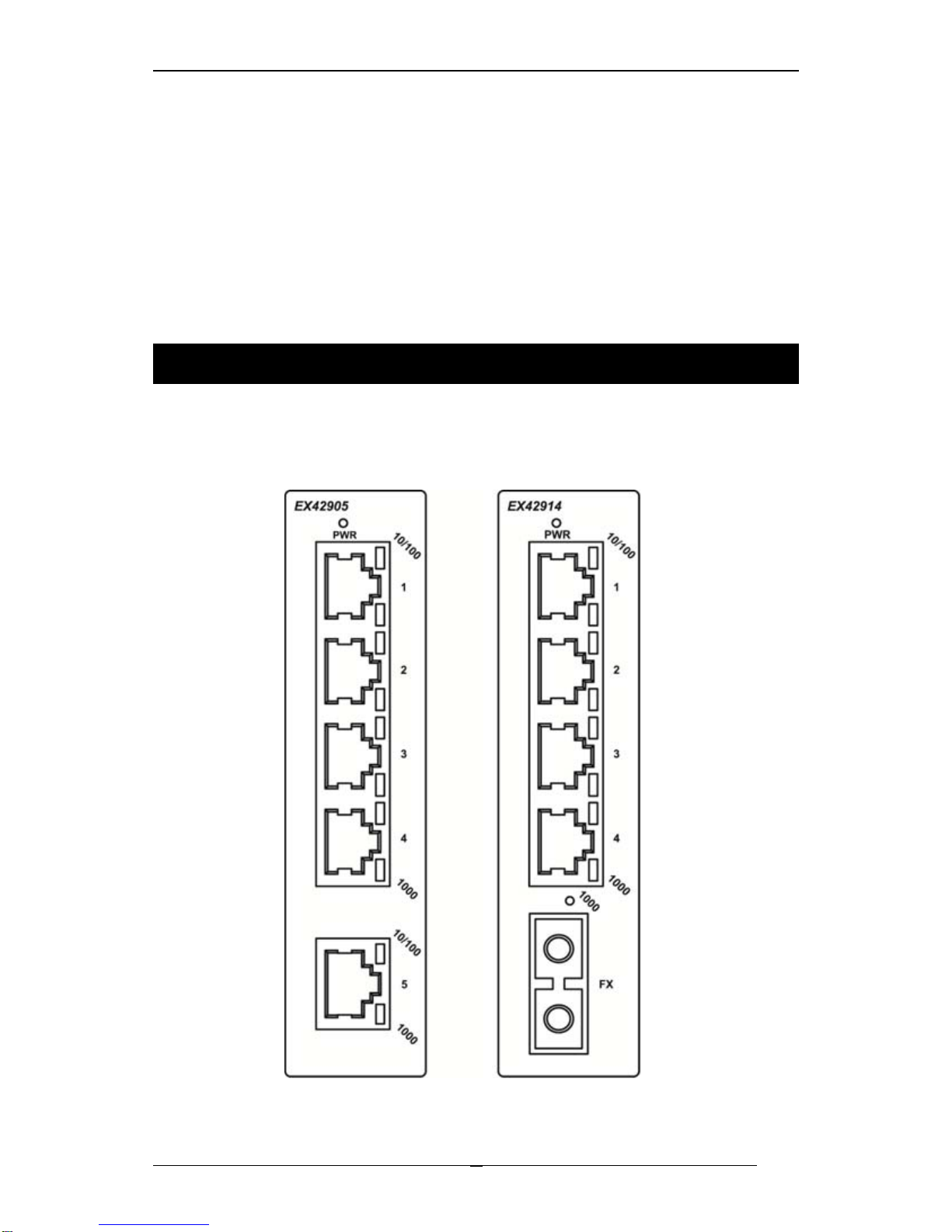

Physical Description

The Port Status LEDs

EX42905/EX42914 series www.etherwan.com

LED State Indication

Steady Device is powered up.

PWR Off Device is powered off.

Steady A valid network connection established at 10 or

100Mbps.

10/100

Flashing Transmitting or receiving data.

Steady A valid network connection established at 1000Mbps.

1000 Off The port is transferring at 10Mbps If this LED is dark.

The Terminal Block and Power Input

The Terminal Block

PWR Power Input

GND Power Ground

Earth Ground

DC Terminal Block Power Input: The DC Terminal Block

power input can be used to power up this Switch / Media

Converter.

CAUTION: This equipment is designed to permit the

connection of the earthed conductor of the DC supply circuit

to the earthing conductor at the equipment.

If this connection is made, all of the following conditions must

be met:

This equipment shall be connected to directly to the DC supply

system earthing electrode conductor or to a bonding jumper from

an earthing terminal bar or bus to which the DC supply system

earthing electrode conductor is connected.

EX42905/EX42914 series www.etherwan.com

This equipment shall be located in the same immediate area

(such as, adjacent cabinets) as any other equipment that has a

connection between the earthed conductor of the same DC

supply circuit and the earthing conductor, and also the point of

earthing of the DC system. The DC system shall not be earthed

elsewhere.

The DC supply source is to be located within the same premises

as the equipment.

Switching or disconnecting devices shall not be in the earthed

circuit conductor between the DC source and the point of

connection of the earthing electrode conductor.

The 10/100/1000Base-TX and 1000Base-SX/LX/BX

Connectors

1. The 10/100/1000Base-TX Connections

The following lists the pinouts of 10/100/1000Base-TX ports.

Pin Regular Ports Uplink port

1 TP0＋Transmit and Receive Data 0 ＋

2 TP0－Transmit and Receive Data 0 －

3 TP1＋Transmit and Receive Data 1 ＋

4 TP2＋Transmit and Receive Data 2 ＋

5 TP2－Transmit and Receive Data 2 －

6 TP1－Transmit and Receive Data 1 －

7 TP3＋Transmit and Receive Data 3 ＋

8 TP3－Transmit and Receive Data 3 －

EX42905/EX42914 series www.etherwan.com

2. The 1000Base-SX/LX Connections

The fiber port pinouts: The Tx (transmit) port of device I is

connected to the Rx (receive) port of device II, and the Rx

(receive) port of device I to the Tx (transmit) port of device II.

3. The WDM 1000Base-BX Connections

The fiber port pinouts: Only one Single mode or Multi mode

optical fiber is required to transmit and receive data.

Functional Description

Complies with EN61000-6-2 & EN61000-6-4 EMC Generic

standard immunity for industrial environment.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x.

Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto

MDI/MDIX.

1000Base-SX/LX: Multi mode SC or ST type, Single mode SC

or ST type. 1000Base-BX: WDM Multi mode or Single mode

SC type.

Supports 8192 MAC addresses, 1M bits buffer memory.

Jumbo frame supported up to 10K bytes.

IEEE802.3az Energy Efficient Ethernet (EEE) supported.

Quality of Service (QoS) supported based on layer 2

priorities.

Power consumption: 6.5W Max. 0.25A @ 24VDC.

Power supply: DC Terminal Block power input, 12-48VDC.

EX42905/EX42914 series www.etherwan.com

-40°C to 75°C (-40°F to 167°F) operating temperature range.

Tested for functional operation @ -40°C to 85°C (-40°F to

185°F).

Metal compact DIN-Rail industrial case design.

EX42905/EX42914 series www.etherwan.com

Assembly, Startup, and Dismantling

Assembly: Place the device on the DIN-Rail from above using

the slot. Push the front of the device toward the mounting

surface until it audibly snaps into place.

Startup: Connect the supply voltage to start up the device via

the terminal block.

Dismantling: Pull out the lower edge and then remove the

device from the DIN-Rail.

EX42905/EX42914 series www.etherwan.com

Preface

A member of the growing family of rugged switches, this

switch addresses a need for a smaller switch. This switch

provides an affordable solution for rugged and outdoor

environment, transportation road-side cabinet, industrial floor

shop, multitenant dwellings or Fiber To The Home (FTTH)

applications. Capable of operating at temperature extremes of

-40°C to 75°C, this is the switch of choice for harsh

environments constrained by space.

Plug-and-Play Solution:

The switch is a plug-and-play Gigabit Ethernet Switch in

compact size. It doesn't have any complicated software to set

up.

This manual describes how to install and use the hardened

compact Gigabit Ethernet Switch. This switch integrates full

wire speed switching technology. This switch brings the

answer to complicated hardened networking environments.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the switch

Illustrative LED functions

Installation instructions

Specifications

EX42905/EX42914 series www.etherwan.com

Table of Contents

QUICK START GUIDE 1

PHYSICAL DESCRIPTION 1

The Port Status LEDs 1

The Terminal Block and Power Input 2

The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors 3

FUNCTIONAL DESCRIPTION 4

ASSEMBLY,STARTUP,AND DISMANTLING 6

PREFACE 7

TABLE OF CONTENTS 8

PRODUCT OVERVIEW 9

HARDENED GIGABIT ETHERNET SWITCH 9

PACKAGE CONTENTS 9

PRODUCT HIGHLIGHTS 10

Basic Features 10

FRONT PANEL DISPLAY 11

PHYSICAL PORTS 12

INSTALLATION 13

SELECTING A SITE FOR THE SWITCH 13

DIN RAIL MOUNTING 14

CONNECTING TO POWER 15

DC Terminal Block Power Inputs 15

CONNECTING TO YOUR NETWORK 17

Cable Type & Length 17

Cabling 18

SPECIFICATIONS 19

EX42905/EX42914 series www.etherwan.com

Product Overview

Hardened Gigabit Ethernet Switch

Package Contents

When you unpack the product package, you shall find the

items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to your

authorized reseller.

This Switch

User’s Manual

EX42905/EX42914 series www.etherwan.com

Product Highlights

Basic Features

Complies with EN61000-6-2 & EN61000-6-4 EMC Generic

standard immunity for industrial environment.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x.

Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto

MDI/MDIX.

1000Base-SX/LX: Multi mode SC or ST type, Single mode SC

or ST type. 1000Base-BX: WDM Multi mode or Single mode

SC type.

Supports 8192 MAC addresses, 1M bits buffer memory.

Jumbo frame supported up to 10K bytes.

IEEE802.3az Energy Efficient Ethernet (EEE) supported.

Quality of Service (QoS) supported based on layer 2

priorities.

Power consumption: 6.5W Max. 0.25A @ 24VDC.

Power supply: DC Terminal Block power input, 12-48VDC.

-40°C to 75°C (-40°F to 167°F) operating temperature range.

Tested for functional operation @ -40°C to 85°C (-40°F to

185°F).

Metal compact DIN-Rail industrial case design.
