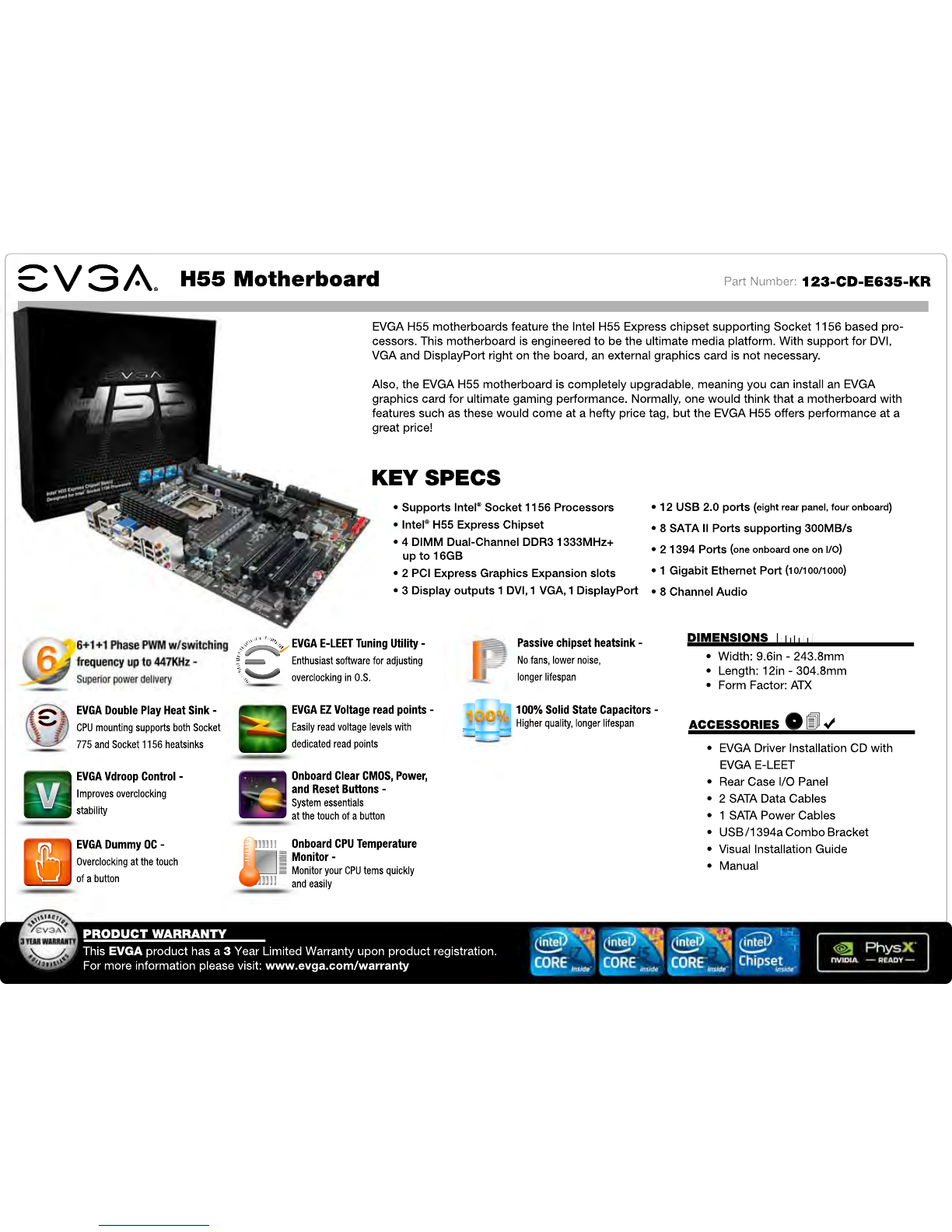

EVGA H55 Manuale utente

• 12 USB 2.0 ports (

eight rear panel, four onboard

)

• 8 SATA II Ports supporting 300MB/s

• 2 1394 Ports

(

one onboard one on I/O

)

• 1 Gigabit Ethernet Port

(

10/100/1000

)

• 8 Channel Audio

• Supports Intel

Socket 1156 Processors

• Intel

H55 Express Chipset

• 4 DIMM Dual-Channel DDR3 1333MHz+

up to 16GB

• 2 PCI Express Graphics Expansion slots

• 3 Display outputs 1 DVI, 1 VGA, 1 DisplayPort

KEY SPECS

EVGA Double Play Heat Sink -

CPU mounting supports both Socket

775 and Socket 1156 heatsinks

EVGA Vdroop Control -

Improves overclocking

stability

EVGA Dummy OC -

Overclocking at the touch

of a button

EVGA E-LEET Tuning Utility -

Enthusiast software for adjusting

overclocking in O.S.

EVGA EZ Voltage read points -

Easily read voltage levels with

dedicated read points

Onboard Clear CMOS, Power,

and Reset Buttons -

System essentials

at the touch of a button

Onboard CPU Temperature

Monitor -

Monitor your CPU tems quickly

and easily

Passive chipset heatsink -

No fans, lower noise,

longer lifespan

100%

100% Solid State Capacitors -

Higher quality, longer lifespan

• EVGA Driver Installation CD with

EVGA E-LEET

• Rear Case I/O Panel

• 2 SATA Data Cables

• 1 SATA Power Cables

• USB / 1394a Combo Bracket

•

• Visual Installation Guide

• Manual



ACCESSORIES

DIMENSIONS

• Width: 9.6in - 243.8mm

• Length: 12in - 304.8mm

• Form Factor: ATX

This EVGA product has a 3 Year Limited Warranty upon product registration.

For more information please visit: www.evga.com/warranty

PRODUCT WARRANTY

EVGA H55 motherboards feature the Intel H55 Express chipset supporting Socket 1156 based pro-

cessors. This motherboard is engineered to be the ultimate media platform. With support for DVI,

VGA and DisplayPort right on the board, an external graphics card is not necessary.

Also, the EVGA H55 motherboard is completely upgradable, meaning you can install an EVGA

graphics card for ultimate gaming performance. Normally, one would think that a motherboard with

features such as these would come at a hefty price tag, but the EVGA H55 offers performance at a

great price!

Part Number:

123-CD-E635-KR

H55 Motherboard
