Congratulations!

Thank you for purchasing this EVGA P55 Chipset based motherboard.

This motherboard from EVGA offers high performance, quality features and superior support. If you have

any questions about this product please visit www.evga.com to read the EVGA FAQ, visit our forums or

Parts NOT in the Kit

This kit contains all the hardware necessary to install and connect your new EVGA P55 Motherboard.

However, it does not contain the following items that must be purchased separately to make the motherboard

functional.

Intel Socket 1156 Processor

DDR3 System Memory

Socket 1156 Cooling fan

PCI Express Graphics Card

Power Supply

EVGA assumes you have purchased all the necessary parts needed to allow for proper system functionality. For

a full list of supported CPU’s on this motherboard, please visit http://www.evga.com/support/motherboard/.

When replacing a motherboard in a system case, you will need to reinstall an operating system even though

the current hard disk may already have an operating system

Hardware Installation

This section will guide you through the installation of the motherboard. The topics covered in this section are:

Preparing the motherboard

Installing the CPU

Installing the CPU fan

Installing the memory

Installing the motherboard

Connecting cables

Preparing the Motherboard

Installing the CPU

Be very careful when handling the CPU. Hold the processor only by the

edges and do not touch the contacts on the motherboard or CPU. Any

physical damage to the motherbard pins will void the warranty.

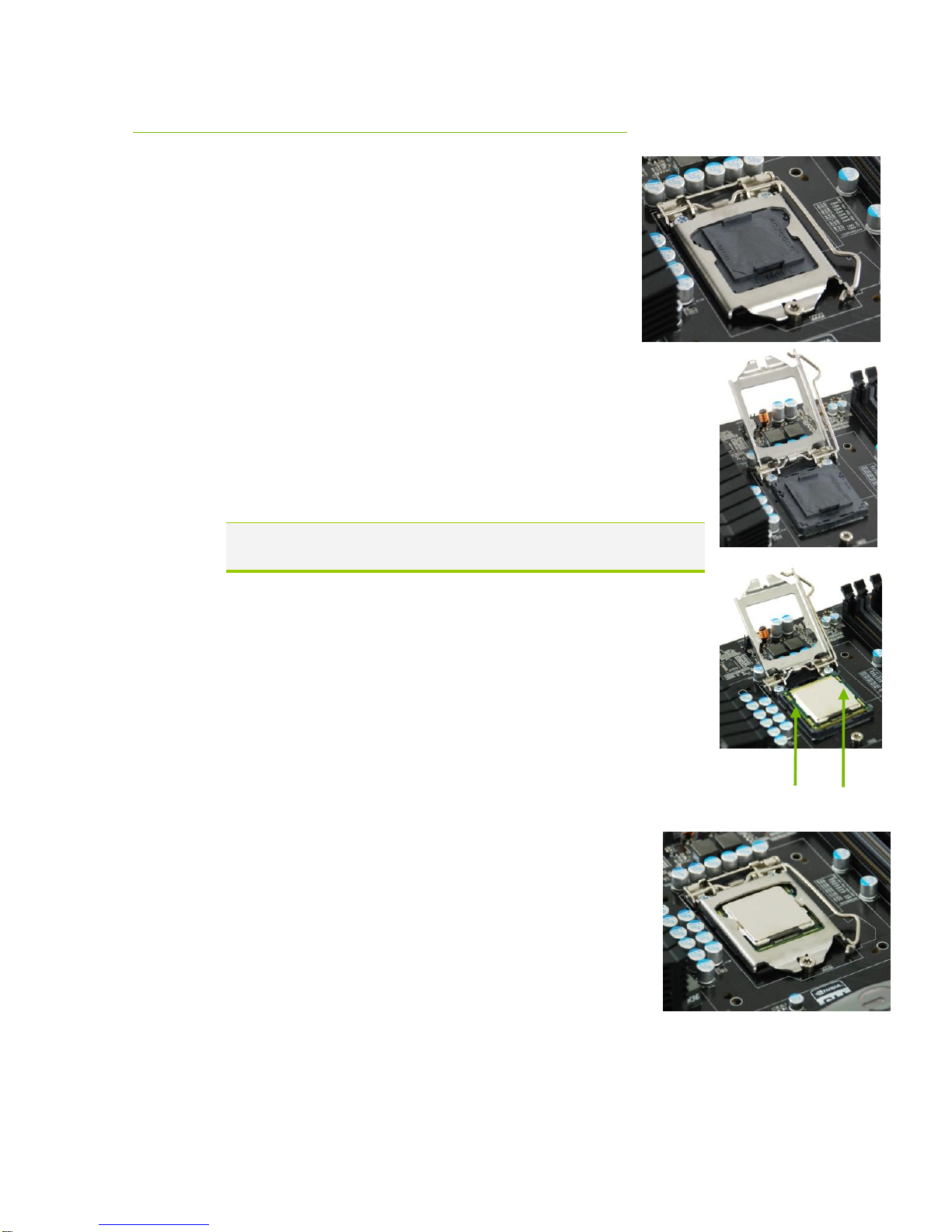

Use the following procedure to install the CPU onto the motherboard:

1. Unhook the socket lever by pushing down and away from the socket.

2. Pull the socket lever back and the load plate will automatically lift. There is a

protective socket cover within the CPU socket to protect the socket when there

is no CPU installed.

3. Remove the protective socket cover from the CPU Socket in a straight up

motion.

Note: You must save the protective cover so that whenever you

remove the CPU the pins will not be protected.

4. Align the notches in the processor with the notches on the socket.

5. Lower the processor straight down into the socket without tilting or sliding it

into the socket

6. Lower the load plate so it is resting on the CPU.

7. Pull back the socket lever again to ensure the load plate tip

engages under the shoulder screw cap.

8. Carefully close and latch the lever.

Installing the CPU Fan

There are many different fan types that can be used with this motherboard.

Follow the instruction that came with you fan assembly. Be sure that the

fan orientation is correct for your chassis type and your fan assembly.

Align notches with notches

on the CPU

Installing System Memory (DIMMs)

Your new motherboard has four 240-pin slots for DDR3 memory. These slots support 512 MB, 1GB, 2GB,

and 4GB DDR3 technologies. There must be at least one memory bank populated to ensure normal operation.

Use the following the recommendations for installing memory.

One DIMM: If using 1 DIMM (Single Channel), install into: DIMM slot 1.

Two DIMMs: If using 2 DIMMs (Dual Channel), install into: DIMM slots 1 and 3.

Four DIMMS: If using 4 DIMMs (Dual Channel), install into: DIMM slots 2, 1, 4, and 3.

Use the following procedure to install memory DIMMs. Note that there is only one gap near the center of the

DIMM slot. This slot matches the slot on the memory DIMM to ensure the component is installed properly.

1. Unlock a DIMM slot by pressing the module clips outward.

2. Align the memory module to the DIMM slot, and insert the module vertically into the DIMM slot. The

plastic clips at both sides of the DIMM slot automatically lock the DIMM into the connector.

Installing the Motherboard

The sequence of installing the motherboard into a system case depends on the chassis you are using and if you

are replacing an existing motherboard or working with an empty system case. Determine if it would be easier

to make all the connections prior to this step or to secure the motherboard and then make all the connections.

It is normally easier to secure the motherboard first.

Use the following procedure to install the I/O shield and secure the motherboard into the chassis.

Installing the I/O Shield

The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects

internal components from dust and foreign objects, and promotes correct airflow within the chassis.

Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield

into place and make sure it fits securely.

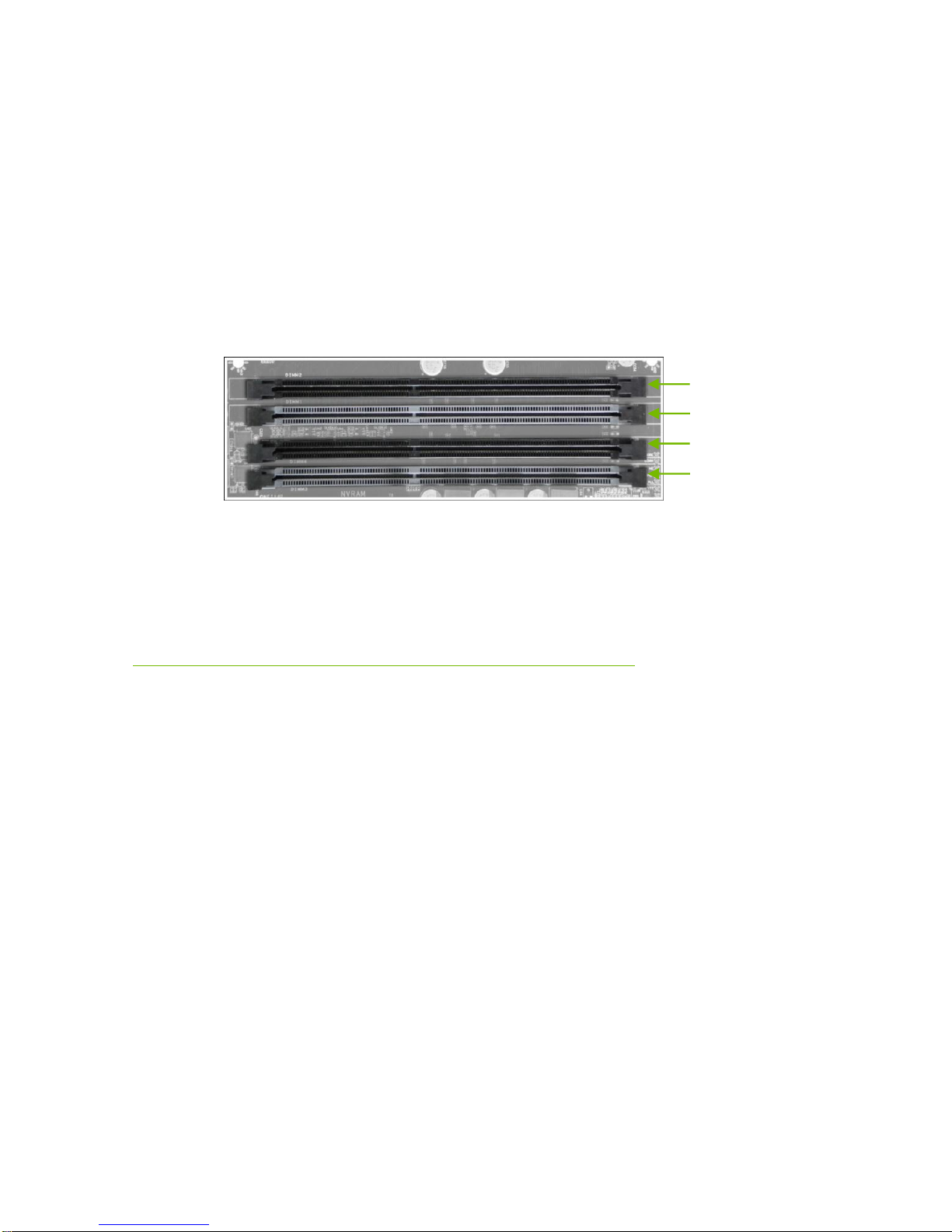

DIMM Slot 2 (XMM2)

DIMM Slot 1 (XMM1)

DIMM Slot 4 (XMM4)

DIMM Slot 3 (XMM3)

Securing the Motherboard into a System Case

Most system cases have a base with mounting studs or spacers to allow the motherboard to be secured to the

chassis and help to prevent short circuits. If there are studs that do not align with a mounting hole on the

motherboard, it is recommended that you remove that stud to prevent the possibility of a short circuit.

1. Carefully place the motherboard onto the stand offs located inside the chassis.

2. Align the mounting holes with the stand offs.

3. Align the connectors to the I/O shield.

4. Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly instruction.

5. Secure the motherboard with screws.

Connecting Cables

This section takes you through all the necessary connections on the motherboard. This will include:

Power Connections

24-pin ATX power (ATXPOWER)

4-pin ATX 12V power (ATX_CPU)

Internal Headers

Front panel

Serial ATA II

Expansion slots

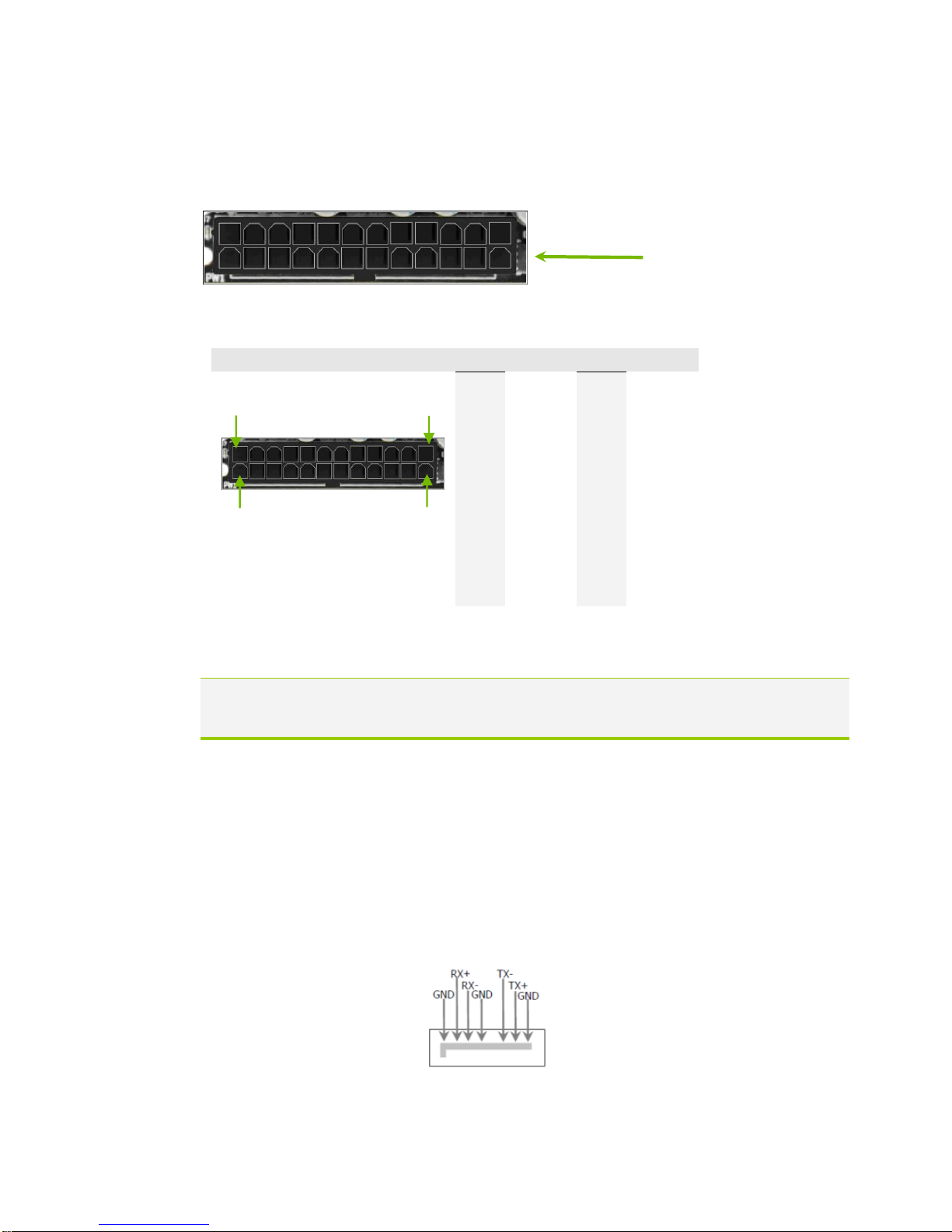

24-pin ATX Power (ATXPOWER)

ATXPOWER is the main power supply connector located along the edge of the board next to the DIMM

slots. Make sure that the power supply cable and pins are properly aligned with the connector on the

motherboard. Firmly plug the power supply cable into the connector and make sure it is secure.

Connector

Signal

+3.3V

-12V

GND

+5V

PS_ON

GND

+5V

GND

PWROK

RSVD

+5V_AUX

+5V

+12V

+5V

+12V

+5V

+3.3V

GND

4-pin ATX 12V Power (ATX_CPU)

ATX_CPU the 4-pin or 8-pin ATX 12V power connection, is used to provide power to the CPU.

Align the pins to the connector and press firmly until seated. If using an 8-pin connector,

4 of the pins will overhang the connector.

Connecting Serial ATA Cables

The Serial ATA II connector is used to connect the Serial ATA II device to the motherboard. These

connectors support the thin Serial ATA II cables for primary storage devices. The current Serial ATA II

interface allows up to 300MB/s data transfer rate.

There are six (5) internal serial ATA connectors on this motherboard. These connections are designed to be

angled to not interfere with any expansions cards. These connection points support RAID 0, RAID 1, RAID5

and RAID 10 configurations.

Power Connector

Plug power cable from system

power supply to ATXPOWER

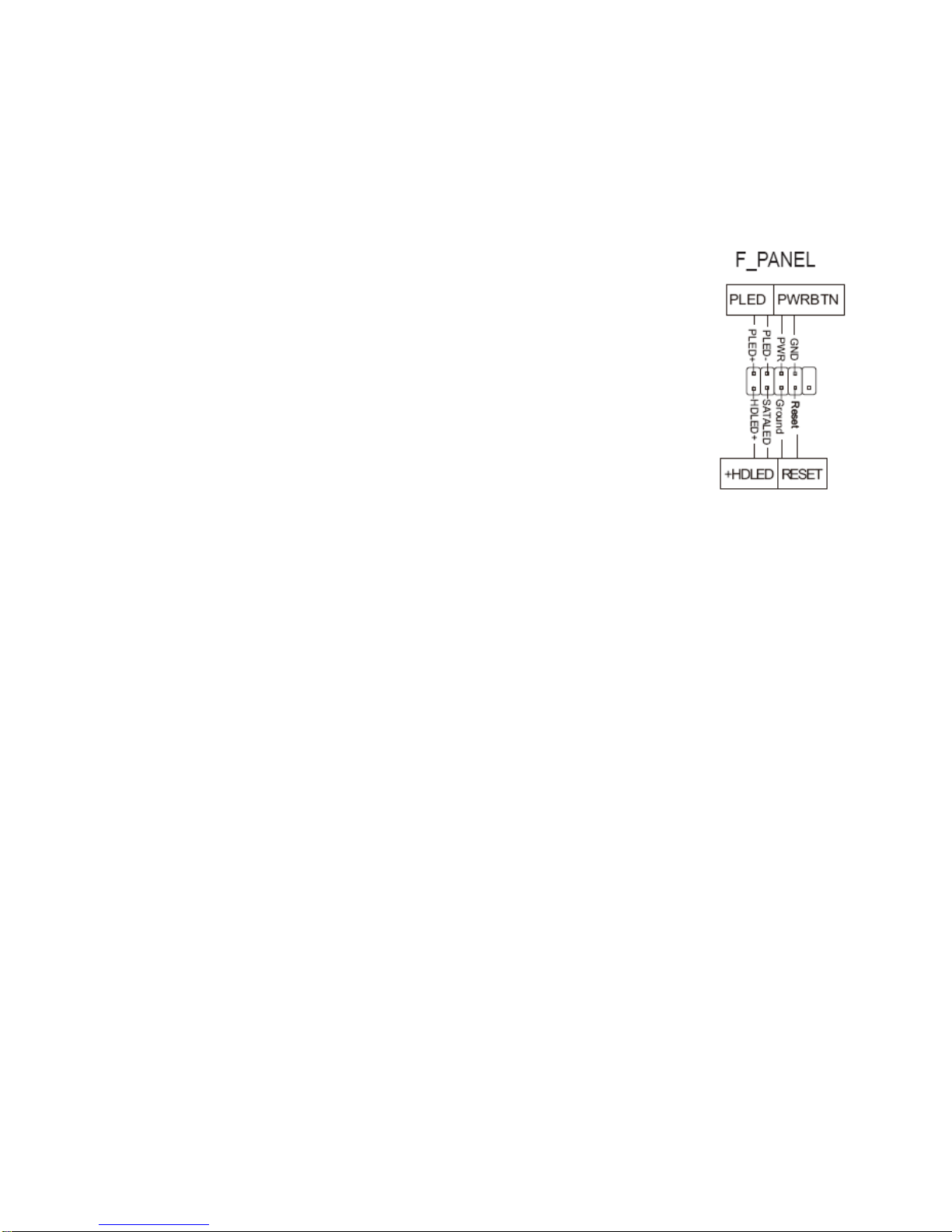

Front Panel Header (F_PANEL)

The front panel header on this motherboard is one connector used to connect the following four cables.

PLED

Attach the front panel power LED

cable to these two pins of the connector. The Power LED indicates the system’s

status.

When the system is turned on, the LED is on. When the system is turned off,

the LED is off.

PWRBTN

Attach the power button cable from the case to these two pins. Pressing the

power button on the front panel turns the system on and off rather than using

the onboard button.

HDLED

Attach the hard disk drive indicator LED cable to these two pins. The HDD

indicator LED indicates the activity status of the hard disks.

RESET

Attach the Reset switch cable from the front panel

of the case to these two pins. The system restarts

when the RESET switch is pressed.

Expansion Slots

PCI Express x1 Slots

The PCI Express x1 slot is designed to accommodate PCIe x1 cards, such as an EVGA Killer Xeno Network

Card or Sound Card. The x1 slot provides 250 MB/sec bandwidth.

PCI Express x16/x8/x1 Slots

These PCI Express slots are reserved for Graphic Cards and PCI Express x1 devices. The design of this

motherboard supports multiple Graphic Card technology.

When installing a PCI Express Graphic Card, be sure the retention clip snaps and locks the card into place.

Secure the card’s metal bracket to the chassis back panel with the screw used to hold the blank cover.

Enter BIOS Setup

The BIOS is the communication bridge between hardware and software. Correctly setting the BIOS

parameters is critical to maintain optimal system performance and stability.

Use the following procedure to verify/change BIOS settings.

1. Power on the computer.

2. Press the Del key when the following message briefly displays at the bottom of the screen during the

Power On Self Test (POST).

Press F9 to Load Defaults, DEL to enter Setup.

Pressing Del takes you to the AMI BIOS CMOS Setup Utility.

The main menu allows you to select from the list of setup functions and two exit choices. Use the + and -

keys to scroll through the options or press Enter to display the associated submenu. Use the  arrow keys

to position the selector in the option you choose. To go back to the previous menu, press Esc.

Use [ENTER], [TAB]

Or [SHITF-TAB] to

Select a field.

Use [+] or [-] to

Configure system Time.

System Overview

AMIBIOS

Version : 0307

Build Date : 10/20/09

System Memory

Size : 4096MB

System Time [10:19:32]

System Date [Mon 10/26/2009]

BIOS SETUP UTILITY

Main Advanced Power Security Boot Exit

 Select Screen

 Select Item

+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

Main

Installing Drivers and Software

The CD that has been shipped with the EVGA P55 Motherboard contains the following software and drivers:

Chipset Drivers

Audio drivers

LAN Drivers

RAID Drivers

Adobe Acrobat Reader

User’s Manual

Windows XP/Vista/7 Driver Installation

1. Insert the Intel P55 installation CD for the motherboard included in the kit.

2. The CD will autorun, install the drivers and utilities listed on the install screen.

If the CD does not run, go to My Computer and click on the CD to open.

ようこそ！ ........................................................................................................11

同梱されない付属品 .........................................................................................11

ハードウェアを取り付ける................................................................................12

始める前に ......................................................................................................12

CPU を取り付ける ..........................................................................................12

CPU ファンを取り付ける ..................................................................................13

システムメモリ（DIMMｓ）を取り付ける ................................................................13

マザーボードを取り付ける ..................................................................................14

I/O シールドを取り付ける ...............................................................................15

マザーボードをケースへ固定する ....................................................................15

配線ケーブル ..................................................................................................15

24-ピン ATX 電源 (ATXPOWER)………………………………………………….16

4-ピン ATX 12V 電源 (ATX_CPU) ……………………….………………………16

シリアル ATA ケーブルの接続 ........................................................................17

拡張スロット PCI Express x1 スロット ...............................................................18

PCI Express x16/x8/x1 スロット….………………………………………………...18

BIOS のセットアップ ..........................................................................................19

ドライバとソフトウェアのインストール .........................................................................20

Windows XP/Vista/7 ドライバのインストール.........................................................20

Altri manuali per P55 Micro V

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali EVGA Scheda madre

EVGA

EVGA 120-LF-E650-TR Manuale utente

EVGA

EVGA 123-CD-E635-KR Manuale utente

EVGA

EVGA 780i - nForce SLI 775 A1 Motherboard Manuale utente

EVGA

EVGA P55 FTW 200 Manuale utente

EVGA

EVGA Z97 FTW Manuale utente

EVGA

EVGA Z370 Classified K Manuale utente

EVGA

EVGA P67 FTW Manuale del proprietario

EVGA

EVGA Z790 DARK K NGP N Manuale utente

EVGA

EVGA X299 FTW-K Manuale utente

EVGA

EVGA X299 DARK Manuale utente

EVGA

EVGA X58 SLI3 Manuale utente

EVGA

EVGA P67 SLI Micro Manuale utente

EVGA

EVGA X58 SLI LE Manuale utente

EVGA

EVGA 730i - nForce Motherboard - ATX Manuale utente

EVGA

EVGA 113-M2-E113-TR Manuale utente

EVGA

EVGA EVGA X79 DARK Manuale utente

EVGA

EVGA X58 SLI CLASSIFIED Manuale utente

EVGA

EVGA X79 Classified Manuale utente

EVGA

EVGA 141-LF-E658-KR - P55 FTW 200 Motherboard Manuale utente

EVGA

EVGA Classified SR-2 Super Record 2 Manuale del sistema

EVGA

EVGA Z68 SLI Manuale utente

EVGA

EVGA 111-CD-E630-TR Manuale utente

EVGA

EVGA H370 Stinger Manuale utente

EVGA

EVGA nForce 3 250 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
