Exerpeutic 1220.2 Manuale utente

OWNER’SMANUAL

INDOORTRAININGBIKE

IMPORTANT: Read all instructions carefully before using this product. Retain

this owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change

without notice.

1220.2‐050916



SERVICE ------------------------------------------------------------------------ 2

LABEL PLACEMENT --------------------------------------------------------- 3

PRODUCT SAFETY ---------------------------------------------------------- 4

OVERVIEW DRAWING ------------------------------------------------------ 5

PARTS LIST --------------------------------------------------------------------- 6

HARDWARE & TOOLS PACK---------------------------------------------- 7

ASSEMBLY --------------------------------------------------------------------- 8

COMPUTER ---------------------------------------------------------------------15

ADJUSTMENTS ----------------------------------------------------------------16

EMERGENCY STOP ----------------------------------------------------------18

MOVING THE BIKE ----------------------------------------------------------- 19

TROUBLE SHOOTING & MAINTENANCE ----------------------------- 20

WARRANTY -------------------------------------------------------------------- 21

PART REQUEST FORM ----------------------------------------------------- 22

TABLEOFCONTENTS

IMPORTANT: FOR NORTH AMERICA ONLY

For damaged or defective product, questions, replacement parts or any

other service support, please contact our customer service department

(8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods:

For Best Service, please Email:

Service@paradigmhw.com

Response Time: 1-2 Business Days

Website:

www.paradigmhw.com

Toll-Free:

1-844-641-7921

Response time may vary.

Please have the following information ready when requesting for service:

Your name

Phone number

Model number

Serial number

Part number

Proof of Purchase

For damaged or defective product please contact our customer service

before returning to the store.

Paradigm Health & Wellness, Inc.

1189 Jellick Ave.

City of Industry, CA 91748, USA

SERVICE

LABELPLACEMENT

Basic precautions should always be followed when using this equipment.

Read all instructions before using this equipment which include the

following safety instructions:

1. Read all the instructions in this manual and do warm up exercises before

using this equipment.

2. Before exercising, and in order to avoid injuring your muscles, it is

recommended that you perform warm-up exercises for every muscle

group.

3. Make sure all the components are not damaged and tightened well

before use. This equipment should be placed on a flat surface when

using. Using a mat or other covering material on the ground is

recommended.

4. Wear proper clothes and shoes when using this equipment; do not

wear clothes that might get caught by any part of the equipment;

remember to tighten the pedaling straps.

5. Do not attempt any maintenance or adjustments other than those

described in this manual. Should any problems arise, discontinue use

and consult customer service.

6. Do not use or leave the equipment outdoors.

7. This equipment is for household use only.

8. Only one person should be on the equipment while in use.

9. Keep children and pets away from the equipment while in use. This

machine is designed for adults only. This product requires a minimum of

6 square feet of space for safe operation.

10. If you feel any chest pains, nausea, dizziness, or shortness of breath, you

should stop exercising immediately and consult your physician before

continuing.

11. The maximum weight capacity for this product is 300 lbs/136 kgs.

WARNING:Before beginning any exercise program consult

your physician. This is especially important for the people who are

over 35 years old or who have pre-existing health problems. Read all

instructions before using any fitness equipment.

CAUTION:Read all instructions carefully before operating this

product. Retain this Owner’s Manual for future reference.

PRODUCTSAFETY

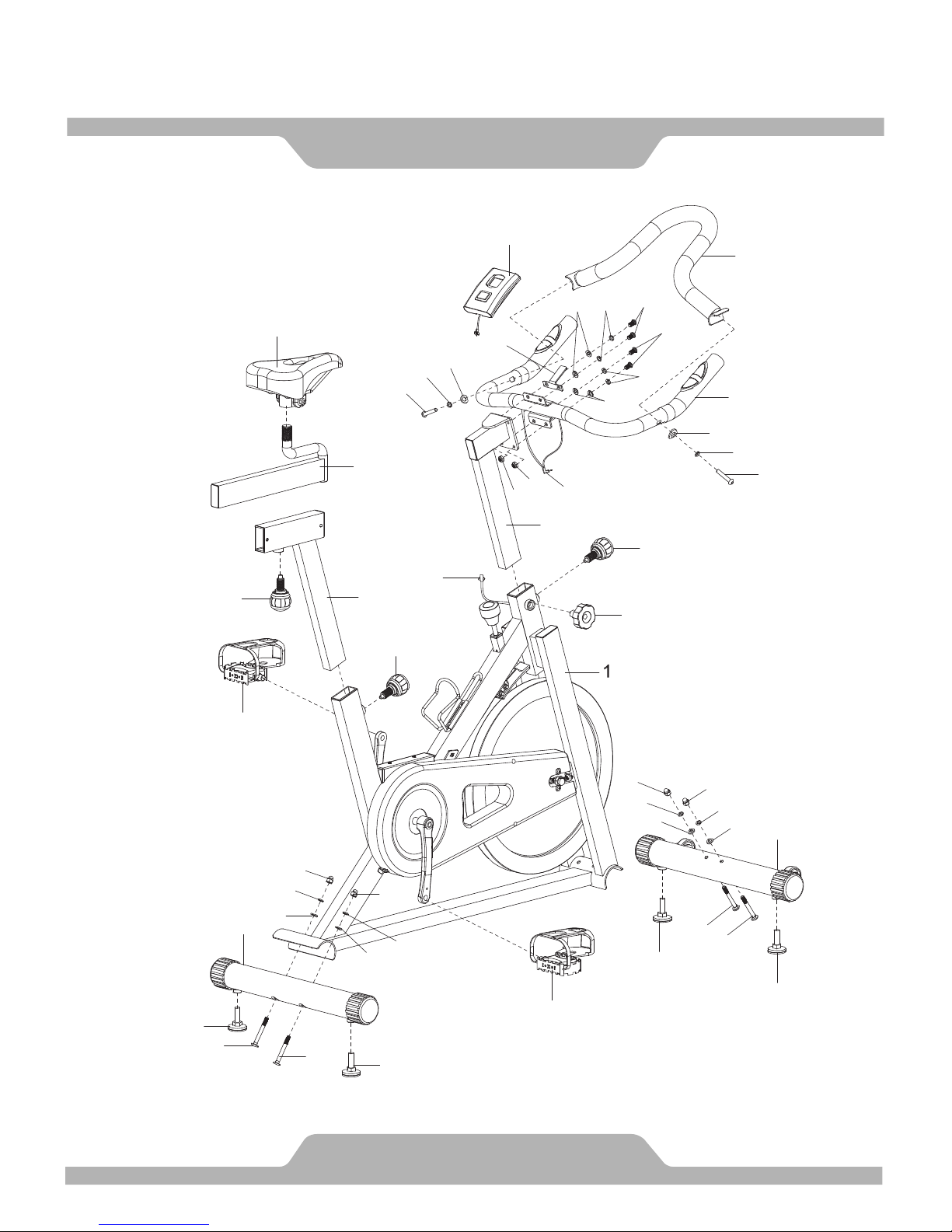

OVERVIEWDRAWING

2020

20 20

21 77

22 22

8989

No. Description Qty

1 Main Frame 1

2 Front Stabilizer 1

3 Rear Stabilizer 1

4 Seat Post 1

5 Seat Slide Tube 1

6 Handlebar Post 1

7 Hand Pulse Handlebar 1

8 Handlebar 1

14 Right Pedal 1

15 Left Pedal 1

19 Adjustable leveler M12*30 4

20 Carriage Bolt M8*75 4

21 Curved Washer φ8*φ16*1.5 4

22 Cap Nut M8 4

37 Round Knob M16*1.5*18 3

41 Seat DD-6619 1

66 Lock Knob M16*1.5*20 1

75 Console 1

76 Hex Bolt M8*20 4

77 Spring Washer φ8 10

78 Flat Washer Ф8*Ф16*1.5 4

79 Console Bracket 64*60*δ2.5 1

80 Chain 1

84 Hex Bolt M8*45 2

87 Sensor Wire L=700 MM 1

88 Hand Pulse Sensor Wire L=750MM 1

89 Lock Nut M8 S13 2

90 Big Curved Washer Ф8*Ф20*2 2

PARTSLIST

HARDWARE&TOOLSPACK

(20) Carriage Bolt M8x75 4PCS

(21) Curve Washer φ8xφ16x1.5 4PCS

(77) Spring Washer φ8 4PCS

(22) Cap Nut M8 4PCS

(84) Hex Bolt M8x45 2PCS

(90) Big Curve Washer φ8xφ20x2 2PCS

(77) Spring Washer φ8 2PCS

(76) Hex Bolt M8x20 2PCS

(78) Flat Washer φ8xφ16x1.5 2PCS

(77) Spring Washer φ8 2PCS

(89) Lock Nut M8 2PCS

13, 15mm Double Open-Ended Wrench 2PCS

(76) Hex Bolt M8x20 2PCS

(78) Flat Washer φ8xφ16x1.5 2PCS

(77) Spring Washer φ8 2PCS

6mm Allen Wrench 1PCS

Step 6

1petS

Step 7

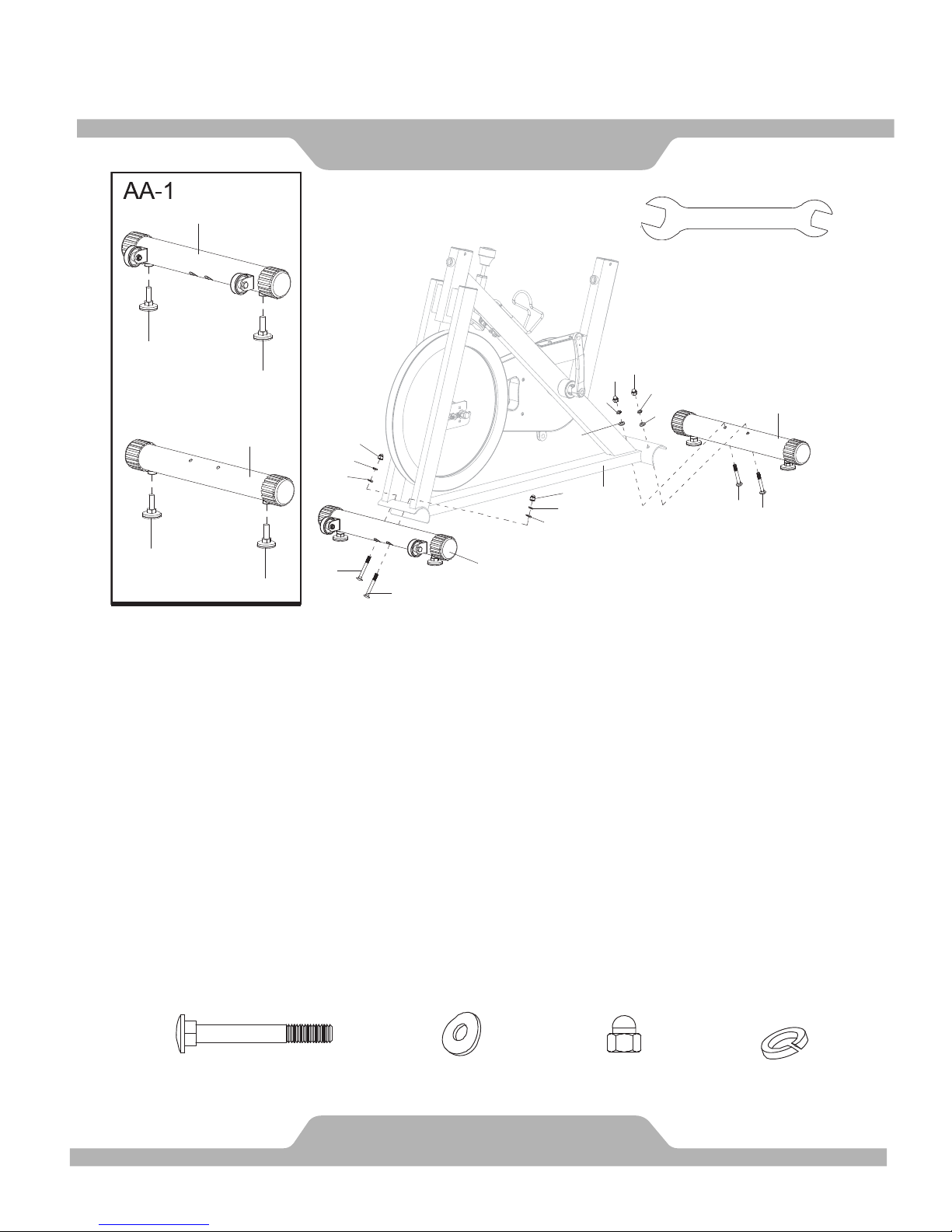

Attach four Adjustable Levelers (19) onto the Front and Rear Stabilizer (2/3) as shown in

Fig. AA-1.

1. Front and Rear Stabilizer Installation

a. Remove the Metal Protective Tube and all hardware. This will not be used in installation

and should be discarded.

b. Lift up the Front of the Mainframe (1) and align the holes of the Front Stabilizer (2) with

the holes on the front bracket. Install the Front Stabilizer (2) using two Carriage Bolts (20),

two Curved Washers (21) two Spring Washers (77) and two Cap Nuts (22). Then tighten the

Cap Nuts (22) using the 13, 15mm Double Open Ended Wrench provided.

c. Lift up the Rear of the Mainframe (1) and align the holes of the Rear Stabilizer (3) with

the holes on the rear bracket. Install the Rear Stabilizer (3) using two Carriage Bolts (20), two

Curved Washers (21) two Spring Washers (77) and two Cap Nuts (22). Then tighten the Cap

Nuts (22) using the 13, 15mm Double Open Ended Wrench provided.

ASSEMBLY

Hardware:

No. 20 Carriage Bolt

4 PCS

No. 21 Curved Washer

4PCS

No. 22 Cap Nut

4 PCS

No. 77 Spring Washer

4PCS

Tool:

13, 15mm Double Open

Ended Wrench

2PCS

20 20
