Extech Instruments MN47 Manuale utente

User's Guide

Autoranging Multimeter

Model MN47

MN47-EU-EN-V3.0–12/11

Introduction

Congratulations on your purchase of the MN47 MultiMeter. The MN47 offers AC/DC Voltage, AC/DC

Current, Resistance, Diode, and Continuity and Temperature. Proper use and care of this meter will

provide many years of reliable service.

Safety

This symbol adjacent to another symbol, terminal or operating device indicates

that the operator must refer to an explanation in the Operating Instructions to

avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth ground

exceeds 600V.

This symbol adjacent to one or more terminals identifies them as being associated

with ranges that may, in normal use, be subjected to particularly hazardous

voltages. For maximum safety, the meter and its test leads should not be handled

when these terminals are energized.

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules listed

below must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 600V AC and DC

mA AC/DC 400mA DC/AC

A AC/DC 10A DC/AC (for 30 seconds max. every 15 minutes

Frequency, Resistance, Capacitance,

Duty Cycle, Diode, Continuity,

Temperature

250V DC/AC

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the current, resistance, or

diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making resistance or diode

tests.

6. ALWAYS turn off power and disconnect test leads before opening the covers to replace the fuse or battery.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened securely.

8. DO NOT use the meter if the meter or test leads look damaged, or if you suspect the meter is not operating properly.

9. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may

be impaired.

WARNING

CAUTION

MAX

600V

MN47-EU-EN-V3.0–12/11

Controls and Jacks

1. Non-Contact AC voltage tester

2. 4000 count LCD display

3. RANGE button

4. MODE button

5. HOLD button

6. RELATIVE button

7. Function switch

8. COM (negative) input jack

9. Positive 10A input jack

10. Positive input jack

Symbols and Annunciators

•))) Continuity

Diode test

Low battery

HOLD Data hold

Auto Autoranging

AC Alternating current

DC Direct current

REL Relative

µ micro (amps)

m milli (volts, amps)

k kilo (ohms)

Ω Ohms

910

MN47-EU-EN-V3.0–12/11

OPERATING INSTRUCTIONS

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and

should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. If OL appears in the display, the value exceeds the range you have selected. Change to a

higher range.

NOTE: On some low AC and DC voltage ranges, with the test leads not connected to a device, the

display may show a random, changing reading. This is normal and is caused by the high-input

sensitivity. The reading will stabilize and give a proper measurement when connected to a circuit.

RANGE BUTTON

When the meter is first turned on, it automatically goes into autoranging mode. To manually select

the range to be tested perform the following.

1. Press RANGE button. The AUTO display will turn off.

2. Press RANGE button to step through the available ranges.

3. Press and hold the RANGE button for 2 seconds to exit the manual ranging mode and return to

autoranging.

NOTE: Manual ranging does not apply for Capacitance, Frequency, Diode, Continuity and Duty

Cycle.

DATA HOLD BUTTON

Data hold allows the meter to “freeze” a measurement in the display.

1. Press DATA HOLD button to “freeze” the reading on the LCD. The indicator “HOLD” will appear

on the display.

2. Press DATA HOLD button to return to normal operation

RELATIVE BUTTON

The relative measurement feature allows you to make measurements relative to a stored reference

value. A reference voltage, current, etc. can be stored and measurements made in comparison to that

value. The displayed value is the difference between the reference value and the measured value.

1. Perform any measurement as described in operating instructions.

2. Press the RELATIVE button to store the reading in the display and the REL indicator will

appear on the display.

3. The display will now indicate the difference between the stored value and measured value.

4. Press the RELATIVE button to return to normal operation.

MN47-EU-EN-V3.0–12/11

NON-CONTACT AC VOLTAGE DETECTOR

WARNING: Always test the NCV function on a know live circuit before use

1. Turn the rotary switch to any measurement position

2. Hold the top of the meter very close to the voltage source as shown.

3. If voltage is present, the LED above the display will glowNOTE: The detector

is designed with high sensitivity. Static electricity or other sources of energy

may randomly trip the sensor. This is normal operation.

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts

inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As

a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the

probe tips are touching the metal contacts inside the outlet before assuming that no voltage is

present.

CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the VAC position.

2. Insert the black test lead banana plug into the negative COM jack. Insert the

red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the neutral side of the circuit.

4. Touch the red test probe tip to the “hot” side of circuit.

5. Read the voltage in the display.

MN47-EU-EN-V3.0–12/11

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the VDC position.

2. Insert the black test lead banana plug into the negative COM jack. Insert the

red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative side of the circuit. Touch the

red test probe tip to the positive side of the circuit.

4. Read the voltage in the display.

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any resistance measurements. Remove the batteries and unplug the line

cords.

1. Set the function switch to the Ω position.

2. Insert the black test lead banana plug into the negative COM jack. Insert the

red test lead banana plug into the positive Ωjack.

3. Touch the test probe tips across the circuit or component under test. It is

best to disconnect one side of the circuit under test so the rest of the circuit

will not interfere with the resistance reading.

4. Read the resistance in the display.

MN47-EU-EN-V3.0–12/11

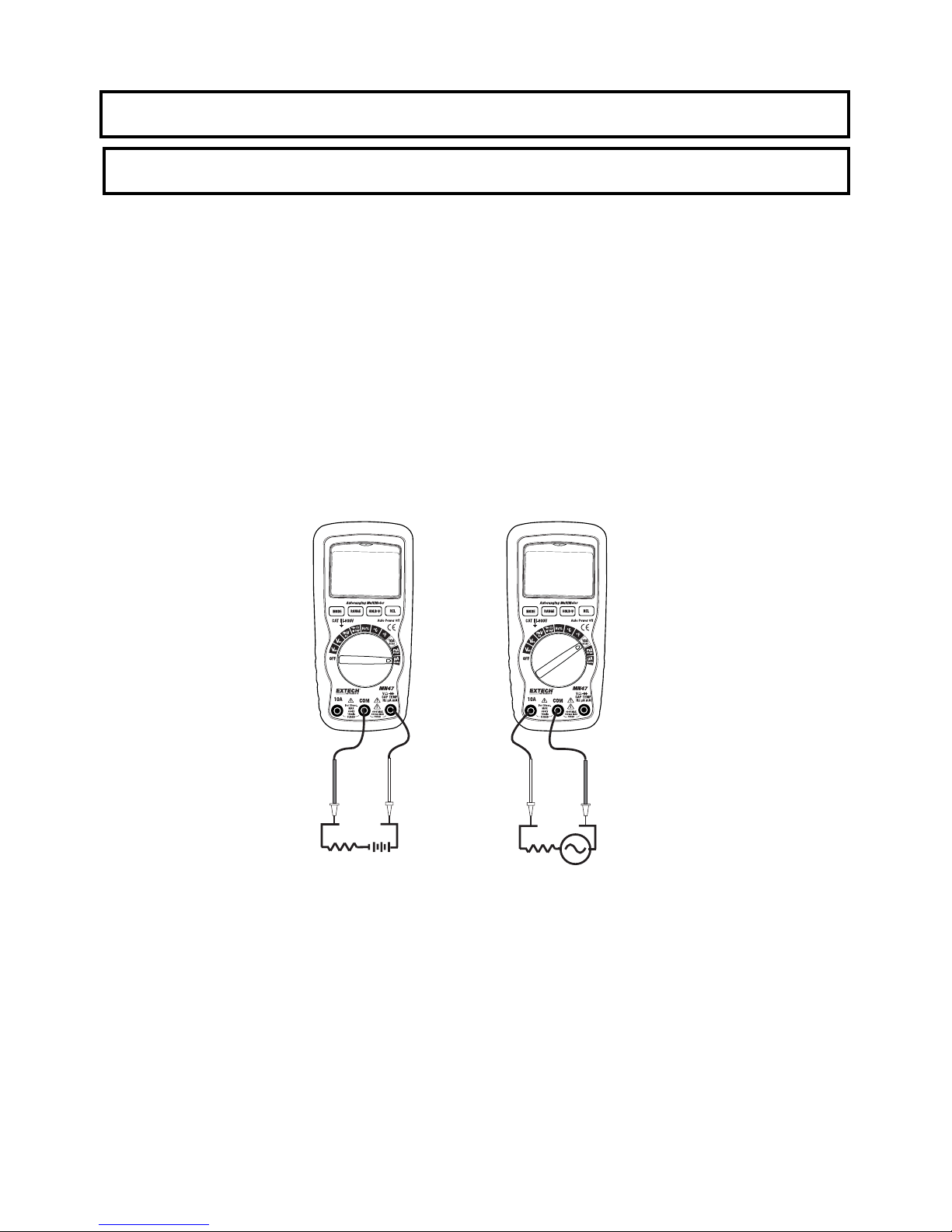

AC / DC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements at 10 Amps for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

WARNING: To avoid electric shock, do not measure AC current on any circuit whose voltage

exceeds 250VAC.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 4000µA, set the function switch to the µA position and insert

the red test lead banana plug into the mA/µA jack

3. For current measurements up to 400mA, set the function switch to the mA position and insert

the red test lead banana plug into the mA/µA jack.

4. For current measurements up to 10A, set the function switch to the 10A range and insert the

red test lead banana plug into the 10A jack.

5. Use the MODE button to select AC or DC current.

6. Remove power from the circuit under test, then open up the circuit at the point where you wish

to measure current.

7. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to

the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

-+-

MN47-EU-EN-V3.0–12/11

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that have

voltage on them.

1. Set the function switch to the position.

2. Press the MODE button to select continuity •))).

3. Insert the black lead banana plug into the negative COM jack.

4. Insert the red test lead banana plug into the positive jack.

5. Touch the test probe tips to the circuit or wire under test.

6. If the resistance is < 30, a tone will sound.

DIODE TEST

1. Set the function switch to the position.

2. Insert the black test lead banana plug into the negative COM jack and the red

test lead banana plug into the positive jack.

3. Use the MODE button to view the icon on the display.

4. Touch the test probes to the diode under test. If one reading shows a value

and the other reading shows “OL” the diode is good. Reverse voltage will

indicate “OL”. Shorted devices will indicate near 0V and an open device will

indicate “OL” in both polarities.

5. The value indicated in the display is the forward voltage.

►

MN47-EU-EN-V3.0–12/11

CAPACITANCE MEASUREMENTS

WARNING: To avoid electric shock, discharge the capacitor before measuring.

1. Rotate the function switch to the CAP position.

2. Press the MODE button to select capacitance (nF and a small value will

appear in the display).

3. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive CAP jack.

4. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

5. Read the capacitance value in the display.

Note: For very large values of capacitance measurement time can be several

seconds before the final reading stabilizes.

FREQUENCY MEASUREMENTS

1. Rotate the function switch to the Hz% position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive HZ jack.

3. Touch the black test probe tip to one side of the device.

Touch the red test probe tip to the other side of the device.

4. Read the Frequency value display.

MN47-EU-EN-V3.0–12/11

TYPE K TEMPERATURE MEASUREMENT

1. Rotate the function switch to the °F or °C temperature

position.

2. Insert the Temperature Probe into the negative COM jack

and the TEMP jack.

3. Place the temperature probe tip where needed.

4. Read the temperature on the display.

MAINTENANCE

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before

removing the back cover or the battery or fuse covers.

WARNING: To avoid electric shock, do not operate your meter until the battery and fuse covers are

in place and fastened securely.

This MultiMeter is designed to provide years of dependable service, if the following care instructions

are performed:

1. KEEP THE METER DRY. If it gets wet, dry it immediately.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature extremes can

shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the electronic

parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use

chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove old or

weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the battery should be

removed to prevent damage to the unit.

Indice

Altri manuali Extech Instruments Multimetro

Extech Instruments

Extech Instruments EX503 Manuale utente

Extech Instruments

Extech Instruments 45170CM Manuale utente

Extech Instruments

Extech Instruments MiniTec Series Manuale utente

Extech Instruments

Extech Instruments EX470A Manuale utente

Extech Instruments

Extech Instruments EX330 Manuale utente

Extech Instruments

Extech Instruments 450 Manuale utente

Extech Instruments

Extech Instruments 430 Manuale utente

Extech Instruments

Extech Instruments MultiPro MP510 Manuale utente

Extech Instruments

Extech Instruments ExStik EC505 Manuale utente

Extech Instruments

Extech Instruments 380941 Manuale utente

Extech Instruments

Extech Instruments EX710 Manuale utente

Extech Instruments

Extech Instruments 412355A Oyster Series Manuale utente

Extech Instruments

Extech Instruments EX310 Manuale utente

Extech Instruments

Extech Instruments EX505-K Manuale utente

Extech Instruments

Extech Instruments 382075 Manuale utente

Extech Instruments

Extech Instruments MP510A Manuale utente

Extech Instruments

Extech Instruments 381626 Manuale utente

Extech Instruments

Extech Instruments EX530 Manuale utente

Extech Instruments

Extech Instruments RHT50 Manuale utente

Extech Instruments

Extech Instruments MN62-K Manuale utente

Extech Instruments

Extech Instruments EX570 Manuale utente

Extech Instruments

Extech Instruments MiniAmp Series Manuale utente

Extech Instruments

Extech Instruments EX410A Manuale utente

Extech Instruments

Extech Instruments 381676 Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
