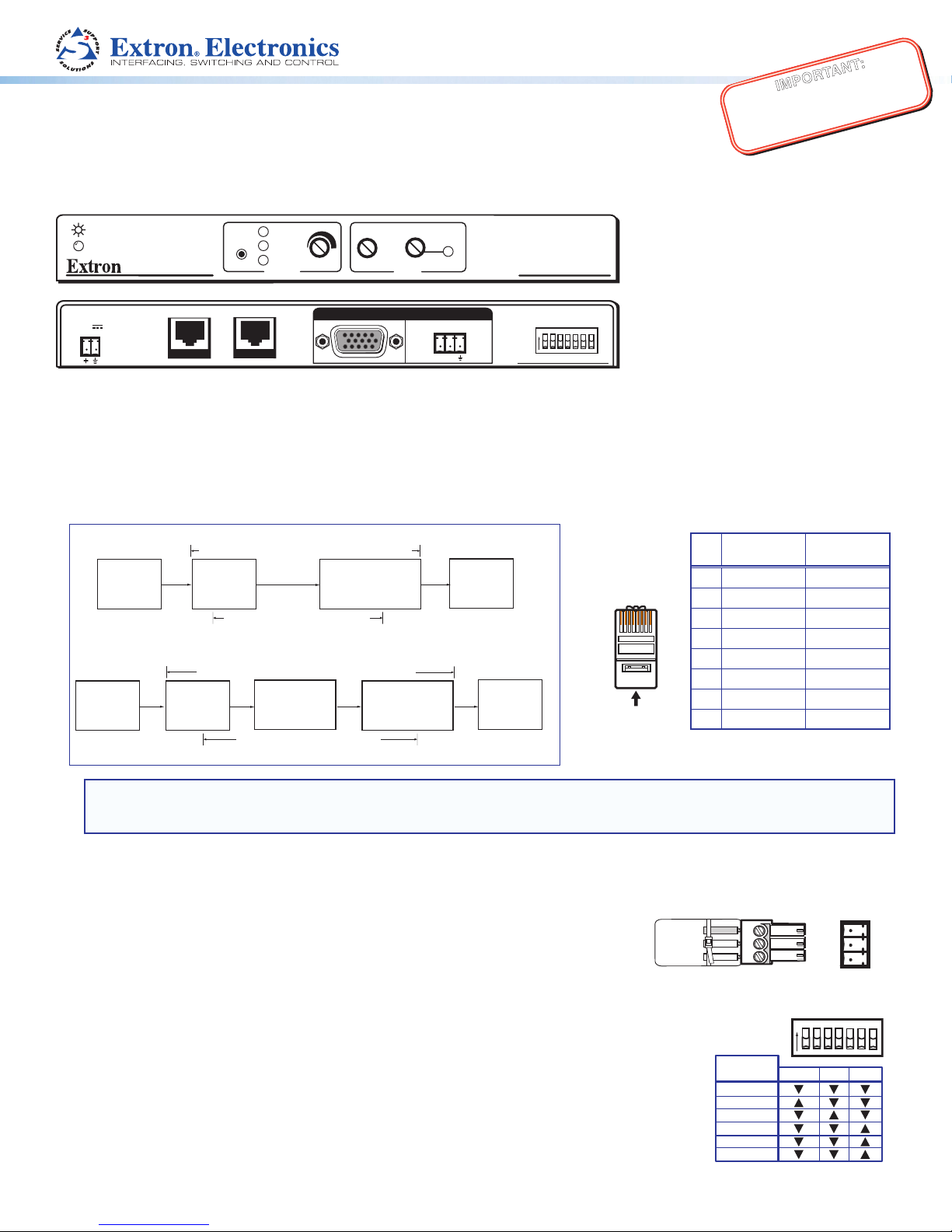

MTP 1500RL 15HD RS SEQ • Setup Guide

This guide provides basic instructions for an experienced installer to set up and operate the Extron MTP 1500RL

15HD RS SEQ twisted pair receiver.

For full details, see the MTP 1500RL 15HD RS SEQ User Guide, available online at www.extron.com.

INPUT BUFFERED OUTPUT

POWER

12V

1.0A MAX

MTP 1500RL 15HD RS SEQ

MTP

RS-232

RxTx

OUTPUT

MTP

H +

V +

CSYNC

SOG

VIDEO

END

BI-232

MTP 1500RL SERIES

RGB

PEAKING

LEVEL

DELAY

RED

GREEN

BLUE

SELECT

ADJUST MIN/MAX

MTP

Installation and Setup

Step 1 — Mounting

Turn off or disconnect all equipment power sources. Mount the MTP 1500RL 15HD RS SEQ receiver as required.

Step 2 — Connect Input

Connect the RJ-45 cable from an MTP transmitter to the Input port on the MTP 1500RL 15HD RS SEQ receiver.

Terminate the cable as shown below right, using the same standard (T568A or T568B) at both ends.

Input

Source

MTP Tx

Device Display

MTP RL Rx

Device

Input

Source

MTP Tx

Device MTP 1500RL

15HD RS Device Display

Transmission distance with one device before the MTP 1500RL 15HD RS SEQ

Transmission distance with more than one device before the MTP 1500RL 15HD RS SEQ

VGA

cable

VGA

cable

1000 feet (305 m) maximum

(RS-232 data signals)

MTP 1500RL

15HD RS Device

VGA

cable

VGA

cable

1500 feet (457 m) maximum (video signals)

1000 feet (305 m) maximum

(RS-232 data signals)

NOTE: The transmitter and receiver are designed for and perform best with Extron Enhanced Skew-Free™AV cable terminated in accordance

with the TIA/EIA T568A standard. CAT 5 cables are acceptable but less preferable. Using preterminated and tested cables is also

recommended. Cables terminated on site should be tested before use to ensure that they comply with Category 5 specifications.

Step 3 — Connect Outputs

Attach the applicable output cables (video, audio, and buffered output).

Ground

Gnd

Receive

Transmit

Connected RS-232

Device Pins MTP Reciever

Pins

A. High resolution video output — Connect a suitable display device to the 15-pin HD

connector (RGB).

B. RS-232 connector —Connect an RS-232 compatible MTP transmitter to the 3-pole

captive screw connector (wired as shown at right) for bi-directional or uni-directional

communication up to 1,000 feet, (305 meters) maximum.

C. Buffered output — Connect up to 5 daisy-chained MTP receivers to this RJ-45 connector.

Step 4 — Receiver DIP Switches

• H sync (H+) and V sync (V+) switches — Set these switches up (On) for positive sync or

down (Off) for negative sync.

• Composite Sync, SOG, and Video switches — Set these switches as shown in the table

(see right) to output the indicated format.

• End Unit switch — Set this switch up if either of the following is true:

• The receiver being congured is the only receiver connected to the transmitter.

• The receiver being congured is the last receiver in a daisy-chained system.

• BI-232 switch — Set this up (ON) for bi-directional or down for uni-directional communication.

Pin T568A Wire

Color

T568B Wire

Color

1 White-green White-orange

2 Green Orange

3 White-orange White-green

4 Blue Blue

5 White-blue White-blue

6 Orange Green

7 White-brown White-brown

8 Brown Brown

Insert Twisted

Pair Wires

Pins:

RJ-45 Connector

12345678

Output

Format C Sync SOG Video

RGBHV

RGBS

RGsB

Component*

S-video*

Composite*

* Input video format must match.

H +

V +

CSYNC

SOG

VIDEO

END

BI-232

MTP 1500RL 15HD RS SEQ • Setup Guide (Continued)

Extron USA Headquarters +1.800.633.9876 (USA/Canada Only) Extron USA - West: +1.714.491.1500 FAX: +1.714.491.1517 Extron USA - East: +1.919.850.1000 FAX: +1.919.850.1001

Step 5 — Power

Power Supply

Output Cord

SECTION A–A

Ridges

Smooth

Tie

Wrap

POWER

12V

xA MAX Rear

Panel

Ridges

Earth

Ground

3/16"

(5 mm)

Max.

Wire the 2-pole captive screw connectors for the included external 12 VDC power supplies (see

image a on the right). Plug them into all units.

Grounding guidelines

Extron MTP 1500RL 15HD RS SEQ products can be adversely affected by electrostatic discharge (ESD)

if they are not grounded correctly.

To prevent malfunctions or product damage, an experienced installer can correctly ground an Extron

MTP 1500RL 15HD RS SEQ product in either of two ways:

• Ground the power input port — Insert one end of the grounding wire to the negative or ground pin

on the power input connector (see image aon the right). Tie the other end of the wire to an earth

ground.

• Ground the chassis — Use a connector hex nut (see image bon the right). Tie the other end of

the wire to an earth ground.

If you have any questions about how to ground a product in a specic application, contact an Extron technical

support specialist.

Step 6 — Peaking and Level

Adjust the image sharpness using the Peaking control. Increased peaking compensates for mid- and high-frequency

RGB

PEAKING

LEVEL

MIN/MAX

detail loss. The LED lights red when minimum (zero) or maximum peaking is reached.

Adjust the image brightness using the Level control. View the image and adjust either control for the best image quality.

Step 7 — Skew Compensation

Pair skew can be measured with test equipment or by viewing a crosshatch test pattern. The SEQ receivers have

built-in skew compensation capabilities. Adjust the equalization as follows:

A. Set the skew delay to zero for red, green, and blue by using a Tweeker or small screwdriver to press and hold

DELAY

RED

GREEN

BLUE

SELECT

ADJUST

the Select button for 3 seconds. When the Red, Green, and Blue LEDs all go out, release the Select button.

B. Use UTP cable test equipment or examine the displayed image to determine which video signal — red, green,

or blue — is shifted furthest to the right.

C. Adjust the furthest left video signal by using a Tweeker or screwdriver to press and release the Select button until

the LED for the left-shifted color lights.

D. Slowly rotate the Adjust control clockwise until the shifted color is properly aligned.

E. Repeat steps C and D to align the third color if needed.

68-1555-50

Rev. C

01 13

Figure 1. Example of a Typical MTP 1500RL 15HD RS SEQ Application

INPUT

Tx Rx

RS-232

MONITOR

POWER

12V

.5AMAX

OUTPUT

CABLE

NORM LONG

MTP TVG A RS

POWER

12V

1.0AMAX

RS-232

OUTPUT

INPUT BUFFEREDOUTPUT

MTP1500RL 15HD RS SEQ

H+

V+

CSYNC

SOG

VIDEO

END

BI-232

MTP

POWER

12V

1.0AMAX

RS-232

OUTPUT

INPUT BUFFEREDOUTPUT

MTP1500RL 15HD RS SEQ

H+

V+

CSYNC

SOG

VIDEO

END

BI-232

MTP

Flat Panel

Display

Flat Panel

Display

Extron

MTP 1500RL 15HD RS SEQ

Twisted Pair Receiver

with Loop-Through and Skew EQ

500' (152 m) UTP Cable

(CAT 5/5e/6)

Extron

MTP T 15HD RS

Twisted Pair

Transmitter

RS-232

RGBHV

500' (152 m) UTP Cable

(CAT 5/5e/6)

RS-232

RGBHV

Extron

MTP 1500RL 15HD RS SEQ

Twisted Pair Receiver

with Loop-Through and Skew EQ

Maximum transmission distances:

Data (RS-232) 1000' (305 m)

Video 15 00' (457 m)
