VNM Enterprise Controller • Setup Guide

The Extron VNM Enterprise Controller is a dedicated control device used to manage

large VN-Matrix systems. The VNM Enterprise Controller allows users to view, manage,

and dynamically control multiple VN-Matrix systems and networked VN-Matrix

domains from a single user interface.

This guide provides basic instructions for an experienced installer to conﬁgure and operate a single VNM Enterprise

Controller using a basic VN-Matrix system.

NOTE: See the VNM Enterprise Controller User Guide,VN-Matrix 200 Series User Guide,VN-Matrix 225 Series User Guide,

VN-Matrix 300 User Guide, and the VN-Matrix 325 User Guide for complete installation, network conﬁguration,

and mounting information. User guides are available at www.extron.com.

Initial Installation and Conguration of Devices

Step 1 — Determine the Default Network Settings

Before any device is connected

to a network, the default

network settings of each

device must be changed. On an

existing network, check with

the network administrator for a

range of available IP addresses.

On a closed network that is

used exclusively for VN-Matrix

devices, it is recommended

to use addresses within the

range of 192.168.254.1 through

192.168.254.254 with a subnet

mask of 255.255.255.0.

Figure 1 shows an example

addressing scheme for a

simple system that contains a VNM Enterprise Controller, an encoder, and a decoder.

Step 2 — Install and Congure the VN-Matrix 200 / 225 / 300 / 325 Devices

Connect these devices as necessary and power them on. Conﬁgure the network settings of these devices using a PC running

HyperTerminal. For installation and conﬁguration instructions, see the setup guides included with these devices. Figure 1

can also be used as a guide for conﬁguring network settings.

Step 3 — Connect the VNM Enterprise Controller to the VN-Matrix Network

While directly looking at the rear panel of the VNM Enterprise Controller, connect the VN-Matrix network

to the left Ethernet connector of the controller using Category (CAT) 6 twisted pair cable.

NOTE: The right Ethernet connector should be used only if a secondary VNM Enterprise Controller

is installed. For information on how to set up a secondary VNM Enterprise Controller, see the

VNM Enterprise Controller User Guide.

Step 4 — Power on the VNM Enterprise Controller

Plug a standard IEC power cord into the controller and connect it to a 100 to 240 VAC, 50 Hz or 60 Hz power source.

Step 5 — Congure the Network Settings of the VNM Enterprise Controller

The VNM Enterprise Controller is preconﬁgured with the following network settings:

IP address: 192.168.254.254

Subnet mask: 255.255.255.0

NOTE: With these settings, the VN-Matrix 200 / 225 / 300 / 325 devices must use IP addresses within the range of

192.168.254.1 through 192.168.254.253 and use the same subnet mask. The example in ﬁgure 1 uses the default

settings of the VNM Enterprise Controller.

Use the following procedure to change the network settings of the VNM Enterprise Controller, if necessary.

LAN -1

LAN -2

STATUS

RGB/DVI OVER IP

VN-MATRIX200 SERIES

LAN -1

LAN -2

STATUS

RGB/DVI OVER IP

VN-MATRIX200 SERIES

PC (Source) Display

VNM 200 (Encoder)

Local IP Address: 192.168.254.101

Controller IP Address: 192.168.254.254

Local IP Address: 192.168.254.102

Controller IP Address: 192.168.254.254

Local IP Address: 192.168.254.254

Controller IP Address: 192.168.254.254

VNM 225 (Decoder)

Local Network

Switch

RGB

DVI DVI

Ethernet

RS-232 RS-232

Ethernet

Browser User

Control

VNM Enterprise Controller (System Controller)

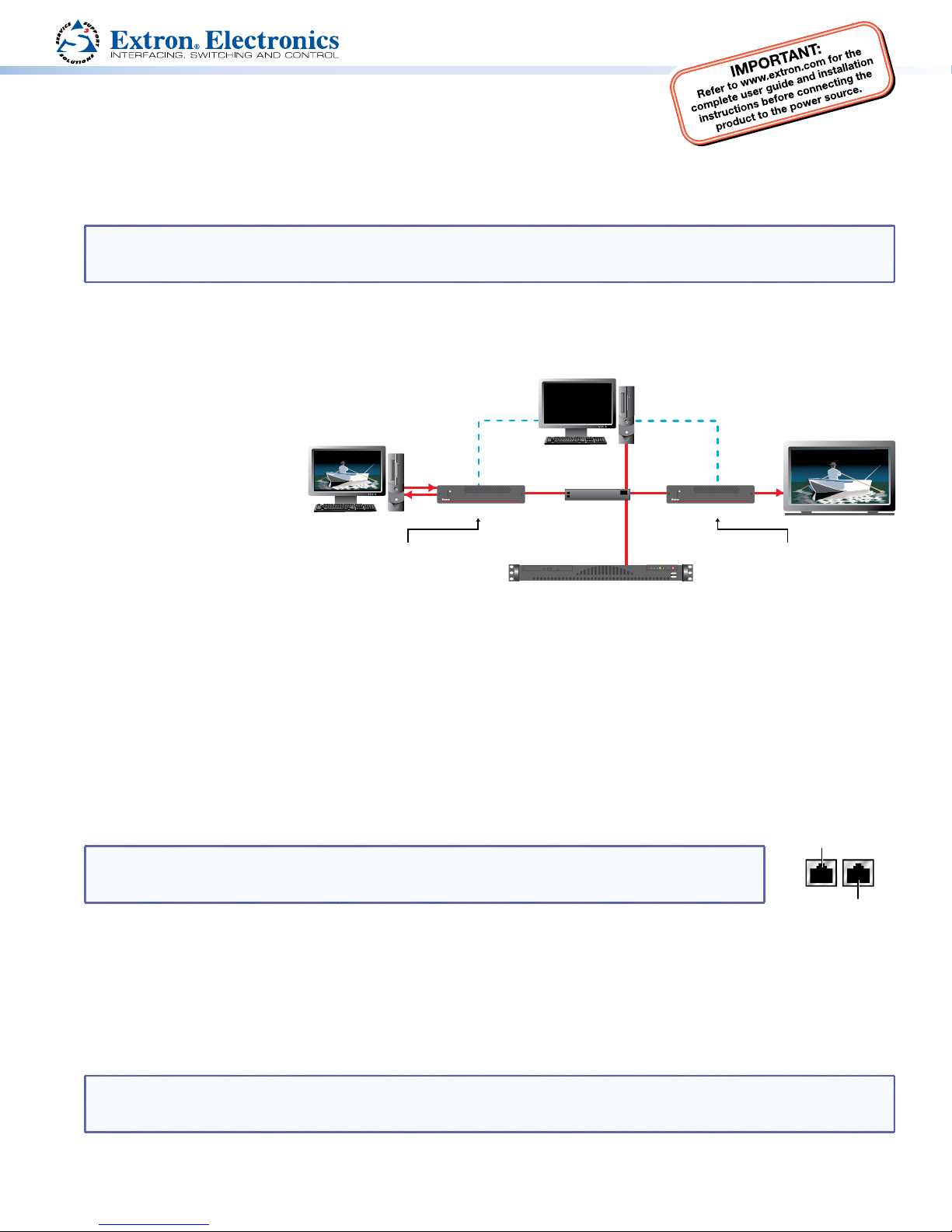

Figure 1. Example VN-Matrix Network Conﬁguration

Right Connector

Left Connector

VNM Enterprise Controller • Setup Guide (Continued)

a. Conﬁgure the network settings of a control PC so that it is

using an IP address within 192.168.254.1 to 192.168.254.253

and a subnet mask of 255.255.255.0. Connect the control PC to

the VN-Matrix network.

b. Open a web browser on the control PC and type in the

IP address of the VNM Enterprise Controller into the address

bar (for example, http://192.168.254.254). The login screen

appears in the browser (see ﬁgure 2).

c. Enter the appropriate username and password.

NOTE: The default username is admin. By default,

no password is required. Entries are case sensitive.

d. Click Login or press the <Enter> key. The Devices page

appears (see ﬁgure 3).

e. From the Devices page, click the Configuration tab. The

Conﬁguration page appears.

f. From the Conﬁguration page, click the Network link

(see ﬁgure 4).

g. Change the IP Address, Netmask, and Gateway ﬁelds as

necessary. The MTU ﬁeld does not need to be changed. Click

Apply Changes, located at the lower right corner of the

web page, to save the conﬁguration. The VNM Enterprise

Controller restarts. The controller network settings are

properly conﬁgured after powering up.

h. Conﬁgure the IP address of the control PC so that it is within

the address range of the VNM Enterprise Controller.

NOTE: Complete this step only if the IP address of the

VNM Enterprise Controller is using a network

preﬁx or subnet other than 192.168.254.xxx.

i. If necessary, restart the control PC to save the conﬁguration.

Step 6 — Set Up the VNM Enterprise Controller as the System Controller

a. Click the Configuration tab. The Conﬁguration page appears (if login is required, follow steps 5b through 5e).

b. From the Conﬁguration page, click the System config link (see ﬁgure 5).

c. From the Protocol drop-down menu, select the transport protocol that will be used throughout the VN-Matrix system.

NOTES: •The default transport protocol is unicast.

•Unicast supports up to four simultaneous streams from a single encoder.

•TCP supports a single stream from a single encoder.

•Multicast supports a single stream that can be used by multiple decoders. This protocol requires a

network that supports Internet Group Management Protocol (IGMP) snooping for correct operation.

d. Ensure that the Clean Switch option is checked to

enable smooth transitions when switching between

VN-Matrix 200 / 225 device streams.

NOTE: VN-Matrix 300 / 325 devices do not support

Clean Switch and will ignore this setting.

e. If necessary, clear the Controllers ﬁeld by highlighting the

displayed IP addresses and clicking Delete.

f. Click Add. Enter the IP address of the VNM Enterprise

Controller (use the IP address that was created in step 5g)

into the window that appears and click OK.

g. Save the conﬁguration by clicking Apply Changes, located at

the lower right corner of the web page. The VNM Enterprise

Controller restarts the web-based user interface and is

assigned as the system controller.

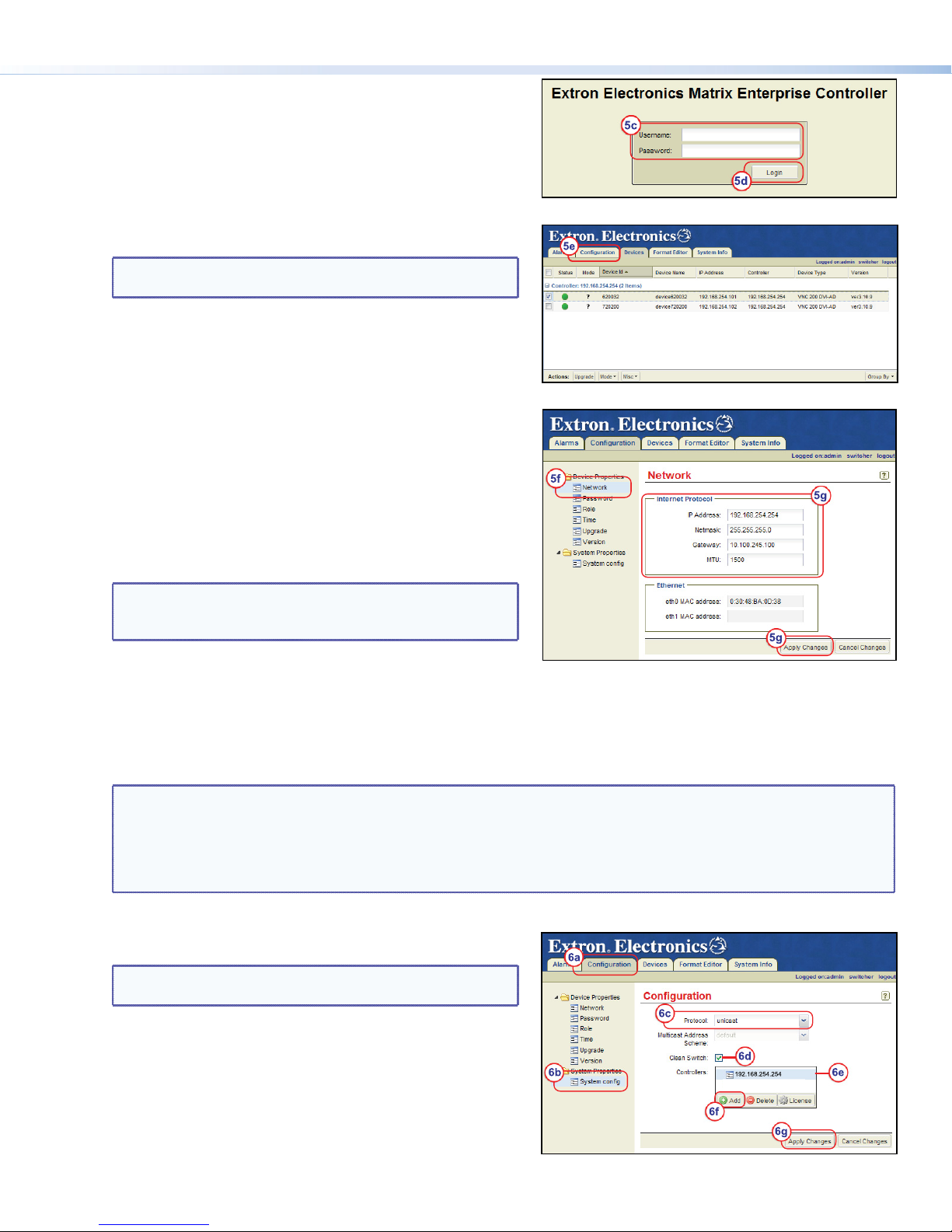

Figure 2. Enterprise Controller Login Page

Figure 3. Devices Page

Figure 4. Network Conﬁguration Page

Figure 5. System Conﬁguration Page

h. Refresh the browser to activate and view the changes.

i. Click the Configuration tab. The Conﬁguration page appears (if login is required, follow steps 5b through 5e).

j. From the Conﬁguration page, click the Role link (see ﬁgure 6).

k. From the Device Mode drop-down menu, select singleton.

NOTE: This guide details how to set up a VN-Matrix

system using a single VNM Enterprise Controller.

For information on how to set up a secondary

controller, see the VNM Enterprise Controller

User Guide.

l. Save the conﬁguration by clicking Apply Changes, located at

the lower right corner of the web page.

m. Refresh the browser to activate and view the changes.

Step 7 — Assign VN-Matrix 200 / 225 / 300 / 325

Devices as Encoders and Decoders

a. Click the Devices tab. The Devices page appears (if login is

required, follow steps 5b through 5d).

b. Select a device from the Devices page. A device is selected

when the row is highlighted and the box next to the device is

checked (see ﬁgure 7).

c. Select Mode from the menu at the bottom of the page.

d. Determine the functionality of the device and choose the

Encoder or Decoder option as appropriate.

NOTE: Choosing a mode or toggling a device between an encoder and a decoder may take a few seconds after the

selection has been made.

e. Repeat this procedure for other devices as necessary.

Conguration of the VN-Matrix Devices

Once the VN-Matrix 200 / 225 / 300 / 325 devices have been assigned as encoders and decoders, no further conﬁguration is

required. However, the devices on a VN-Matrix network can be further conﬁgured using the VNM Enterprise Controller

web-based user interface.

The following sections summarize how to conﬁgure devices using the VNM Enterprise Controller. For detailed information

on device conﬁguration, click on the question mark icon (see ﬁgure 8) located on each of the menu pop-up pages or see the

VNM Enterprise Controller User Guide and the VN-Matrix 200 / 225 / 300 / 325 user guides.

Encoder Conguration

1. Click the Devices tab. The Devices page appears (if login is required, follow steps 5b through 5d).

2. Select an encoder from the Devices page. At the bottom of the page, several menus are available (see ﬁgure 9).

3. Select the following menus and conﬁgure the settings as necessary to allow for optimal encoder streaming.

zConfigure — Sets global parameters speciﬁc to selected VN-Matrix units. Use this window to change the device

name and conﬁgure the operating mode of the device.

zFormat — Use this window to view information about the incoming source, make adjustments to the signal, and

set EDID options.

zCompression — Use this window to adjust the amount of compression that is applied to the stream.

4. Repeat this procedure for other encoders as necessary.

Decoder Conguration

1. Click the Devices tab. The Devices page appears (if login is required, follow steps 5b through 5d).

2. Select a decoder from the Devices page. At the bottom of the page, several menus are available

(see ﬁgure 9; the Compression menu is not available when conﬁguring decoders).

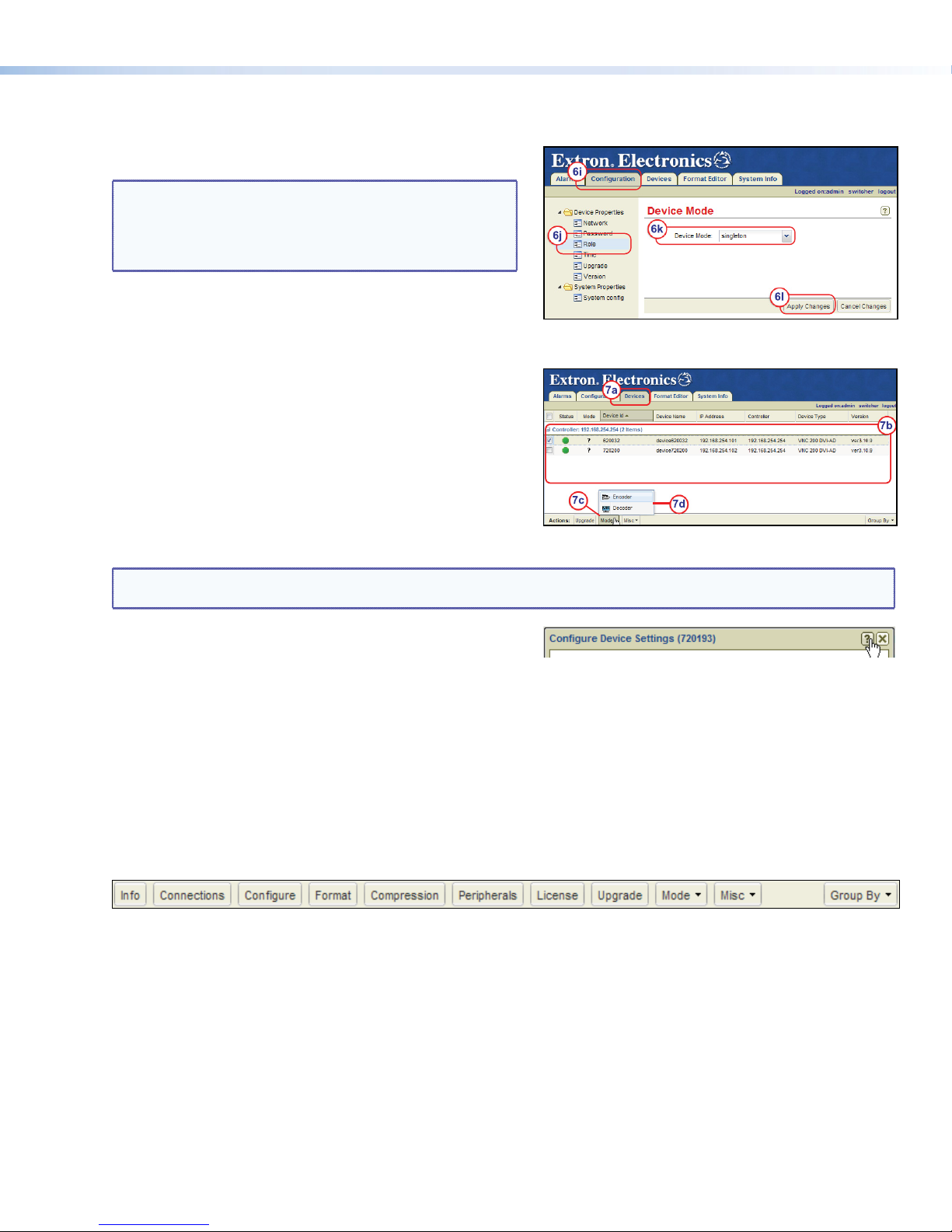

Figure 6. Role Conﬁguration Page

Figure 7. Devices Page — Mode Selection Menu

Figure 8. Help Menu Icon

Figure 9. Devices Page — Device Conﬁguration Menu

VNM Enterprise Controller • Setup Guide (Continued)

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.863.1794

+1.714.491.1517 FAX +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

(Inside Asia Only)

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+4000.398766

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

Inside India Only

+91-80-3055.3777

+91 80 3055 3737 FAX

Rev. B02 12

3. Select the following menus and conﬁgure the settings as necessary to allow for optimal decoder streaming.

zConfigure — Sets global parameters speciﬁc to selected VN-Matrix units. Use this window to change the device

name and conﬁgure the operating mode of the device.

zFormat — Use this window to adjust the format of the signal being output by a VN-Matrix display.

4. Repeat this procedure for other decoders as necessary.

Web-based User Interface Control Options

This section details some of the control options that are available when using the web-based user interface. For more

information on available control options, see the VNM Enterprise Controller User Guide.

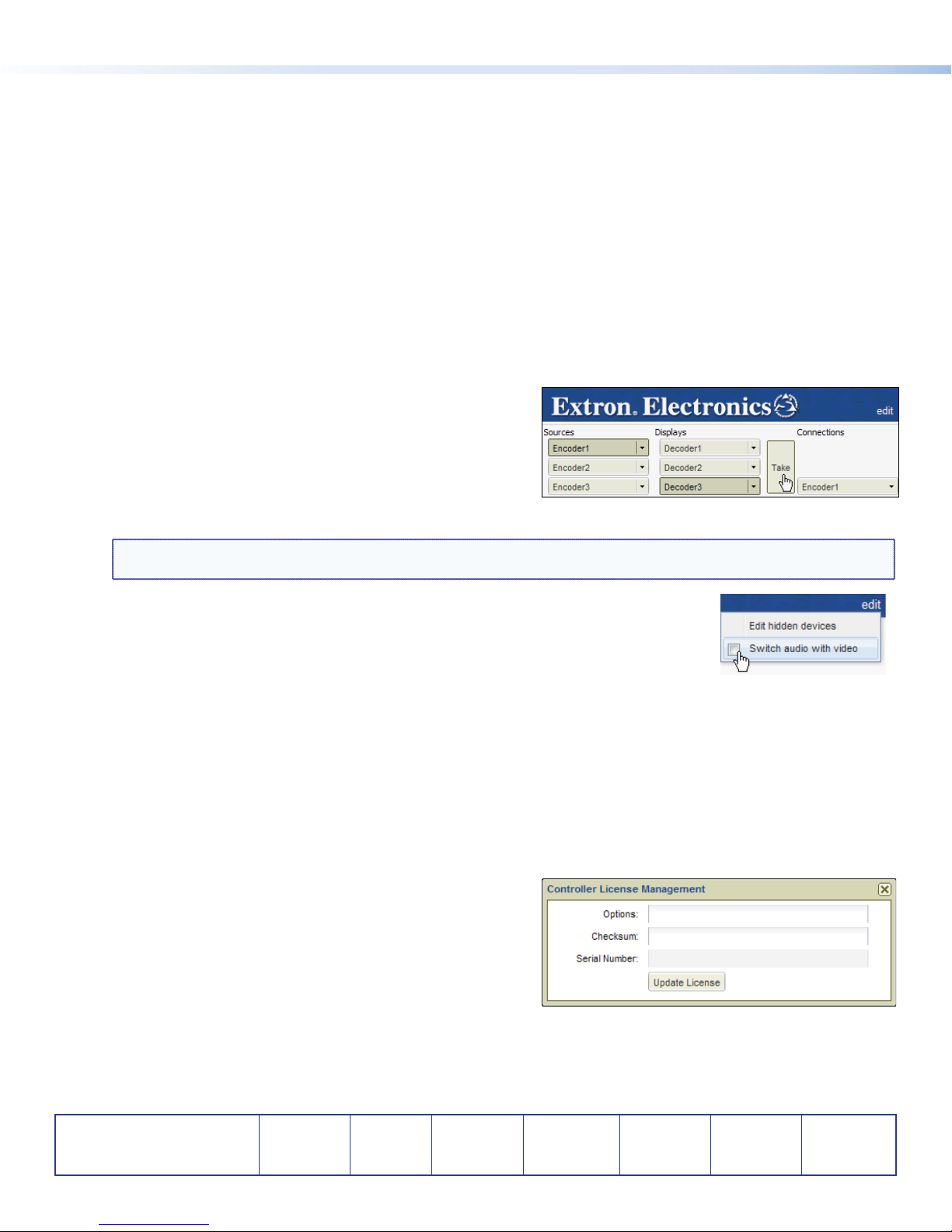

Using the Switcher Page

The Switcher page is used to assign encoders (sources) to decoders (displays). This allows the user to control what is

streamed throughout the entire system using a single page. Use the following procedure to conﬁgure the Switcher page.

1. Click on the switcher link located at the top right of the web page (if login is required, follow steps 5b through 5d).

The Switcher page appears.

2. From the Sources column, click on an encoder (source).

3. From the Displays column, click on a decoder (display).

4. Click Take. A connection is created between the selected

encoder (source) and decoder (display). Figure 10 shows that

Encoder1 is streaming media to Decoder3.

5. Repeat this procedure to create other connections as

necessary.

NOTE: To remove a connection, select a connection (from the Connections column) and click Break Connection.

To remove all connections, select a connection and click Break All Connections.

6. If audio data is present within the stream, click on the edit link located at the top right of

the Switcher page and select the Switch audio with video option (see image at right).

This keeps the audio and video data together when creating connections.

Updating the VNM Enterprise Controller License

Updating the license of the VNM Enterprise Controller is sometimes necessary to enable certain features of the system.

Use the following procedure to update the license.

1. Click the Configuration tab. The Conﬁguration page appears (if login is required, follow steps 5b through 5e).

2. From the Conﬁguration page, click the System config link (see ﬁgure 5 on page 2).

3. From the Controllers ﬁeld, select the IP address of the controller that requires a new license.

4. Click License. The Controller License Management window appears (see ﬁgure 11). Keep this window open.

5. Contact Extron Sales Support and provide the following information (contact information is available below):

zThe serial number of the VNM Enterprise Controller. This can be obtained from the Controller License Management

window or from the back of the controller.

zThe order number of the VNM Enterprise Controller.

6. Extron Sales Support provides a structure key and a

license key.

zEnter the structure key into the Options ﬁeld.

zEnter the license key into the Checksum ﬁeld.

7. Click Update License to assign the new license settings and

then close the Controller License Management window.

Logging Out

To log out, click on the logout link located at the top right of the web page or simply close the web browser.

Figure 10. Switcher Page

Figure 11. Controller License Management Window

Altri manuali per VNM Enterprise

Indice

Altri manuali Extron electronics Apparecchiature di registrazione

Extron electronics

Extron electronics Computer-Video Interface RGB 508 AKM Manuale utente

Extron electronics

Extron electronics Ethernet Control Interface IPL T PCS4 Manuale utente

Extron electronics

Extron electronics Interfaces RGB 500 Series Manuale utente

Extron electronics

Extron electronics RGB 109xi Manuale utente

Extron electronics

Extron electronics RGB 203 Rxi Manuale utente

Extron electronics

Extron electronics Interface RGB 120p Manuale utente

Extron electronics

Extron electronics RWM 1 Manuale utente

Extron electronics

Extron electronics Wall and Floor Box Mountable Interfaces RGB... Manuale utente

Extron electronics

Extron electronics Feedback Loop Isolator FBI 100 Manuale utente

Extron electronics

Extron electronics KNX 100G Manuale utente

Extron electronics

Extron electronics USB-C HD 101 Manuale utente

Extron electronics

Extron electronics Computer-Video Interface RGB 558 AKM Manuale utente

Extron electronics

Extron electronics RGB 112xi Manuale utente

Extron electronics

Extron electronics DVI-RGB 150 Manuale utente

Extron electronics

Extron electronics RGB 118 PLUS Manuale utente

Extron electronics

Extron electronics RGB 560 AKM Manuale utente

Extron electronics

Extron electronics RGB 192 Manuale utente

Extron electronics

Extron electronics RGB 190F Manuale utente

Extron electronics

Extron electronics TouchLink TLSI 201 Manuale utente

Extron electronics

Extron electronics RGB 304 Manuale utente

Extron electronics

Extron electronics IPL T SF Series Manuale utente

Extron electronics

Extron electronics Inline CIA116-1 Manuale utente

Extron electronics

Extron electronics RGB 460xi FSR Series Manuale utente

Extron electronics

Extron electronics CCI Pro 700 Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
