Cable Cubby 650 UT • Installation Guide

This guide provides instructions for an experienced installer to install and connect the

Extron Cable Cubby 650 UT.

The Cable Cubby 650 UT units are under furniture mountable and are expandable for cable

access, connections, and AC power.

Planning

Check with local and state regulations before starting the

installation

Ensure that the planned installation complies with building and electrical codes.

Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.

Check all parts and equipment before installation

Ensure that all parts are present in each kit.

Ensure that necessary tools and equipment are available for the installation.

Determine the number for Cable Cubby 650 UT enclosures you intend to install.

Kit Contents

125V~ 12A MAX TOTAL

Cable Cubby 650 UT

(6) 3/8", (2) 1/4"

#6 Pan-head Mounting

Screws and Star Washers

AAP Frame Plate

Cable Grommet Plate

Connectivity Bracket

AAP Frame Plate

Cable Grommet Plate

#6 Pan-head Mounting Screws and Star Washers

Hole Plugs

#4-40 Module Screws

Retractor Bracket

Retractor Pin & Clip

Retractor Pin and Clip

Cable Cubby 650 UT • Installation Guide (Continued)

Preparing the Table

Cut a hole in the surface where the enclosure will be installed. The size of the hole depends on the number of enclosures used

(see cut-out dimensions on the nextpage). Ensure the sides of the hole are smooth after cutting and finished before

installing. Read the following information before making a cut.

Determine the best location for the enclosure

Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.

Ensure that there is ample space under the table for cables. Allow at least 36 inches of cable loop for each cable (see Routing

and Connecting Cables on page 7).

When installing Retractors in the Cable Cubby, ensure that there is enough space for the Retractor assembly under the table

or furniture.

22.95"

(583 mm)

26.47"

(672 mm)

21.28"

(540 mm)

12.23"

(311 mm)

9.23"

(234 mm)

Table Top

Series/2

9.0"

(229 mm

)

15.14"

(385 mm)

21.14"

(537 mm)

Series/2 XL

3.0"

(76 mm)

3.0"

(76 mm)

28.95"

(735 mm)

NOTES:

•To prevent objects from impeding cable retraction, allow at least 3 inches of clearance from the exposed cable side of

the enclosure (see the diagrams below).

•Excess cabling may cause clearance issues. Use zip ties to secure under-table cabling to prevent accidental contact or

entanglement (see Routing and Connecting Cables on page 7).

Cut the hole in the table and pre-drill mounting holes

CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.

ATTENTION : Portez des lunettes de sécurité lorsque vous utilisez l’équipement électrique. Ne pas respecter cela peut

conduire à une blessure à l’oeil.

ATTENTION: The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople.

Exercise care to prevent scarring or damaging the furniture.

ATTENTION : L’ouverture dans la table pour le CableCubby devrait être coupée seulement par des artisans autorisés et

qualiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l’endommager.

For one or two enclosures, the cut-out dimensions and mounting hole locations are shown below. For more enclosures, multiply

the length accordingly. If necessary, pre-drill into the furniture at the keyhole and mounting hole locations.

NOTE: Diagrams shown above are not drawn to scale.

Dimensions and cut-out templates are available online at www.extron.com.

10"

(254 mm)

SURFACE

CUT-OUT

AREA

" (1.5 mm)

(108 mm)

Mounting Holes (16)

11.5"

(292 mm)

12"

(305 mm)

(127 mm)

SURFACE

CUT-OUT

AREA

" (1.5 mm)

4 1/4"

(108 mm)

1.5"

(38 mm)

(178 mm)

1.5"

(38 mm)

(76 mm)

(152 mm)

6.5"

(165 mm)

6.5"

(165 mm)

Mounting Holes (8)

(152 mm)

6.5"

(165 mm) 3"

(76 mm)

1.5"

(38 mm)

1.5"

(38 mm)

Keyholes (4)

Keyholes (2)

2.0"

(51 mm)

Option 2: Cable Pass-Through Module

Secure the grommet

plate on the connectivity

bracket, using four of the

provided module screws.

Insert cables through the

bottom of the connectivity

bracket and into the holes

of the grommet plate.

Snap the included

hole plugs into

any unused holes.

Insert “Show Me”

Cables into the

grommet plate.

Attach the “Show Me” Cable Trim Plate

to the top of the module, using the

module screws.

Attach the grommet

plate to the bottom

of the module, using

the module screws.

Option 3: Retractor Bracket

Secure the bracket using four of

the provided pan-head mounting

screws with star washers. Tighten

the screws using a screwdriver.

Insert the bracket as shown.

The bracket may be installed on the left

or right side of the enclosure and at the

lowest height.

left

Preparing the Cable Cubby

Step 1 (Only for multiple enclosures) — Assemble Enclosures

Option 1: AAP Module

Secure up to three single-space

AAPs in the AAP plate.

Secur

e the AAP plate on the connectivity brackets,

using four of the provided module screws.

#4-40 Nut with

Captive Washer

Insert cables through the bottom of the connectivity bracket.

Connect cables to the AAPs.

Step 2 — Assemble Connectivity Modules

Connectivity modules allow you to populate the Cable Cubby enclosure with a combination of AAPs, cable pass-through, or

Retractors. Follow the steps below to assemble the connectivity modules of your choice.

Using a #2 screw driver,

unscrew the four pan-head

screws that attach the enclosure

sides of the Cable Cubby together.

Repeat this step on the corresponding

side of the other enclosure.

Detach side panels of both enclosures.

Before attaching the enclosure, ensure the

keyhole mounting holes are orientated in the

same direction.

Attach the enclosures together

with the four pan-head mounting screws

and washers that were removed in step 1.

Repeat steps 1 and 2 to

add more enclosures to

the extension.

NOTE: The opening of the bracket should be

installed towards the outside of the enclosure.

Cable Cubby 650 UT • Installation Guide (Continued)

125V~ 12A MAX TOTAL

Secure the modules using

four of the provided pan-head

mounting screws and star washers.

Insert the modules

into the Cable Cubby.

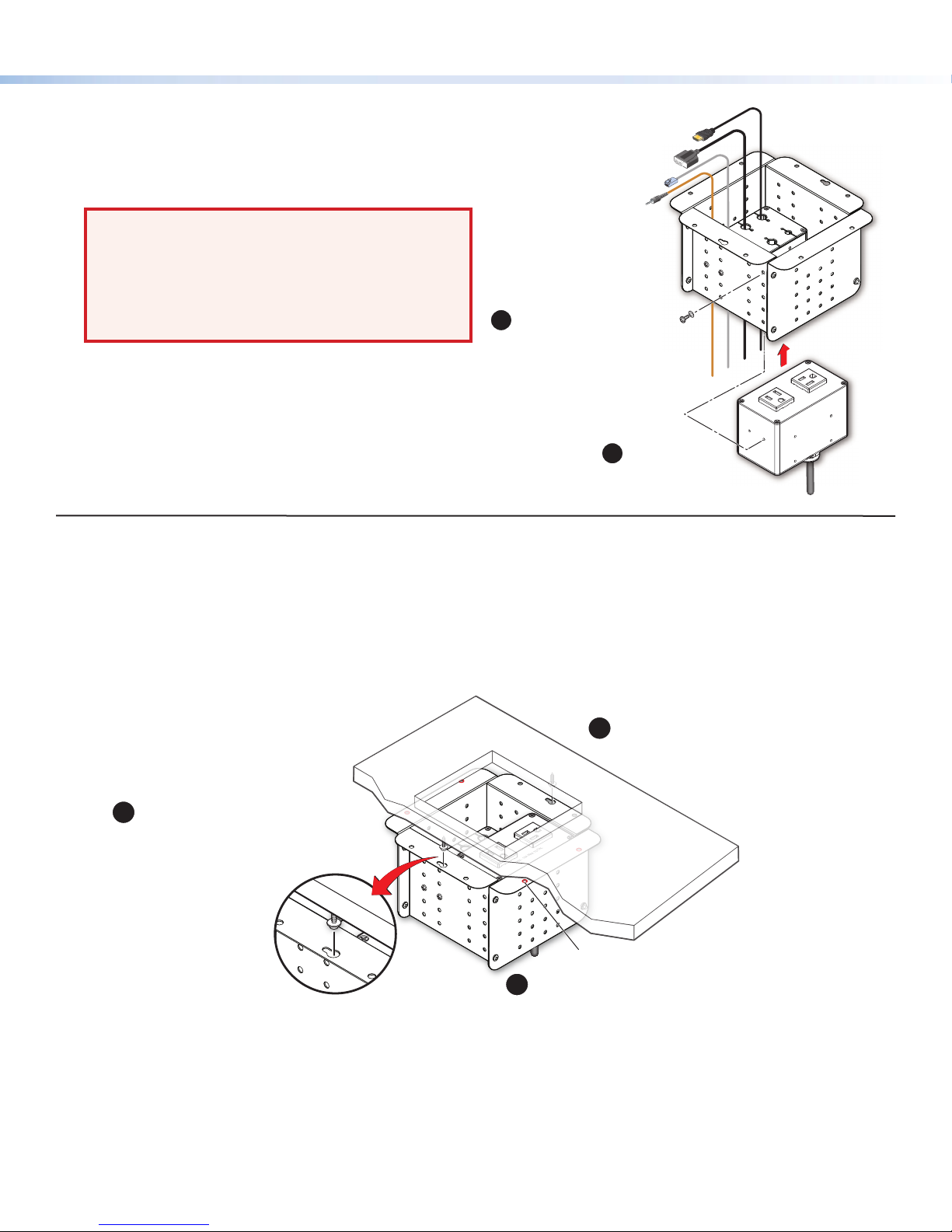

Step 3 — Install the Modules

Determine where the connectivity module and/or power module will be installed in the

Cable Cubby. The modules may be installed on the left or right side of the enclosure and

at various heights.

For the power module:

WARNING: Risk of Electric Shock. To ensure

proper electrical grounding, use the provided #6-32

mounting screws with the star washers.

AVERTISSEMENT : Risque de choc électrique.

An d’assurer une mise à la terre correcte, utilisez les

xations de mise à la terre #6-32 et les rondelles en

étoile fournies.

125V~ 12A MAX TOTAL

Hook the Cable Cubby assembly

onto the screws at the keyhole locations,

as shown at right.

Slide the Cable Cubby assembly

into slot.

Align the other mounting

holes on the assembly with

the pre-drilled holes on the

furniture.

Tighten the screws to

secure the Cable Cubby

assembly.

Insert a mounting screw appropriate for

the furniture material into each of the keyhole locations.

Tighten each screw until it protrudes 1/4 inch from

the bottom of the table.

Insert and tighten the rest of the mounting screws

through remaining mounting holes on the enclosure

and into the pre-drilled holes in the furniture.

Mounting holes

Mounting the Cable Cubby under the Table

Align the enclosure with the pre-drilled holes under the furniture. Secure the enclosure with the appropriate screws (see Cut the

hole in the table and pre-drill mounting holes on page 3).

Cable Cubby 650 UT • Installation Guide (Continued)

Angular Mounting

Remove the enclosure screws as shown above, then follow

this step:

Horizontal Mounting

See the Cable Retractor Setup Guide, available on the

Extron website, for additional steps.

Remove two enclosure screws

(one on each side) from this position.

Then, mount the Retractors as shown

at left.

Cable Release

Assembly

Move the cable release assembly upward until

the angular mounting hole is visible. Reinstall the

enclosure screws in this hole (both sides).

Remove two enclosure screws

(one on each side) from this position.

Then, mount the Retractors as shown

at left.

Cable Release

Assembly

Move the cable release assembly upward until

the angular mounting hole is visible. Reinstall the

enclosure screws in this hole (both sides).

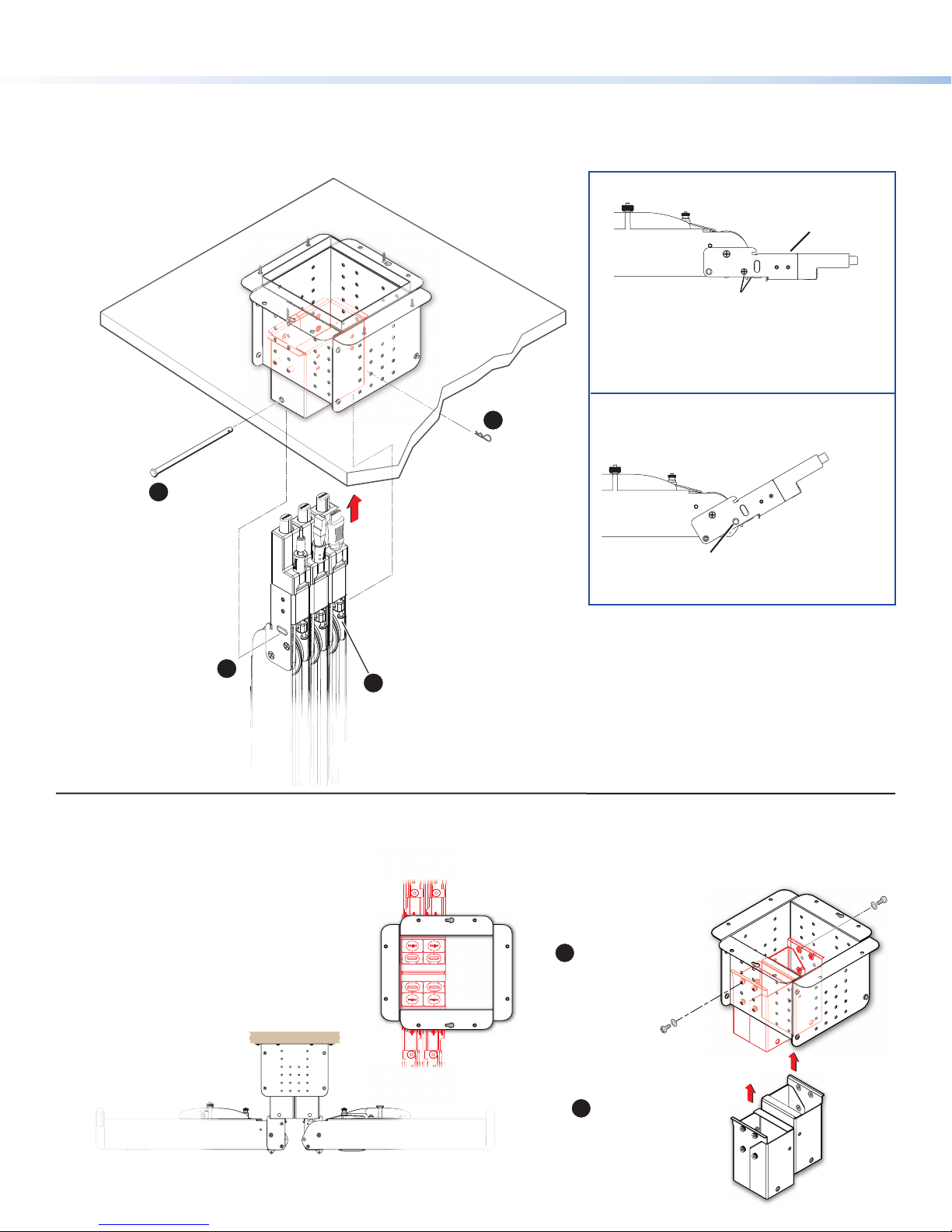

Installing Retractors

Follow the steps below to install Retractors. For horizontal or angular Retractor mounting, see the information below at right, then

follow the steps below.

Insert the included pin through the

Retractor mounting hole on the side

of the Retractor assembly bracket.

Secur

e the clip

to the pin.

Insert Retractors into

the Retractor bracket. Secure the locking screw

on each Retractor. Do not

overtighten.

Optional Double Retractor bracket mounting:

Install brackets as shown at right. Two double

Retractor brackets can mount up to four

Retractors.

Alternative Retractor Conﬁguration for Cable Cubby 650 UT

Cable Cubby 650UT

Side View

Secure the brackets using four of

the provided pan-head mounting

screws with star washers. Tighten

the screws using a screwdriver.

Insert the brackets as shown.

The bracket may be installed on

the left or right side of the enclosure

and at the lowest height.

Routing and Connecting Cables

For cable pass-through applications,

allow at least 36 inches (0.9 m) of cable

loop for each cable.

Connect cables to the AV system

and connect the AC power cord.

Using zip ties, secure cables to the holes

on the bottom of the Cable Cubby.

NOTE: Ensure that there is no tension on the power cable.

CAUTION:

Risk of Electric Shock.

This equipment must be grounded.

ATTENTION :

Risque de choc électrique.

Cet équipement doit être xé au sol.

Installation Checklist

Planning (page 1)

Check with local and state regulations before starting the installation

Check all parts and equipment before installation

Determine number of enclosures to install

Preparing the Table (page 2)

Determine the best location for the enclosure

Verify sufcient space under furniture

Cut a hole in the table and pre-drill mounting holes (page 3)

Preparing the Cable Cubby (page 4)

If applicable, assemble enclosures

Assemble connectivity modules

Install the modules (page 5)

Mounting the Cable Cubby (page 5)

Mount the Cable Cubby under the table

Installing Retractors (page 6)

Remove Retractor screws for horizontal and angular mount applications

Install Retractors into the bracket

Routing and Connecting cables (page 7)

Dress cables under the table

Connect cables to the AV system

68-3062-50

Rev. A

04 17

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Australia

+61.8.8113.6800

+61.8.8351.2511 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Indice

Altri manuali Extron electronics Interruttore

Extron electronics

Extron electronics SW2 RGBHVcc Manuale utente

Extron electronics

Extron electronics SW6 VGA Ars Manuale utente

Extron electronics

Extron electronics VSW 2VGA A Manuale utente

Extron electronics

Extron electronics SW DVI Plus Series Manuale utente

Extron electronics

Extron electronics IN1806 Series Manuale utente

Extron electronics

Extron electronics System 4xi Manuale utente

Extron electronics

Extron electronics MTPX Plus Series Manuale utente

Extron electronics

Extron electronics PVS 204SA Plus Istruzioni per l'installazione e il funzionamento

Extron electronics

Extron electronics PVS 405D Manuale utente

Extron electronics

Extron electronics WPD 181 Manuale utente

Extron electronics

Extron electronics System 5 IP Series Manuale utente

Extron electronics

Extron electronics MediaLink Controllers MLC 104 Series Manuale utente

Extron electronics

Extron electronics SW USB Series Manuale utente

Extron electronics

Extron electronics TPS150 Manuale utente

Extron electronics

Extron electronics USB HUB4 AAP Manuale utente

Extron electronics

Extron electronics SW8 HD 4K PLUS Manuale utente

Extron electronics

Extron electronics PVS 407D Manuale utente

Extron electronics

Extron electronics FOX3 Matrix Series Manuale utente

Extron electronics

Extron electronics MMX 42 AV RCA Manuale utente

Extron electronics

Extron electronics MLS 608 D Series Manuale utente

Extron electronics

Extron electronics System 5cr Plus Manuale utente

Extron electronics

Extron electronics VSW 2VGA A Manuale utente

Extron electronics

Extron electronics SW AV Series Manuale utente

Extron electronics

Extron electronics DTP T USW 233 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
