Extron electronics System 10 Plus Manuale utente

User's Manual

MODEL 10 PLUS

MODEL 8 PLUS

SWITCHERS

Contents

Model 8/10 PLUS Introduction and Specifications.............Chapter 1

About this Manual ................................................................. 1-1

Facts and Features ............................................................... 1-1

Description of Features ................................................. 1-2

Specifications ....................................................................... 1-3

Model 8/10 PLUS Operation and Configuration.................Chapter 2

Operation and Front Panel Descriptions............................... 2-1

Rear Panel Descriptions ....................................................... 2-2

Installation Guide .................................................................. 2-3

Model 10 PLUS Diagram ...................................................... 2-4

Output Select DIP Switch Setting ......................................... 2-5

Example Select DIP Switch Settings .................................... 2-6

Changing the Baud Rate ...................................................... 2-7

Model 8/10 PLUS Switcher Connection to Computer........... 2-8

Triple Action SwitchingTM ...................................................... 2-8

Model 8/10 PLUS RS-232 Control .....................................Chapter 3

RS-232 connector location and pin assignments ................. 3-1

Software ........................................................................ 3-1

Host/Switcher Communications..................................... 3-1

Using the Command/Response Table ........................... 3-1

Command/Response Table................................................... 3-2

Software................................................................................ 3-3

Installing the Software ................................................... 3-3

Using the Software ........................................................ 3-3

Configuring Features and Options .................................. Appendix A

MANUAL REMOTE Connector .............................................A-1

KP-10 Hard Wired Remote Control ......................................A-2

IR-10 Infrared Remote Control .............................................A-3

Rack Mounting the Model 8/10 PLUS Switchers ..................A-4

Accessories/Part Numbers ...................................................A-5

Warranty .....................................................Inside of back cover

Safety Instructions ...................................... Inside of front cover

Written and Printed in the U.S.A.

Model 8/10 PLUS

User's Manual

68-080-01

Rev. E

79-11

Page i

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

Legend of Icons

The following icons may be used in this manual:

___ Important information – for example, an action or a step that

must be done before proceeding.

___ A Warning – possible damage could occur.

_ A Note, a Hint, or a Tip that may be helpful.

__ Possible Electrostatic Discharge (ESD) damage could result

from touching electronic components.

__ Additional information may be referenced in another section, or

in another document.

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

Extron’s Model 8/10 PLUS Switchers

User’s Manual

Chapter One

Model 8/10 PLUS Switcher

Introduction

Features

Specifications

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

Introduction

About This Manual

This manual includes operation, configuration and option

information for the Model 8 PLUS and Model 10 PLUS (Model

8/10 PLUS) Switchers.

Model 8/10 PLUS Facts and Features

The Model 8/10 PLUS Switchers enable selection of anyone

of eight (or ten) inputs with the following formats:

• RGBS

• RGsB

• S-Video/SVHS (Y/C) w/Stereo Audio follow

• Composite Video (NTSC/PAL) w/Stereo Audio follow

The output video format of the Model 8/10 PLUS switchers

will always be the same as the selected input video format.

Standard features of the Model 8/10 PLUS switchers are:

• Bandwidth = 300 MHz

• Front Panel Control of Input Selection

• Manual Remote Control Port

• RS-232 Control Port

• BNC Connector Inputs

• Rear Panel Input LED Indicators

• Unused Inputs Terminated at 75 ohms

• BNC and S-Video Output Connectors

• Triple Action SwitchingTM

• Audio (Stereo) Follow capable with Composite or S-Video

• Internal Switch Mode Power Supply

Available Models and Part Numbers are:

Model 8 PLUS Switcher – 60-094-01

Model 10 PLUS Switcher – 60-095-01

The Model 8 PLUS front and back panels are shown below.

Page 1-1

Model 8/10 PLUS Introduction and Specifications

12 34 5 67 8

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

The Model 10 PLUS front and back panels are shown below.

Page 1-2

Model 8/10 PLUS Introduction and Specifications

Description of Features

Outputs – Because switching is direct, the output will always have

the same format as the selected input. Separate output

connectors are provided for RGBS, S-Video, Composite

Video, and Audio.

300 MHz Bandwidth – The wide bandwidth allows signals to be

passed without loss of resolution. This is extremely important

when using high resolution computer workstations.

Triple Action SwitchingTM (RGB Delay) – Triple Action

SwitchingTM is a technique in which the RGB video is blanked

for a brief period when a new input is selected. This prevents

a distorted image from being displayed during the time the

display device sync circuitry is locking onto the new sync

input. When an input is selected, Triple-Action Switching®

does this:

1. Drop the RGB video signals leaving sync connected.

2. Wait for 20 mS and then switch to the new sync signal.

3. Wait for the time delay set by the user (0.0 - 7.5 seconds)

and then switch to the new RGB signals. (During this time

the projector is setting up to match the new sync.)

Switcher Control – Each channel of the switcher can be

controlled in any one of the following ways:

1. Front Panel Buttons.

2. Manual Remote Control Connector – KP-10 Wired

Remote Control, IR-10 Infrared Remote Control or third

party remote control.

3. RS-232 Control Connector – Provides for computer/serial

control of the switcher.

Internal Power Supply – The Model 8/10 PLUS switchers have

an internal, auto-switching (100 - 240 VAC, 50/60 Hz) power

supply. The Model 8/10 PLUS switchers are UL, CE and CSA

approved.

Rear Panel LED Indicators – Rear panel LEDs indicate which

input is selected and which outputs are active.

123456789 10

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

Specifications

General

Operation Temperature ....0°-50° C

Storage Temperature ....-20°-70°

MTBF Demonstrated ....30,000 Hours

Approvals ....UL Listed, CSA, CE

Dimensions ....17" W x 9.25" D x 3.31" H

....43.2cm W x 23.5cm D x 8.4cm H

Shipping Weights ....13.0 lbs.

....5.9 kg

Power Supply ....Internal 100-240 VAC, 50/60 Hz

Warranty ....2 years parts and labor

....(See warranty info-last page)

Video Bandwidth ....300 MHz

Crosstalk at 10 MHz ....-35 db (typical)

Isolation at 10 MHz ....55 db (typical)

Return loss at 10 MHz ....25 db

Input Impedance ....75 Ohms

Output Impedance ....75 Ohms

Termination Impedance ....75 Ohms

Sync Input Impedance ....510 Ohms

Gain ....None

Connectors ....Input Type

....BNC (Female)

....Output Type

....BNC (Female)

....4 Pin Mini-DIN (S -Video)

12345678910

Page 1-3

Model 8/10 PLUS Introduction and Specifications

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

Extron’s Model 8/10 PLUS Switchers

User’s Manual

Chapter Two

Model 8/10 PLUS Switcher

Operation and Installation

Switcher Operation

Front Panel

Rear Panel

Switcher Installation Guide

Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s ManualPage 2-1

Model 8/10 Switcher Operation

The Model 8/10 PLUS switchers enable the output to be

switched from anyone of 8 or 10 inputs (A)* and the following

formats are supported:

• RGBS – RGB with separate composite sync

• RGsB – RGB with sync on green

• Monochrome Composite Video

• NTSC/PAL (Composite) Video w/Stereo Audio follow

• S-Video (SVHS) w/Stereo Audio follow

When an input is selected, an LED will illuminate green next

to the selected BNC input connectors on the rear panel (H)*.

Three sets of output connectors are used for the four different

video format outputs. They are:

• RGB (RGBS or RGsB) – 4 BNC connectors (B)*

• VIDEO (NTSC/PAL) – 1 BNC connector (C)*

• S-Video (SVHS) – 1 S-Video DIN connector (D)*

Audio, if used, is available on the two output BNC connectors

labeled AUDIO (L and R) (E)*.

Only one set of output connectors is active at a time. The

current active set is identified by an illuminated LED next to

the active output connector(s) (F)*.

The Output Select DIP Switch (G)* settings will determine

which of the three output connectors that the selected input

will be directed to. These switches must be set for each input

to match the incoming format. There are two switch modules,

the left switch module is for RGBS/S-Video selection and the

right switch module is for RGBS/NTSC-PAL selection. The

switch modules are numbered from top to bottom to match the

input number.

Front Panel

The POWER LED (see front panel drawing below), when

illuminated, indicates that the switcher power is on. If AC

voltage is available to the switcher, it is powered on.

Front Panel switches 1 – 10 (Model 8 = 1 – 8) shown in the

drawing below may be used to select the input. The LED in

the front panel switch for the selected input will be illuminated.

* –

(A) thru (K) refer to the drawing and descriptions on the

facing page.

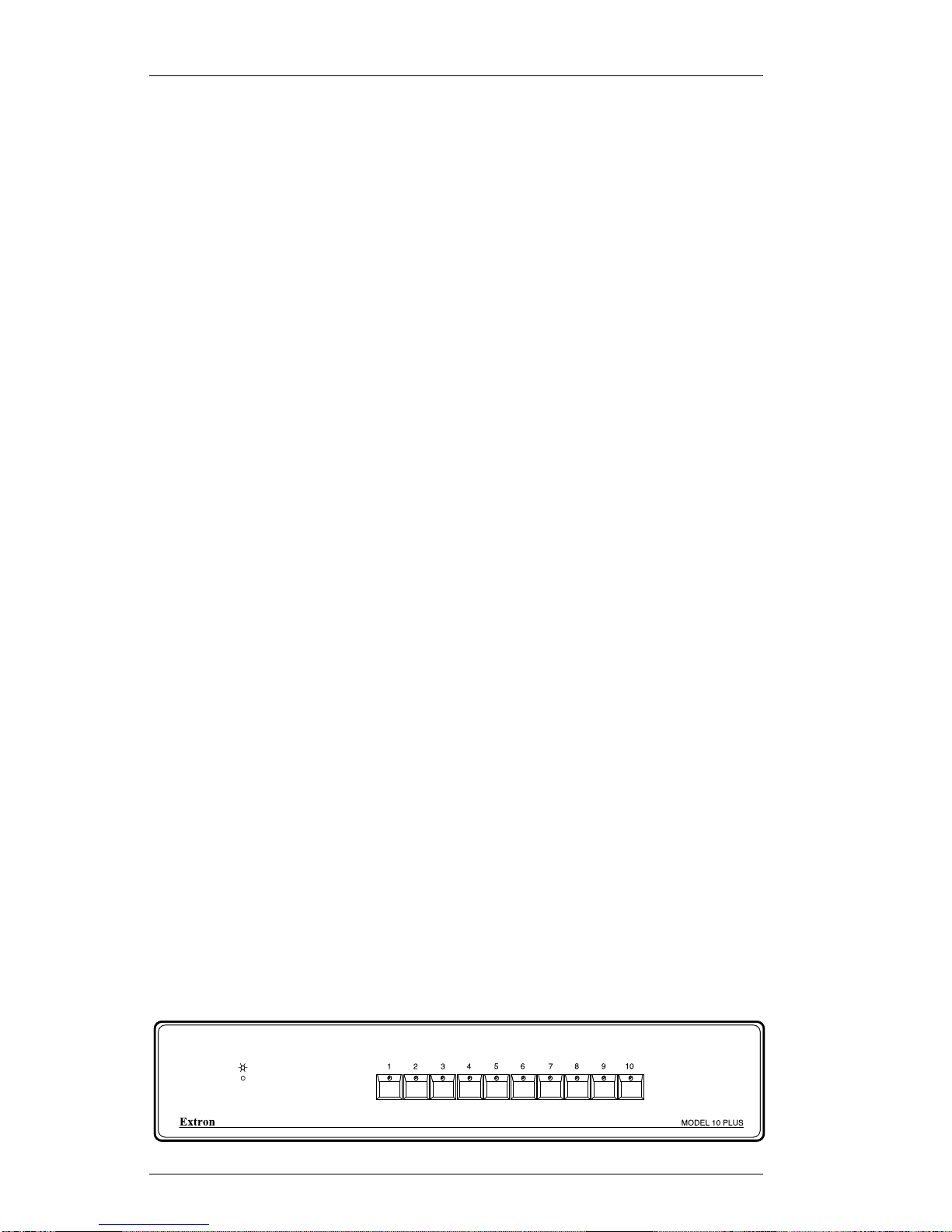

Model 10 PLUS Front Panel

Model 8/10 PLUS Operation and Configuration

Altri manuali per System 10 Plus

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Extron electronics Interruttore

Extron electronics

Extron electronics DTP T DSW 4K 333 Manuale utente

Extron electronics

Extron electronics MSW 4V SDI rs Manuale utente

Extron electronics

Extron electronics XTP T USW 103 Manuale utente

Extron electronics

Extron electronics MMX 62 AV RCA Manuale utente

Extron electronics

Extron electronics IPL T SF24 Series Manuale utente

Extron electronics

Extron electronics MSW 4SV rs Manuale utente

Extron electronics

Extron electronics Matrix 3200 Series Manuale utente

Extron electronics

Extron electronics VEGA AUDIO SW6 Manuale utente

Extron electronics

Extron electronics Extron SW 2 VGAcc Manuale utente

Extron electronics

Extron electronics SW DVI Plus Series Manuale utente

Extron electronics

Extron electronics RGB 580xi CCSI AAP Manuale utente

Extron electronics

Extron electronics MLS 100 A Manuale utente

Extron electronics

Extron electronics SVS 100 Manuale utente

Extron electronics

Extron electronics MEDIALINK MLC 206 Manuale utente

Extron electronics

Extron electronics VSW 2VGA A Manuale utente

Extron electronics

Extron electronics VSW 2VGA A Manuale utente

Extron electronics

Extron electronics DTP CrossPoint 84 IPCP Manuale

Extron electronics

Extron electronics DXP HD 4K Series Manuale utente

Extron electronics

Extron electronics FOX T USW 203 Manuale utente

Extron electronics

Extron electronics SW4 3G HD-SDI Manuale utente

Extron electronics

Extron electronics SW RGBHV Series Manuale utente

Extron electronics

Extron electronics MMX 42 AV RCA Manuale utente

Extron electronics

Extron electronics DTP T USW 333 Manuale utente

Extron electronics

Extron electronics RGB 580xi AAP Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
