Fagor Combi BI60 Manuale utente
Cooling Business Group
1
INSTALLATION
Directions
Cooling Business Group
2
Handbook for the carpenter
Before the installation- Combi BI60

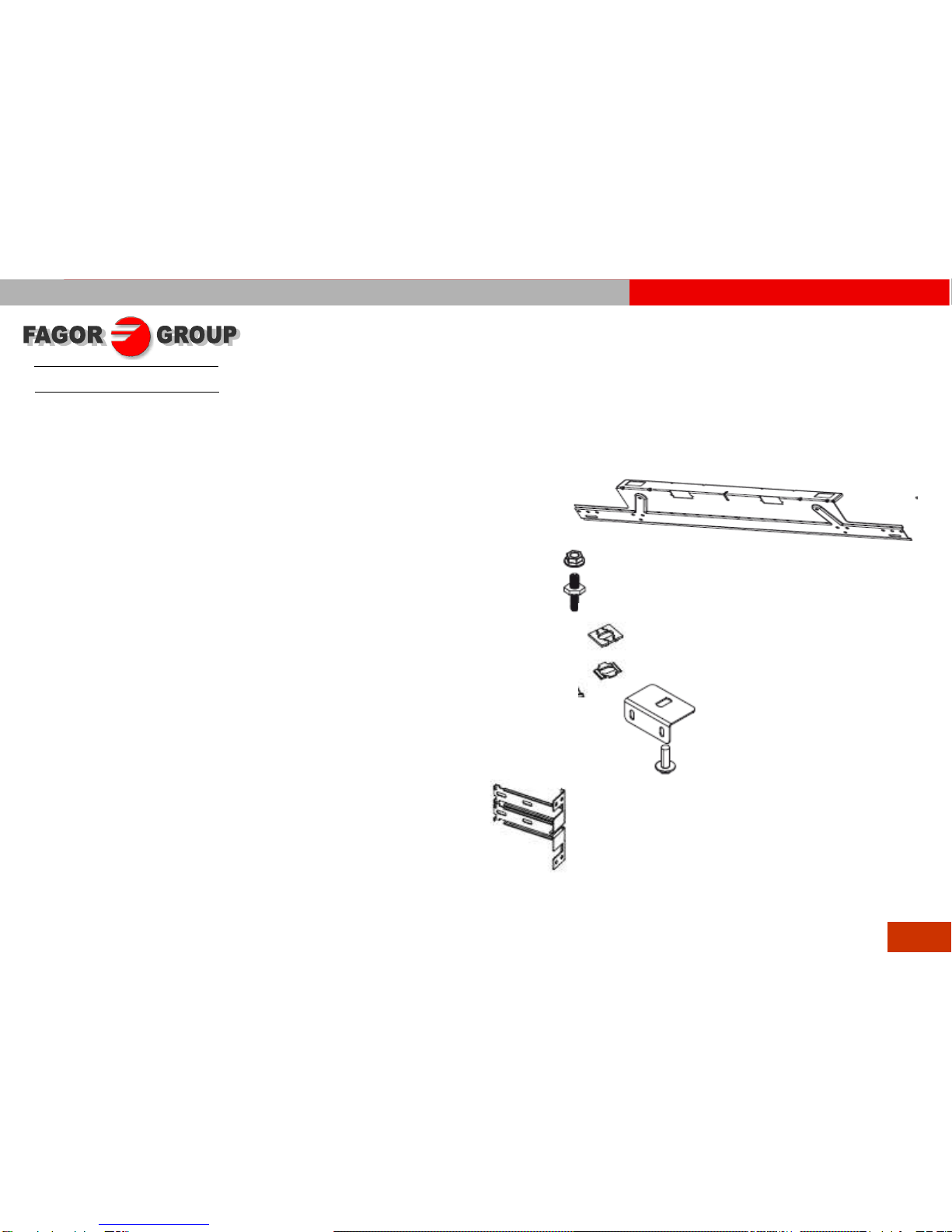

Needed pieces for the BI60 installation
Installation brackets (2 units)
Adjustment screws and nuts (4 units)
Crossing sets (4 units)
Attaching brackets (6 units)
Hinge’s cover set (4 units)
Cooling Business Group
3
Handbook for the carpenter
Before the installation- Combi BI60

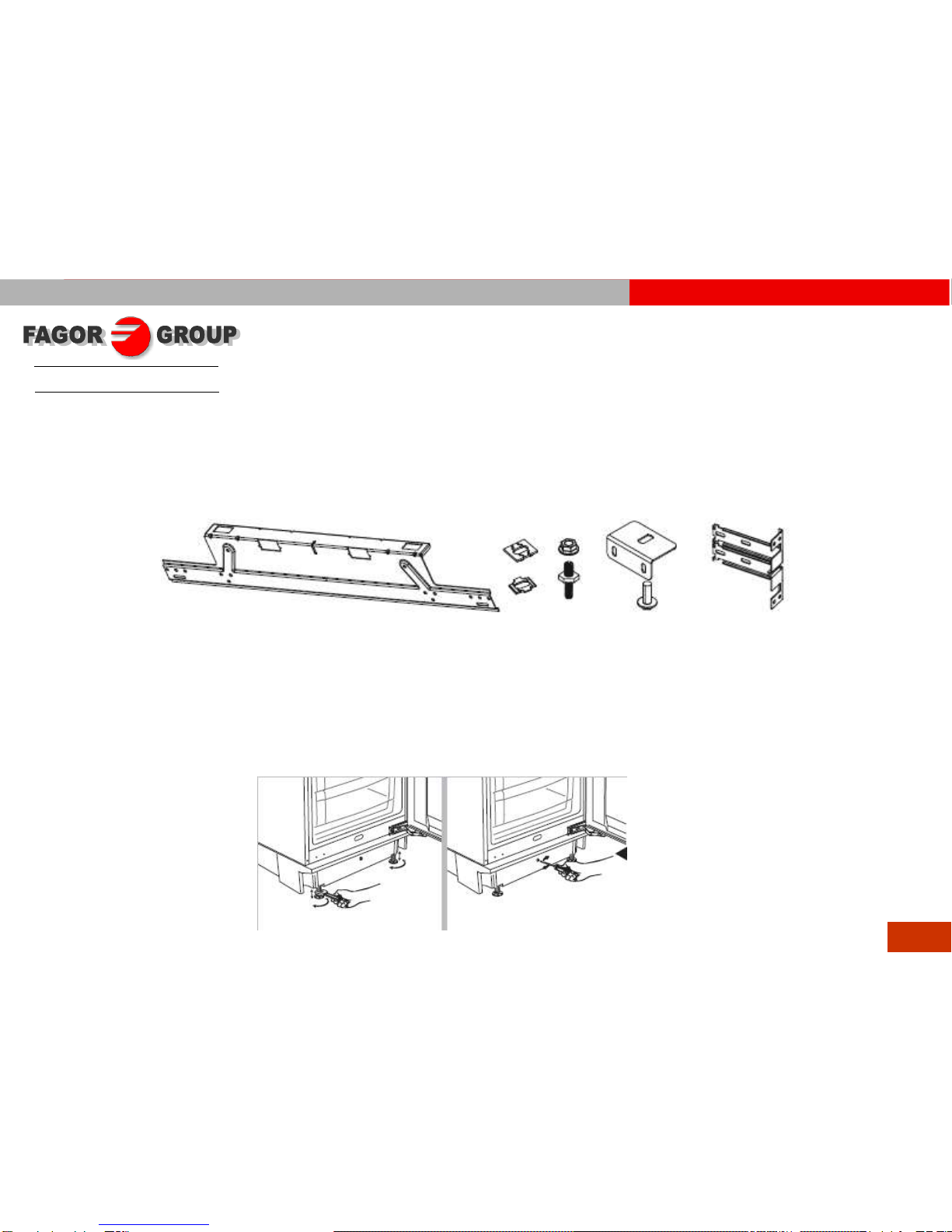

1. Check the pieces you need for the installation
2. If the plinth of your kitchen is higher than 4 inches, elevate the fridge
1 inch. This operation will help you in the instalation and the
adjustment of the panels.
Cooling Business Group
4
Handbook for the carpenter
Before the installation- Combi BI60
Change the opening direction of the doors
1. Top Door
1. The top hinge is right at the bottom left
2. The bottom hinge is right at the top left
2. Bottom Door
1. The top hinge is right at the bottom left
2. The bottom hinge is right at the top left
Cooling Business Group
5
Handbook for the carpenter
Attach the panels - Combi BI60
Place the Adjustment screws and nuts
1. Place the adjustment screws at the top part of the fridge’s doors. It is important
to adjust the screws in order to leave 1/5” between the door and the regulation
nut. (see the picture)
2. Place the attaching brackets at the bottom part of the fridge’s doors.
Cooling Business Group
6
Handbook for the carpenter
Attach the panels - Combi BI60
Preparation of the furniture panels:
Place the template carefully at the back side of the door
1. Bottom door: Place the template taking as your reference the high part of the
panel. (marks number 1)
2. Upper door: Place the template taking as your reference the low part of the
panel. (marks number 2)
Cooling Business Group
7
Handbook for the carpenter
Attach the panels - Combi BI60
Preparation of the furniture panels:

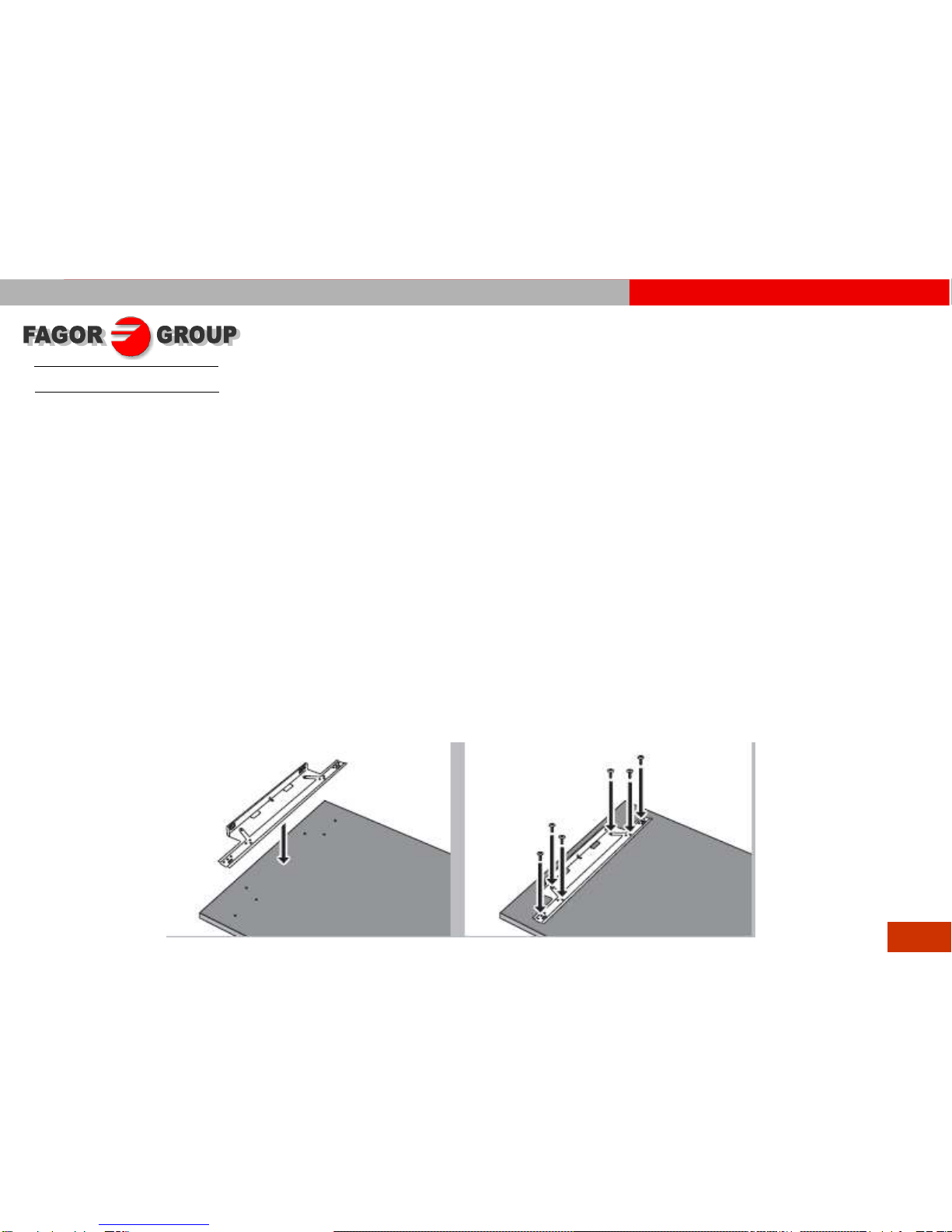

Attach the installation brackets and the furniture panels
Freezer
1. Place the installation bracket at the back side of the panel, use the marks made
with the template to place it properly, and attach it with the bolts provided with
the installation kit.
Fridge
1. Place the installation bracket at the back side of the panel, use the marks made
with the template to place it properly, and attach it with the bolts provided with
the installation kit.
Cooling Business Group
8
Handbook for the carpenter
Attach the panels - Combi BI60
Preparation of the furniture panels: Crossing sets.
Place the fittings carefully in the installation bracket.
IMPORTANT: Place the metallic and plastic pieces as are shown in the
Cooling Business Group
9
Handbook for the carpenter
Attach the panels - Combi BI60
Panels installation procedure:
1. Step 1: Freezer
2. Step 2: Fridge
Place and adjust the panels:
1. Place the panel, introduce the adjustment screws in the crossing sets.
2. Introduce the adjustment nuts in the adjustment screws and block them.
3. Close the door and check the adjustment
4. Unblock the nuts and adjust the panel.
Cooling Business Group
10
1 2
2
Handbook for the carpenter
Attach the panels - Combi BI60

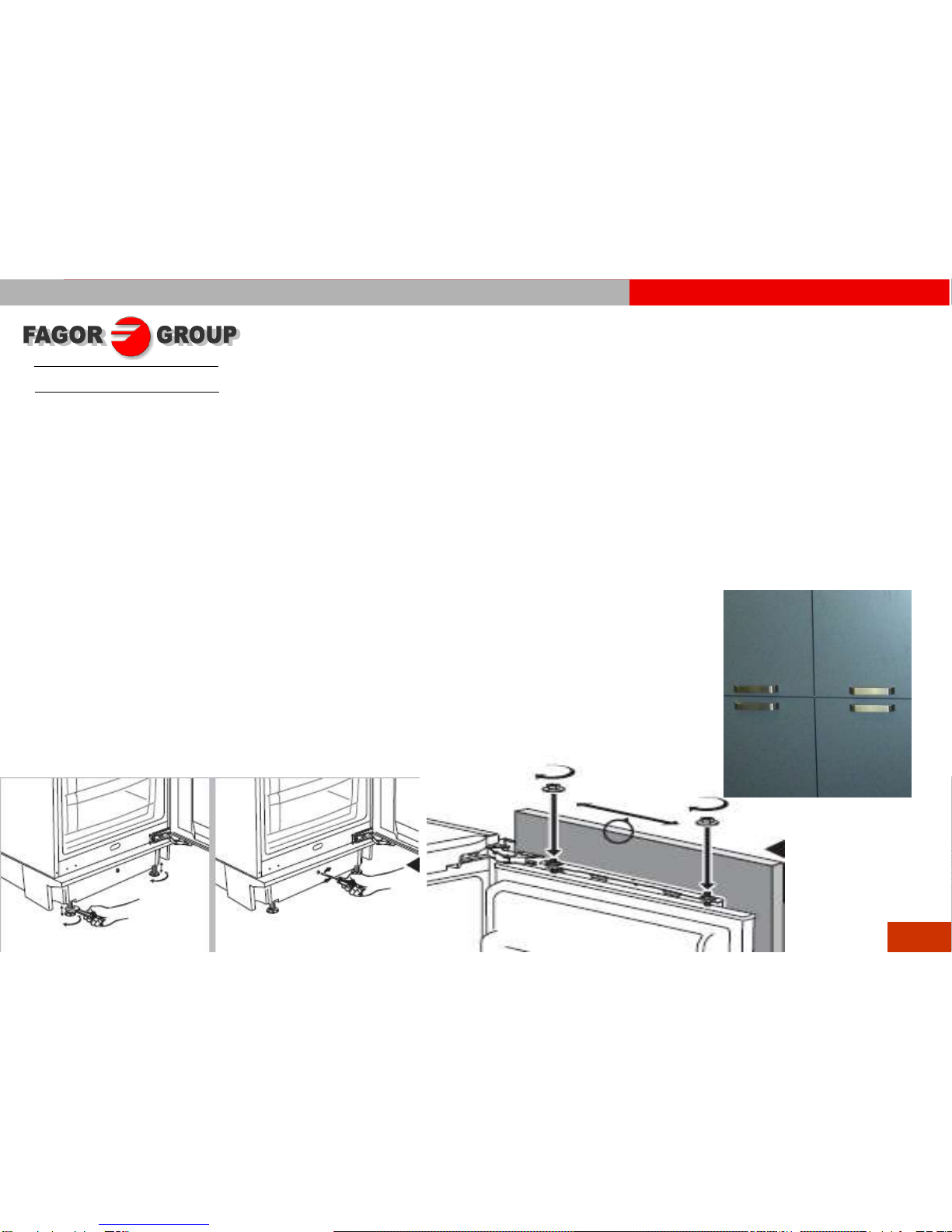

Adjustment of the panels:
1. Align with door
1. Align the bottom of the door of the refrigerator with the wooden
furniture with: adjustable feet with screws or brackets 2
2. Horizontal and vertical alignment of the door trim:
1. Side marker 1
2. Vertical marker 2
