SAFETY INFORMATION AND GENERAL INSTRUCTIONS

... 2

2. DESCRIPTION OF THE REFRIGERATOR. .......................... 3

3. INSTALLATION. ........................................................................ 4

4. OPERATION AND USE OF THE REFRIGERATOR

FOR DUALADJUSTMENT MODELS...................................... 7

5. OPERATION AND USE OF THE REFRIGERATOR

FOR SINGLE ADJUSTMENT MODELS.................................. 9

6. CORRECT USE OF THE APPLIANCE.................................... 11

7. CLEANING AND MAINTENANCE. ........................................ 13

8. NORMAL REFRIGERATOR NOISES. .................................... 14

9. TROUBLESHOOTING. .............................................................. 15

10. TECHNICAL SERVICE CALLS. .............................................. 17

11. SPECIFICATIONS. ...................................................................... 17

CONTENTS

Page

Please read these instructions carefully before use. Keep

this manual for future reference

FQ8G220A1 8/3/05 08:55 Página 54

ENGLISH

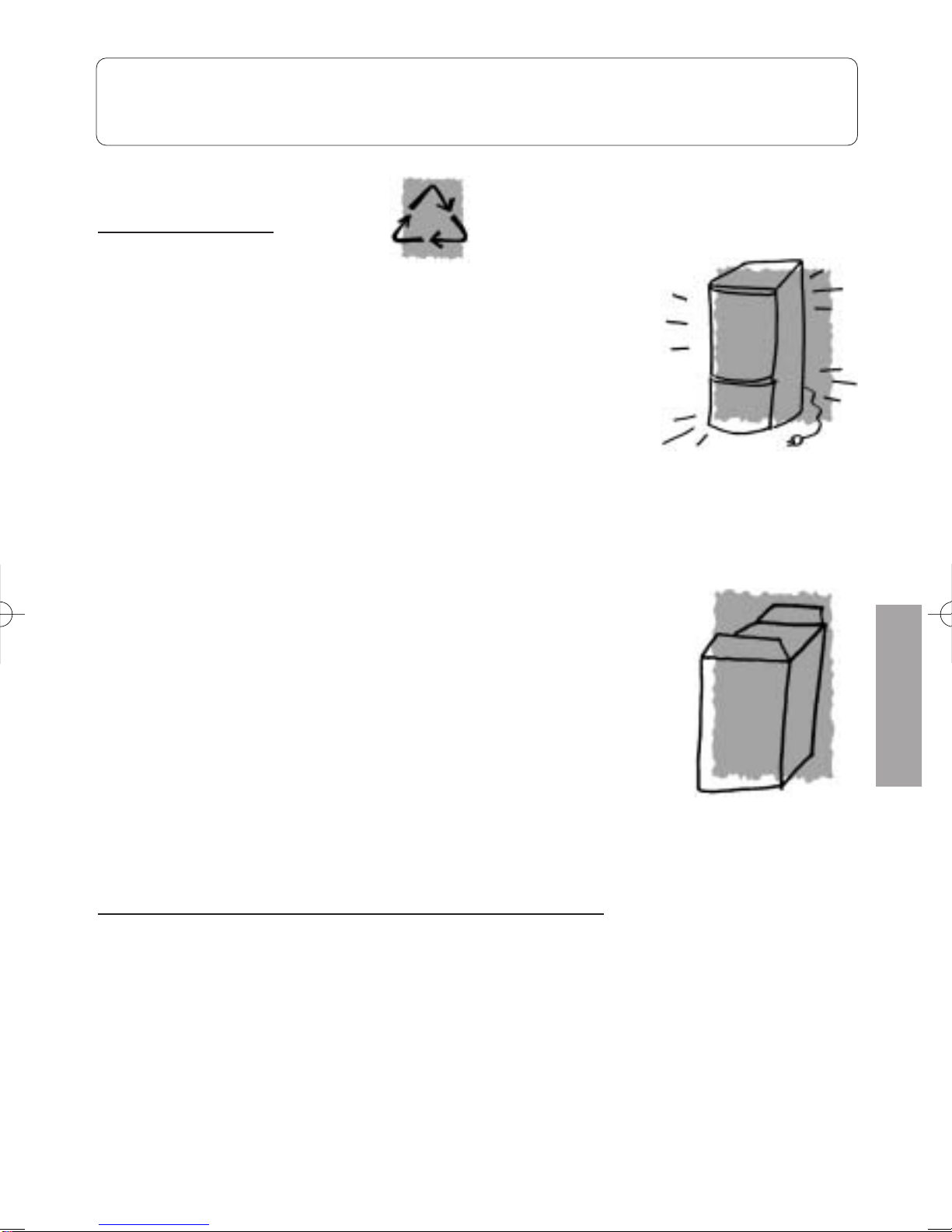

RECYCLING:

OLD REFRIGERATOR:

➭To prevent environmental damage, use the municipal

collection service for disposal.

➭Make sure that the refrigeration circuit is not damaged: it

may contain substances which could affect the

environment.

➭Make the refrigerator unusable:

1. Cut off supply cable.

2. If possible remove the doors: leave the racks in place to prevent children

from getting in easily.

PACKING:

➭The packing materials used are completely recyclable,

(Cardboard, PE bubble wrap, EPS…).

➭WARNING: Keep packing materials out of the reach

of children: these materials are potentially hazardous.

➭With disposal, observe local standards of treatment of this

type of waste.

FEATURES OF THE REFRIGERATOR:

➭This refrigerator includes a four star ( * ***) freezer compartment enabling you

to freeze food.

➭This refrigerator will operate correctly between the following temperatures:

••

••Dual regulation models: between 10ºC and 43ºC

••

••Single regulation models: between 10ºC and 43ºC

1. SAFETY INFORMATION AND GENERAL

INSTRUCTIONS

FQ8G220A1 8/3/05 08:55 Página 55

Eggs

Bottles

Fruit, vegetables

COLD ZONE

meat and fish

Tins, conserves,

jam

Control and

temperature regula-

tion panel

Cheese, butter

Frozen food and ice

cubes

Extraction

Lip

2. DESCRIPTION OF THE REFRIGERATOR

WARNING:

This diagram may

not correspond

exactly to your

refrigerator.

FQ8G220A1 8/3/05 08:55 Página 56

ELECTRICAL CONNECTION:

➭Plug specifications: 220-240V with earth.

➭Do not use adaptors or extension cables.

➭Ensure that the cable is not in contact with the motor.

➭Ensure that the cable is not caught under the refrigerator.

SAFETY: ➭This model refrigerator is commercialised with R600a coolant.

Points to note:

••

••This coolant does not affect the environment.

••

••It is inflammable, so the cooling circuit must be in perfect

condition. If damaged in any way, consult your distributor before

switching on.

➭This refrigerator must be repaired only by the technical assistance

service, using original spares.

➭Do not use flame-producing equipment or electrical apparatus inside the

refrigerator.

➭Do not allow children to play with the refrigerator.

➭Do not introduce volatile liquids or inflammable products.

➭Do not allow the lead to come in contact with the compressor.

➭Make sure that the lead is not trapped under the appliance.

LOCATION:

➭Ensure that the refrigerator is located away from heat sources

(stoves, radiators, etc.) and protected from direct sunlight, which

increases consumption.

➭Allow air flow around the rear of the refrigerator. Do not cover the

space between the skirting board and floor or the top of the

refrigerator with any object.

➭The refrigerator must not be installed outdoors, or exposed to rain.

➭To ensure better energy efficiency, a 20 mm space is recommended between the

back of the refrigerator and the wall.

➭On certain occasions, relative humidity and room temperature may generate

condensation on the inside and outside of the refrigerator.

To avoid vibrations and noise, ensure that the refrigerator is stable and level.

3. INSTALLATION

ENGLISH

FQ8G220A1 8/3/05 08:55 Página 57

OPERACIONES QUE DEBE REALIZAR:

1. Unplug the refrigerator and take everything from the compartment.

2. Remove the top hinge screw cover.

3. Loosen the top hinge screws.

4. Take the door off with an upward movement.

5. Remove the cover of the central hinge screws, and loosen

the two screws holding it in place.

6. After removing the screws, move the refrigerator door

upwards to release it.

7. If the refrigerator has a plinth, loosen the

central screw holding it in place and remove

the plinth by pulling it back and turning it

downwards.

8. Loosen the screws on the bottom hinge and

remove the hinge.

9. Remove the bottom hinge shaft and fit it to

the opposite side, together with its washers.

Then fit the hinge to the opposite side of the refrigerator.

10.Next mount the plinth in its position, turning it beforehand so that the adjustment

coincides with the hinge.

11.If the door has side handles, change them to the opposite side. The door handles

should be changed depending on their model: the freezer door handle should be

fitted to the refrigerator door and vice versa.

12.If your refrigerator has self-closing devices

on the central hinge area of the doors, remove

them, turn them and place them on the

opposite door and on the opposite side. The

fixing points for the screws will be lightly

marked in the door turning axis area.

CHANGING THE DOOR-OPENING DIRECTION:

on refrigerators with an external top hinge

TOOLS REQUIRED:

➭Philips or crosshead screwdriver and flat screwdriver.

FQ8G220A1 8/3/05 08:55 Página 58

ENGLISH

13.Cover the holes left visible on the door after the self-closing devices have been

changed to the other side, using the caps in the refrigerator documentation bag.

Any flash caused by the screws should firstly be removed.

14.Remove the cover on the side of the refrigerator top and fit it to the other side.

15.Reverse this procedure to refit the doors.

PROCEDURE:

1. Unplug the refrigerator and remove all contents from the inside of the door.

2. If the refrigerator has a plinth, loosen the central screw holding it in place and

remove the plinth by pulling it back and turning it downwards.

3. Loosen the screws on the bottom hinge and

remove the hinge.

Make sure the washers are not lost.

4. Remove the door from the refrigerator.

5. Remove the bottom hinge shaft and fit it to the

opposite side, together with its washers.

6. Remove the central hinge screw covers and remove the

screws holding it in place.

7. Remove the freezer door.

8. Remove the top hinge shaft and fit it to the opposite

side. Make sure the upper washer is not lost.

9. If the door has side handles, change them to the

opposite side. The door handles should be changed

depending on their model: the freezer door handle

should be fitted to the refrigerator door and vice

versa.

CHANGING THE DOOR-OPENING DIRECTION:

On refrigerators with concealed top hinge

TOOLS REQUIRED:

➭Philips or crosshead screwdriver and flat screwdriver.

FQ8G220A1 8/3/05 08:55 Página 59

BEFORE SWITCHING THE REFRIGERATOR ON:

➭Clean the inside with warm water and bicarbonate of soda. Rinse and dry

carefully.

➭Wait for 2 hours before starting, to ensure that the motor lubricants have

stabilised.

➭If the refrigerator has been switched off, wait 4 hours after restarting before

placing food inside.

10.If your refrigerator has self-closing devices on

the central hinge area of the doors, remove

them, turn them and place them on the opposite

door and on the opposite side. The fixing points

for the screws will be lightly marked in the

door turning axis area.

11.Cover the holes left visible on the door after the

self-closing devices have been changed to the other side, using the caps in the

refrigerator documentation bag.Any flash caused by the screws should firstly be

removed.

12.Proceed to mount the doors following the disassembly procedure but in reverse

order.

➭In normal conditions, the recommended approximate

temperature is 4ºC in the refrigerator and about –19ºC in the

freezer.

➭To regulate the temperature, use the temperature selection

controls: temperatures are indicated in ºC.

TEMPERATURE REGULATION:

WARNING: The inside refrigerator temperature depends on:

■Room temperature.

■The location of the refrigerator.

■Door-opening frequency

4. REFRIGERATOR OPERATION AND USE FOR

DUAL ADJUSTMENT MODELS

FQ8G220A1 8/3/05 08:55 Página 60

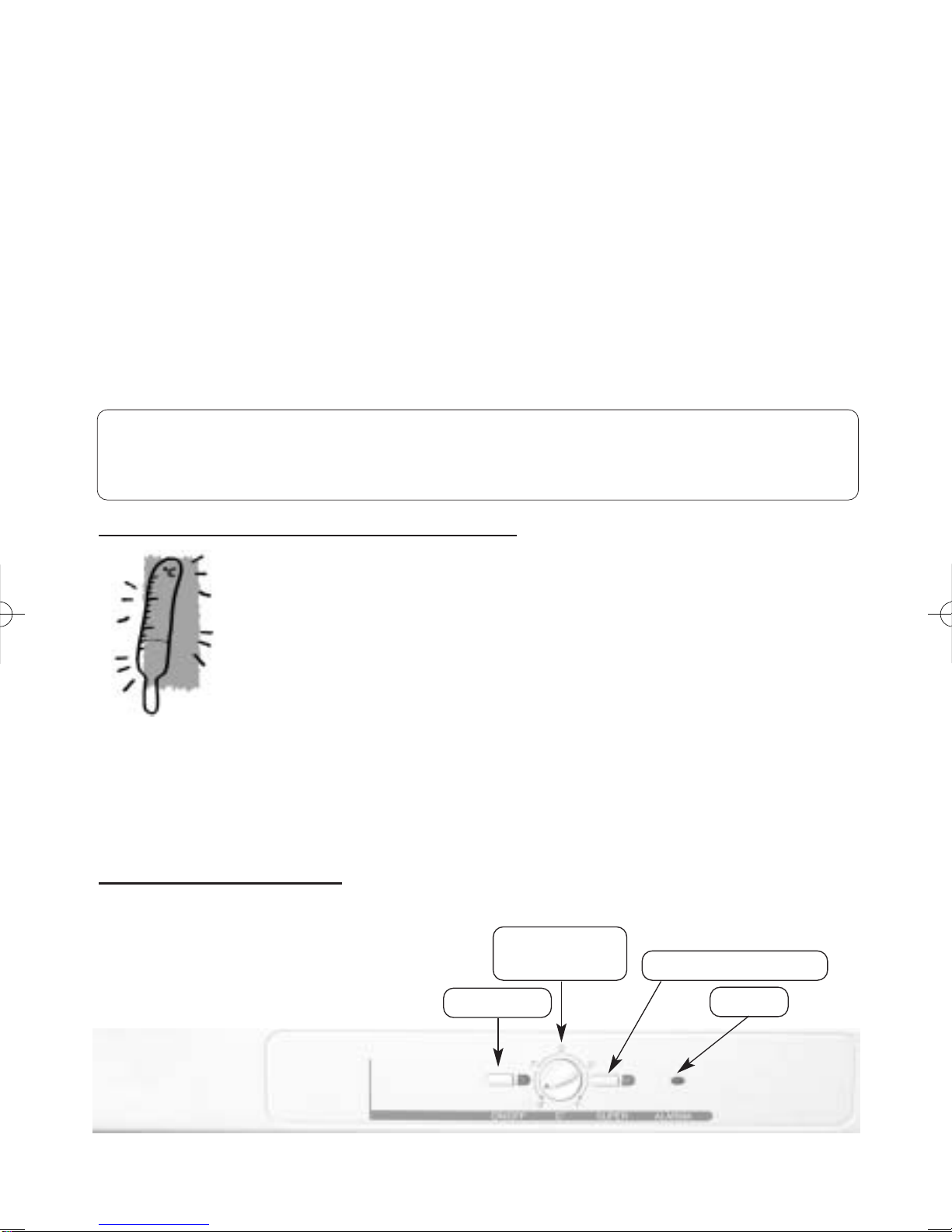

CONTROL PANEL

Freezer

Temperature

Selection

Refrigerator

Temperature

Selection

SUPER

FREEZING

FREEZER AND

REFRIGERATOR

CONNECTION

Holiday

function SUPER

COOLING

ALARM

REFRIGERATOR FREEZER

Cold level

FUNCTIONS

"Temperature selection" ➡➡Turn the control to select the refrigerator and freezer

temperatures in ºC.

"Freezer and refrigerator connection" ➡➡To switch the refrigerator and freezer on and

off. Switching the freezer off will also switch the refrigerator off. There is an ON light.

"SUPER COOLING" ➡➡With this function running, the refrigerator temperature is

regulated automatically to maximum cold for six hours. It switches off

automatically but can also be turned off automatically before the 6 hours is up.

"SUPER FREEZING" ➡➡With this function running, the freezer temperature is

automatically adjusted to maximum cold. This is to facilitate freezing of food and

it is recommended that it is turned on 24 hours before introducing a large amount

of food. The function will turn off automatically, and can also be switched off

manually.

"Warm alarm" ➡➡A light and audio signal is activated if the freezer temperature

is abnormally low. The audio alarm can be turned off manually using the SUPER

FREEZING function.

"Door open alarm" ➡➡If either of the doors remain open for over 2 minutes, an

alarm will sound periodically. This alarm will switch off when the doors are closed.

ENGLISH

FQ8G220A1 8/3/05 08:55 Página 61

"Cold level" ➡➡The number of lights on indicate freezer cold level. The more lights

on, the colder the freezer.

"Holiday Function" ➡➡Used when you want the freezer to work normally and the

refrigerator to be switched off when you do not plan to use it for a long period of

time, such as, for example, during the holiday period. Before enabling this option,

empty the refrigerator, clean it and close the door. Then activate this function to

ensure that your refrigerator is maintained in optimum conditions to avoid

generating unpleasant odours. When you come back from your holidays, simply

deactivate the function and the temperature in the refrigerator will drop once again

to pre-selected level.

➭In normal conditions we recommend selecting a temperature of

about 4ºC.

➭To set the temperature, use the temperature selector control; the

numerical values are in ºC.

TEMPERATURE REGULATION:

WARNING: The inside refrigerator temperature depends on:

■Room temperature.

■The location of the refrigerator.

■Door-opening frequency

CONTROL PANEL

5. REFRIGERATOR OPERATION AND USE FOR

FOR SINGLE ADJUSTMENT MODELS

Temperature

Selection SUPER COOLING

Connection Alarm

FQ8G220A1 8/3/05 08:55 Página 62

Indice

Altri manuali Fagor Frigorifero

Fagor

Fagor FFJ2667AX Manuale utente

Fagor

Fagor 3FAS-9225 Manuale utente

Fagor

Fagor Refrigerator Instructions for Guida

Fagor

Fagor FJ485 Manuale utente

Fagor

Fagor QVR-1 N Manuale semplice

Fagor

Fagor FA256 Manuale utente

Fagor

Fagor Refrigerator Instructions for Manuale utente

Fagor

Fagor IO-REF-0645 Manuale utente

Fagor

Fagor 3FFV-1455R Manuale utente

Fagor

Fagor FA16542 Manuale utente

Fagor

Fagor FD-281NF Manuale utente

Fagor

Fagor FIC-541 Manuale utente

Fagor

Fagor ZFA101 Manuale utente

Fagor

Fagor 3FIC-370 Manuale utente

Fagor

Fagor FIS-810 Manuale utente

Fagor

Fagor FDS-1143 Manuale utente

Fagor

Fagor BMF-200X Manuale utente

Fagor

Fagor 3FFK-5520X Manuale utente

Fagor

Fagor FDS-1141DF Manuale utente

Fagor

Fagor 3FIS-844 Manuale utente

Fagor

Fagor FFK6845VX Manuale utente

Fagor

Fagor FCA-86 ART Manuale utente

Fagor

Fagor FIC-37L Manuale utente

Fagor

Fagor 3FIB-1725 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
