Fein ASCM 12 C Manuale utente

ASCM 12

Technical data

C-SC_CSSM

Version 1.0

2016-05-04

FEIN retains all rights of disposal, such as copying and circulation.

1 / 1

Technical data

All the technical data can be found in the operating instructions for the model.

Tests

Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides).

Lubricants / Auxiliary substances

The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet

(Customer Service → Repair Guides).

Lists of spare parts

Lists of spare parts and exploded views are available online at www.fein.com

ASCM 12

Notes and requirements

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

1 / 1

Please note

These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and

electrical training.

Only use original FEIN spare parts.

Provisions

Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in

serious risks to the user.

The provisions set out in DIN VDE 0701-0702 should be observed after repairs.

The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when

commissioning.

The German Equipment and Product Safety Act [ProdSG] applies for correct use.

Outside Germany, the regulations applicable in the relevant country must be observed.

ASCM 12

Lubricants and auxiliary substances required

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

1 / 1

Please note

No lubricants and auxiliary substances are required for fitting the ASCM 12 machines.

ASCM 12

Troubleshooting

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

1 / 2

Fault Cause Remedy

LED not lighting up

Cable defective Check cable

LED defective Check LED

Electronics defective Replace electronics

Rotor not moving

Mechanical defect Replace rotor/ stator

Cable defective Replace cable

Toggle switch defective Replace toggle switch

Switch defective Replace switch

Battery plug contacts have come loose Check components

Electronics defective Replace electronics

Rotor only turns in one direction Toggle switch defective Replace toggle switch

Switch defective Replace switch

Unusual noise from gearbox (rattling) Gearbox defective Replace gearbox

Torque shut-off cannot be adjusted Adjusting ring defective Replace gearbox

Slide switch stiff Slide switch dirty

Slide switch defective

Clean and lubricate slide switch

Replace gearbox

ASCM 12

Troubleshooting

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

2 / 2

Fault Cause Remedy

Drill chuck jaws stuck Drill chuck opened using machine drive Replace drill chuck

ASCM 12

Removal

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

1 / 9

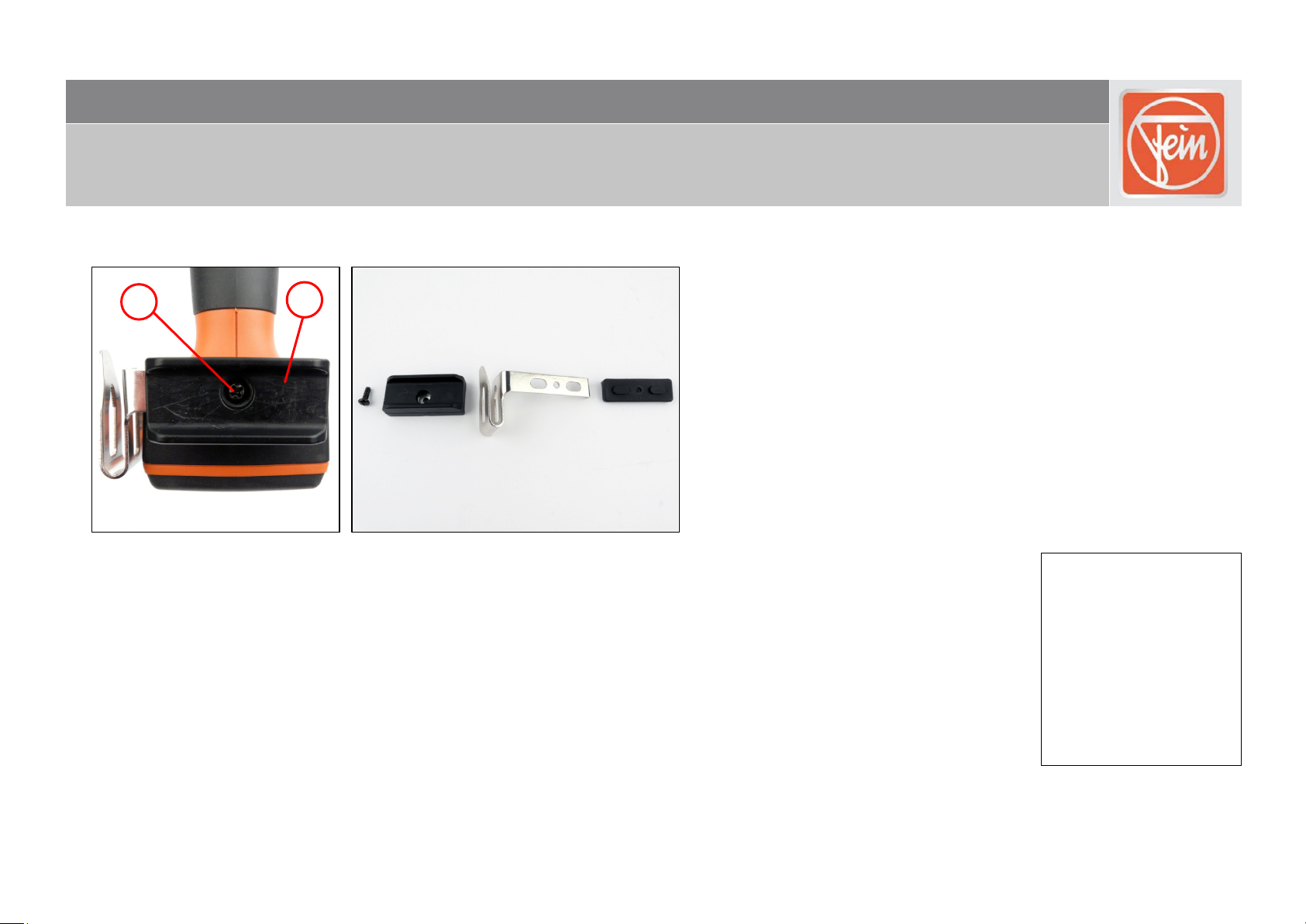

Removing the holder

1. Unscrew the screw (1).

2. Remove the holder (2).

Tools:

- PH2 cross-tip

screwdriver

ASCM 12

Removal

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

2 / 9

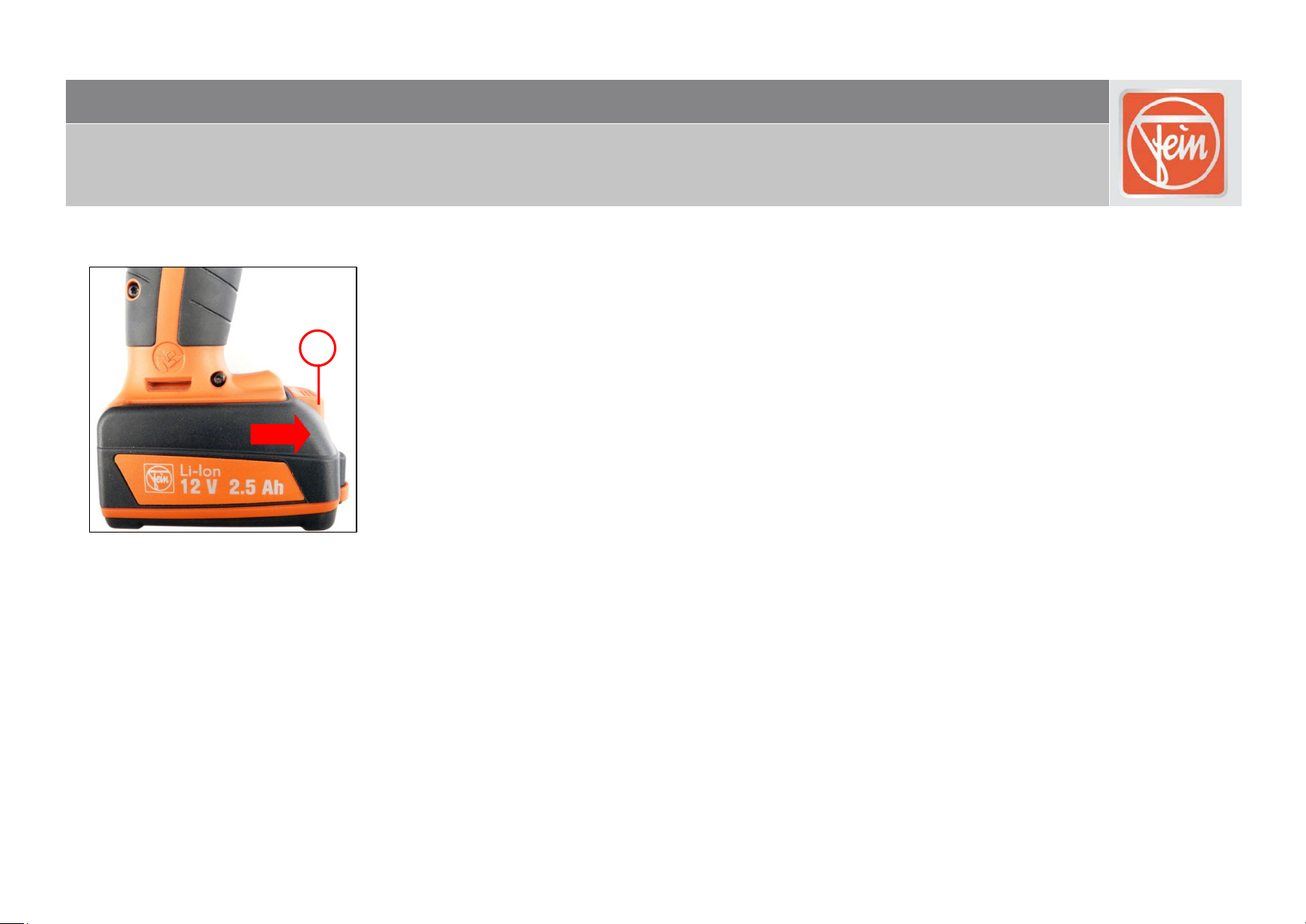

Removing the battery

1. Press and hold the catch (1).

2. Pull off the battery.

ASCM 12

Removal

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

3 / 9

Removing the drill chuck

1. Pull out and hold the bottom of the drill chuck (1).

2. Pull off the drill chuck.

ASCM 12

Removal

C-SC_CSSM

Version 1.0

2016-05-03

FEIN retains all rights of disposal, such as copying and circulation.

4 / 9

Removing the motor housing

1. Unscrew the ten screws (1).

2. Cut through the type plate (2).

3. Remove the motor housing (3).

Tools:

- Torx T10

- Blade
