SERVICE
Toolserviceandmaintencancemustbeperformedonlybyqualified
repairpersonnel.
When servicing a tool, only use identical replacement parts available
from FEIN.
Repairs on FEIN Power Tools required the use of special tools (pulling devices
and bearing press). Authorized repair centers have trained repair technicians
andequipmentnecessaryto per-formthese repairs.Service orrepairs performed
by unqualified persons could result in operator injury.
For the location of the repair center near you, please call 1-800-441-9878.
Monday thru Friday, 9AM to 5PM EST. Or, look on our web site at
www.feinus.com and follow the link to “Authorized Warranty Repair Centers”
Phone: 412-922-8886 Fax: 412-922-8767 Toll Free: 1-800-441-9878
FEIN Power Tools
1030 Alcon Street
Pittsburgh, PA 15220
June 20, 2004
ABS 18V
HandyMaster
Driver/Drill
Fein Power Tools

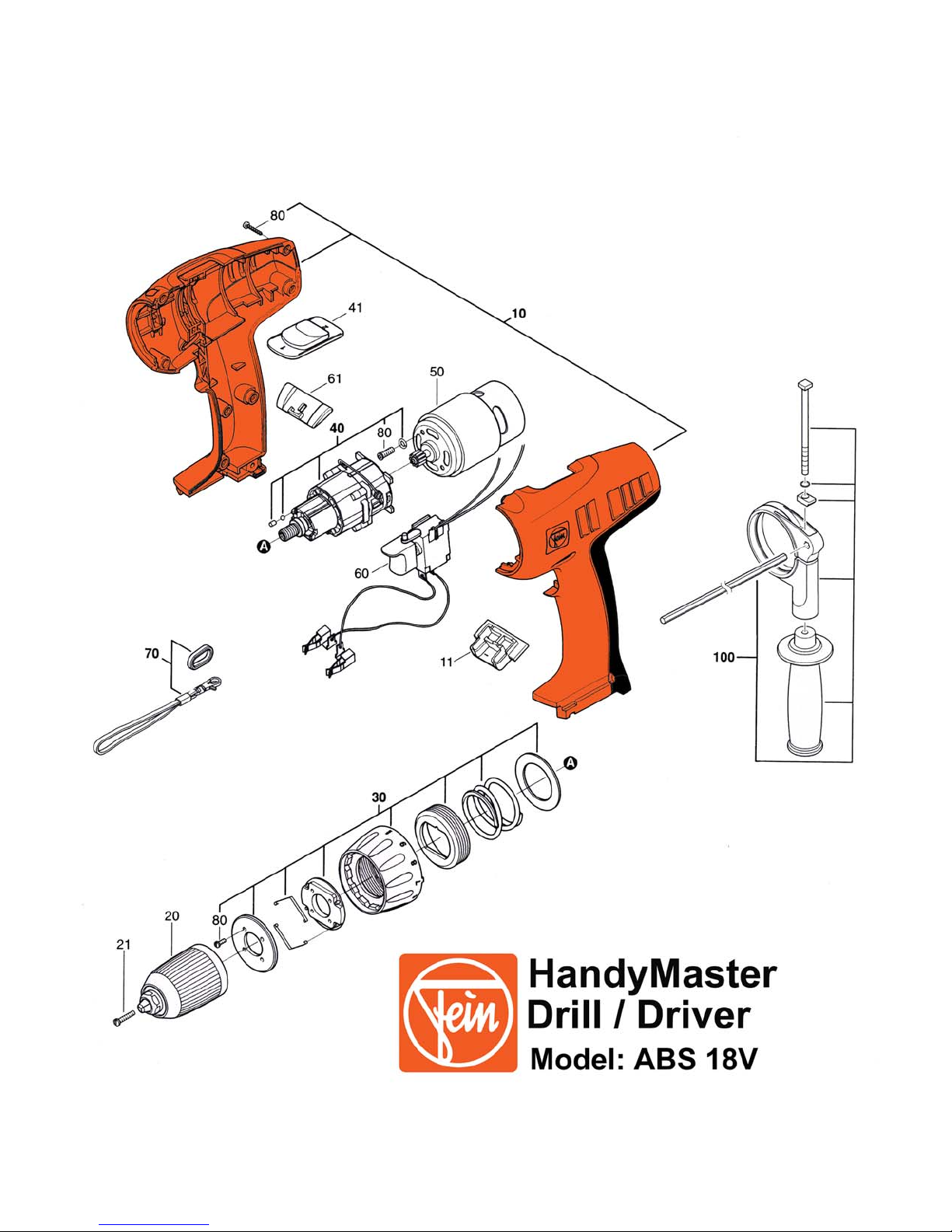

ABS 18V - Parts List
Item Item Number Description Reqd.
10 3-13-33-074-01-6 MOTOR HOUSING 1
11 3-13-33-080-00-2 COVER 1
20 6-32-05-034-01-8 CHUCK 1
21 3-13-33-059-00-2 SCREW 1
30 3-13-33-065-01-1 CLUTCH 1
40 3-13-33-061-01-2 GEARBOX ASSEMBLY 1
41 3-13-33-060-00-4 COVER 1
50 3-13-33-068-01-6 MOTOR 1
60 3-13-33-067-01-8 SWITCH 1
61 3-13-33-053-00-1 COVER 1
70 3-13-33-054-01-8 LANYARD SET 1
80 3-13-33-070-01-2 SCREW 1
100 3-13-33-071-01-1 HANDLE ASSEMBLY 1
