Fein KBE 35 N24 Guida all'installazione

KBE 35 N24; Holemaker III

Repair Instructions

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 1of 61

KBE 35 N24; Holemaker III

Contents

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 2of 61

1. Models described

2. Technical data

3. Notes and requirements

4. Tools required

5. Lubricants and auxiliary substances required

6. Removal

7. Fitting

8. Connection diagram

KBE 35 N24; Holemaker III

1. Models described

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 3of 61

These repair instructions describe how to repair the following models:

Model

Order number

KBE 35 N24

7 270 59 .. .. .

Holemaker III

7 270 59 .. .. .

KBE 35 N24; Holemaker III

2. Technical data

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 4of 61

Technical data

All the technical data can be found in the operating instructions for the model.

Test data

Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides).

Lubricants

The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →Repair Guides).

Lists of spare parts

Lists of spare parts and exploded views are available online at www.fein.com

KBE 35 N24; Holemaker III

3. Notes and requirements

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 5of 61

Please note

These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and

electrical training.

Only use original FEIN spare parts.

Provisions

Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in

serious risks to the user.

The provisions set out in DIN VDE 0701-0702 should be observed after repairs.

The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when

commissioning.

The German Equipment and Product Safety Act [ProdSG] applies for correct use.

Outside Germany, the regulations applicable in the relevant country must be observed.

KBE 35 N24; Holemaker III

4. Tools required

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 6of 61

Standardwerkzeuge

Plastic hammer

Sleeve

•Ø inside 44 mm

Ø outside 55 mm

•Ø inside 39 mm

Ø outside 46 mm

•Ø inside 17 mm

Ø outside 25 mm

•Ø inside 16 mm

Ø outside 25 mm

•Ø inside 26 mm

Ø outside 42 mm

•Ø inside 7 mm

Ø outside 18 mm

•Ø inside 5 mm

Ø outside 15 mm

•Ø inside 10 mm

Ø outside 24 mm

•Ø inside 5 mm

Ø outside 16 mm

•Ø inside 7 mm

Ø outside 18 mm

•Ø inside 10 mm

Ø outside 23 mm

•Ø inside 13 mm

Ø outside 26 mm

•Ø inside 7 mm

Ø outside 13 mm

•Ø inside 26 mm

Ø outside 30 mm

Cross-head screwdriver

Slotted screwdriver

Torx screwdriver

T15; T20

Arbor press

Circlip pliers

Socket head wrench-set

KBE 35 N24; Holemaker III

4. Tools required

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 7of 61

Special tools

Drawing-off socket cap

Assembly aid

Chuck cone 26 mm

Chuck cone 24 mm

Chuck cone 19 mm

KBE 35 N24; Holemaker III

5. Lubricants and auxiliary substances required

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 8of 61

Lubricants

Grease

0 40 128 03 00 0

35 g

Getriebe

KBE 35 N24; Holemaker III

6. Disassembly

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 9of 61

Removing the container

NOTE:

Fluid may be present in the container.

Drain the container (2) before removal.

1. Remove the hose (1) from the hose socket.

2. Remove the container (2).

KBE 35 N24; Holemaker III

6. Disassembly

C-SC_CSSM

Version 1.0

2019-02-15

FEIN retains all rights of disposal, such as copying and circulation.

Page 10 of 61

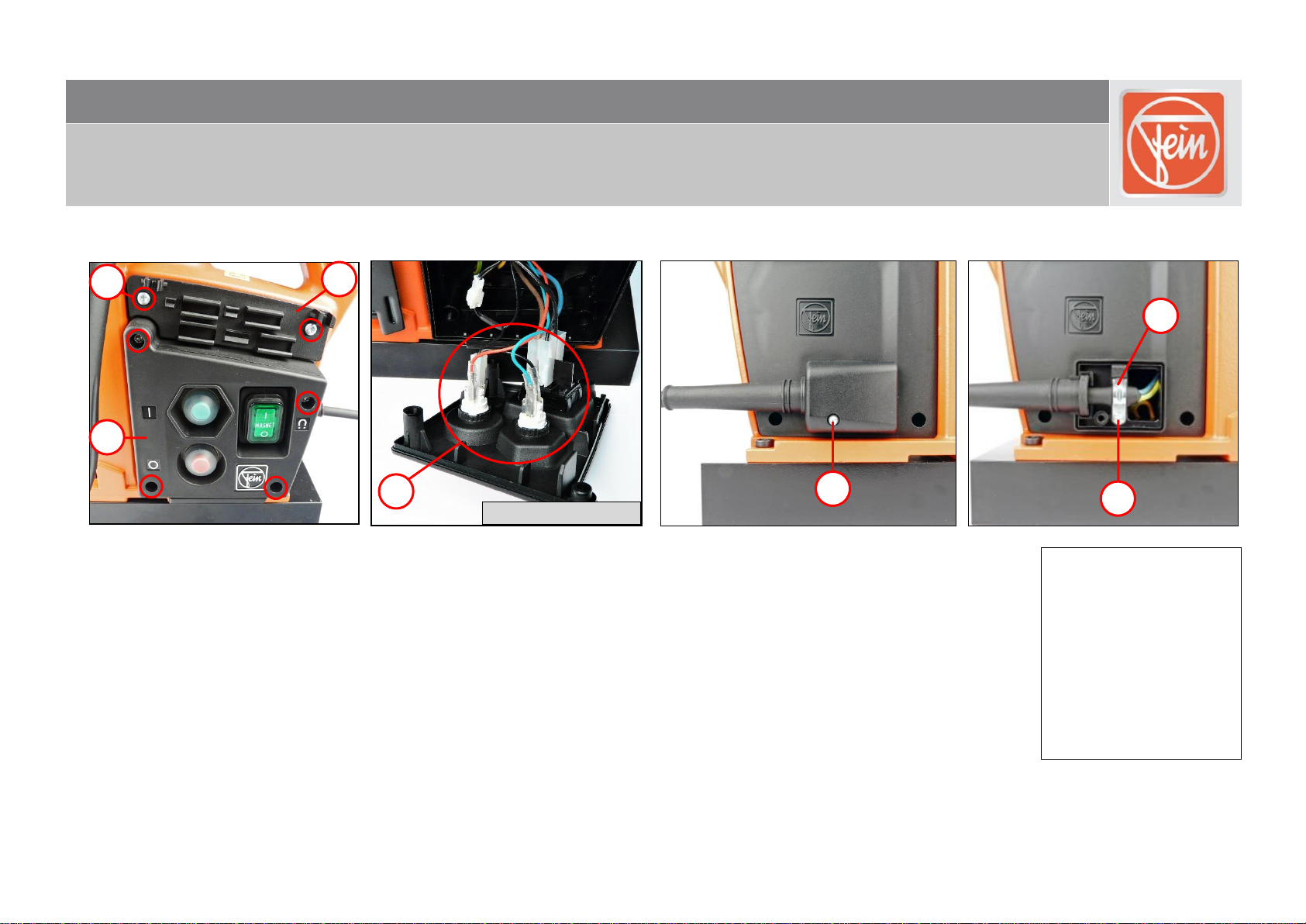

Removing the electronics

1. Unscrew the six screws (1).

2. Remove the holder (2).

3. Remove the cover (3).

4. Disconnect all the connectors (4).

5. Unscrew the screw (5).

6. Unscrew the screw (6).

7. Remove the cable clamping piece (7).

Tools:

- Torx T20

Abbildung ähnlich
